Slider - Seat - 2nd Row - LH (6 Seat) (Remove and Replace)

Correction code 13028102 1.55 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all the doors and lower the front windows.
  2. Remove the LH 2nd row seat assembly from the vehicle. See Seat Assembly - 2nd Row - LH (Without 2nd Row Bench Seats) (Remove and Replace).
  3. Remove and discard the LH 2nd row seat surround carpets from the surround trim.

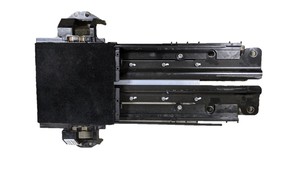

  4. Remove the screws (x2) that attach the LH 2nd row seat magic carpet to the seat assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

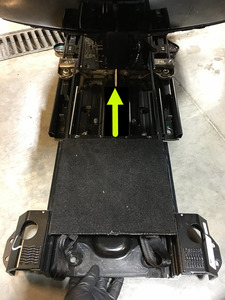

  5. Release the plastic guides (x2) that attach the magic carpet to the LH 2nd row seat slider, and then remove the carpet from the seat slider.

Install

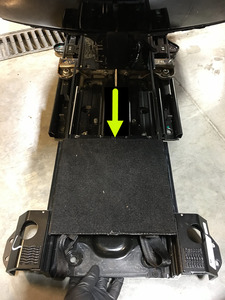

  1. Position the LH 2nd row seat magic carpet onto the LH 2nd row seat slider, and then align the guides into the surround trim channels.
  2. Install the screws (x2) that attach the LH 2nd row seat magic carpet to the seat assembly.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  3. Install new LH 2nd row seat surround carpets to the surround trim.
  4. Install the LH 2nd row seat assembly into the vehicle. See Seat Assembly - 2nd Row - LH (Without 2nd Row Bench Seats) (Remove and Replace).
  5. Raise the front windows and close all the doors.
