Diffuser - Rear Fascia (Remove and Replace)

Correction code 12030802 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Raise the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Remove the mid aero shield panel. See Panel - Aero Shield - Rear (Remove and Replace)

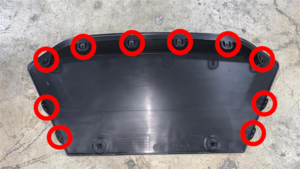

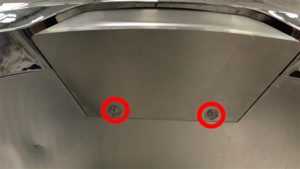

  3. Remove the screws (x2) and release the tabs (x10) that attach the tow hitch cover to the rear fascia diffuser, and then remove the cover from the vehicle.

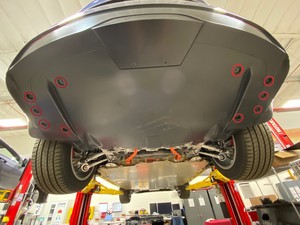

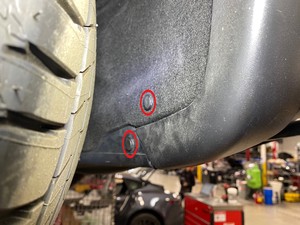

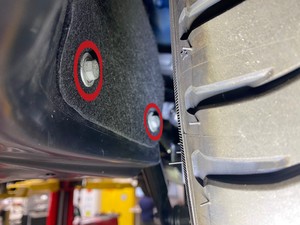

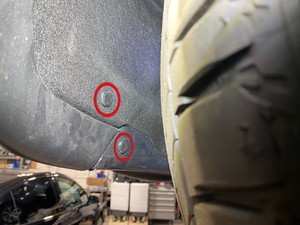

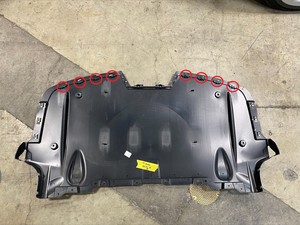

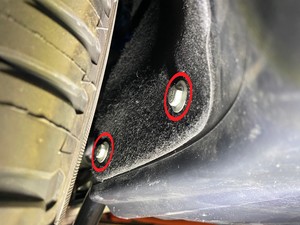

  4. Remove the bolts (x14) and push clips (x4) and release the tabs (x8) that attach the rear fascia diffuser to the vehicle, and then remove the diffuser from the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket

Install

  1. Position the rear fascia diffuser into the vehicle, and then install the bolts (x14) and push clips (x4) and secure the tabs (x8) that attach the diffuser to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket
  2. Position the tow hitch cover into the rear fascia diffuser, and then install the screws (x2) and secure the tabs (x10) that attach the cover to the vehicle.
  3. Install the mid aero shield panel. See Panel - Aero Shield - Rear (Remove and Replace)
