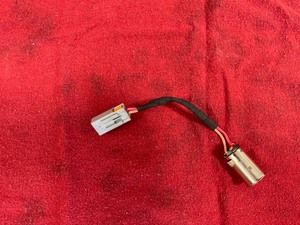

12V Power Socket - Rear Trunk (Remove and Replace)
Correction code
17303202
0.48
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the RH trunk side trim from the vehicle. See Trim - Side - Trunk - RH (Remove and Replace).
-

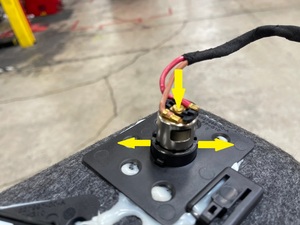

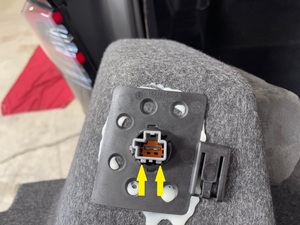

Line up the connector with the slots
in the rear trunk 12V power socket, release the tabs (x2) that attach the socket to the
RH trunk side trim, and then feed the connector through the opening to remove it.
Install
-

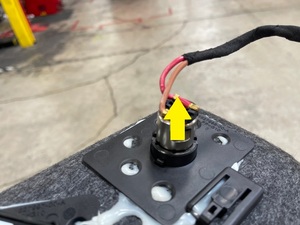

Position the rear trunk 12V power socket into the RH trunk side trim, line up the
connector with the slots in the socket, feed the connector through the opening, and then
secure the tabs (x2) that attach the socket to the side trim.
- Install the RH trunk side trim. See Trim - Side - Trunk - RH (Remove and Replace).
