Hose - Washer - Reservoir (Remove and Replace)

Correction code 17501512 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  4. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  5. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  6. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install).

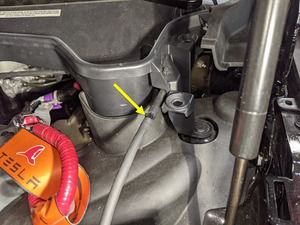

  7. Disconnect the reservoir washer hose from the straight hose coupling at the cowl screen.
  8. Remove the LH front wheel. See Wheel Assembly (Remove and Install).
  9. Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).

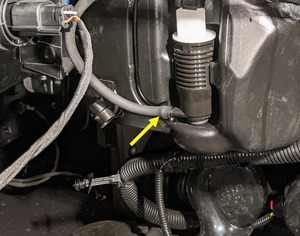

  10. Disconnect the reservoir washer hose from the windshield washer reservoir pump.

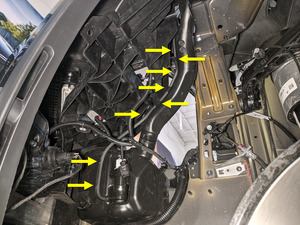

  11. Release the reservoir washer hose from the hooks (x6) and tabs (x2) on the windshield washer reservoir, and then remove the hose from the vehicle.

Install

  1. Position the reservoir washer hose onto windshield washer reservoir, and then secure the hose into the hooks (x6) and tabs (x2) that attach the hose to the reservoir.
  2. Connect the reservoir washer hose from windshield washer reservoir pump.
  3. Install the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
  4. Install the LH front wheel. See Wheel Assembly (Remove and Install).
  5. Connect the reservoir washer hose to the straight hose coupling at the cowl screen.
  6. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install).
  7. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  8. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  9. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  10. Fill the windshield washer reservoir until the fluid level is visible just below the filler neck.
  11. Close the hood.
  12. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
  13. Raise the LH front window and close the LH front door.
