Duct - Center Console - 3rd Row (Remove and Replace)
Correction code
18106192
0.54
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the center console assembly. See Center Console Assembly - 1st Row (Remove and Install).
-

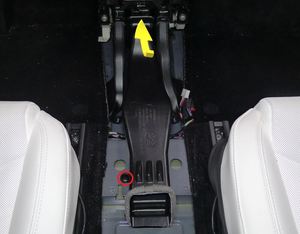

Release the clip that attaches the center console HVAC duct to the HVAC
assembly.
-

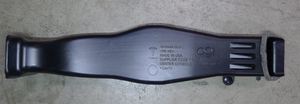

Remove the center console HVAC duct
from the HVAC assembly.
Install
-

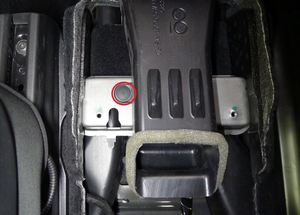

Slide the center console HVAC duct
into HVAC assembly and install the clip that attaches the center console HVAC duct to
the HVAC assembly.
- Install the center console assembly. See Center Console Assembly - 1st Row (Remove and Install).
