Camera Cover - Lower (Remove and Replace)

Correction code 15050902 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.

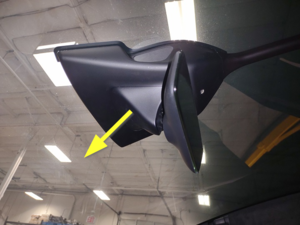

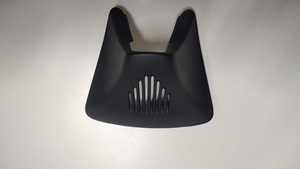

  2. Release the tabs (x6) that attach the lower camera cover to the rear view assembly, and then remove the cover from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press inward on the sides of the cover, and then pull the bottom edge downward to release it.

Install

  1. Position the lower camera cover onto the rear view mirror assembly, secure the tabs closest to the rearview mirror, and then push the cover upward to secure the remaining tabs.
  2. Raise the LH front window and close the LH front door.
