Handle - Emergency Release - Liftgate (Remove and Replace)

Correction code 11404102 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace)

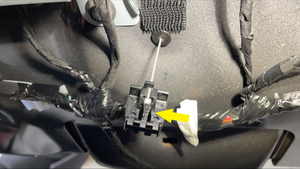

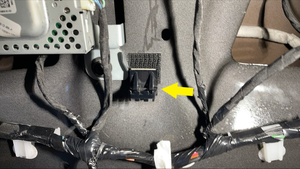

  2. Remove a small amount of the butyl patch, release the locking tab and Velcro strap, and then release the liftgate emergency release handle from the liftgate.

Install

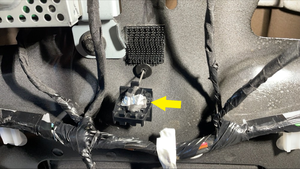

  1. Reapply the small butyl patch, move the liftgate emergency release handle into position, and then secure the locking tab and Velcro patch.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the locking tab is fully securing the release cable.
  2. Install the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace)
