Harness - Headliner (Remove and Replace)

Correction code 17102502 0.96 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the headliner from the vehicle. See Headliner (Remove and Install).

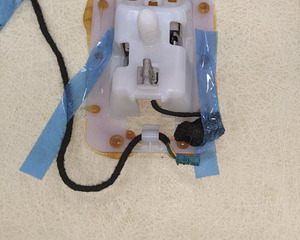

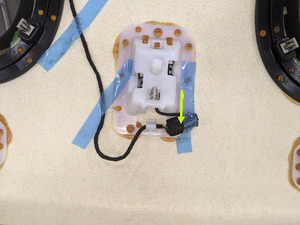

  2. Disconnect the front headliner light harness electrical connector.

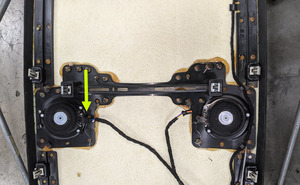

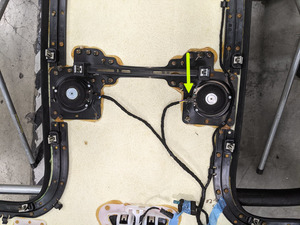

  3. Disconnect the LH and RH side headliner tweeter electrical connectors.

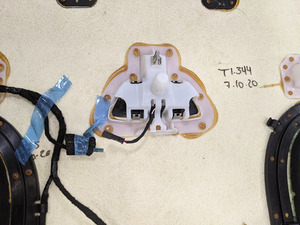

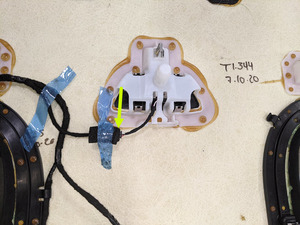

  4. Disconnect the rear headliner light harness electrical connector.

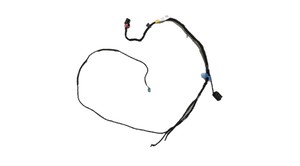

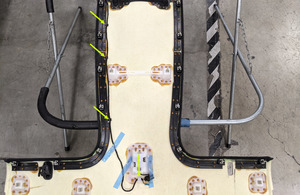

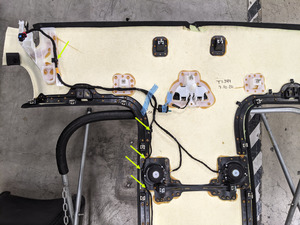

  5. Release the clip and tabs (x6) that attach the headliner harness to the headliner, and then remove the harness from the headliner.

Install

  1. Position the headliner harness into the headliner, and then secure the clip and tabs (x6) that attach the harness to the headliner.
  2. Connect the rear headliner light harness electrical connector.
  3. Connect the LH and RH side headliner tweeter electrical connectors.
  4. Connect the front headliner light harness electrical connector.
  5. Install the headliner into the vehicle. See Headliner (Remove and Install).
