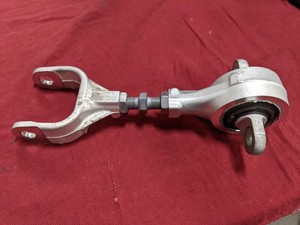

Toe Link Assembly - Rear - LH (Remove and Replace)

Correction code 31032002 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Suspension - Rear (Torque)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut and bolt that attaches the rear toe link to the knuckle
150 Nm (110.6 lbs-ft)
  • 21 mm socket
Reuse
Informational PurposesAn informational icon, calling your attention
Note
2025+ Model X knuckles have captive flag nuts for some joints.
Bolts (x2) that attach the rear toe link to the subframe
85 Nm (62.7 lbs-ft)
  • 16 mm socket
Reuse
Bolt that attaches the ride height sensor arm to the upper fore link
8 Nm (5.9 lbs-ft)
  • 10 mm socket
Reuse

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift
  2. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).

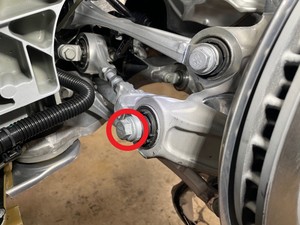

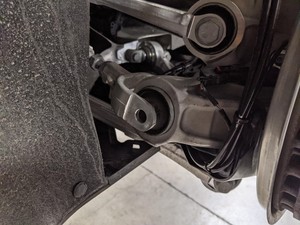

  3. Remove the bolt that attaches the LH rear toe link to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
    Informational PurposesAn informational icon, calling your attention
    Note
    2025+ Model X knuckles have captive flag nuts for some joints.

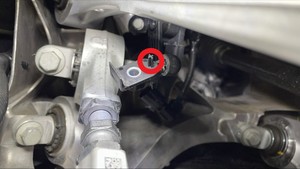

  4. Remove the bolt that attaches the LH rear ride height sensor to the suspension link.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

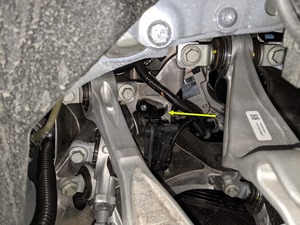

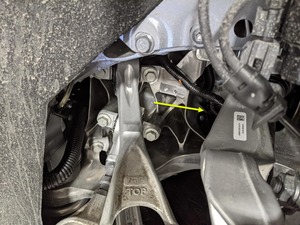

  5. Remove the bolt that attaches the LH ride height sensor to the vehicle, and move the sensor to the side.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  6. While supporting the LH rear knuckle, remove the bolts (x2) that attach the LH rear toe link to the subframe, and remove the toe link from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 16 mm socket

Install

  1. Position the LH rear toe link into the vehicle, and then install and hand-tighten the bolts (x2) that attach the LH rear toe link to the subframe.
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolts will be torqued at a later step.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 16 mm socket
  2. Install and hand-tighten the bolt that attaches the LH rear toe link to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt will be torqued at a later step.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
    Informational PurposesAn informational icon, calling your attention
    Note
    2025+ Model X knuckles have captive flag nuts for some joints.
  3. Torque the bolts that attach the LH rear toe link to the subframe.
    85 Nm (62.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 16 mm socket

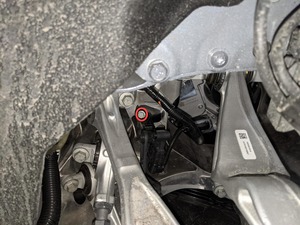

  4. Move the LH rear ride height sensor into position, and then install the bolt that attaches the sensor to the vehicle.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

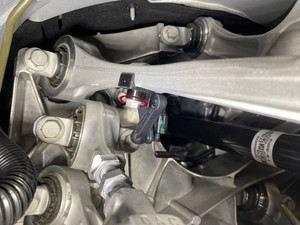

  5. Install the bolt that attaches the LH ride height sensor to the suspension link.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  6. If installed, remove and discard the bolt that attaches the brake rotor to the hub.
    Informational PurposesAn informational icon, calling your attention
    Note
    A new bolt will not be installed.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket

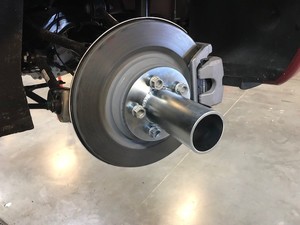

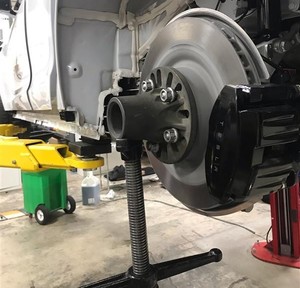

  7. Install a hub jack adapter onto the LH rear hub, and then use a support stand to support the LH rear suspension at ride height (85 mm +/- 5 mm).
    Informational PurposesAn informational icon, calling your attention
    Note

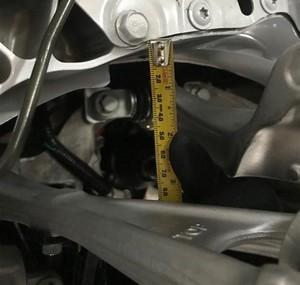

    Measure the distance from the upper fore link to the bolt on the frame rail to make sure LH suspension is set to ride height.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Hub Jack Adapter - 1459409-00-A
  8. Torque the bolt that attaches the LH rear lower fore link to the knuckle and mark it with a paint pen.
    150 Nm (110.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
    Informational PurposesAn informational icon, calling your attention
    Note
    2025+ Model X knuckles have captive flag nuts for some joints.
  9. Lower the support stand until the suspension is unladen, then remove it from the vehicle.
  10. Remove the hub jack adapter from the hub.
  11. Install the LH rear wheel. See Wheel Assembly (Remove and Install).
  12. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
  13. Adjust the vehicle ride height. See Ride Height (Adjust).
