Trim - Underbelly - 2nd Row Seat - LH (6 Seat) (Remove and Replace)

Correction code 13080302 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH falcon wing door.

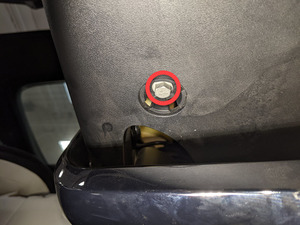

  3. Remove the bolts (x2) that attach the LH 2nd row seat underbelly trim to the seat assembly.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

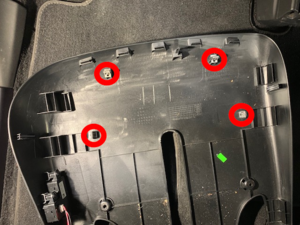

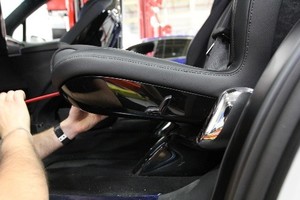

  4. Release the clips (x4) that attach the LH 2nd row seat underbelly trim to the seat assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not pull the trim away from the seat assembly as the switch harness is still connected.

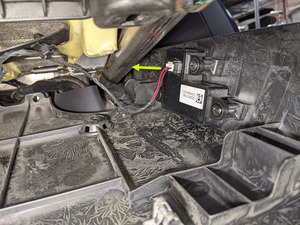

  5. Disconnect the LH 2nd row seat underbelly trim electrical connector, and then remove the trim from the assembly.

Install

  1. Position the LH 2nd row seat underbelly trim onto the LH 2nd row seat assembly, and then connect the electrical connector.
  2. Secure the clips (x4) that attach the LH 2nd row seat underbelly trim to the seat assembly.

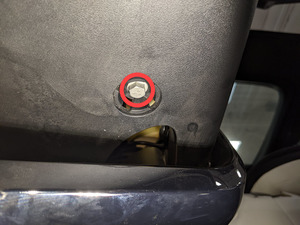

  3. Install the bolts (x2) that attach the LH 2nd row seat underbelly trim to the seat assembly.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  4. Close the LH falcon wing door.
  5. Raise the LH front window and close the LH front door.
