Harness - Fascia - Front (Remove and Replace)

Correction code HW3: 17101002 HW4: 17101012 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2023-06-23: Added HW4.

Remove - HW3

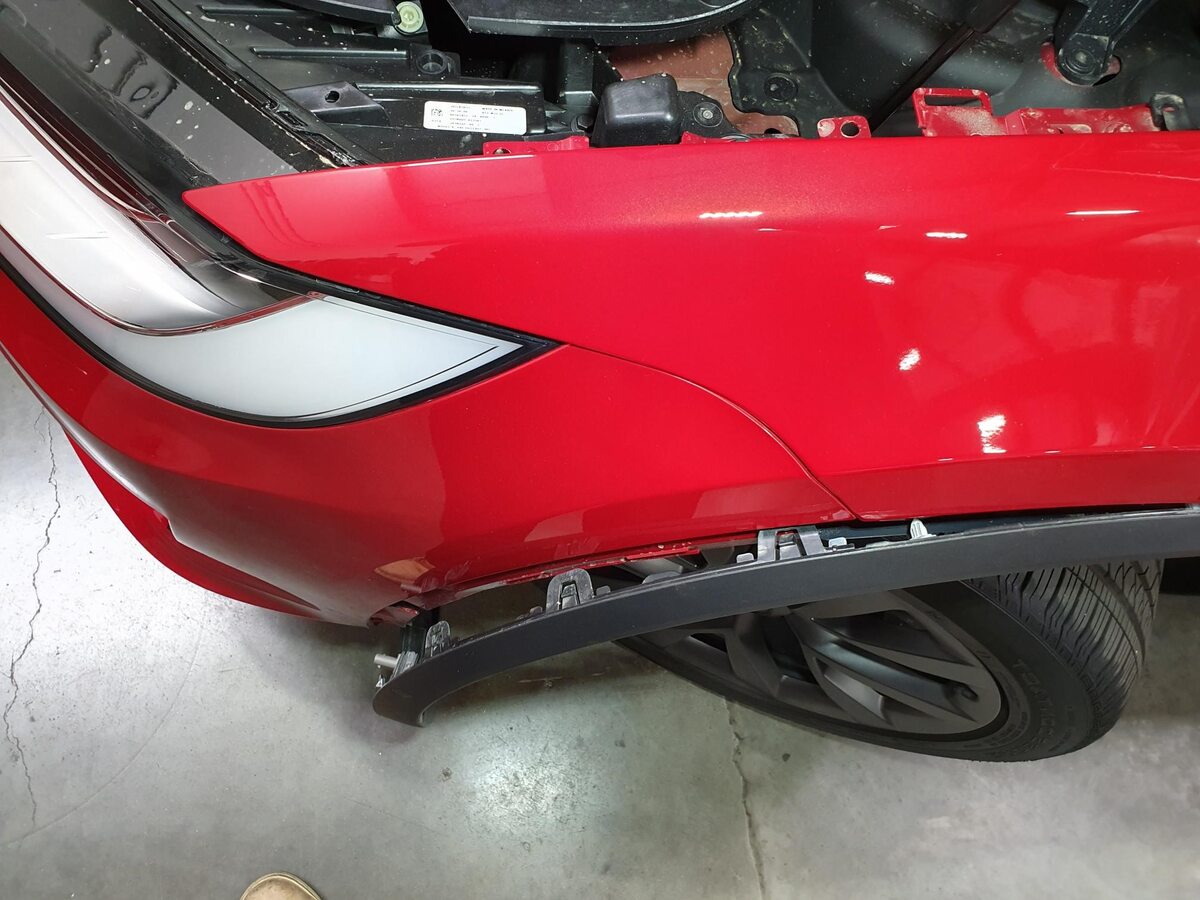

  1. Remove the front fascia assembly from the vehicle. See Fascia Assembly - Front (Remove and Install).

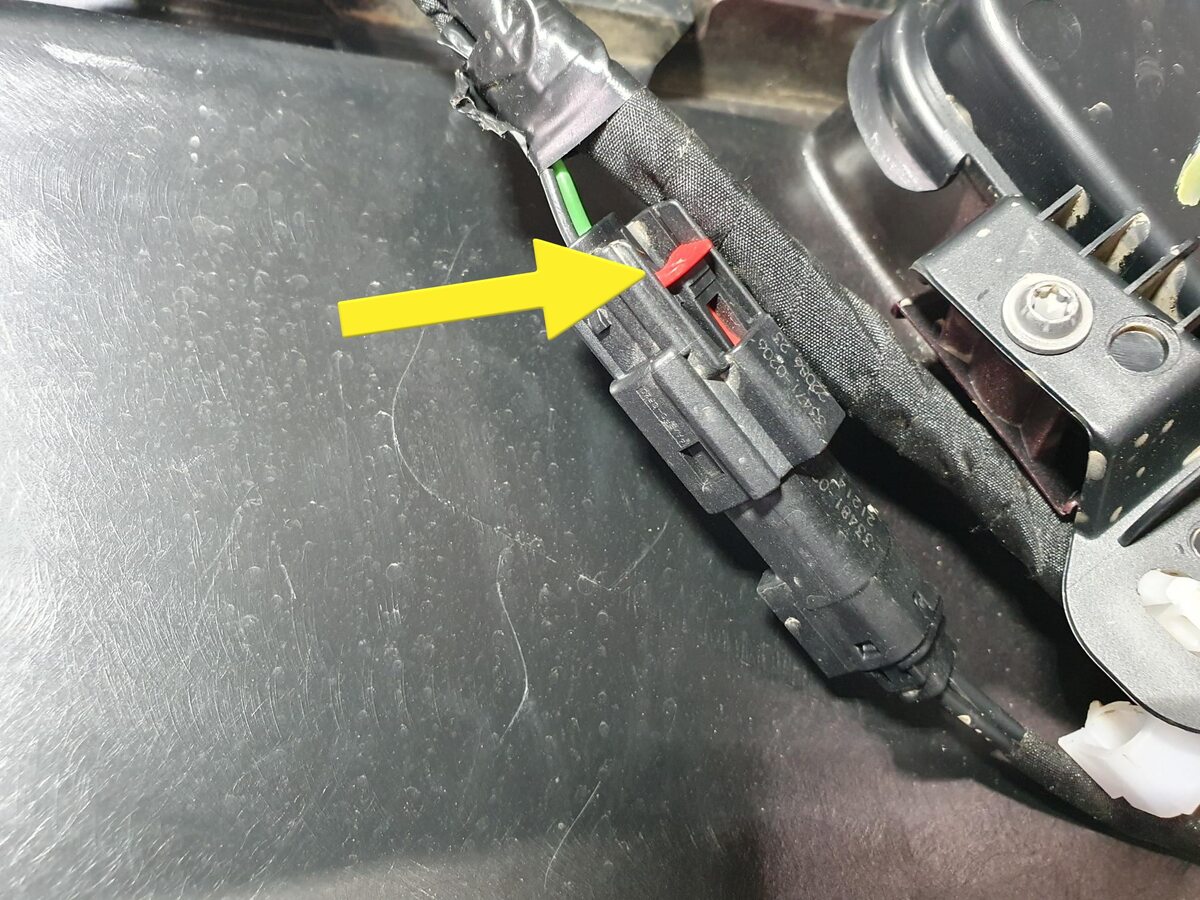

  2. Release the connector lock, and then disconnect the front BLE electrical connector.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

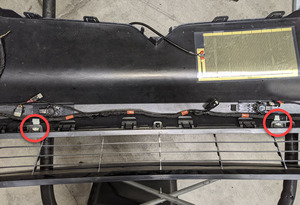

  3. Disconnect the radar heater electrical connector.

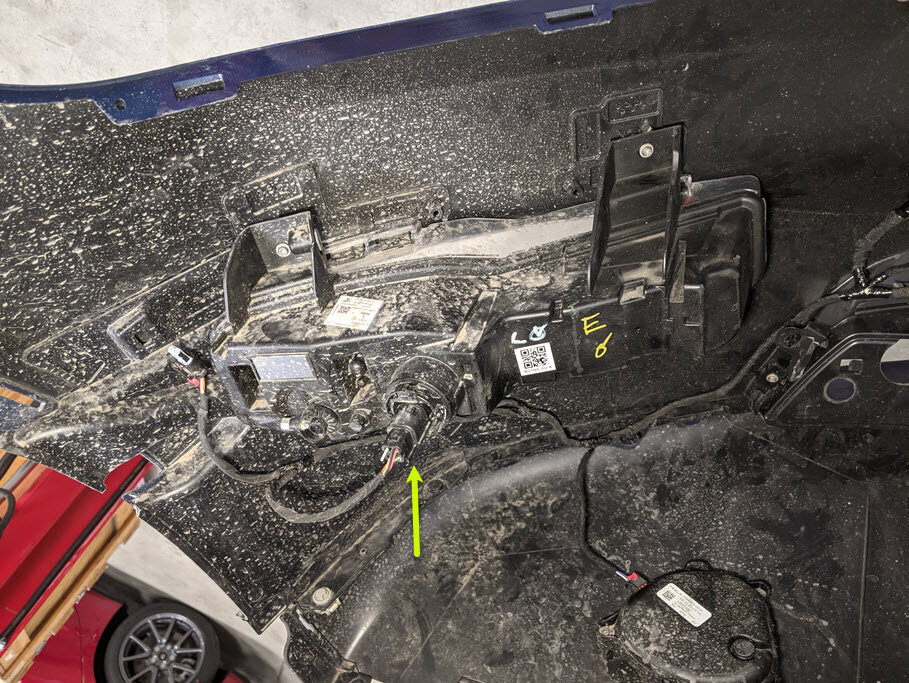

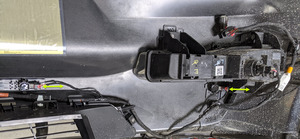

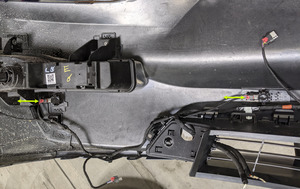

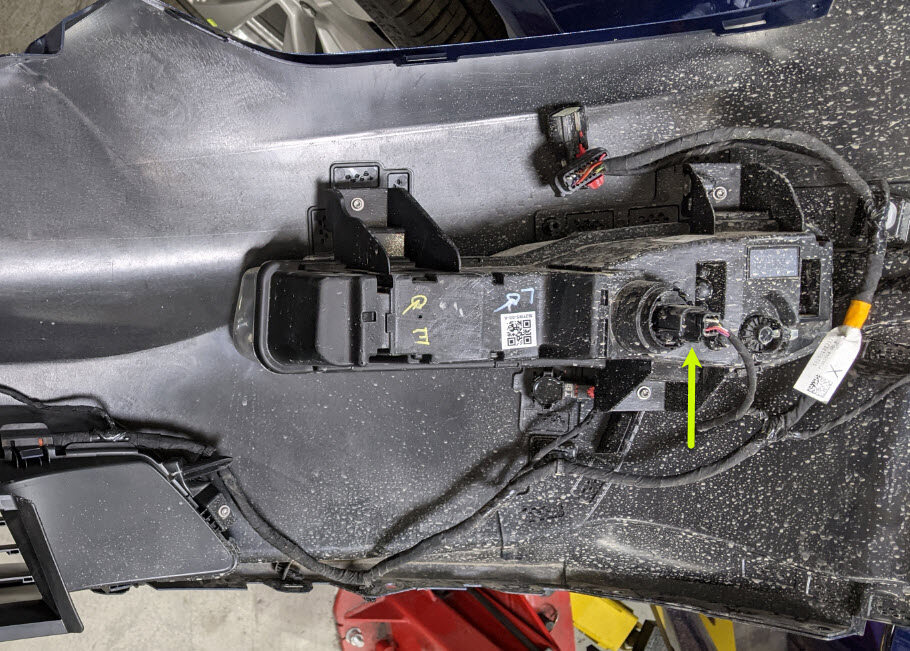

  4. Disconnect the LH and RH front fog light electrical connectors.
    Figure 1. LH shown; RH similar

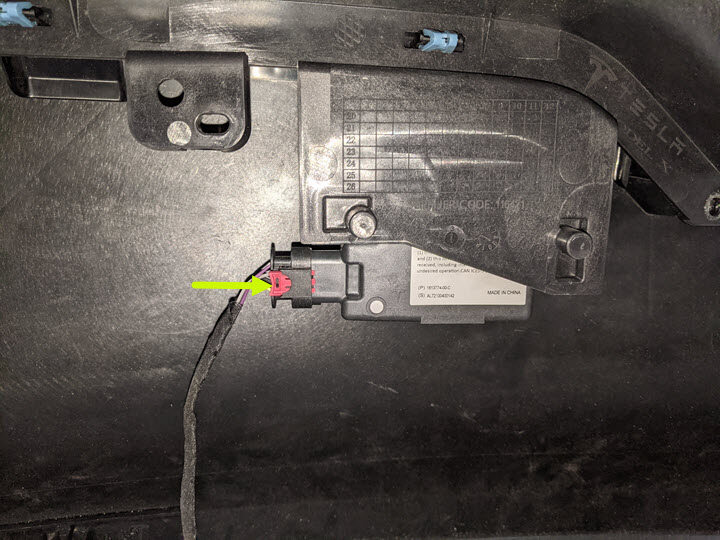

  5. Release the connector lock, and then disconnect the pedestrian warning speaker electrical connector.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

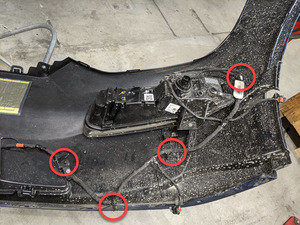

  6. Release the connector lock, and then disconnect the front parking distance sensor electrical connectors (x4).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

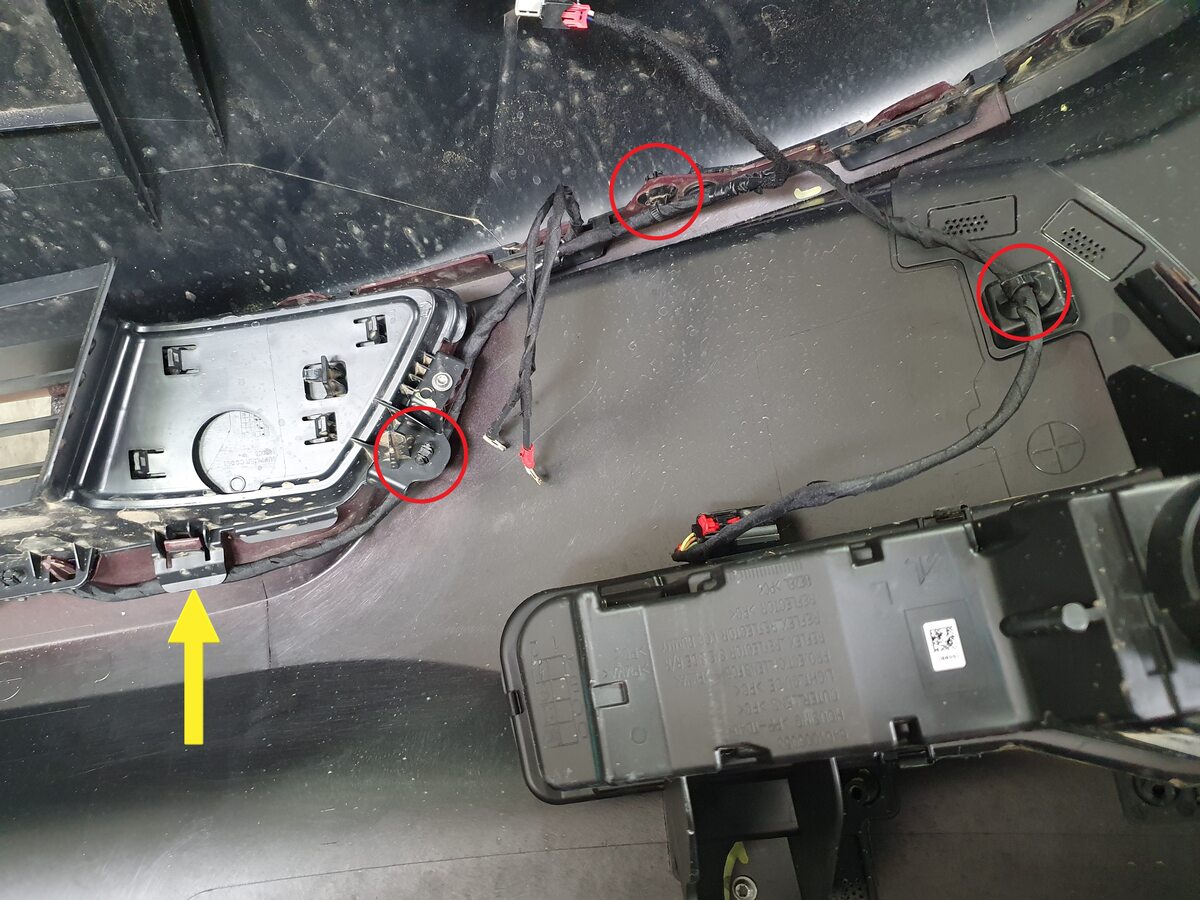

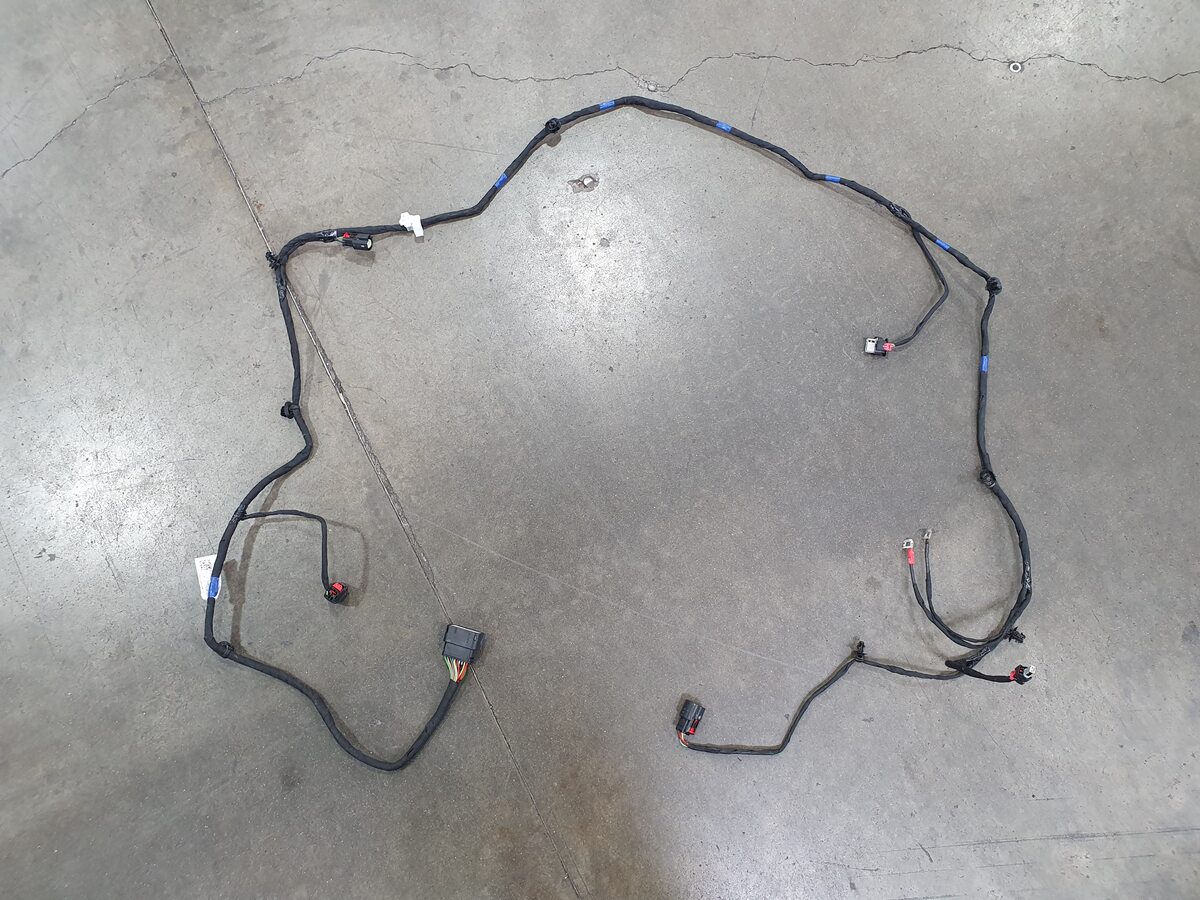

  7. Release the clips (x9) that attach the front fascia harness to the front fascia assembly, and then remove the harness from the assembly.

Remove - HW4

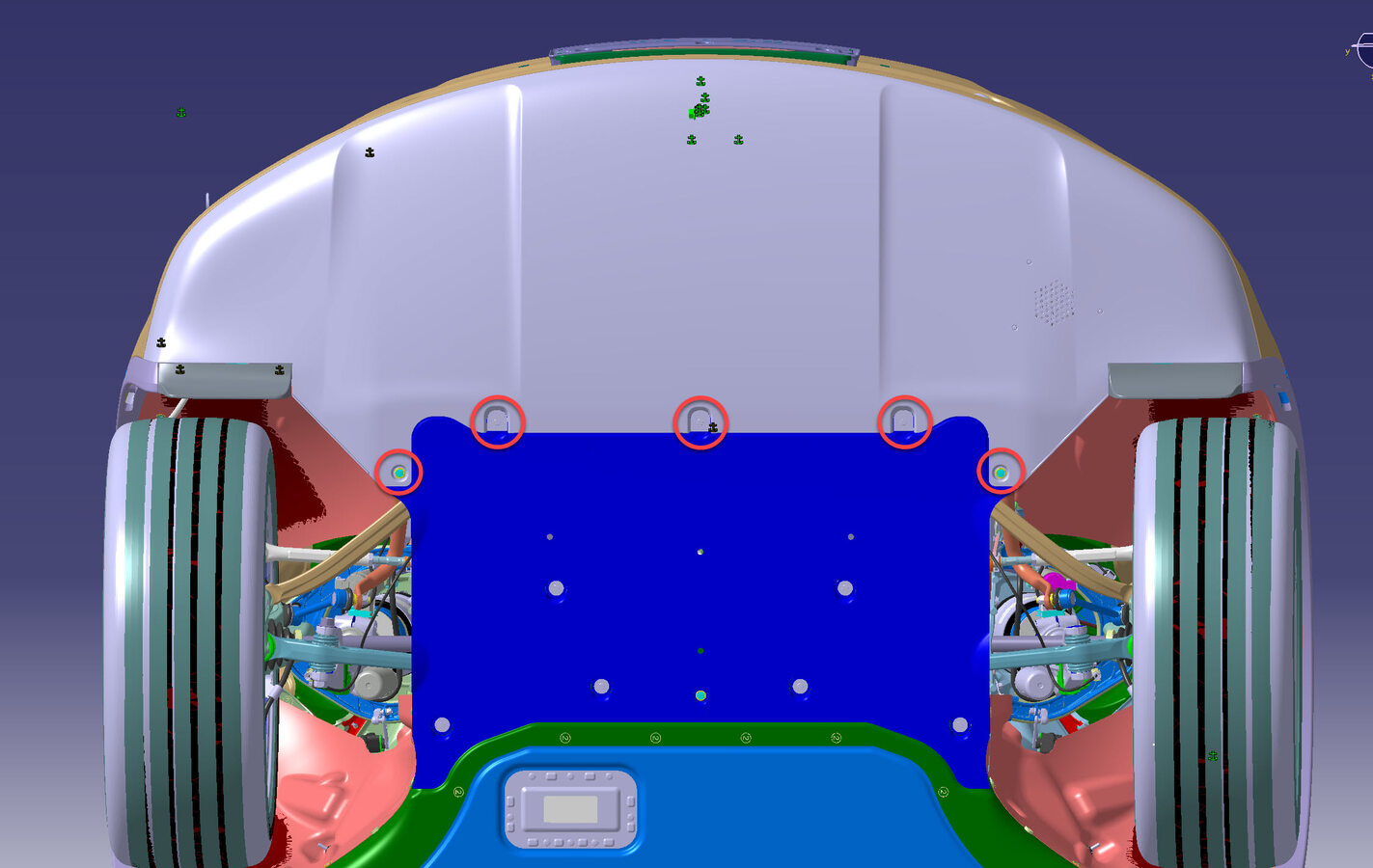

  1. Open the LH front door.

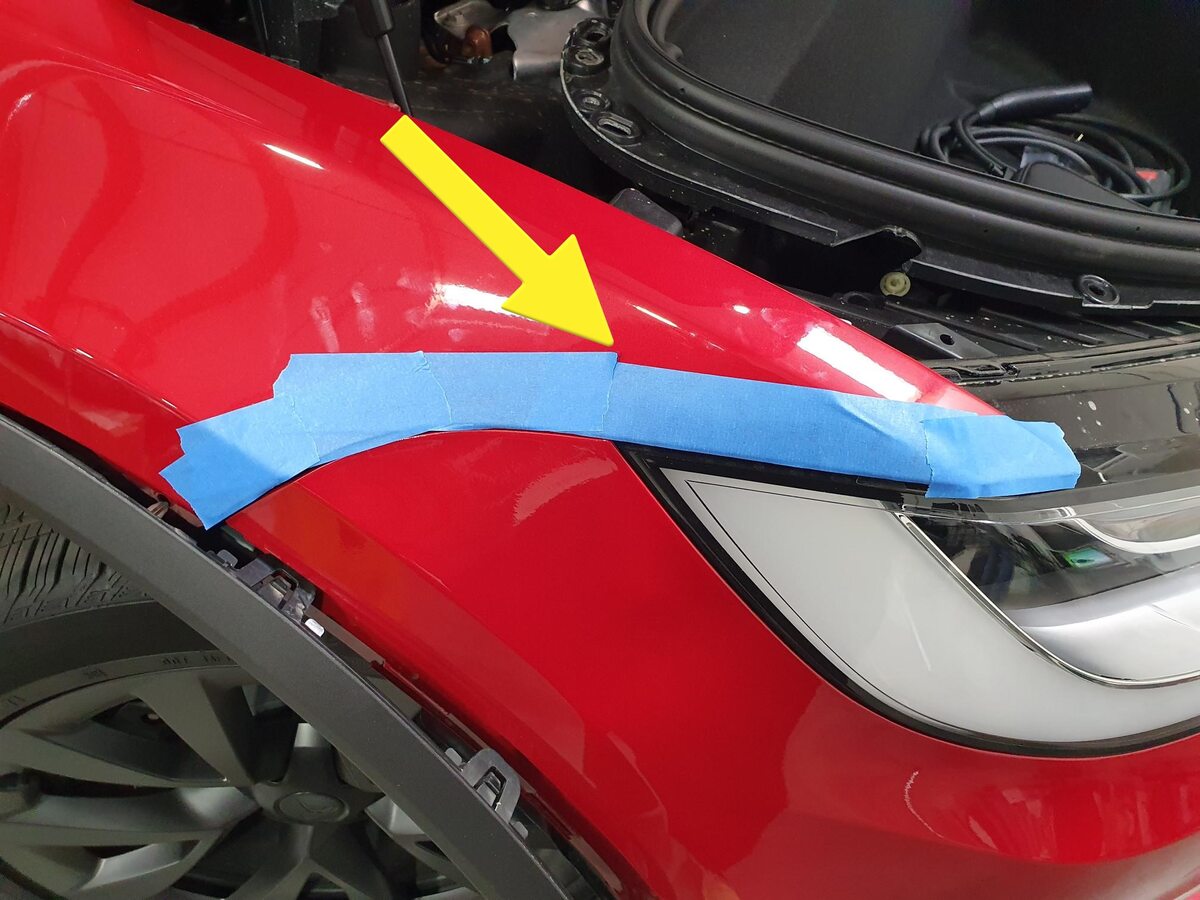

  2. Lower both front windows.
  3. Press brake pedal to turn on drive rails

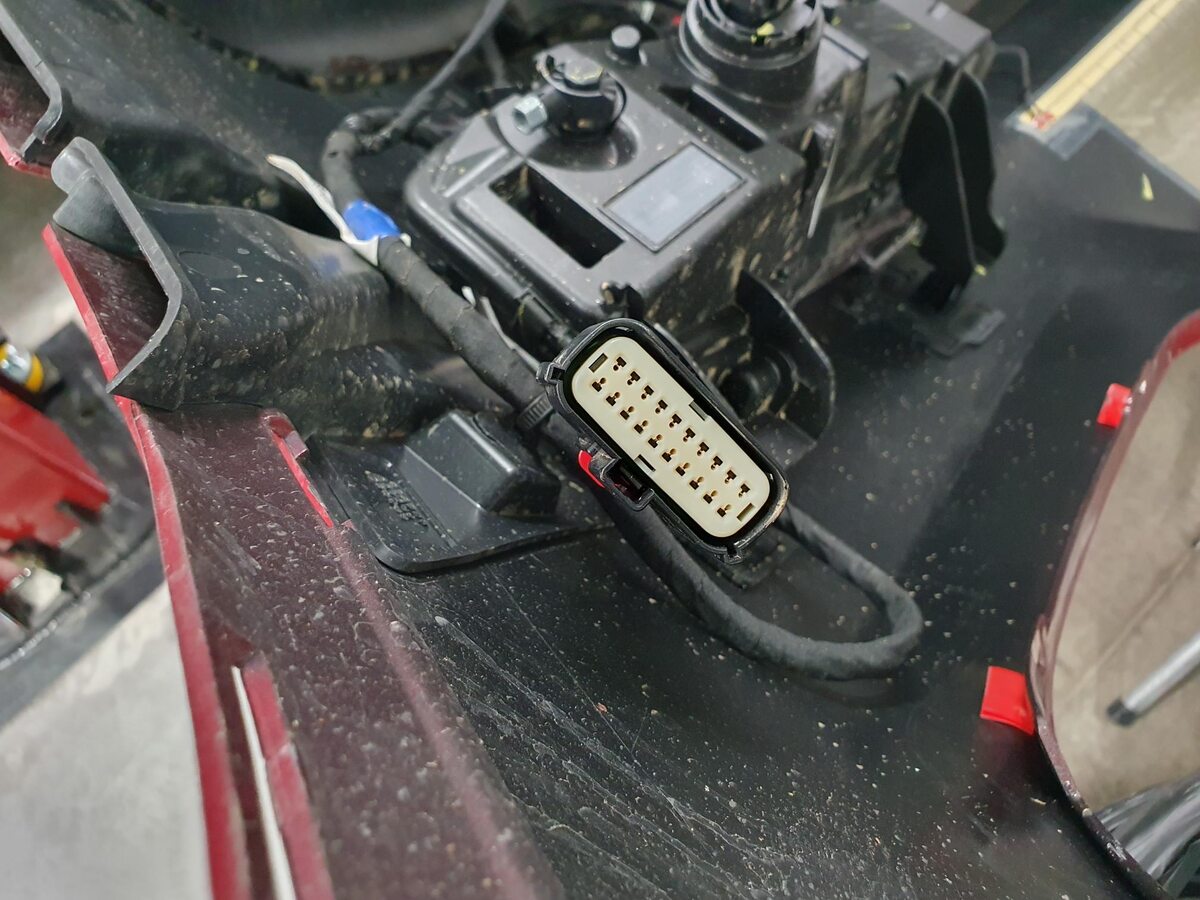

  4. Set air suspension ride height to “Very High”
    Informational PurposesAn informational icon, calling your attention
    Note
    Via center display > Controls > Suspension > ''Very High''

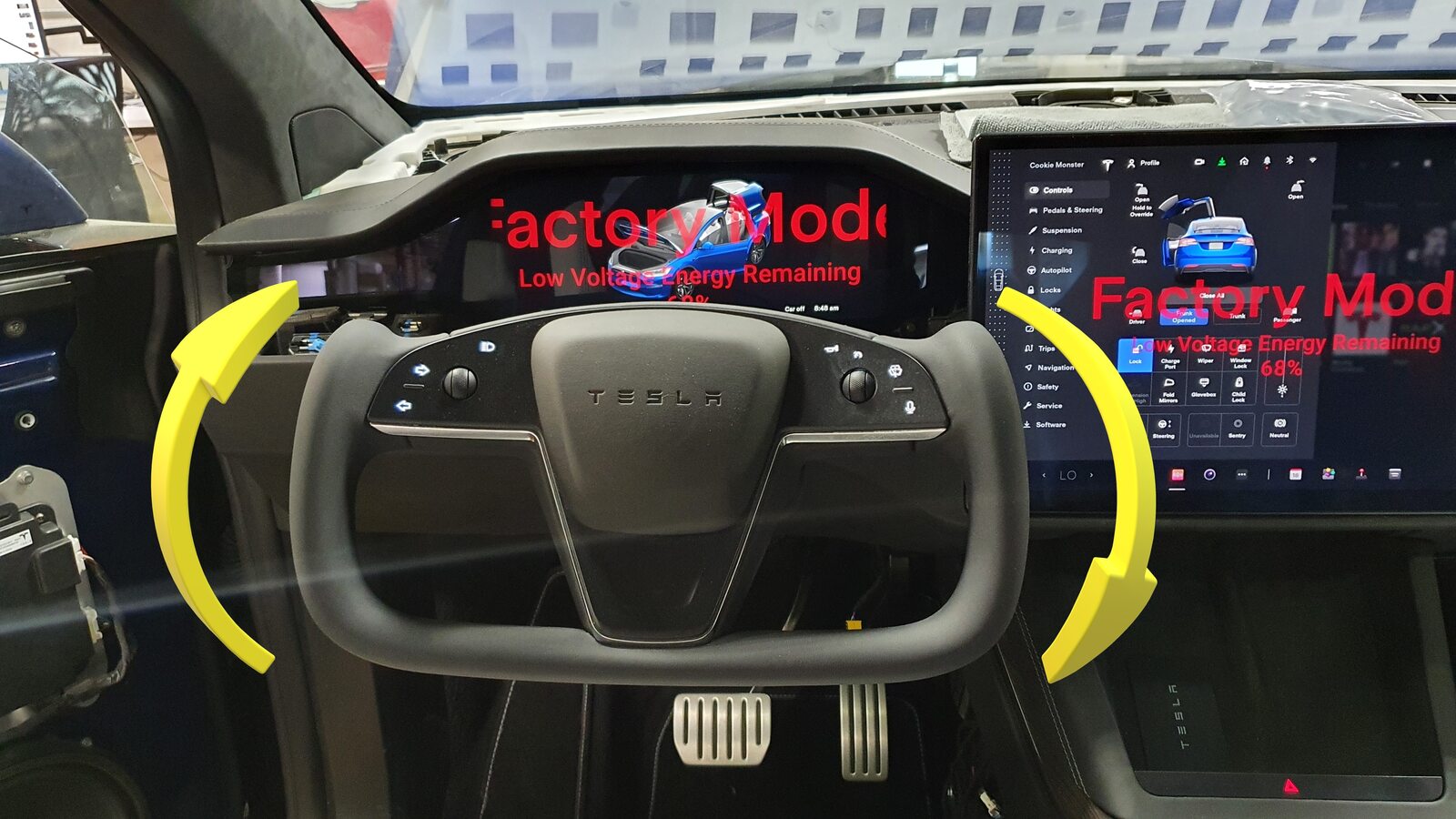

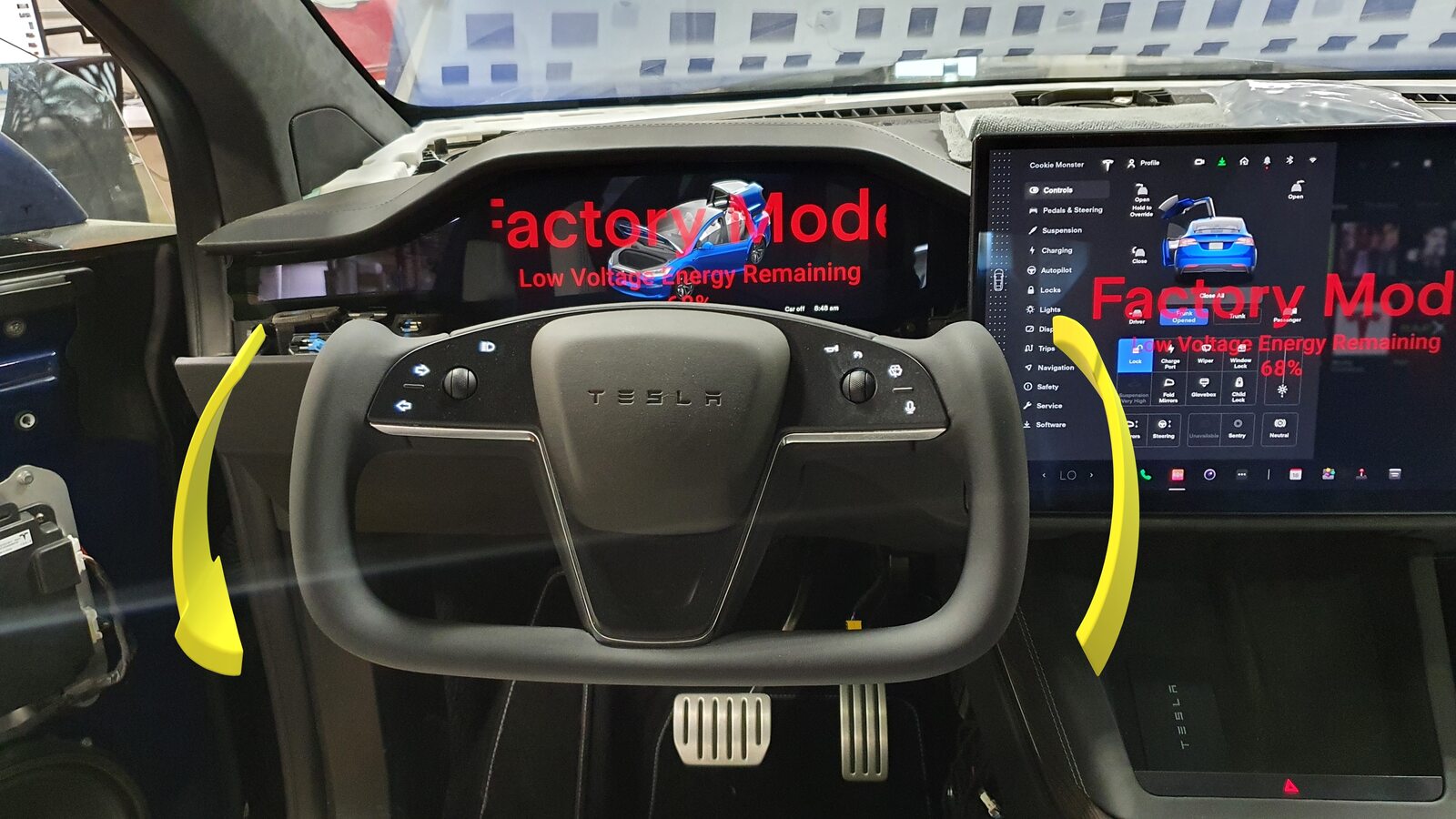

  5. Turn steering wheel fully to the right
  6. Open the hood.
  7. Remove the rear underhood apron.
  8. Remove the LH underhood apron.
  9. Remove the RH underhood apron.
  10. Remove the front underhood apron.

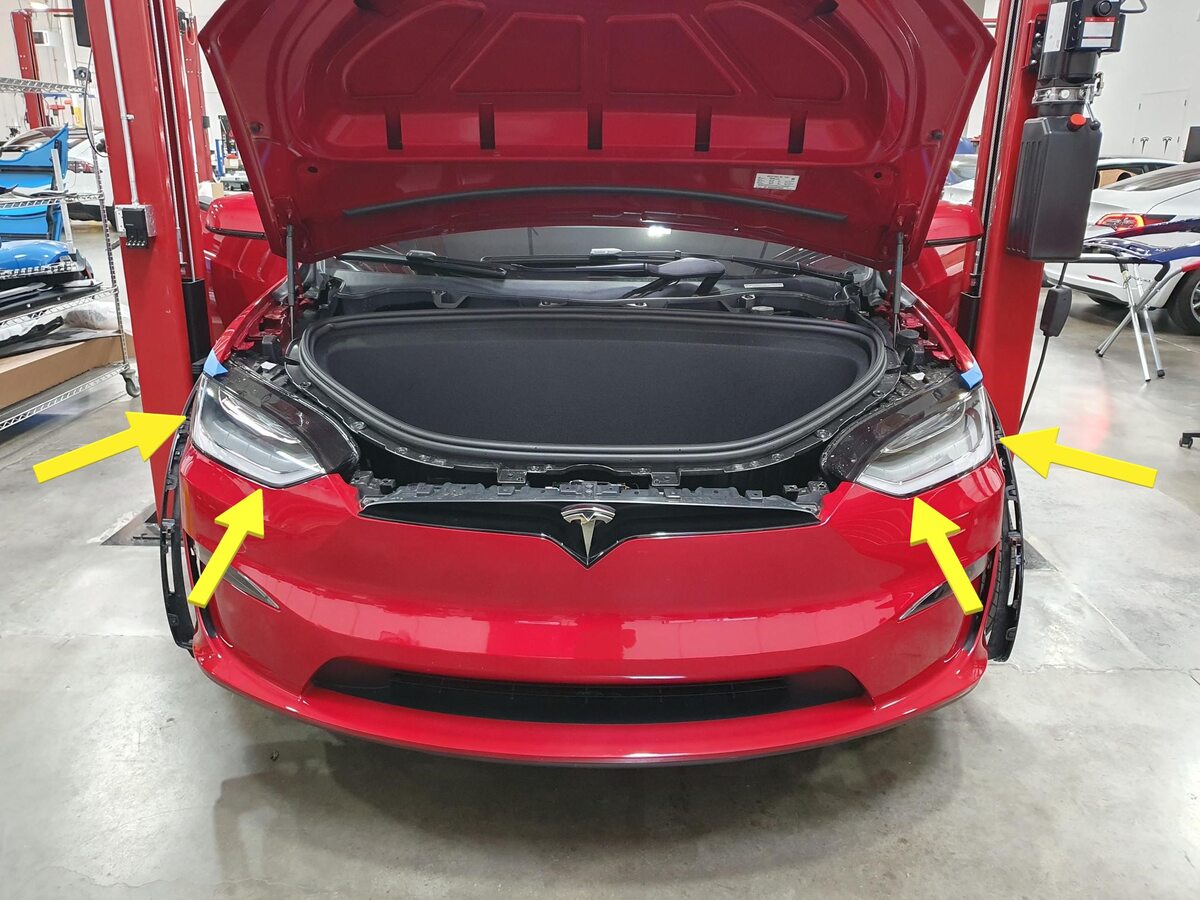

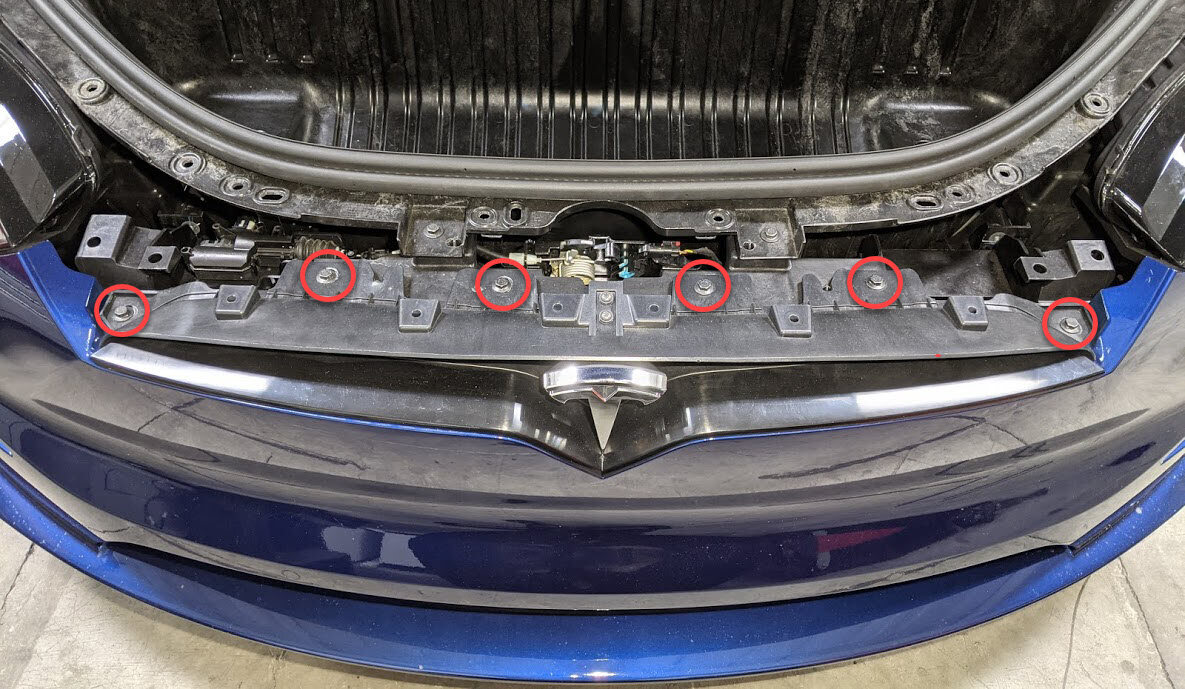

  11. Remove bolts securing upper portion of front fascia
    Informational PurposesAn informational icon, calling your attention
    Note
    6x bolts, 10mm, 7 Nm

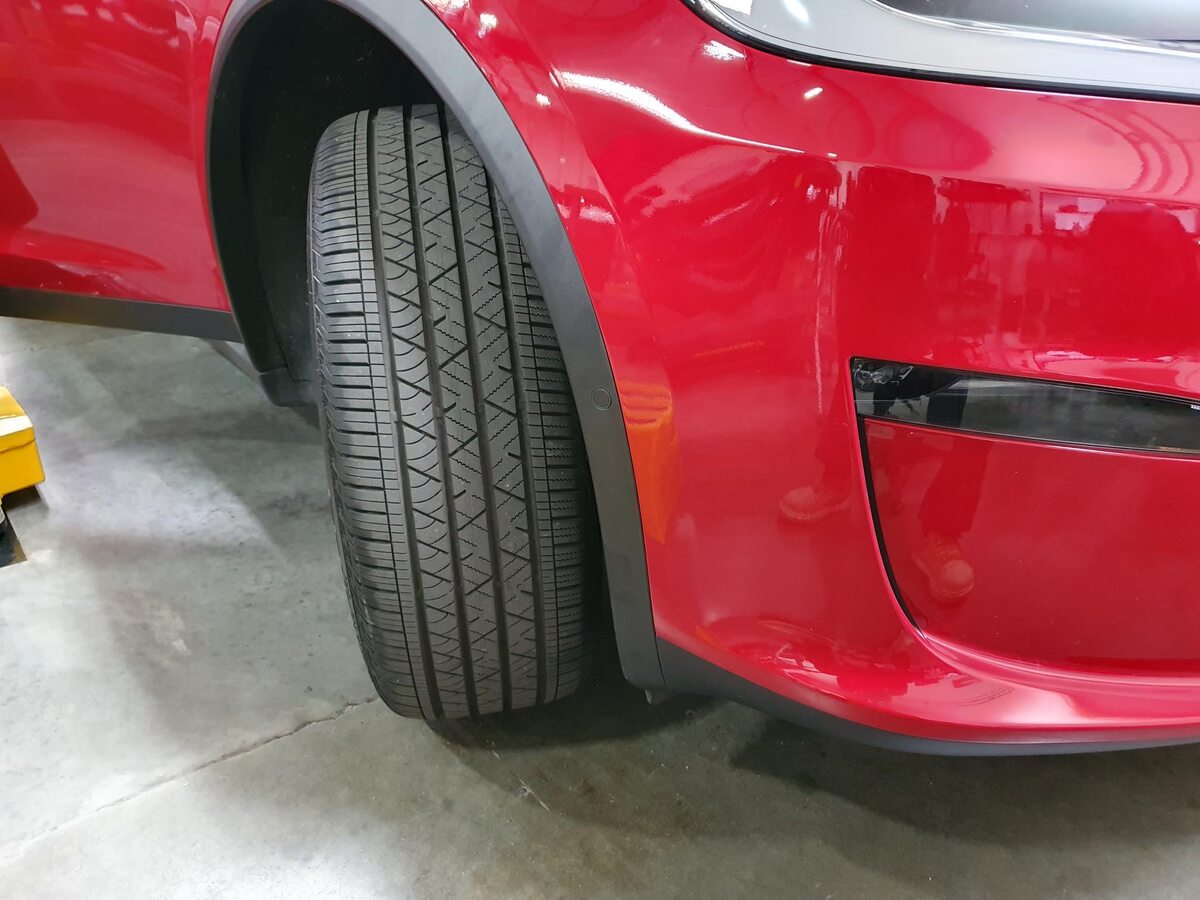

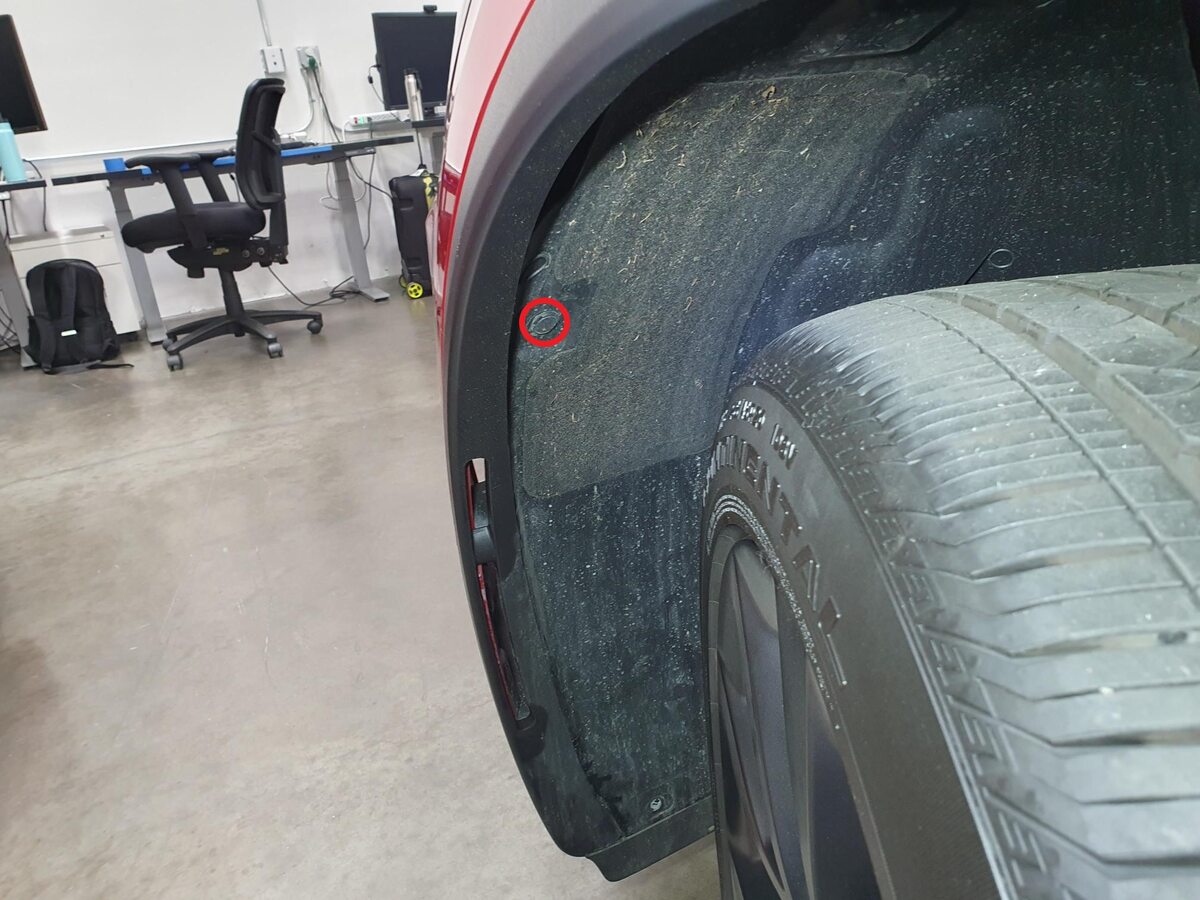

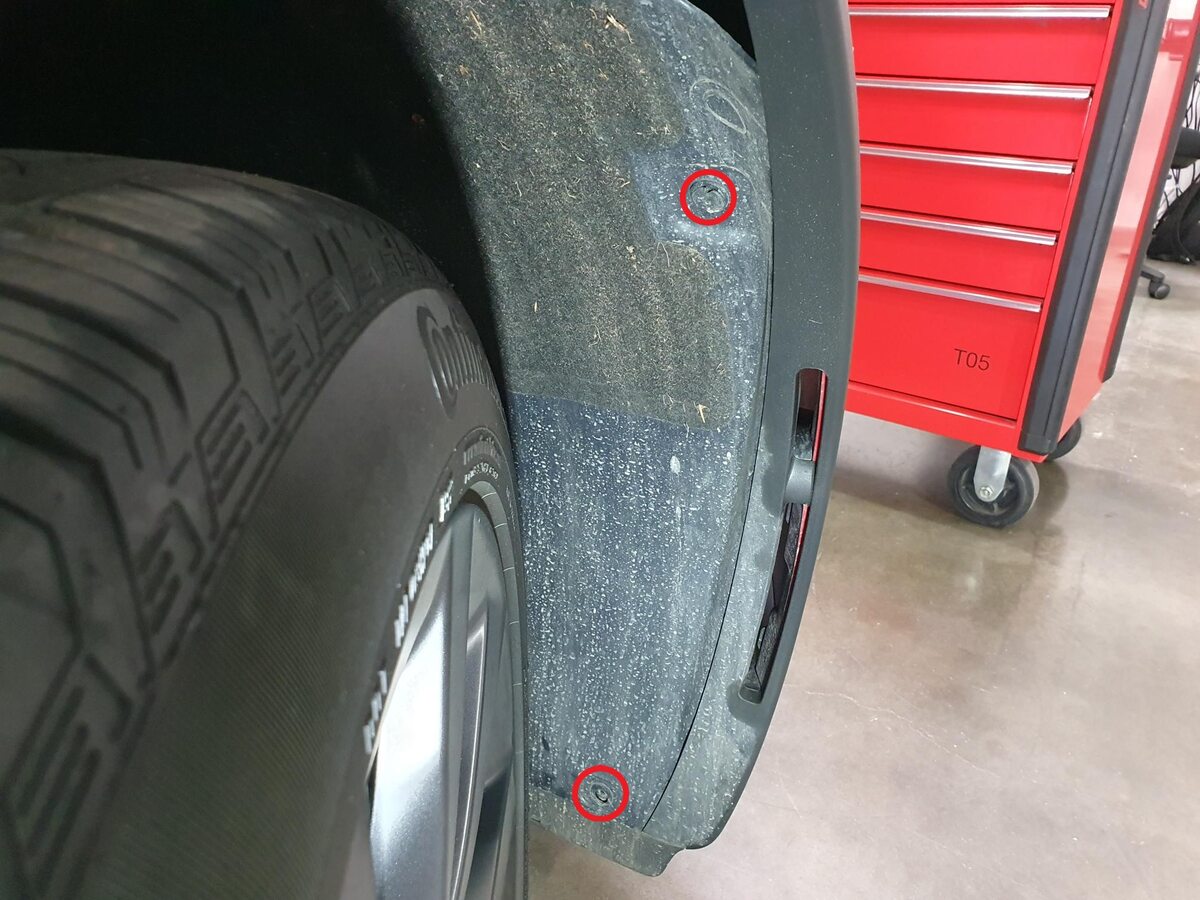

  12. Remove clips securing LH front wheel liner to valence
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T30, Torque 2 Nm, 3x clips. Move front portion of wheel liner backwards to access fairing.

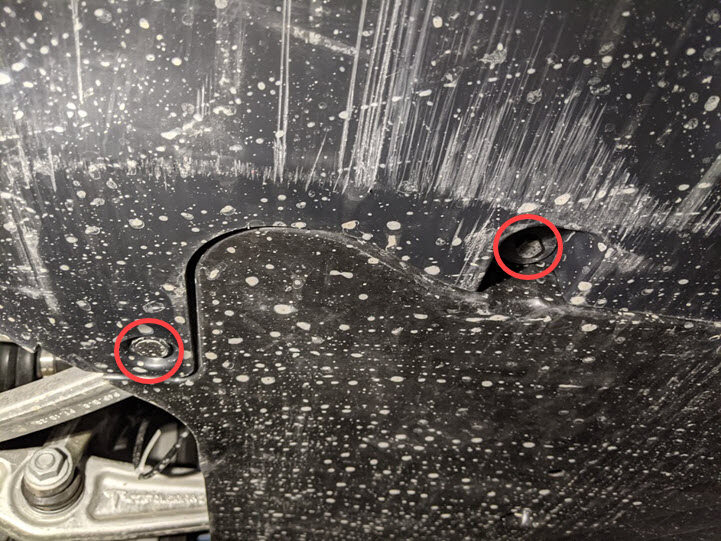

  13. Remove LH front wheel fairing from valence
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 1.5 Nm, 1x securing tab

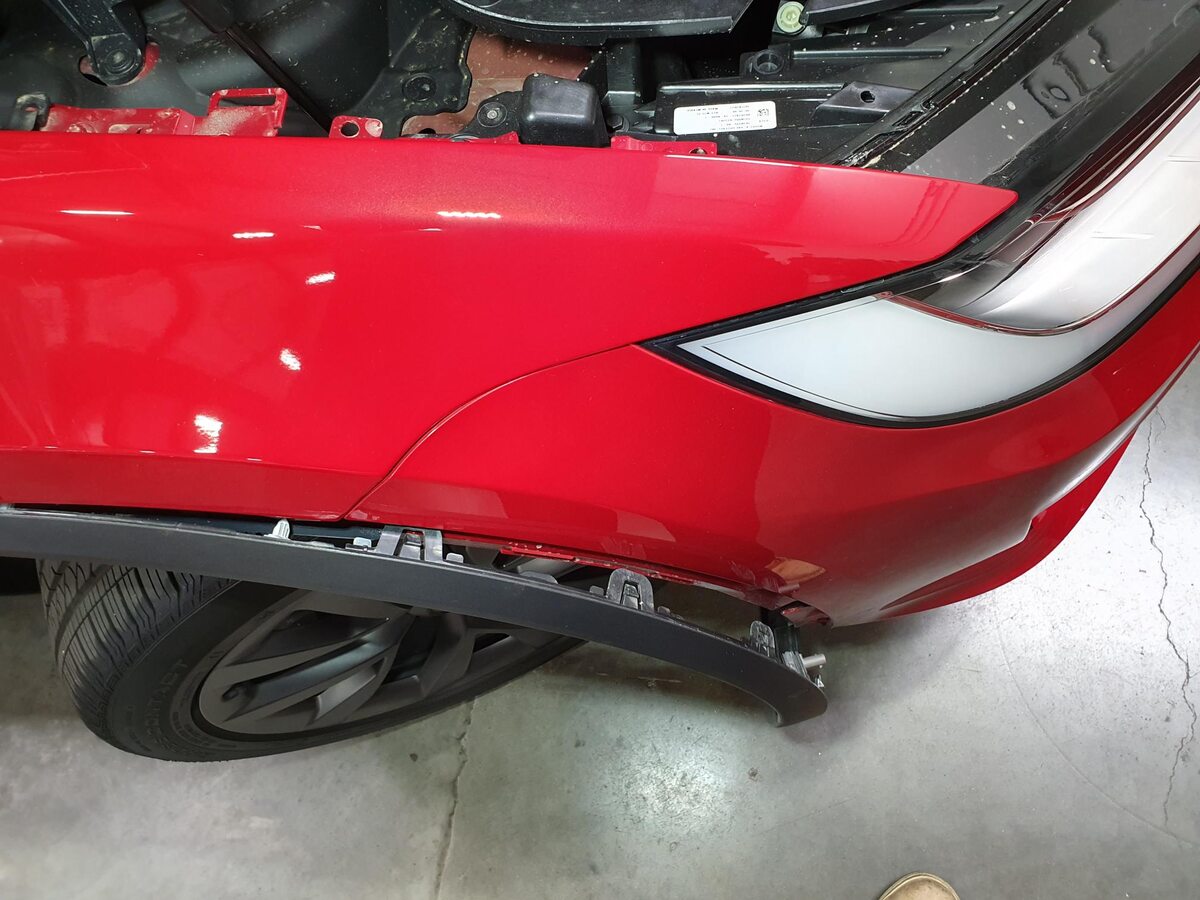

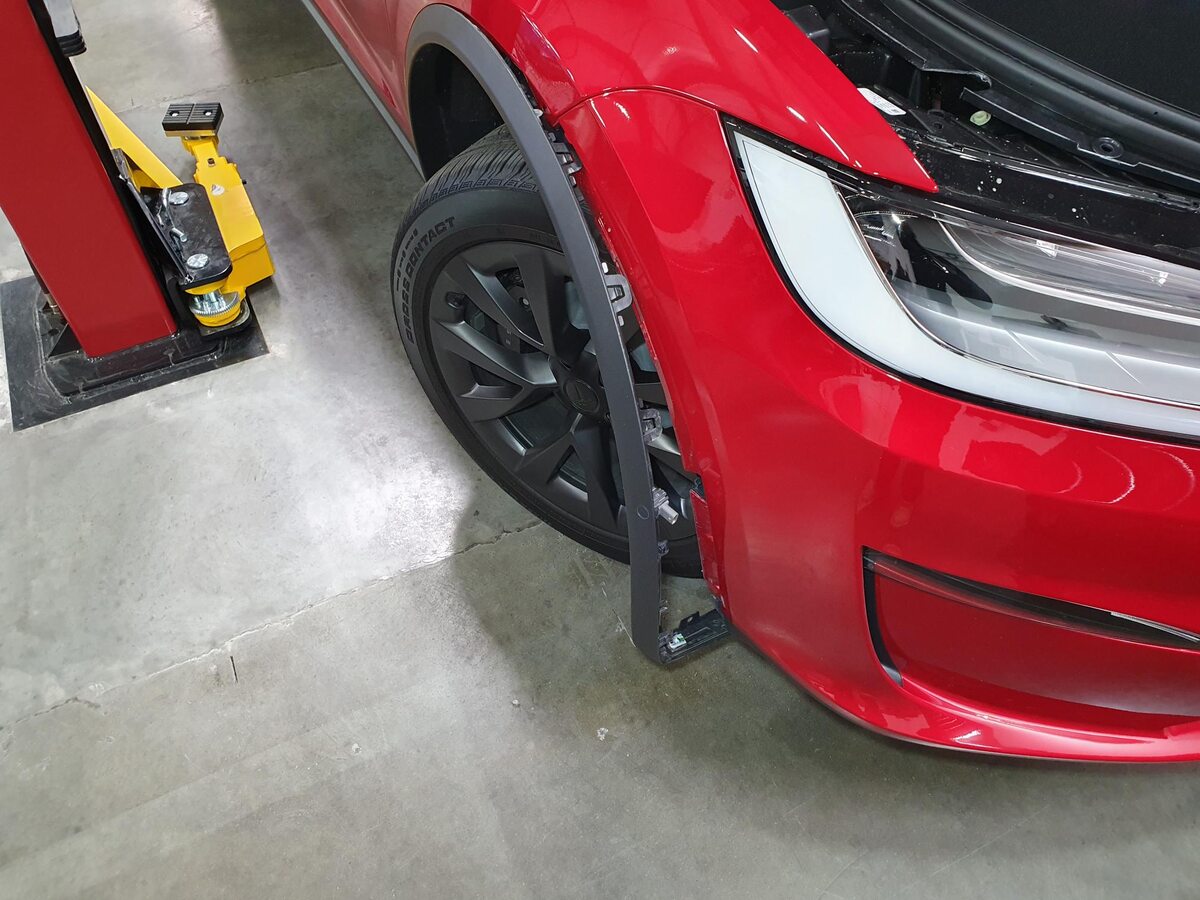

  14. Partially remove front portion of LH front fender garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 8x tabs, Careful to not damage dummy ultra sonic sensor when removing garnish

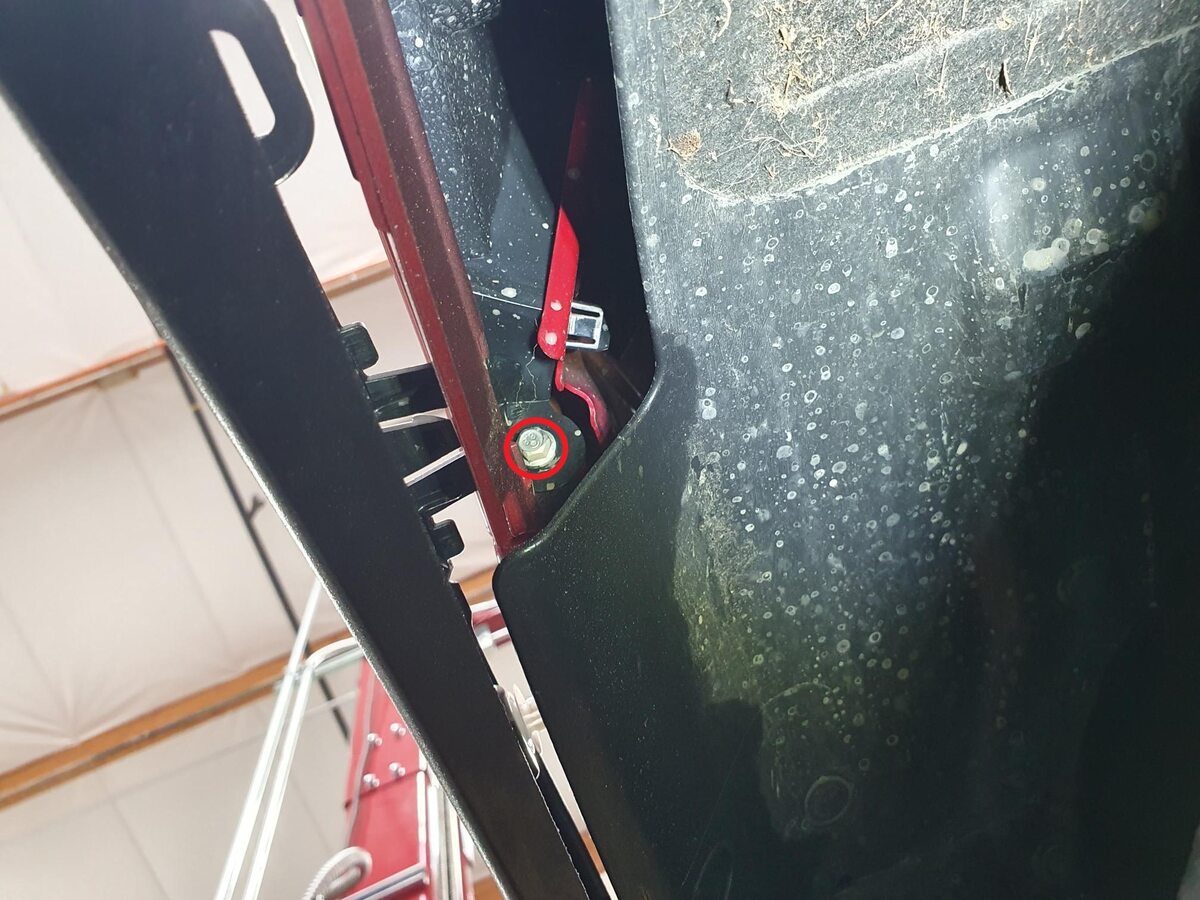

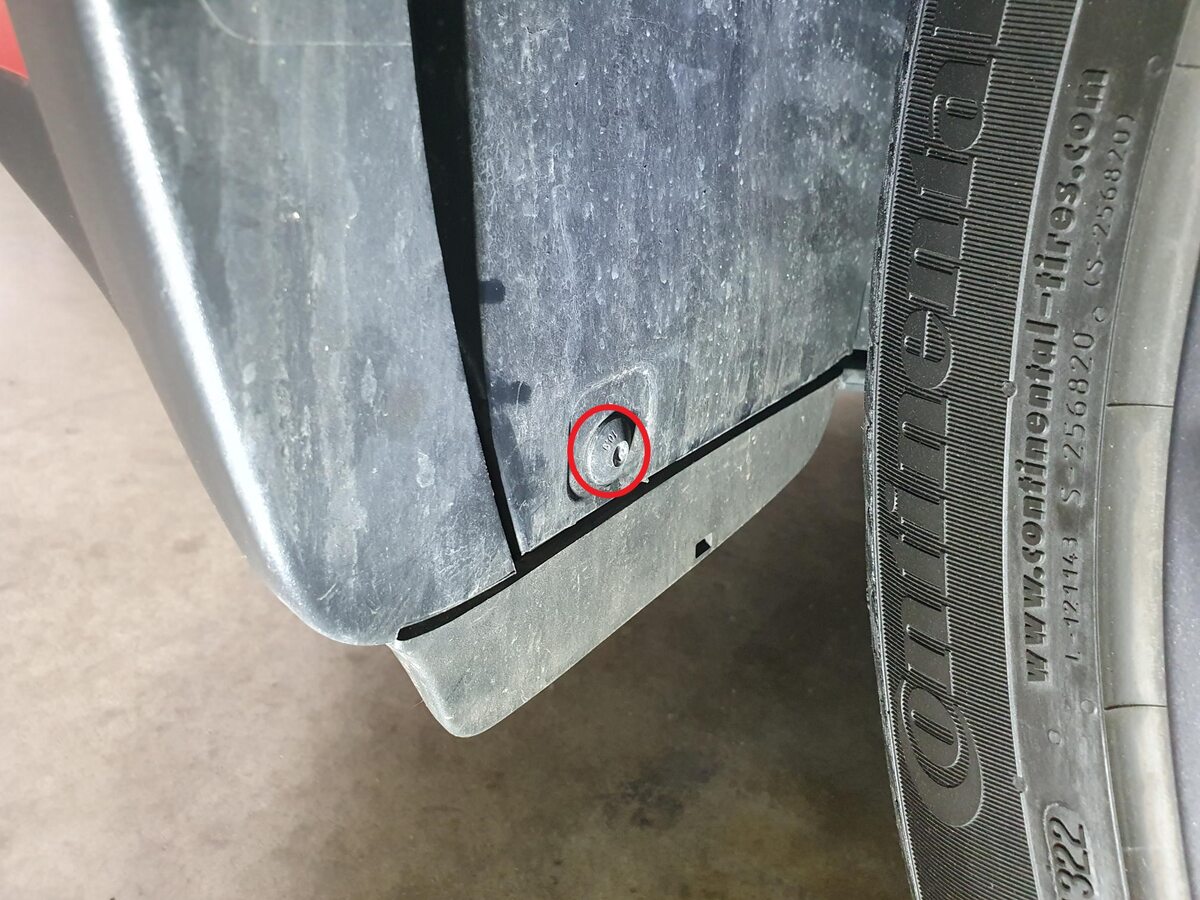

  15. Remove bolt securing LH front of fascia to LH front fender
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 8mm, 1.5 Nm
  16. Press brake pedal to turn on drive rails
  17. Turn steering wheel fully to the left

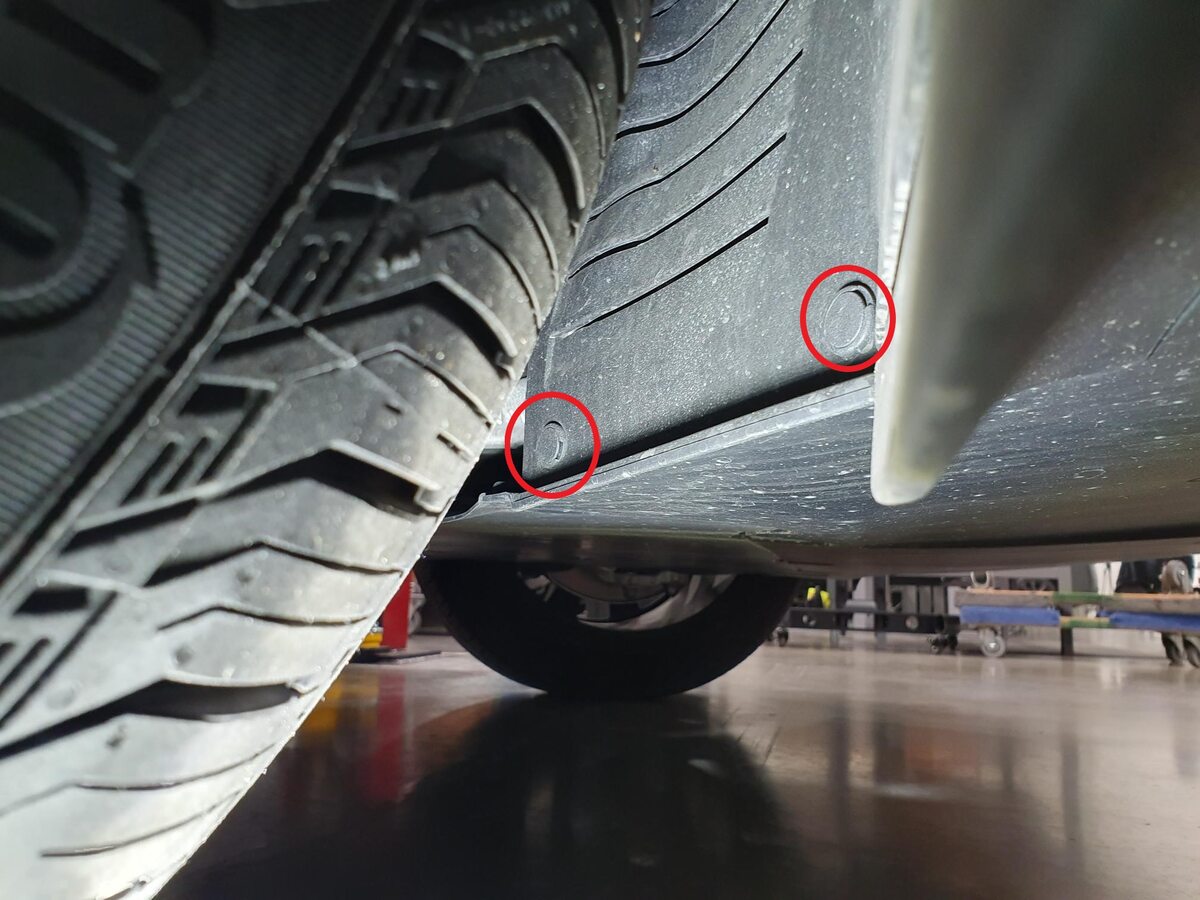

  18. Remove clips securing RH front wheel liner to valence
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, Move front portion of wheel liner backwards to access fairing

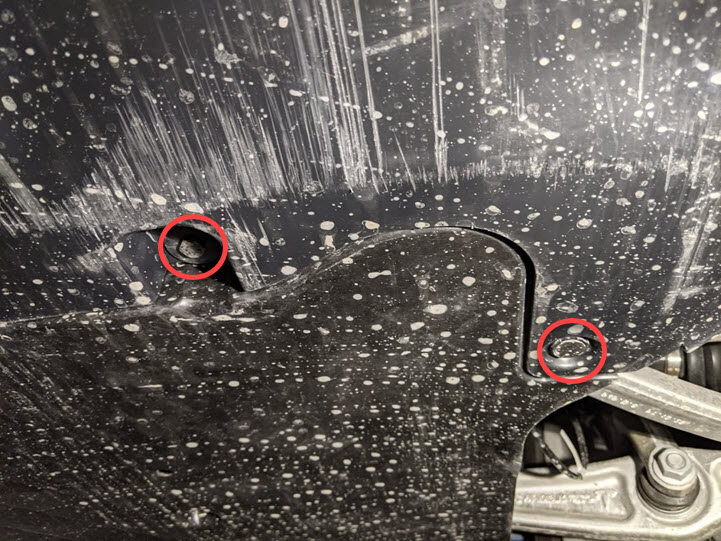

  19. Remove RH front wheel fairing from valence
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 1.5 Nm, 1x securing tab

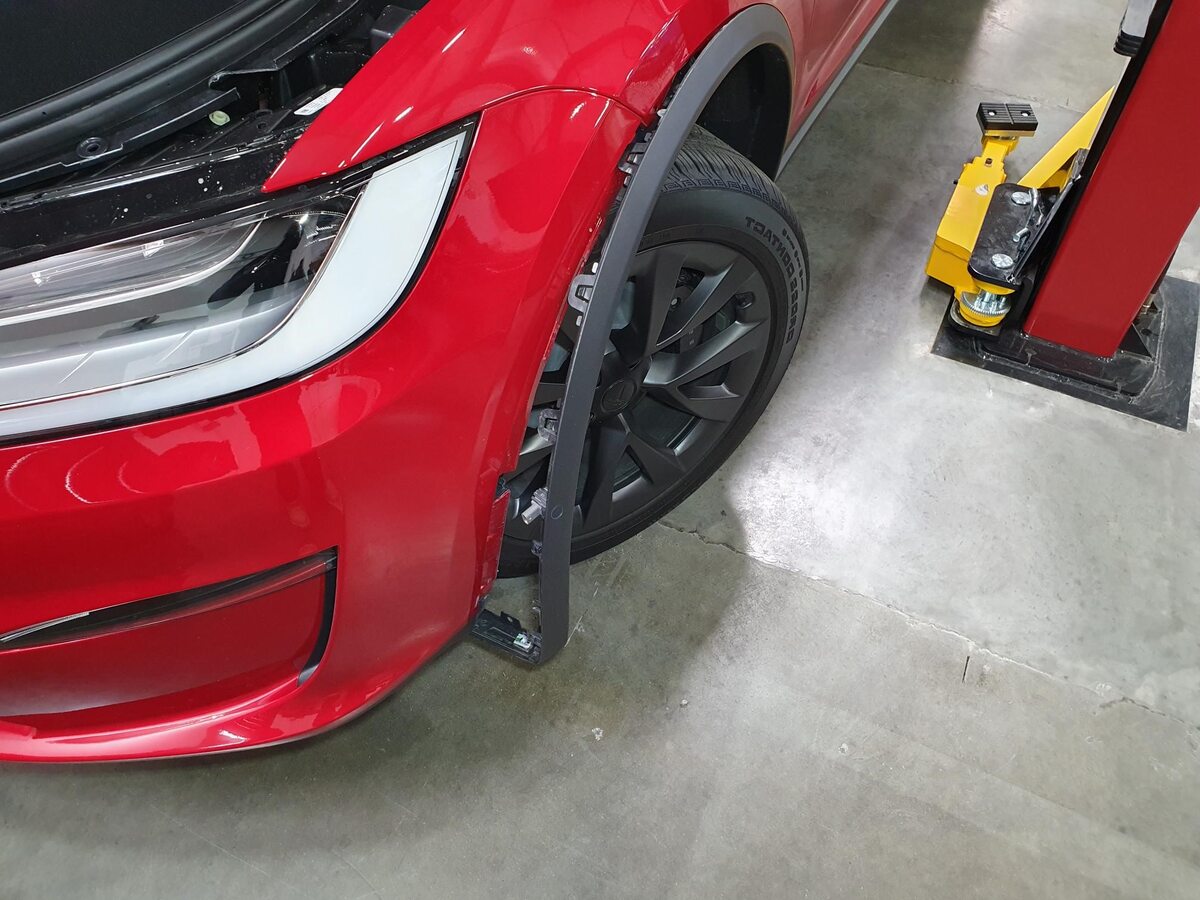

  20. Partially remove front portion of RH front fender garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 8x tabs, Careful to not damage dummy ultra sonic sensor when removing garnish
  21. Remove bolt securing RH front of fascia to RH front fender
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 8mm, 1.5 Nm
  22. Power off the vehicle using the touchscreen.
  23. Disconnect the LV battery connector and First Responder Loop.

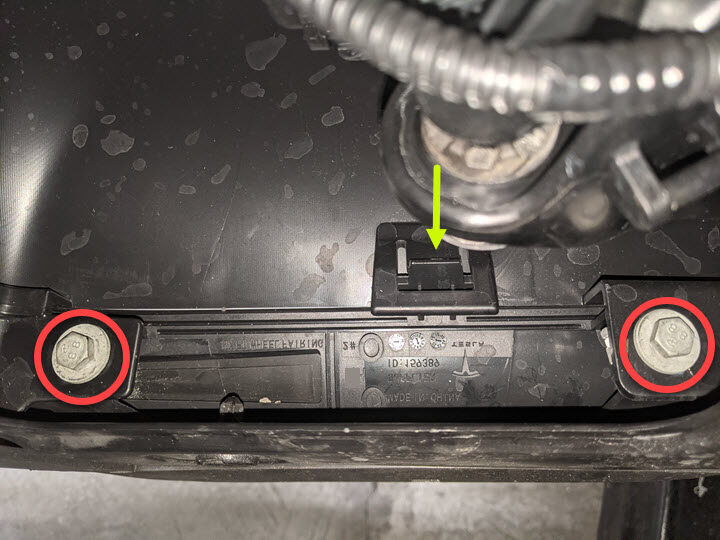

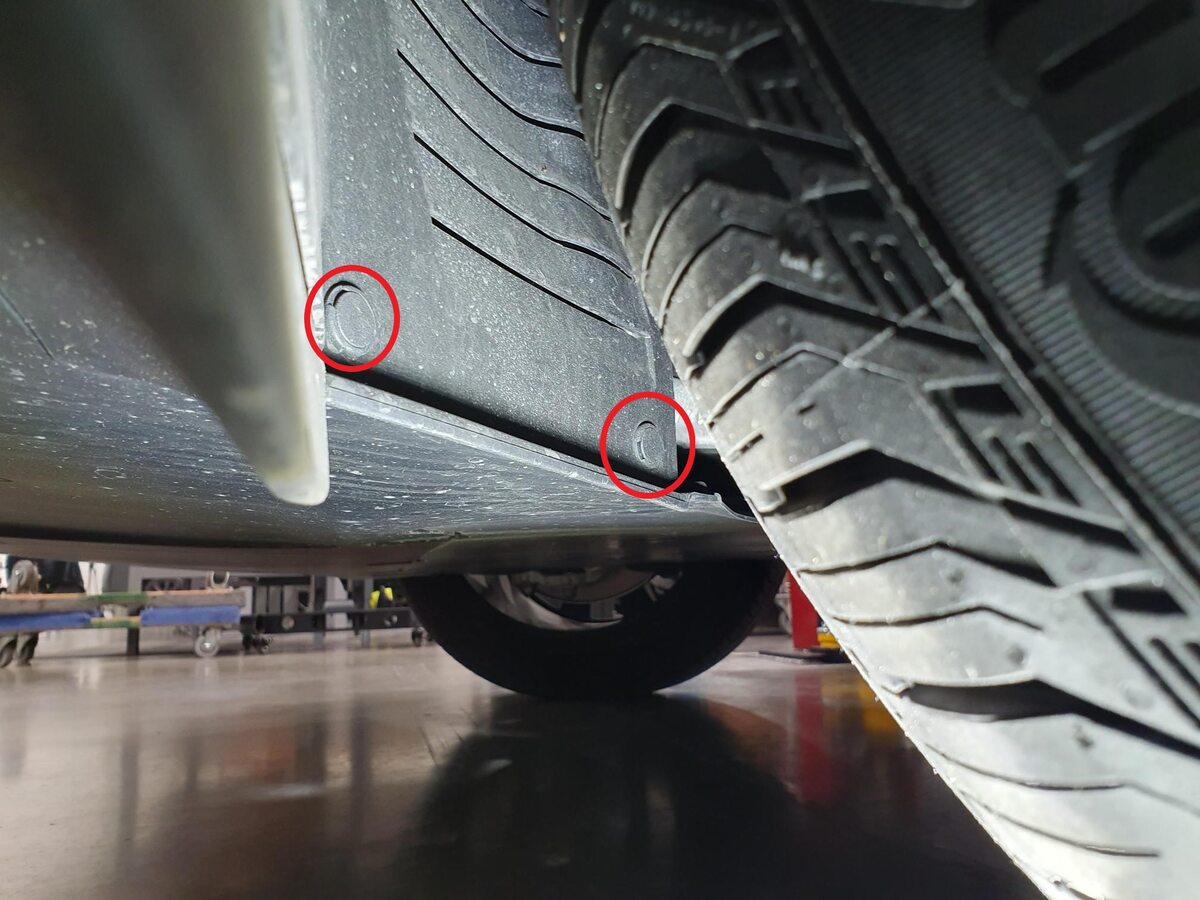

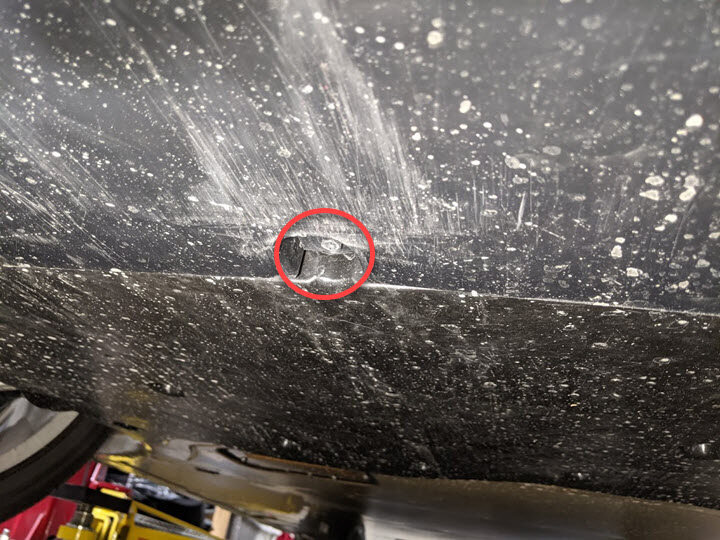

  24. Remove fasteners securing lower portion of front fascia to valence
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 3 Nm, 2x clips

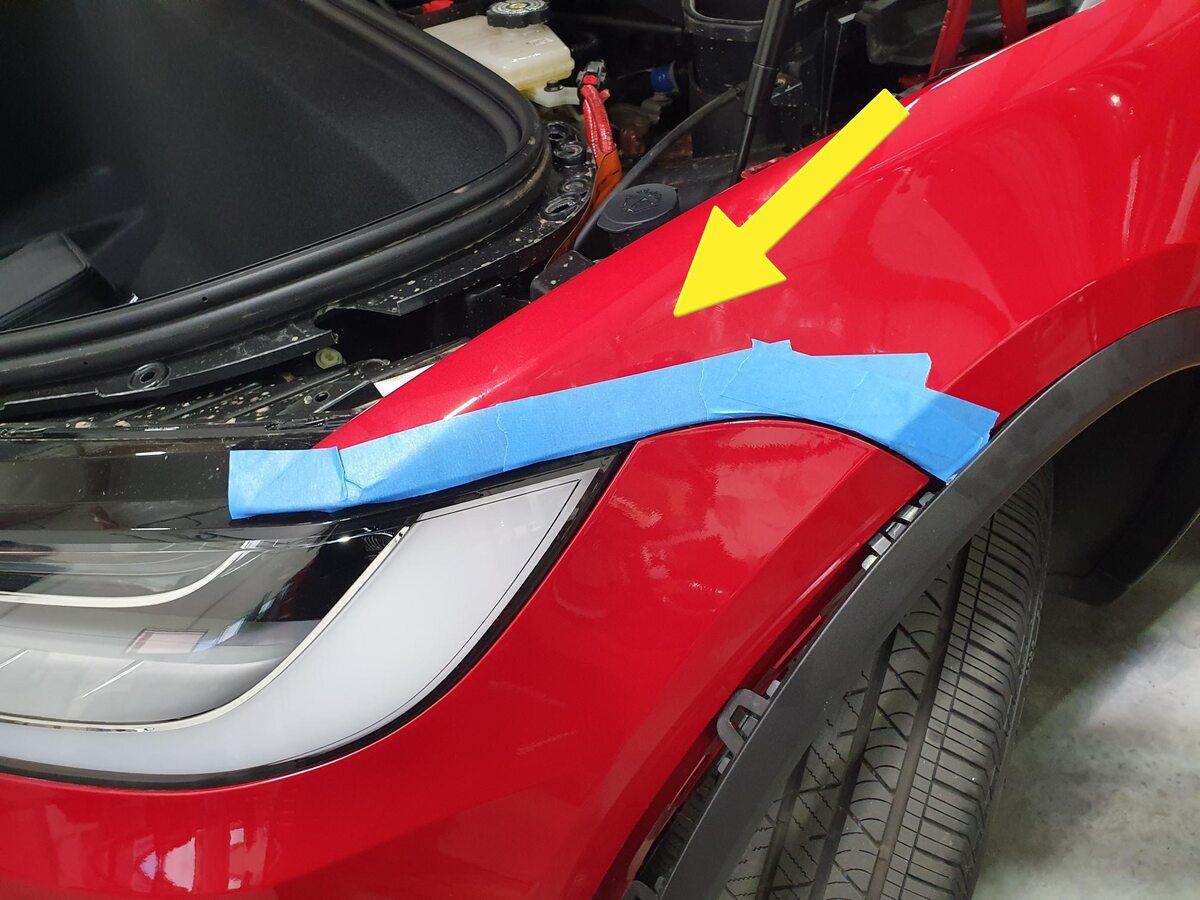

  25. Apply masking tape to protect LH and RH front fenders

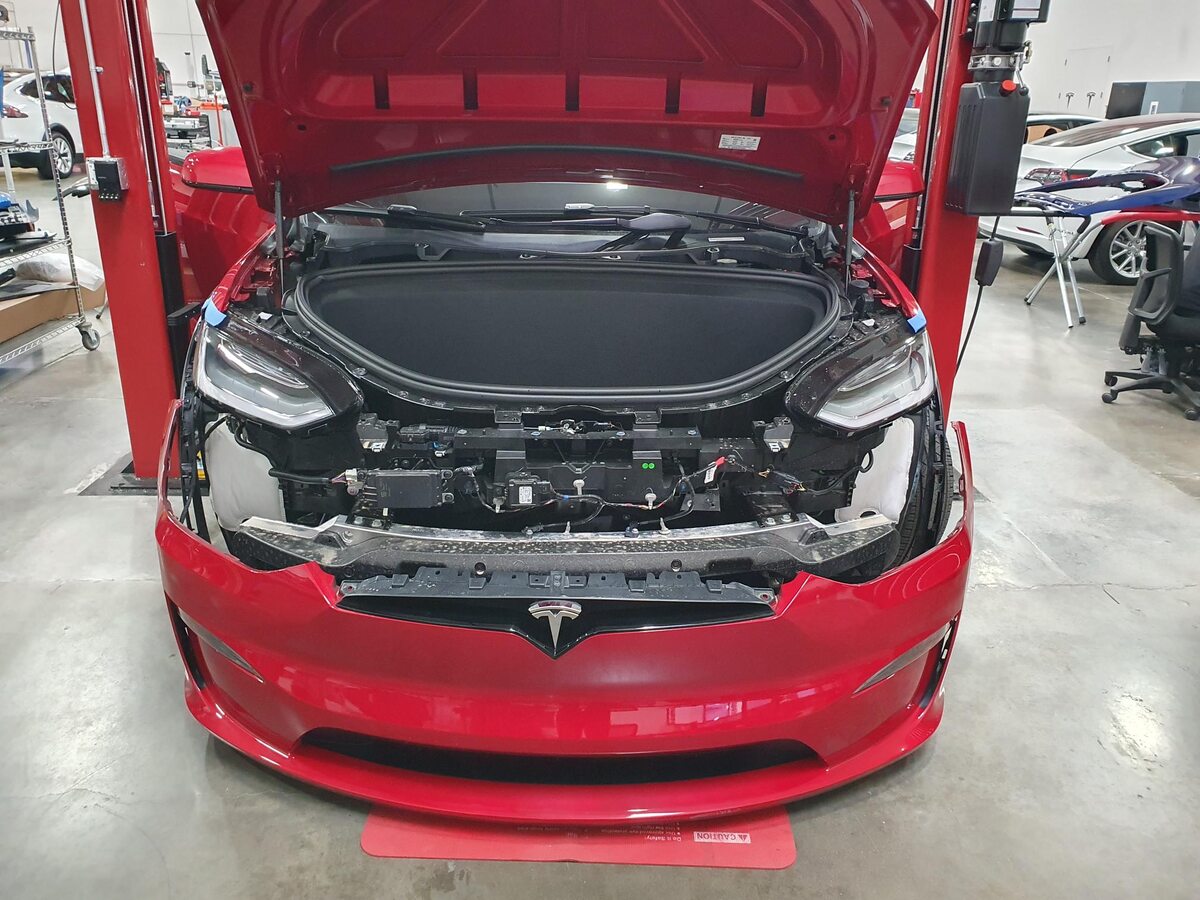

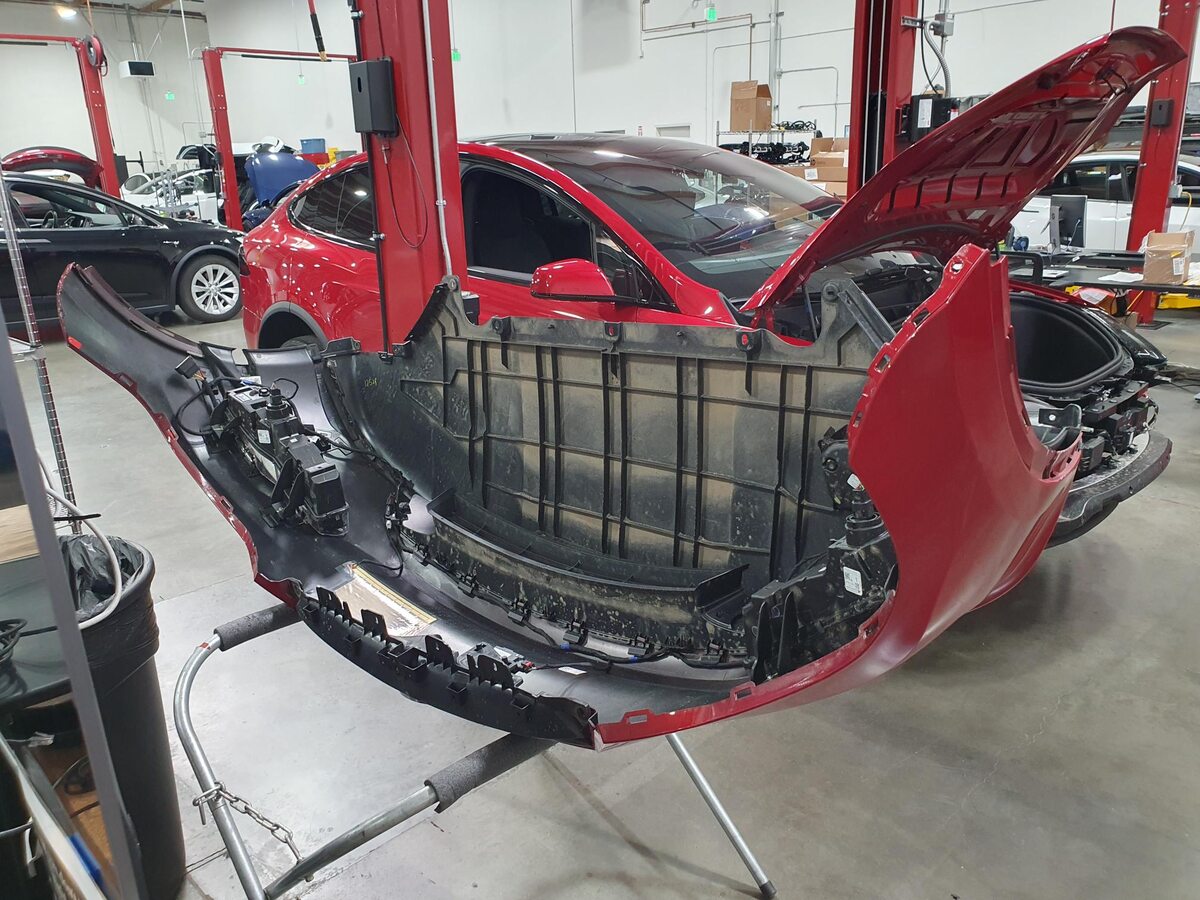

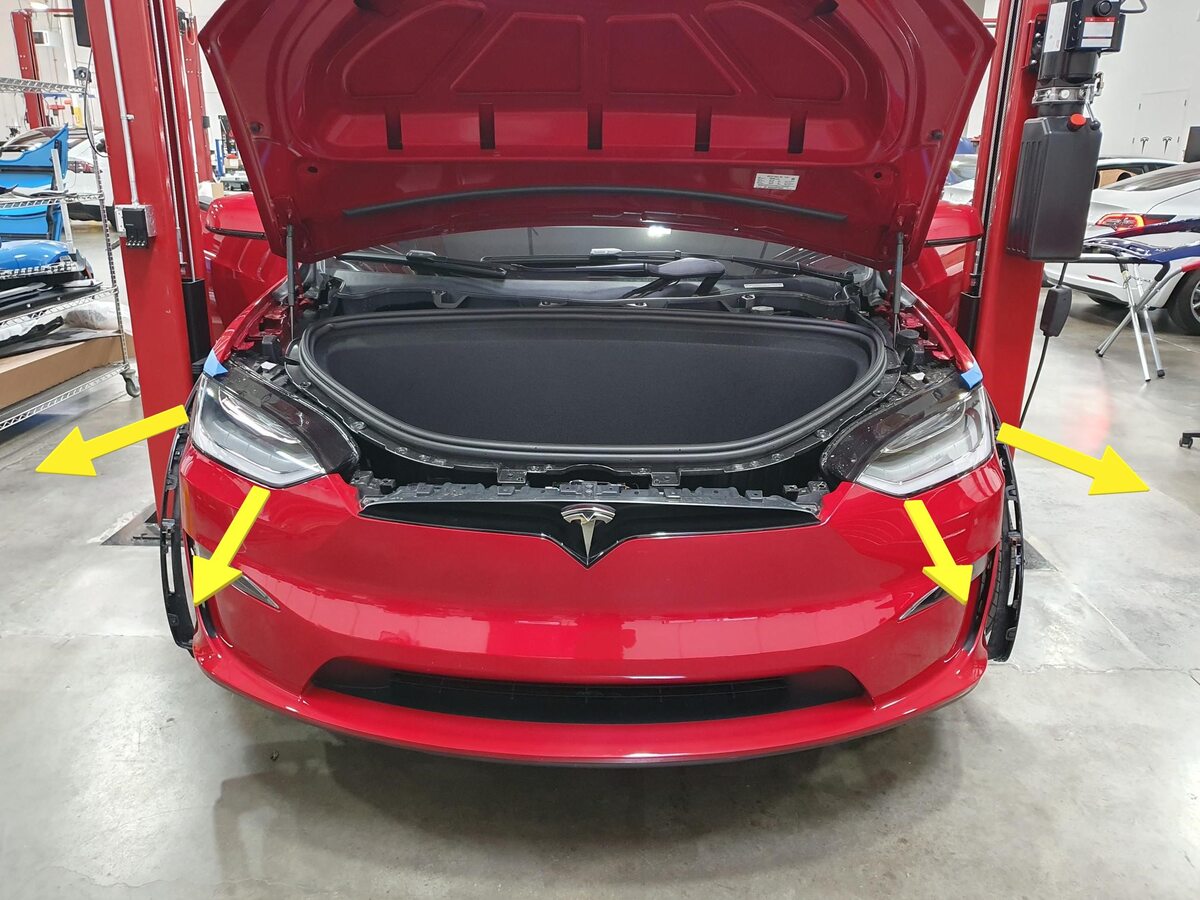

  26. Remove front fascia assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Release fascia from LH and RH fender brackets, Place on protected surface to avoid damage
  27. Disconnect front fascia assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Release locking tabs then disconnect
  28. Disconnect LH front fascia lamp
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  29. Disconnect RH front fascia lamp
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

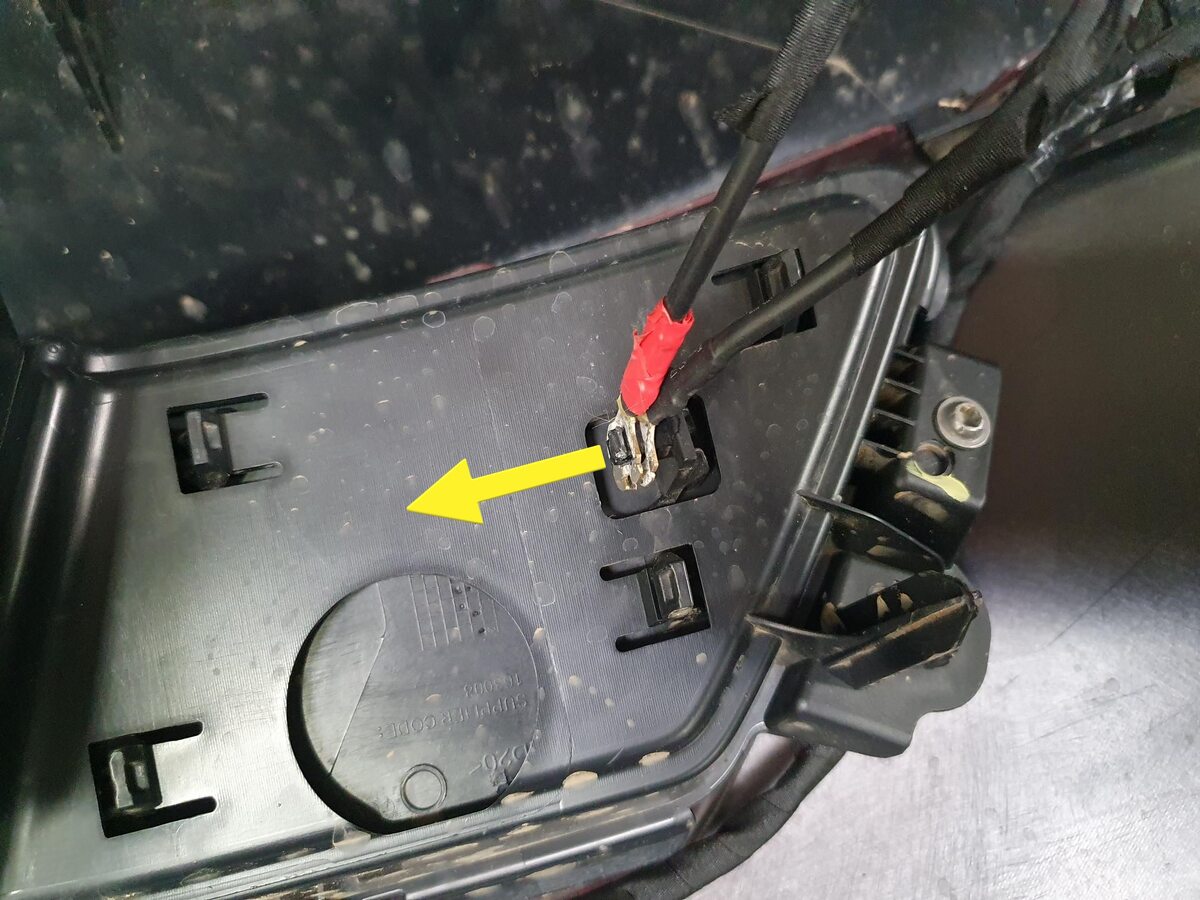

  30. Remove LV jumper wires from access cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x wires, Squeeze retaining tabs together and gently remove wires from cover

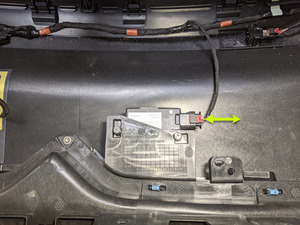

  31. Disconnect front BLE
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector
  32. Disconnect radar heater mat connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  33. Disconnect pedestrian warning
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector

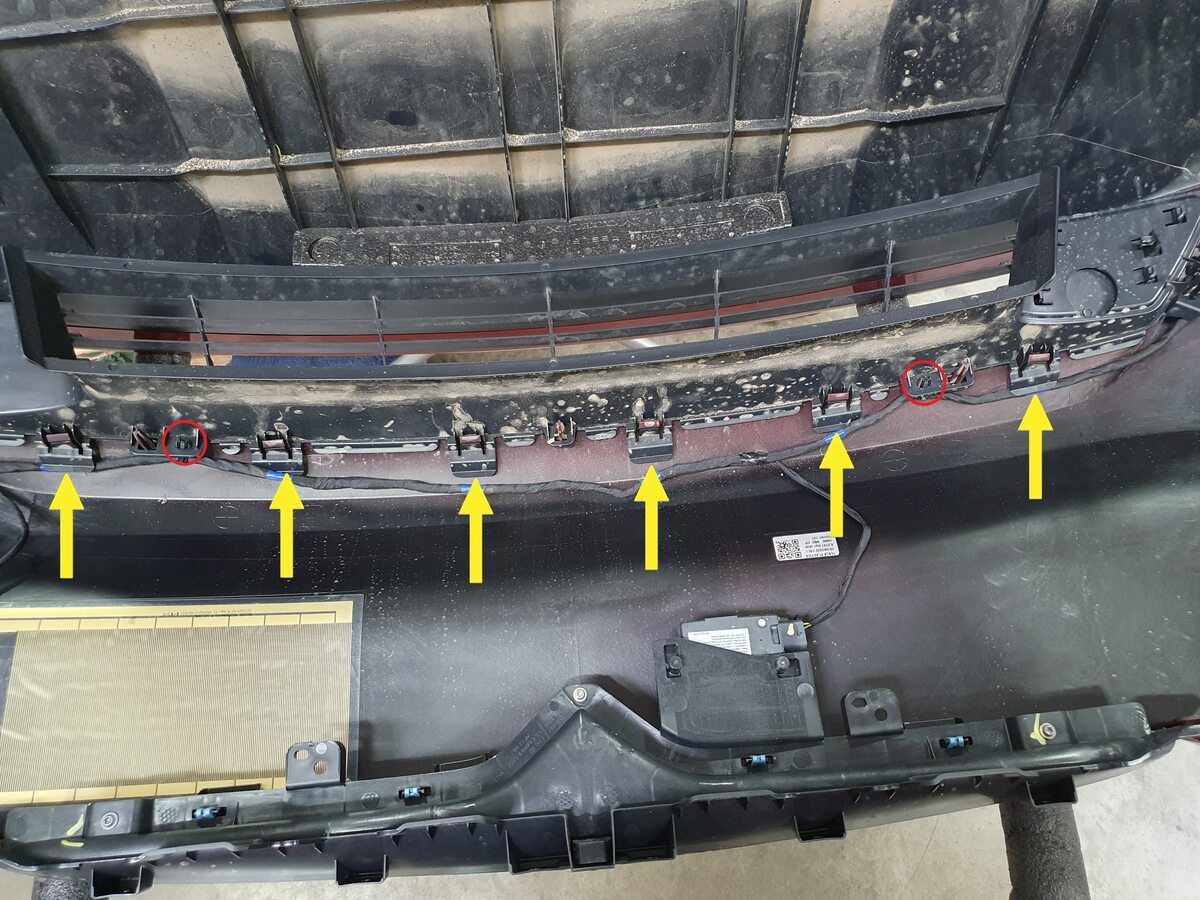

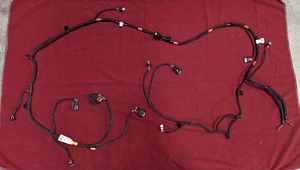

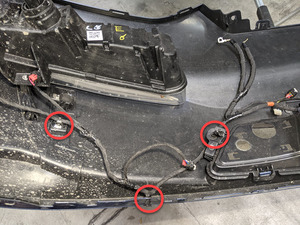

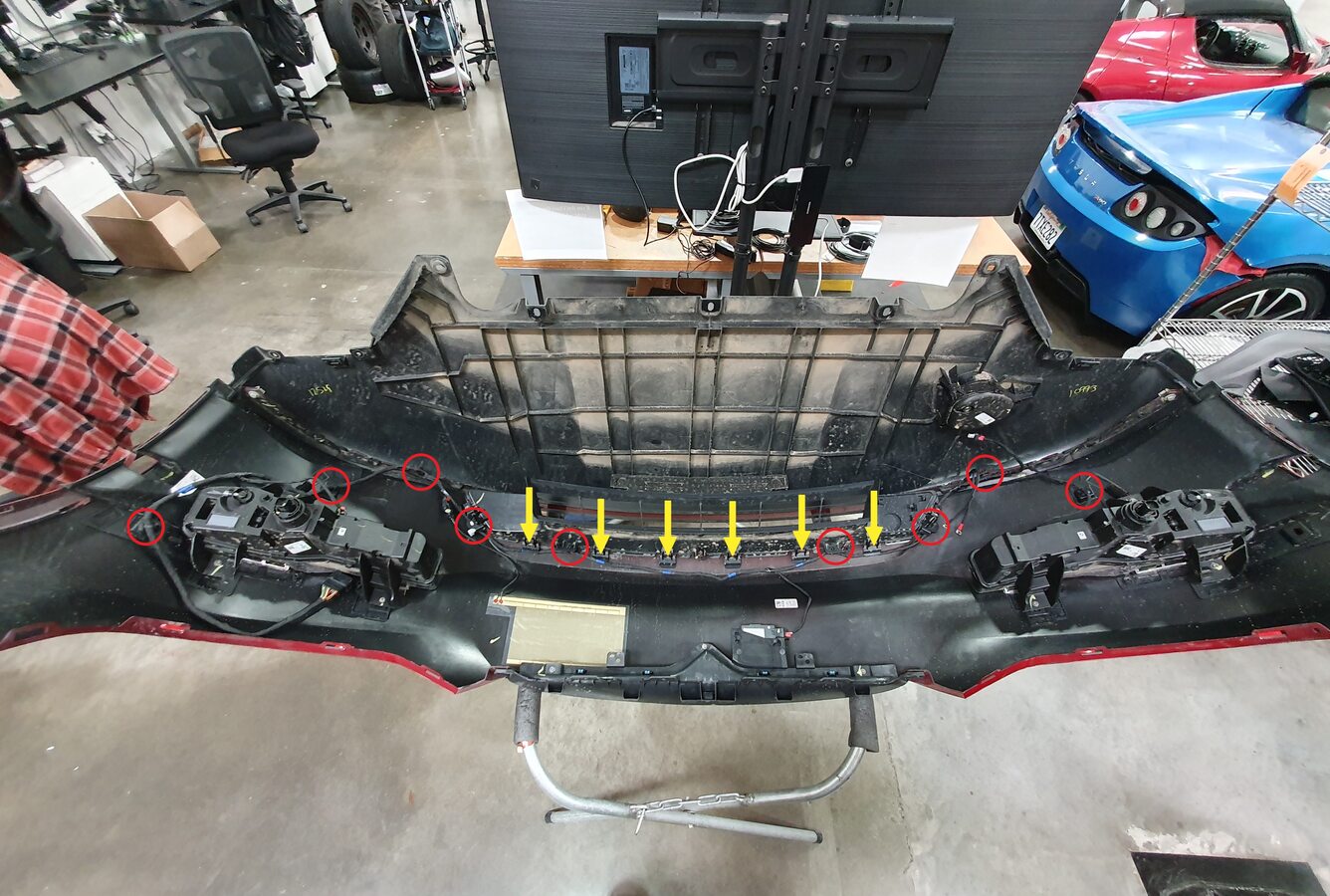

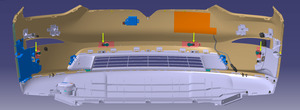

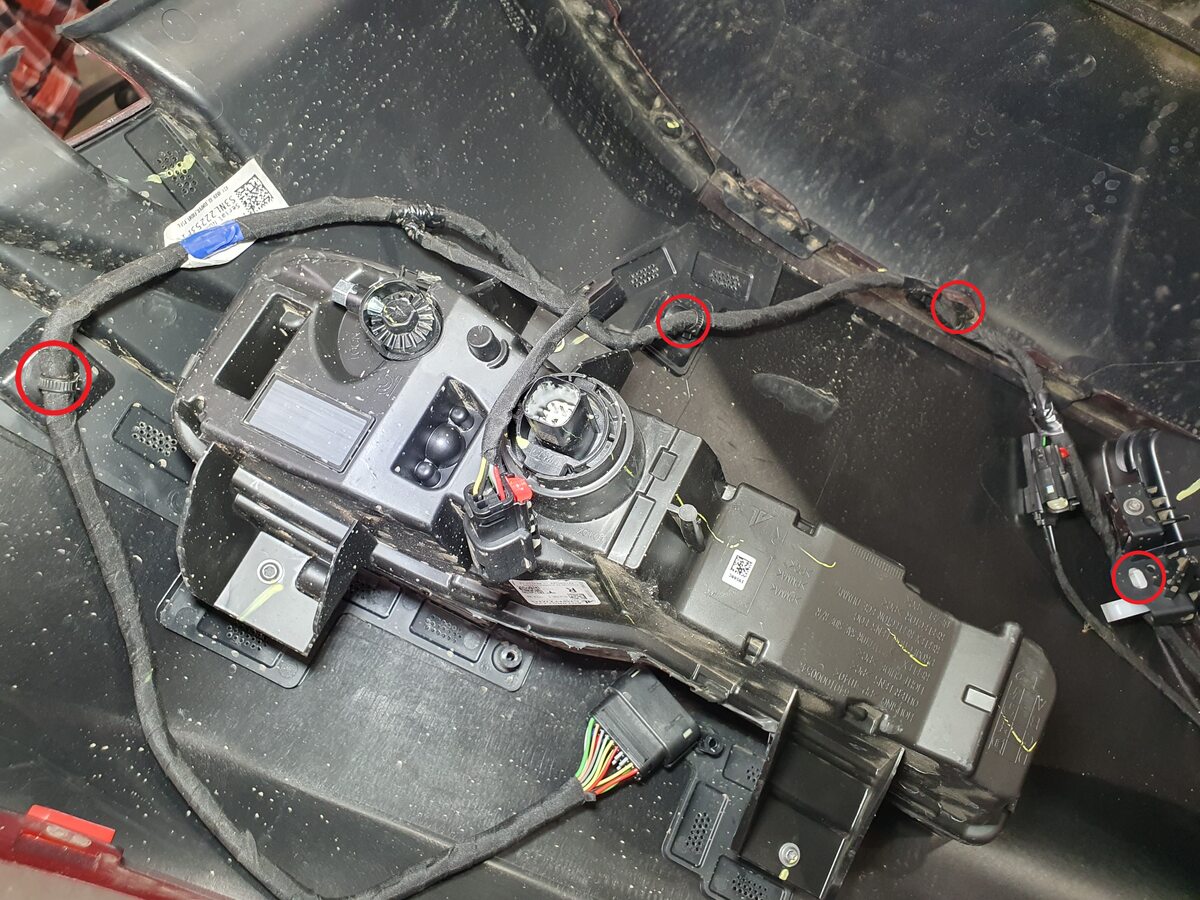

  34. Release front fascia harness from front fascia assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips, 6x tabs, Untuck harness out of tabs

Install - HW3

  1. Position the front fascia harness into the front fascia assembly, and then secure the clips (x9) that attach the harness to the assembly.
  2. Connect the front parking distance sensor electrical connectors (x4), and then engage the locking tabs.
  3. Connect the pedestrian warning speaker electrical connector, and then engage the connector lock.
  4. Connect the LH and RH front fog light electrical connectors.
    Figure 2. LH shown; RH similar
  5. Connect the radar heater mat electrical connector.
  6. Connect the front BLE electrical connector, and then engage the connector lock.
  7. Install the front fascia assembly onto the vehicle. See Fascia Assembly - Front (Remove and Install).

Install - HW4

  1. Install front fascia harness onto front fascia assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips, 6x tabs, Tuck harness into tabs
  2. Connect pedestrian warning
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  3. Connect radar heater mat connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  4. Connect front BLE
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  5. Install LV jumper wires onto access cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x wires, Ensure both wire terminals are fully seated behind retaining tabs
  6. Connect RH front fascia lamp
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  7. Connect LH front fascia lamp
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

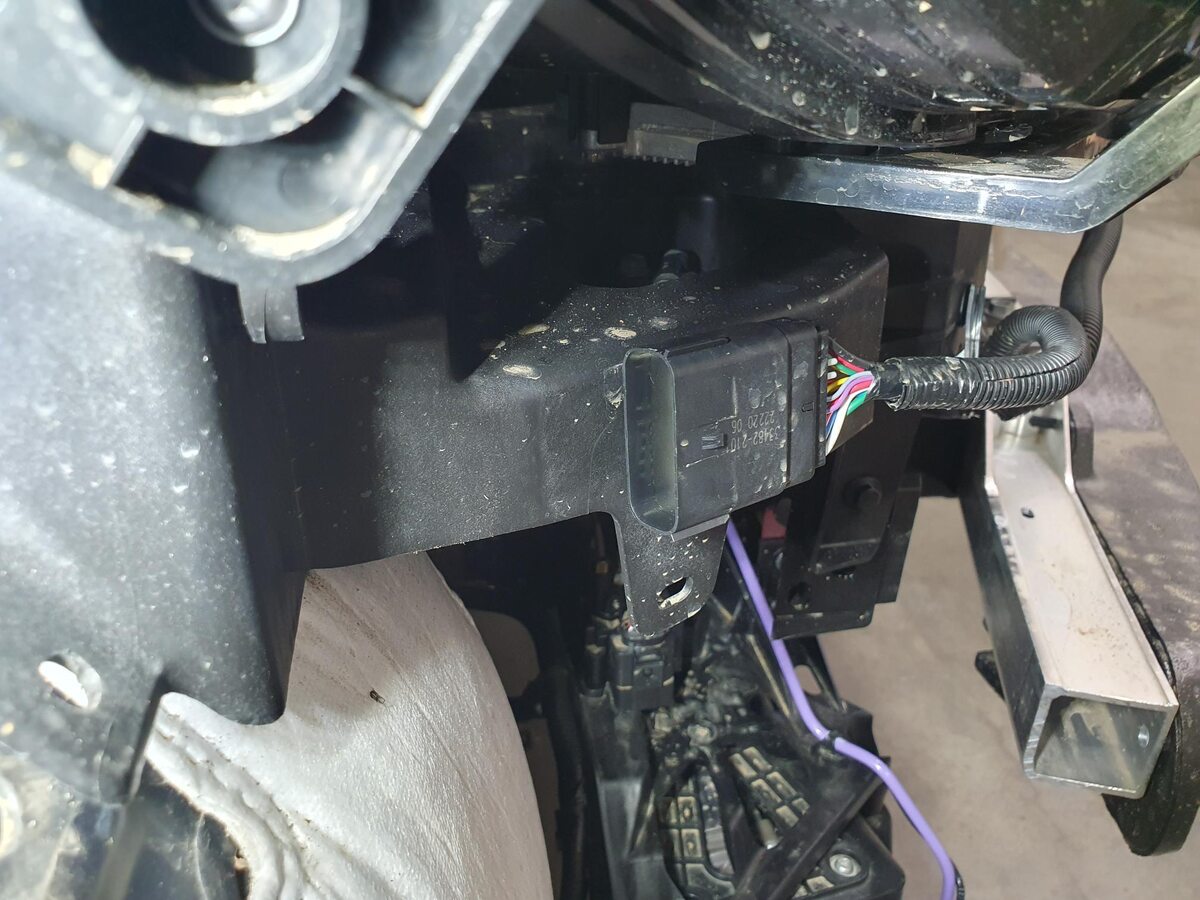

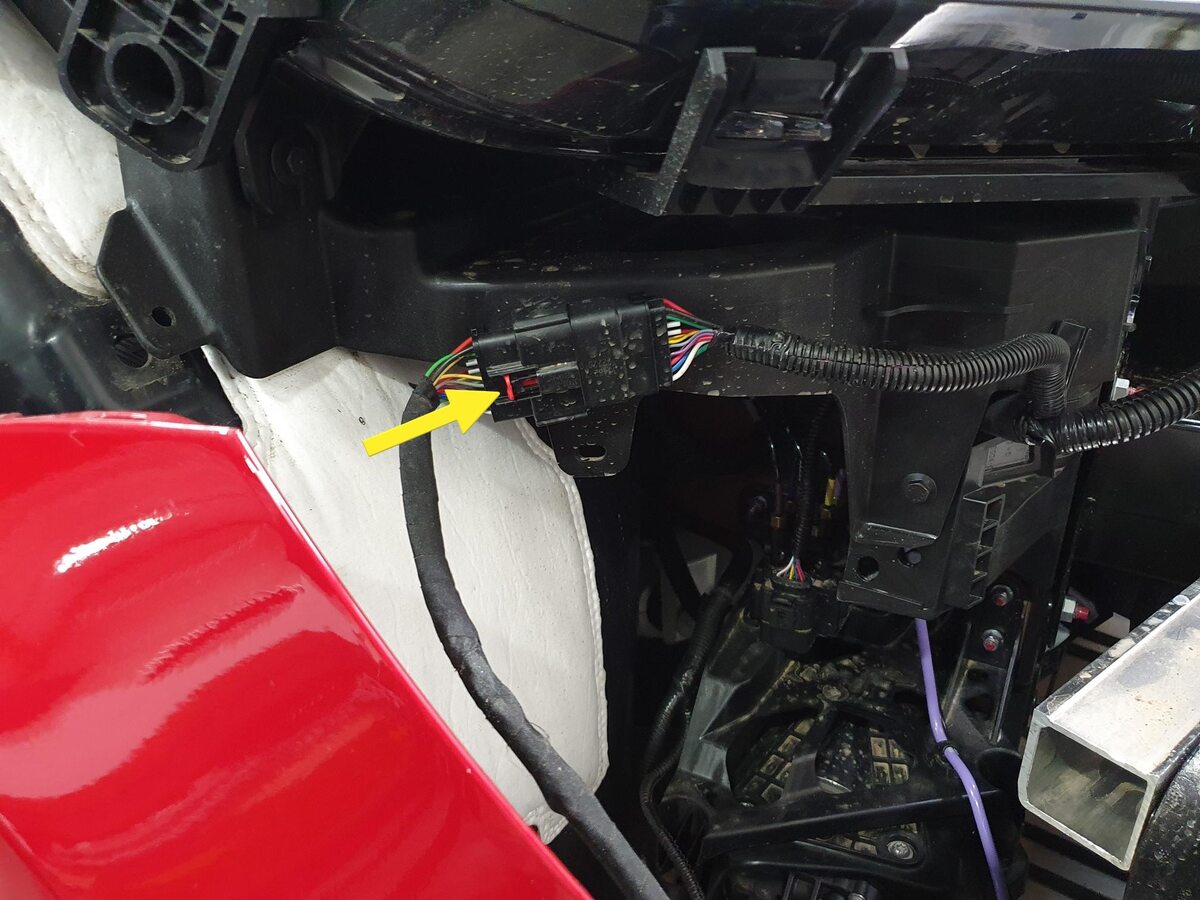

  8. Connect front fascia harness onto frunk harness
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connectors, Engage locking tab, Located behind RH wheel arch liner
  9. Install front fascia onto vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Slide LH and RH side of fascia into fenders
  10. Remove masking tape from front fenders
  11. Install bolt securing fascia to RH fender bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 8mm, 5 Nm
  12. Install RH front fender garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 8x tabs, Secure from top to bottom of front bumper
  13. Install RH front wheel fairing to valence
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 1.5 Nm
  14. Install push clips securing RH front wheel liner onto fascia
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips
  15. Connect the First Responder Loop and LV battery connector.
  16. Press brake pedal to turn on drive rails
  17. Turn steering wheel fully to the right
  18. Install bolt securing fascia onto LH fender bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 8mm, 5 Nm

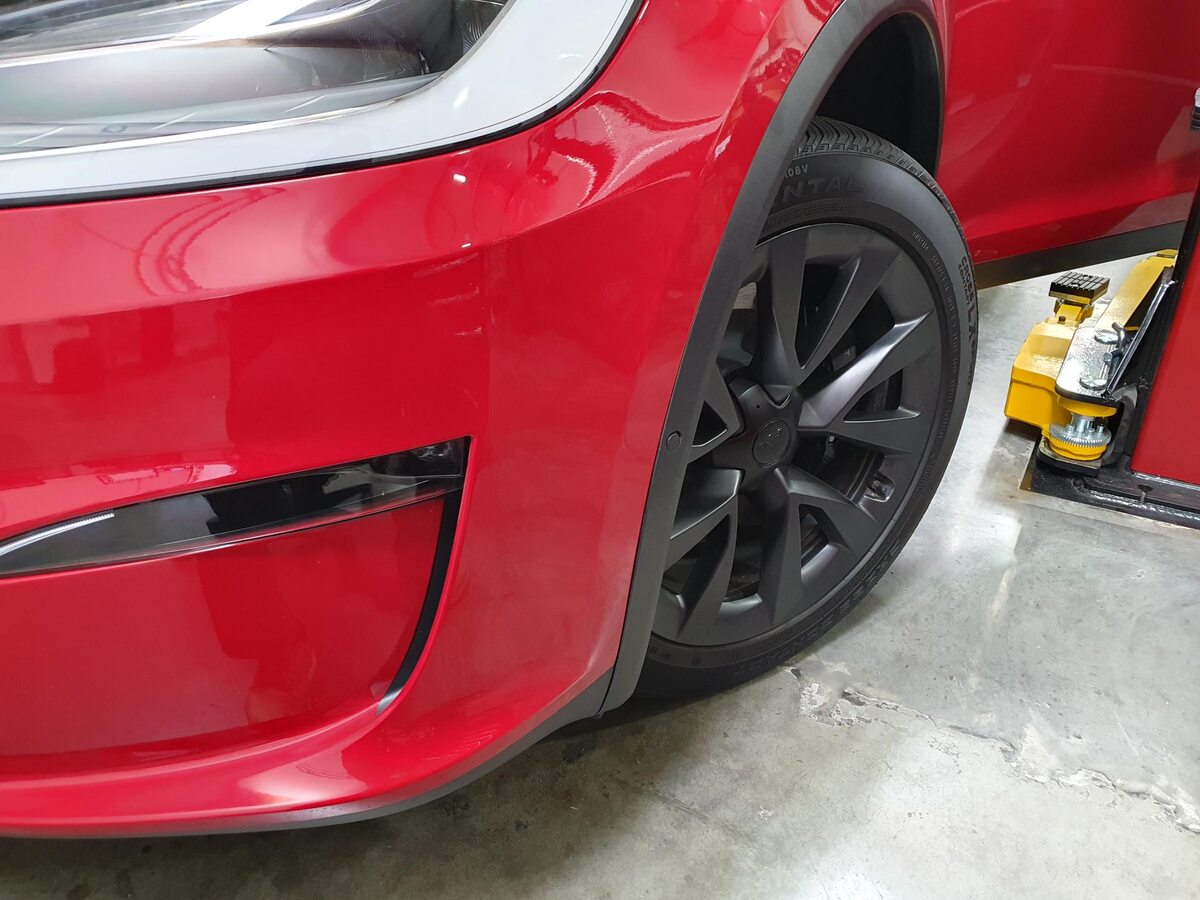

  19. Install LH front fender garnish
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 8x tabs, Secure from top to bottom of front bumper
  20. Install LH front wheel fairing to valence
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 1.5 Nm, 1x securing tab
  21. Install push clips securing LH front wheel liner to valence
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, T30, 1.5 Nm, 3x clips
  22. Install fasteners securing lower portion of front fascia to valence
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 3 Nm, 2x clips
  23. Install bolts securing upper portion of front fascia
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 10mm, 7 Nm, Ensure proper fascia-to-headlamp gap and flushness
  24. Install the front underhood apron.
  25. Install the LH underhood apron.
  26. Install the RH underhood apron.
  27. Install the rear underhood apron.
  28. Close the hood.
  29. Calibrate the RH falcon wing door.
  30. Calibrate the LH falcon wing door.
  31. Press brake pedal to turn on drive rails
  32. Turn steering wheel back to center
  33. Set air suspension ride height to "Standard"
    Informational PurposesAn informational icon, calling your attention
    Note
    Using center display > Suspension > ''Standard''
  34. Raise both front windows.
  35. Close the LH front door.
