Speaker - Dash - LH (Remove and Replace)

Correction code 21211502 1.44 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2023-04-12: Cleaned up.

Remove

  1. Remove the IP sub-assembly. See Sub Assembly - Instrument Panel (Remove and Replace)

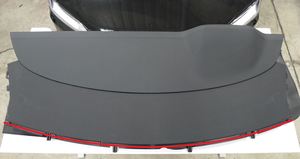

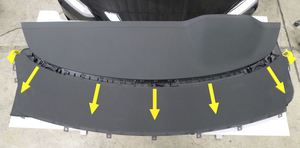

  2. Remove and discard the IP sub-assembly seal.

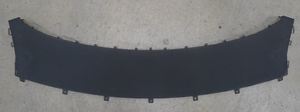

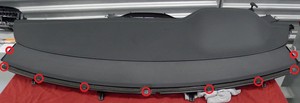

  3. Remove the screws (x9) that attach the dash speaker mesh to the IP sub-assembly, then remove the dash speaker mesh.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Flex head ratchet/flex head torque wrench
    • 2 in extension

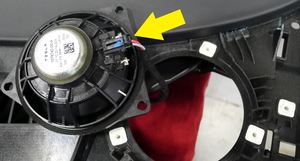

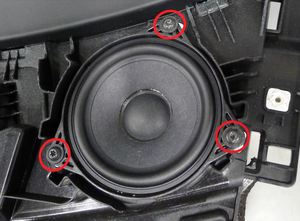

  4. Remove the screws (x3) and disconnect the electrical connector that attach LH dash speaker to the IP sub-assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Flex head ratchet/flex head torque wrench

Install

  1. Connect the electrical connector and install the screws (x3) that attach LH dash speaker to the IP sub-assembly.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Flex head ratchet/flex head torque wrench
    • Wurth ¼ in hexagon 1 Nm - 5 Nm torque wrench (installation only)
  2. Install the screws (x9) that attach the dash speaker mesh to the IP sub-assembly.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Wurth ¼ in hexagon 1 Nm - 5 Nm torque wrench (installation only)
    • 2 in extension
  3. Use IPA wipes to clean around the seal and install IP sub-assembly seal.
  4. Install the IP sub-assembly. See Sub Assembly - Instrument Panel (Remove and Replace)
