Brake Hose - Flexible - Rear - LH (Remove and Replace)

Correction code 33030502 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Raise and support the vehicle on a 2 post lift. See Raise Vehicle - 2 Post Lift.
  2. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).

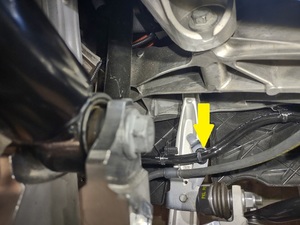

  3. Release the clip that attaches the air lines to the LH rear flexible brake hose bracket.

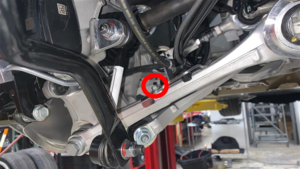

  4. Remove the bolt that attaches the LH rear flexible brake hose to the LH rear lower aft link.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

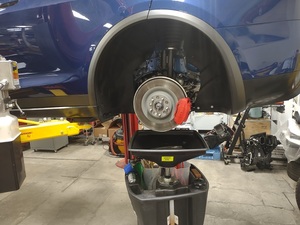

  5. Position the oil drain container underneath the LH rear corner of the vehicle.

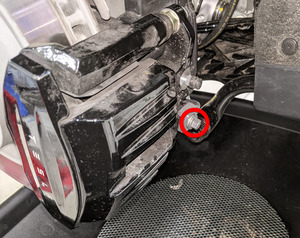

  6. Remove the banjo bolt that attaches the LH rear flexible brake hose to the LH rear brake caliper.
    42 Nm (31.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm deep socket
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any brake fluid lost in the oil drain container.

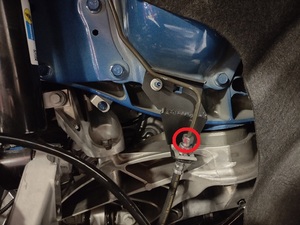

  7. Disconnect the LH rear jounce hose from the LH rear flexible brake hose.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12 mm combination wrench.
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any brake fluid lost in oil drain container.

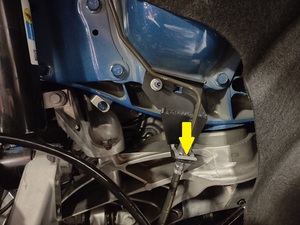

  8. Remove the clip that attaches the LH rear jounce hose to the bracket.

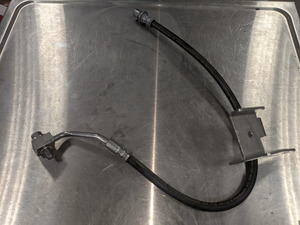

  9. Remove the LH rear flexible brake hose from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

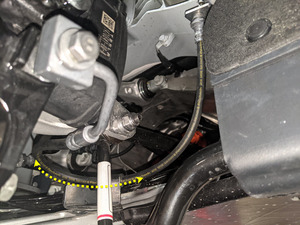

    Make sure proper routing behind the rear stabilizer bar link.
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the brake hose.
    Informational PurposesAn informational icon, calling your attention
    Note
    Crush washer cannot be reused.

Install

  1. Position the LH rear flexible brake hose to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure proper routing behind the rear stabilizer bar link.
    Informational PurposesAn informational icon, calling your attention
    Note
    Brake hose cannot be reused.
  2. Install the clip that attaches the LH rear jounce hose to the bracket.
  3. Connect the LH rear jounce hose to the LH rear flexible brake hose.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12 mm combination wrench.
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any brake fluid lost in oil drain container.
  4. Install the banjo bolt that attaches the LH rear flexible brake hose to the LH rear brake caliper.
    42 Nm (31.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm deep socket
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any brake fluid lost in the oil drain container.
  5. Remove the oil drain container from underneath the vehicle.
  6. Install the bolt that attaches the LH rear flexible brake hose to the LH rear lower aft link.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  7. Fasten the clip that attaches the air lines to the LH rear flexible brake hose bracket.
  8. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  9. Bleed the brakes. See Brake Fluid Bleed/Flush (Remove and Replace).
  10. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  11. Install the LH rear wheel. See Wheel Assembly (Remove and Install).
  12. Hold brake pedal and shift into Park on the touchscreen to disable EPB service mode.
  13. Perform a road test to ensure proper brake pedal feel and performance.
    Informational PurposesAn informational icon, calling your attention
    Note
    Add correction code (00040100) to account for time
