Hinge - Door - Front - Lower - LH (Remove and Replace)

Correction code 11336602 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the front windows.

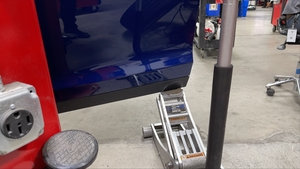

  2. Use a floor jack to support the LH front door.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Protect painted surface with a soft object.

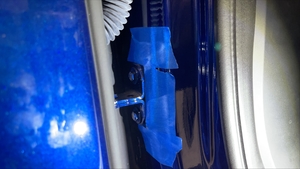

  3. Tape the LH lower front door hinge area on the body side to mark the hinge location.

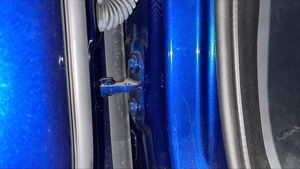

  4. Remove the bolts (x2) that attach the LH lower front door hinge to the LH front door.
    24 Nm (17.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12mm socket

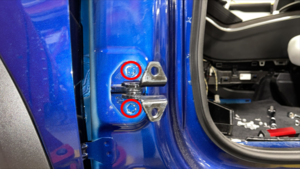

  5. Remove the bolts (x2) that attach the LH lower front door hinge to the body, and then remove the hinge from the vehicle.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12mm socket

Install

  1. Position the LH lower front door hinge into the vehicle, and then install the bolts (x2) that attach the hinge to the vehicle.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12mm socket
  2. Position the LH lower front door hinge onto the LH front door, and then install the bolts (x2) that attach the hinge to the door.
    24 Nm (17.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12mm socket
  3. Remove the floor jack from the LH front door.
  4. Check the gap and flush of the front door to the surrounding components and adjust as necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to CVIS for current gap/flush specifications.

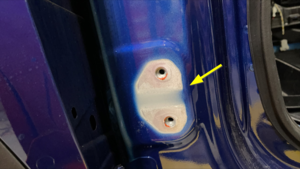

  5. Use IPA wipes to clean the body side of the LH lower front door hinge bolts.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute of dry time.
  6. Apply touch up paint to the LH lower front door hinge body side bolts as necessary.
  7. Remove the masking tape.
  8. Raise the front windows and close the LH front door.
