Cover - Aero Lens - Instrument Panel - LH (Remove and Replace)

Correction code 14050032 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)

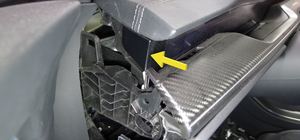

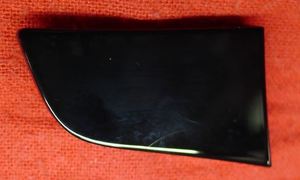

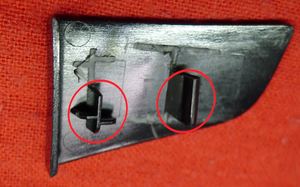

  3. Release the clip that attaches the LH instrument panel aero lens cover to the instrument panel, and then remove the cover from the vehicle.

Install

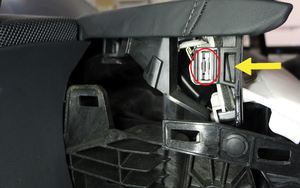

  1. Position the LH instrument panel aero lens cover onto the instrument panel, and then secure the clip that attaches the cover to the instrument panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the cover is flush with the aero lens.
  2. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
  3. Raise the LH front window and close the LH front door.
