Panel - Cowl Screen (Remove and Replace)

Correction code 12250902 0.20 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).

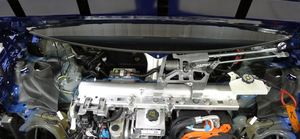

  3. Remove the LH wiper arm. See Wiper Arm - LH (Remove and Replace).
  4. Remove the RH wiper arm. See Wiper Arm - RH (Remove and Replace).

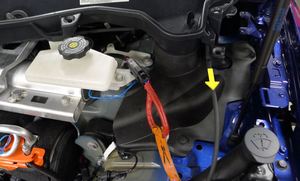

  5. Release the cowl screen washer supply hose located above the LH shock tower cover.

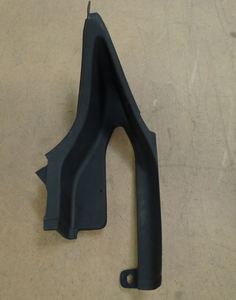

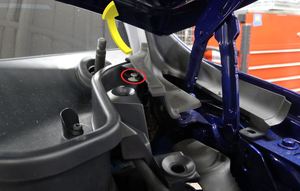

  6. Release the clip that attaches the LH outer hood hinge cover to the vehicle, and then remove the cover from the vehicle. Repeat this step for the RH outer hood hinge cover.
    Figure 1. LH shown; RH similar
    Figure 2. LH shown; RH similar

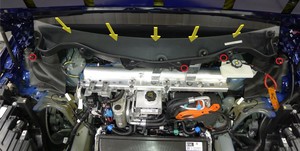

  7. Remove the clips (x4) that attach the cowl screen panel assembly to the vehicle, and then pull the panel upward and out of the lower windshield channel to remove it from the vehicle.

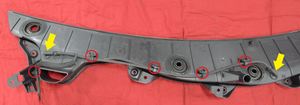

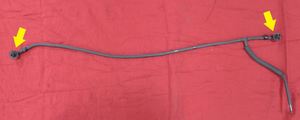

  8. Release the clips (x5) and nozzles (x2) that attach the cowl screen panel wiper hose to the cowl screen panel, and then remove the hose from the panel.

Install

  1. Position the cowl screen panel wiper hose onto the cowl screen panel, and then secure the clips (x5) and nozzles (x2) that attach the hose to the panel.
  2. Position the cowl screen panel assembly to the vehicle, and then install the push clips (x4) that attach the assembly to the vehicle.
  3. Position the LH outer hood hinge cover into the vehicle, and then install the clip that attaches the cover to the vehicle. Repeat this step for the RH outer hood hinge cover.
    Figure 3. LH shown; RH similar
    Figure 4. LH shown; RH similar
  4. Secure the cowl screen washer supply hose located above the LH shock tower cover.
  5. Install the RH wiper arm. See Wiper Arm - RH (Remove and Replace).
  6. Install the LH wiper arm. See Wiper Arm - LH (Remove and Replace).
  7. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  8. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
