Lid - Cup Holder - 2nd Row (Remove and Replace)

Correction code 15192912 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door.
  2. Lower the LH front window.
  3. Open the LH falcon wing door.

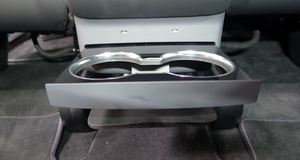

  4. Depress the spring loaded assembly to extend the 2nd row cup holder.

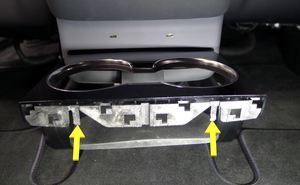

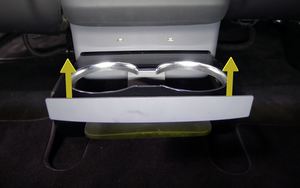

  5. Release the tabs (x2) that attach the 2nd row cup holder lid to the cupholder, push the lid upwards until the datums (x8) clear the retaining cutouts, and then remove the lid from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 6 in 90 degree tip soft grip miniature pick

Install

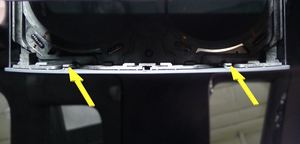

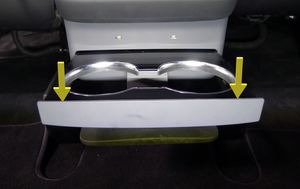

  1. Align the 2nd row cup holder lid datums (x8) in the cup holder retaining cutouts, and then slide the lid downwards until the tabs (x2) audibly lock and attach the lid to the cup holder.

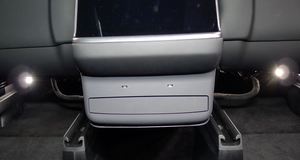

  2. Retract the 2nd row cup holder.
    Informational PurposesAn informational icon, calling your attention
    Note
    Inspect the fit and flushness of the cupholder lid.
  3. Close the LH falcon wing door.
  4. Raise the LH front window.
  5. Close the LH front door.
