Bracket - Catcher - 2nd Row Seat - LH (6 Seat) (Remove and Replace)

Correction code 13023302 1.98 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all the doors and lower the front windows.
  2. Remove the LH 2nd row seat assembly from the vehicle. See Seat Assembly - 2nd Row - LH (Without 2nd Row Bench Seats) (Remove and Replace).
  3. Remove the LH 2nd row seat slider. See Slider - Seat - 2nd Row - LH (6 Seat) (Remove and Replace).

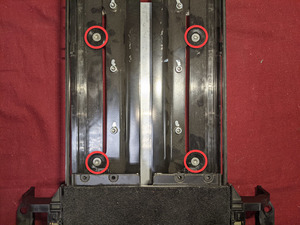

  4. Slide the magic carpet to the rear of the assembly, and then remove and discard the bolts (x4) that attach the magic carpet to the LH 2nd row seat catcher bracket.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The plastic washers (x4) will be reused during installation.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

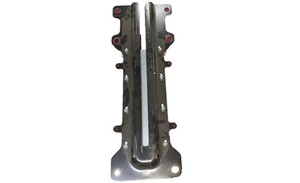

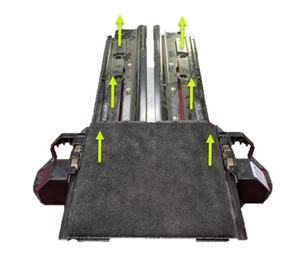

  5. Lift the magic carpet upward to remove it from the LH 2nd row seat catcher bracket.

Install

  1. Install the magic carpet onto the LH 2nd row seat catcher bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Align the access holes for bolt installation.
  2. Install new bolts (x4) and washers that attach the magic carpet to the LH 2nd row seat catcher bracket.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  3. Install the LH 2nd row seat slider. See Slider - Seat - 2nd Row - LH (6 Seat) (Remove and Replace).
  4. Install the LH 2nd row seat assembly into the vehicle. See Seat Assembly - 2nd Row - LH (Without 2nd Row Bench Seats) (Remove and Replace).
  5. Raise the front windows and close all the doors.
