Coolant Bottle (Remove and Replace)

Correction code 18301552 1.50 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

Raise and support vehicle

Note

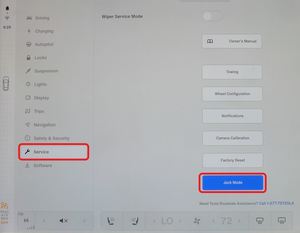

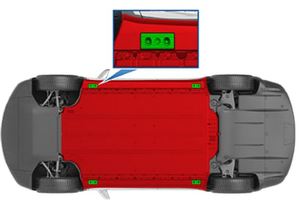

Set air suspension to "Jack Mode", Position lift arm pads on vehicle jack pads, DO NOT position the lift arm pads under the battery or side rails, as shown in red
Open LH front door
Lower LH and RH front windows
Open hood

Note
Via center display > Quick Controls > Frunk Open
Power off vehicle via center display

Note
Controls > Safety & Security > Power Off

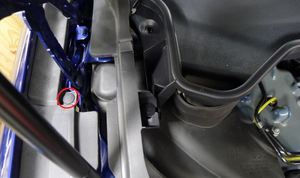

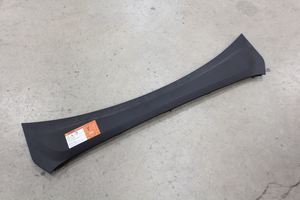

Remove rear underhood apron

Note
11x clips

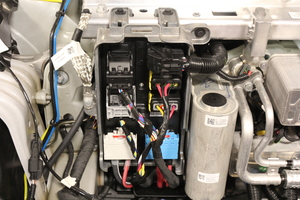

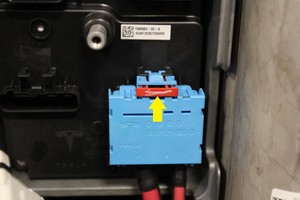

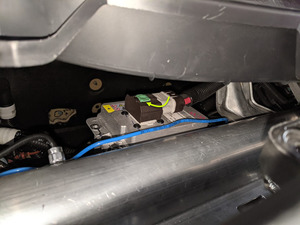

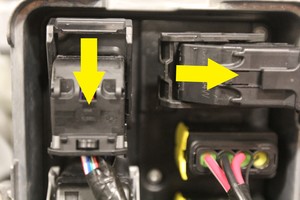

Disconnect LV battery connector and First Responder Loop

Note
2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection

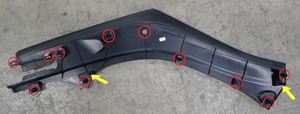

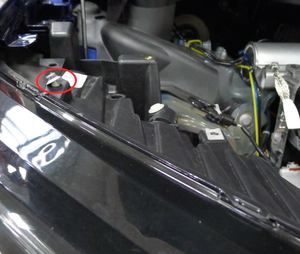

Remove RH underhood apron

Note
11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp
Remove LH underhood apron

Note
11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp

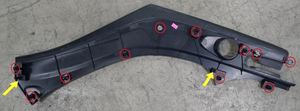

Remove front underhood apron

Note
12x clips, 3 datums

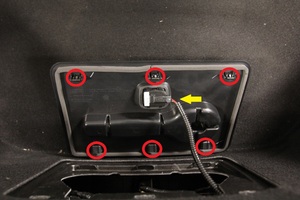

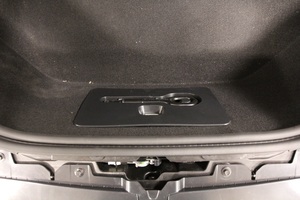

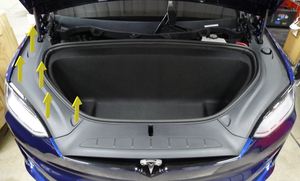

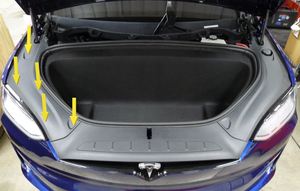

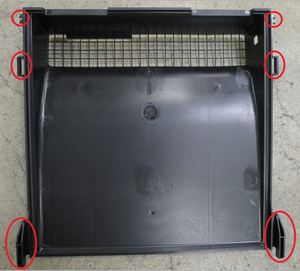

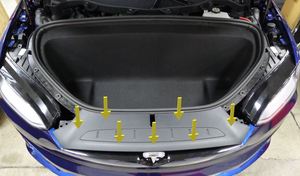

Remove frunk access panel

Note
3x clips, 3x hooks, 1x connector

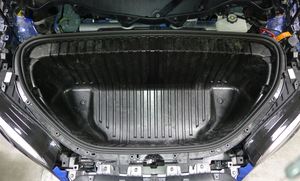

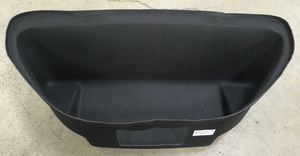

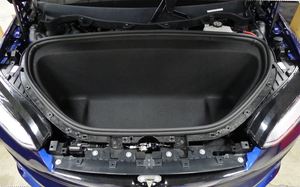

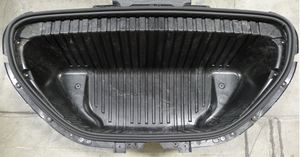

Remove frunk carpet

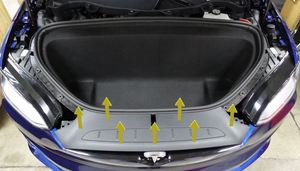

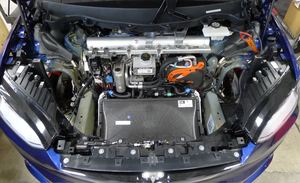

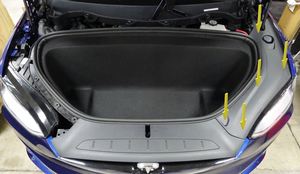

Remove frunk assembly

Note

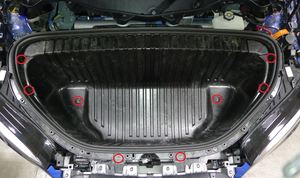

8x bolts, 10mm, 5 Nm

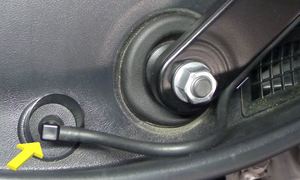

Release RH wiper arm hose nozzle

Note
1x hose
Release LH wiper arm hose nozzle

Note
1x hose
Remove LH wiper arm nut cover

Note
1x cover
Remove RH wiper arm nut covers

Note
2x cover

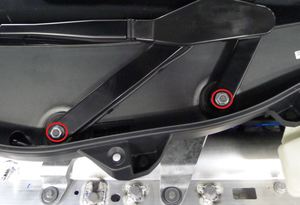

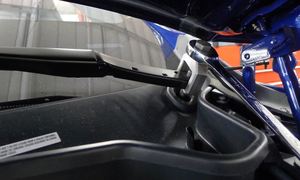

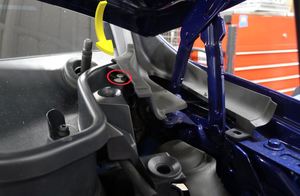

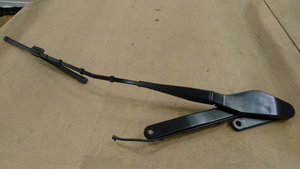

Remove RH wiper arm nuts and release assembly

Note
2x nuts, 15mm, 32 Nm, Do not flex wiper arm to remove

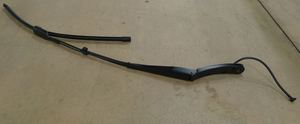

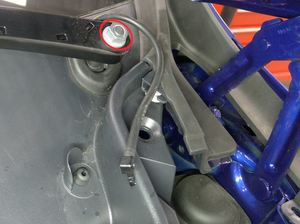

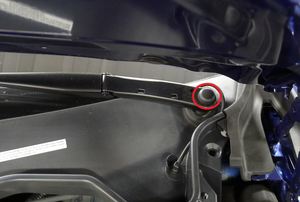

Remove LH wiper arm nut and release assembly

Note
1x nut, 15mm, 32 Nm, Do not flex wiper arm to remove, Lower the hood slightly to fit wiper arm removal tool

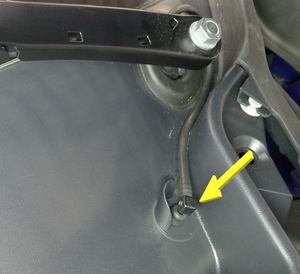

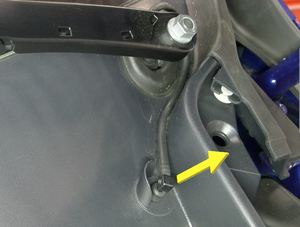

Release cowl screen washer supply hose located above LH shock tower cover

Note
1x hose

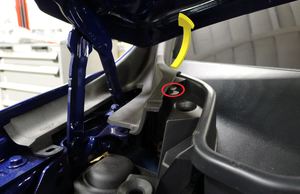

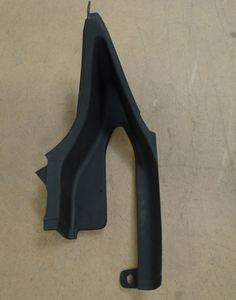

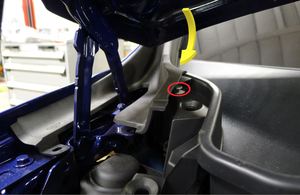

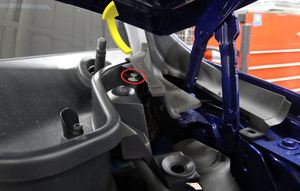

Remove LH outer hood hinge cover

Note
1x clips

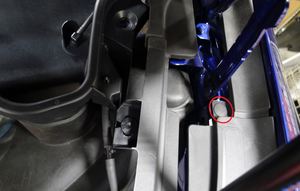

Remove RH outer hood hinge cover

Note
1x clips

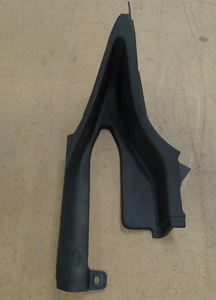

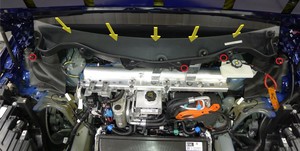

Remove wiper cowl screen panel

Note
4x push clips, Pull cowl up out of lower windshield channel
Release coolant hose from LV battery

Note
1x clip

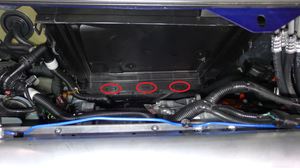

Remove fasteners securing the LV battery and remove assembly

Note
3x bolts, 10mm, 9 Nm, 2x locators

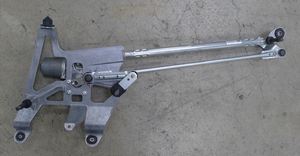

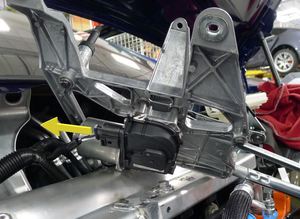

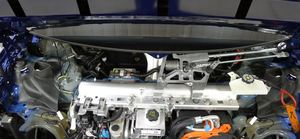

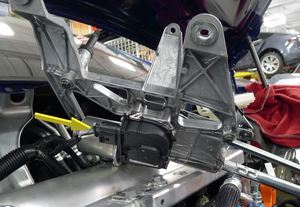

Remove wiper module

Note
3x bolts, 10mm, 9 Nm, 1x connector, Rotate module forward and up to access connector

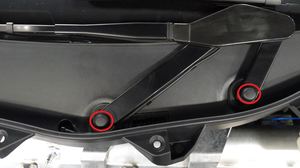

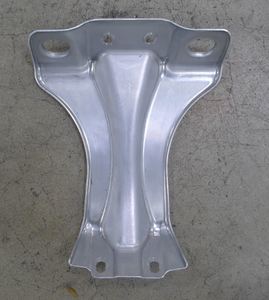

Remove wiper mount bracket

Note

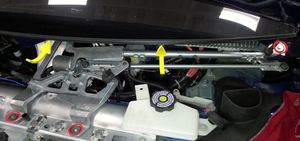

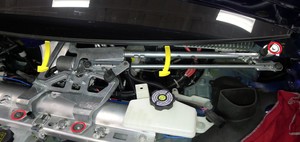

4x bolts, 13mm, 25 Nm, Slide bracket to towards the RH shock tower along the multi-system beam to clear the HEPA filter housing to remove

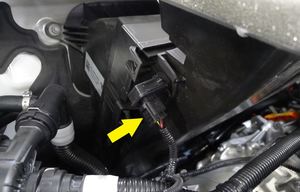

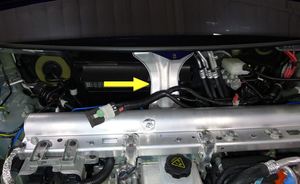

Disconnect air quality sensor harness

Note
1x connector

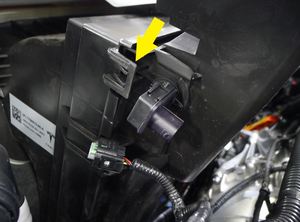

Remove HEPA filter assembly cover

Note
2x tabs

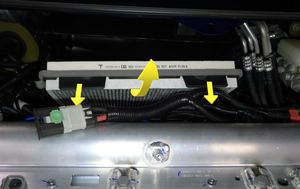

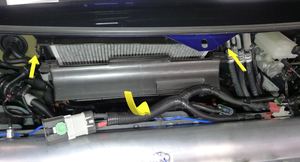

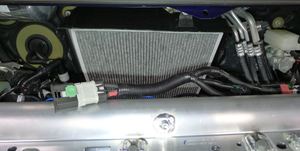

Remove HEPA filter

Note

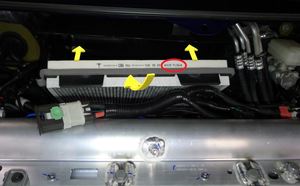

2x clips, Release clips, Pivot filter forward and out of housing

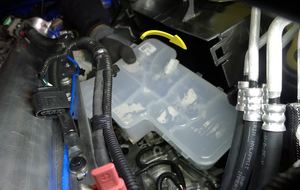

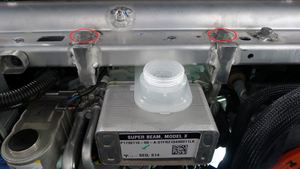

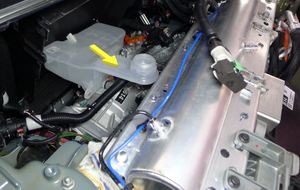

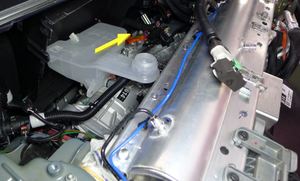

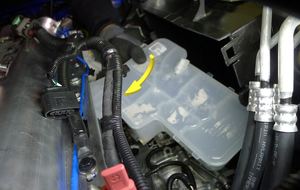

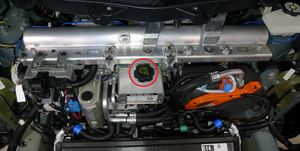

Remove coolant bottle cap
Raise vehicle fully and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Remove clips securing front aero shield

Note
5x push clips

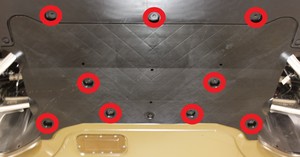

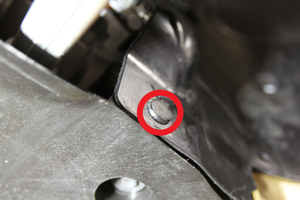

Remove bolts securing front aero shield and remove from vehicle

Note

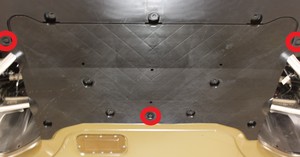

9x bolts, 10mm, 6 Nm

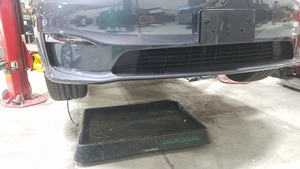

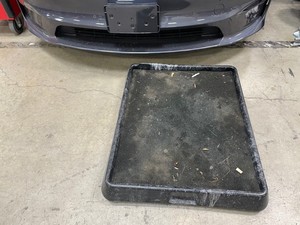

Place coolant catcher below RH front of vehicle
Lower vehicle until tires are touching the ground

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

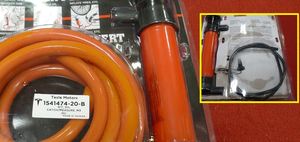

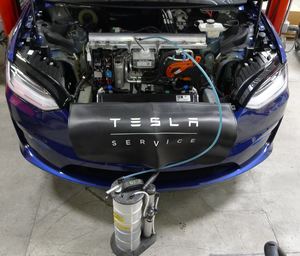

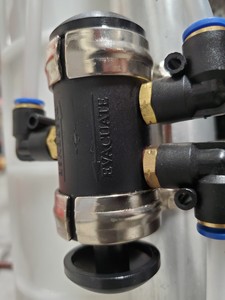

Place fluid extractor in front of vehicle

Note
Set Mityvac to evacuate, Make sure extractor tube is clean of oil so there won't be any contamination, Attach dipstick tube adapter from fluid transfer kit to Mityvac, guide tube through reservoir neck and down into reservoir
Evacuate coolant from coolant bottle

Note
Pump fluid into Mityvac evacuator, Maneuver tube in bottle during evacuation to scavenge as much fluid as possible

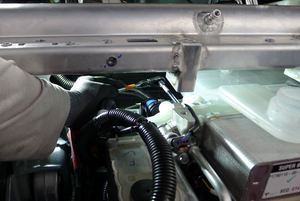

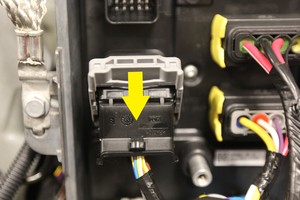

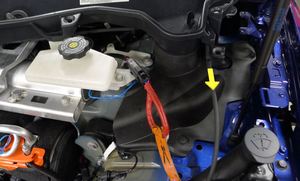

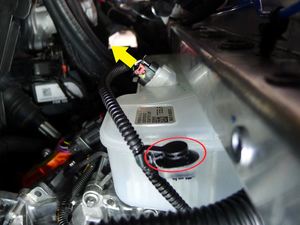

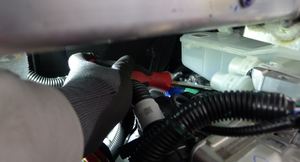

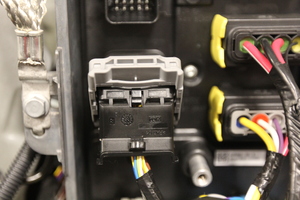

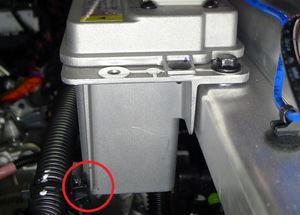

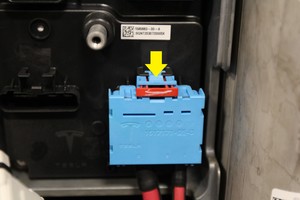

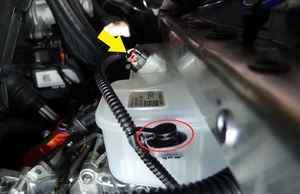

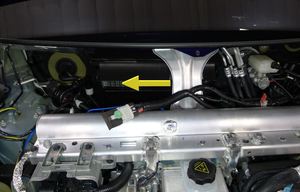

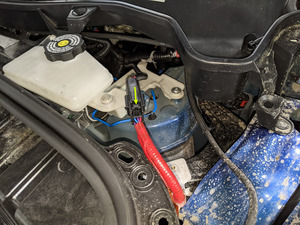

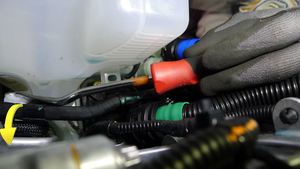

Disconnect the coolant bottle level sensor connector

Note

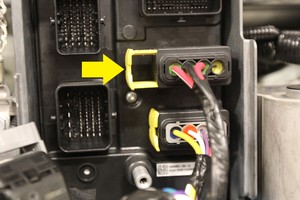

1x locking electrical connector, 1x clip, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector

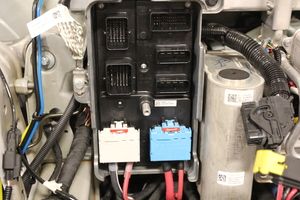

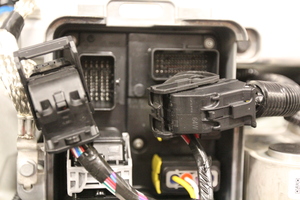

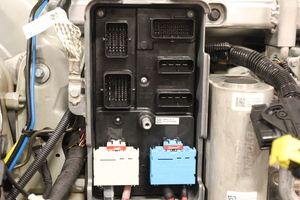

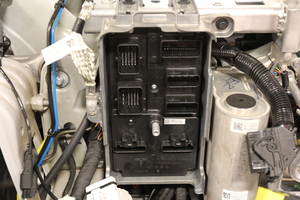

Release upper connections on the front controller

Note
2x locking connectors, Push in locking tabs and lift levers to release

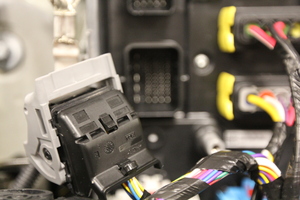

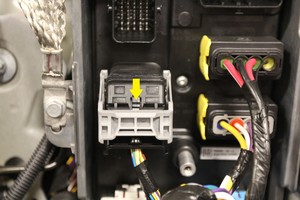

Release LH middle connection on the front controller

Note
1x locking connector, Push in locking tab and lift lever to release

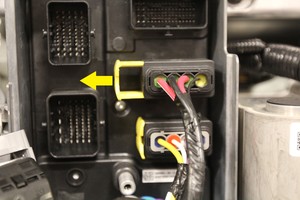

Release RH middle connections on the front controller

Note

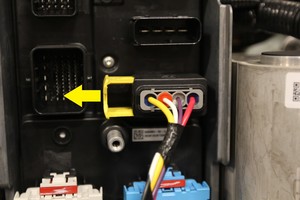

2x locking connectors, Slide locking mechanism outwards to release

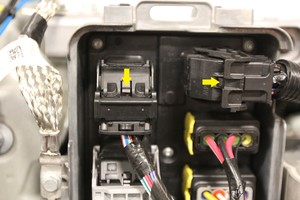

Release lower connections on the front controller

Note
2x locking connectors, Slide red locking tab outwards to release

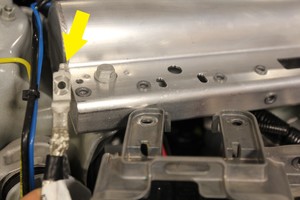

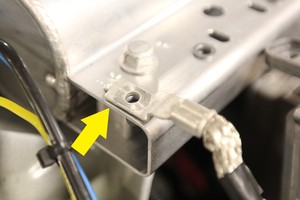

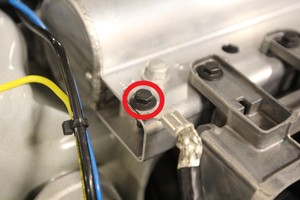

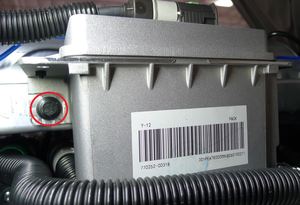

Remove bolt securing front controller ground cable

Note

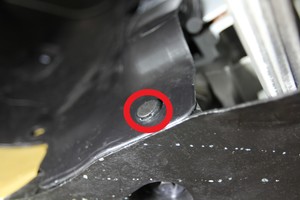

1x bolt, 10mm, 10 Nm

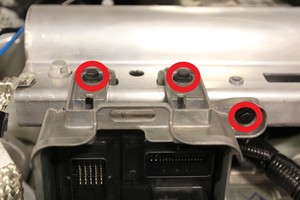

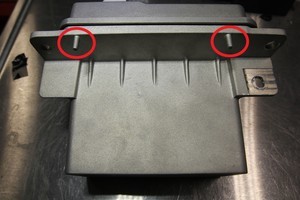

Remove bolts securing front controller

Note

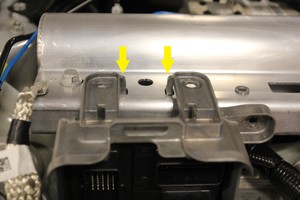

3x bolts, 10mm, 10 Nm
Remove front controller from vehicle and release ground cable from multi system beam

Note

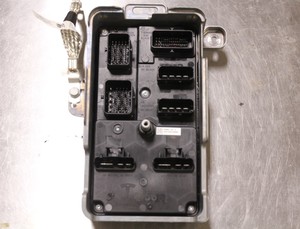

2x locating tabs, 1x ground cable

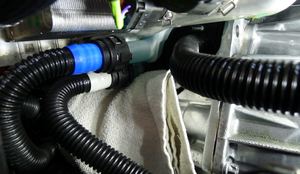

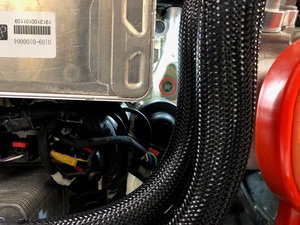

Place rag on top of front drive unit heat exchanger below plastic coolant manifold

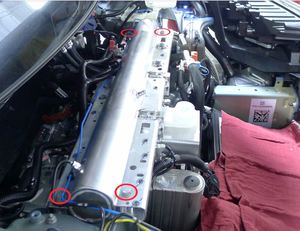

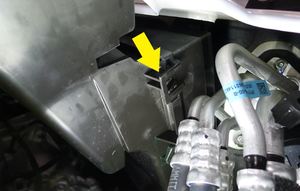

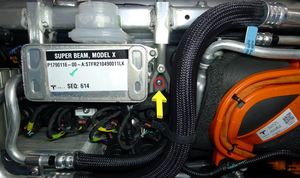

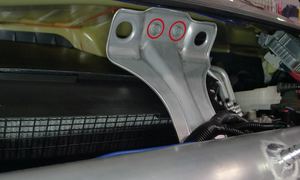

Remove the bolts securing the supermanifold to the multi-system beam and slowly rest on front drive unit

Note

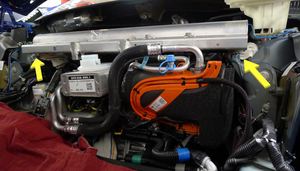

2x bolts, 15 mm, 31 Nm, Recommend assistance, Support from underneath and rest on rag atop heat exchanger

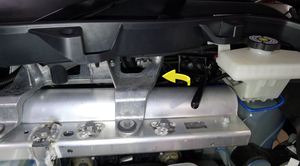

Release multi-system beam

Note
4x bolts, 15mm, 31 Nm

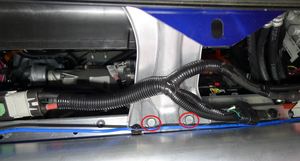

Place a folded rag underneath RH and LH side of the multi-system beam

Note

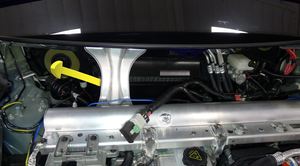

Lift multi-system beam up only the amount required to clear the reservoir fill neck between top of supermanifold and bottom of beam, Recommend assistance if needed

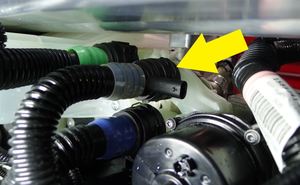

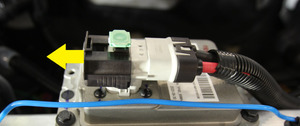

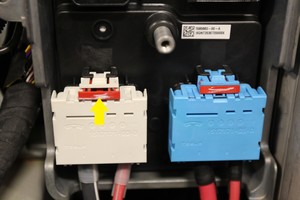

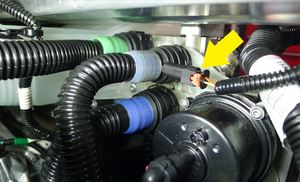

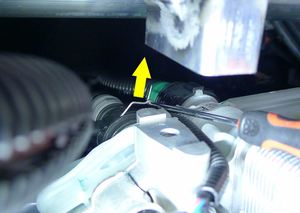

Disconnect the sensor for the powertrain supply hose

Note

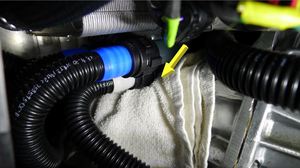

1x locking electrical connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector

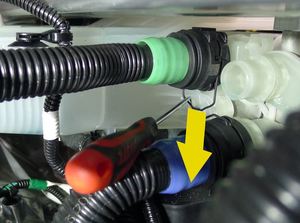

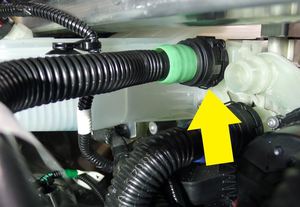

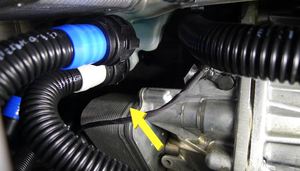

Disconnect powertrain supply hose from supermanifold

Note

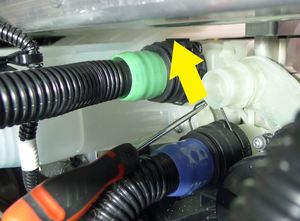

1x spring clip, Spring is accessible from the front of the supermanifold
Disconnect the HV battery return hose from the Supermanifold

Note
1x spring clip
Disconnect chiller to battery hose from supermanifold

Note
1x spring clip

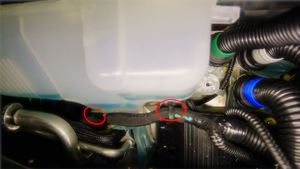

Remove clips securing heat pump harness at the bottom of coolant bottle

Note
2x fir tree clips, Access from RH side of supermanifold

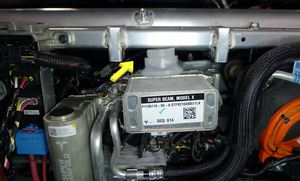

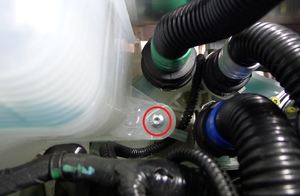

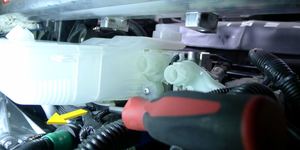

Remove screw at the rear of coolant bottle securing the coolant bottle to Supermanifold

Note
1x screw, T25, 5 Nm, Access from RH side of supermanifold, Loosen screw and remove with magnet
Remove screw at the front of coolant bottle securing coolant bottle to Supermanifold

Note
1x screw, T25, 5 Nm

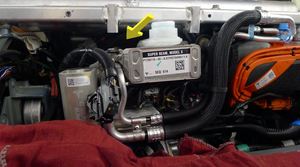

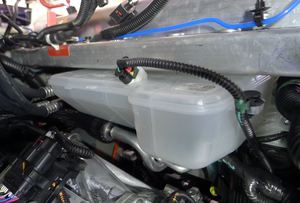

Remove coolant bottle from Supermanifold

Note
Remove by sliding the bottle away from the Supermanifold towards the rear of the vehicle, and rotate out the top

Install

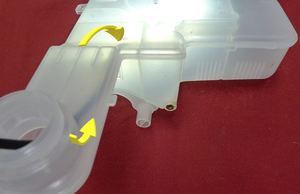

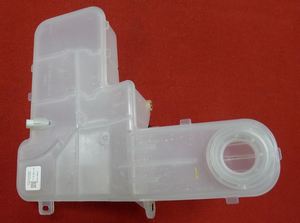

Inspect new coolant bottle

Note

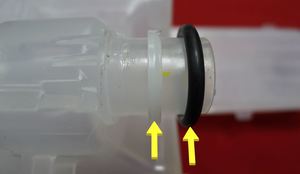

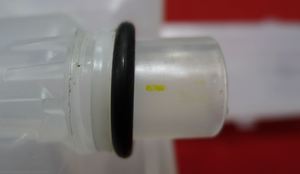

1x o-ring, 1x spacer, Ensure both spacer and o-ring are present and seated before installation, Lubricate coolant bottle o-ring
Position coolant bottle onto Supermanifold

Note
Slide the bottle between the multi-system beam and top of supermanifold, Engage bottle fully into coolant manifold
Install screw at front of the coolant bottle securing the coolant bottle to Supermanifold

Note
1x screw, T25, 5 Nm
Install the screw at rear of coolant bottle securing coolant bottle to Supermanifold

Note
1x screw, T25, 5 Nm
Secure clips securing heat pump harness at the bottom of coolant bottle

Note
2x fir tree clips
Secure multi-system beam

Note
4x bolts, 15mm, 31 Nm, Remove folded rag, Position beam and start bolts by hand
Secure the supermanifold to the multi-system beam

Note
2x bolts, 15 mm, 31 Nm, Recommend assistance, Support from underneath, Hand start bolts to Supermanifold, Remove rag from heat exchanger
Connect the chiller to battery hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated
Connect the HV battery return hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated
Connect the powertrain supply hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated
Connect the sensor for the powertrain supply hose

Note
1x locking electrical connector, Engage locking tab

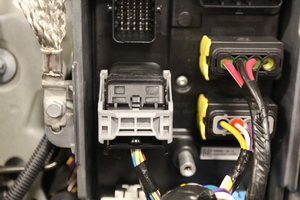

Connect the coolant bottle level sensor and secure harness

Note
1x locking electrical connector, 1x clip, Engage locking tab

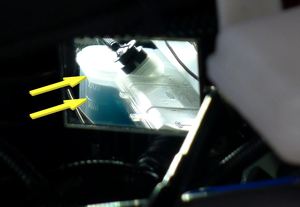

Fill coolant to the proper level

Note
Ensure that the fluid level filled to the Max line
Position front controller for installation and secure ground cable to multi system beam

Note
2x locating tabs, 1x ground cable
Install bolts securing front controller

Note
3x bolts, 10mm, 10 Nm, Start with the side bolt
Install bolt securing front controller ground cable

Note
1x bolts, 10mm, 10 Nm
Secure lower connections on the front controller

Note
2x locking connectors, Engage red locking tab
Secure RH middle connections on front controller

Note

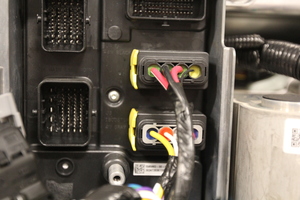

2x locking connectors, Verify yellow locking tabs are fully opened, Seat connectors and mechanism will begin to engage
Secure LH middle connection for front controller

Note
1x locking connector, Verify lever is fully opened, Seat connector and lever will being to engage
Secure upper connections for the front controller

Note
2x locking connectors, Verify levers are fully opened, Seat connectors and levers will begin to engage

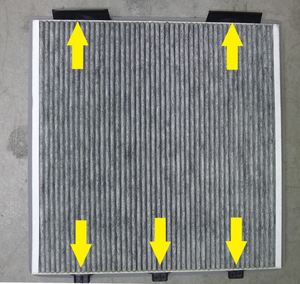

Install HEPA filter

Note
3x datums, 2x clips, Align 3 datums into bottom of housing, Confirm air flow direction, Ensure clips lock and secure filter into housing
Install HEPA filter assembly cover

Note
2x tabs, 2x datums, 2x slots, Fully engage seal and locking tabs
Connect air quality sensor harness

Note
1x connector
Install wiper mount bracket

Note
4x bolts, 13mm, 25 Nm, Slide bracket from the RH shock tower area along the multi-system beam to clear the HEPA filter housing for installation
Install wiper module

Note
3x bolts, 10mm, 9 Nm, 1x connector, Secure connector before install, Rotate module rearward and up into place
Install LV battery to multi-system beam

Note

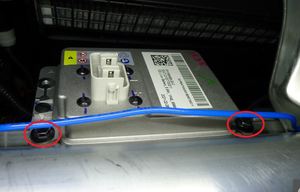

3x bolts, 10mm, 9 Nm. 2x locators
Secure coolant hose to LV battery

Note
1x clip
Install wiper cowl screen panel

Note
4x push clips, Secure cowl into lower windshield channel
Secure cowl screen washer supply hose located above LH shock tower cover

Note
1x hose
Install LH outer hood hinge cover

Note
1x clips
Install RH outer hood hinge cover

Note
1x clips
Install RH wiper arm assembly and secure nuts

Note

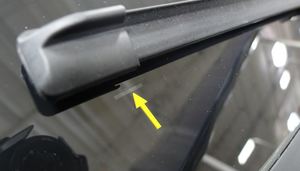

2x nuts, 15mm, 32 Nm, Line up wiper to reference mark on windshield
Install LH wiper arm assembly and secure nut

Note
1x nut, 15mm, 32 Nm
Secure LH wiper arm hose nozzle

Note
1x hose, Hose is routed above the arm pivot
Secure RH wiper arm hose nozzle

Note
1x hose, Hose is routed below the arm pivot
Install RH wiper arm nut covers

Note
2x cover
Install LH wiper arm nut cover

Note
1x cover
Connect First Responder Loop and LV battery connector

Note
2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated
Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes):
TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGE
via Toolbox: (link)via Service Mode:
Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
Thermal ➜ Coolant System ➜ Coolant Purge Start
via Service Mode Plus:
Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
Note
Make sure vehicle is not in drive state, Routine is still running despite the stop message, Coolant pumps will be audible, Test lasts approximately 10 mins, Putting vehicle into drive state will stop this routine, Monitor levels as required
Inspect coolant level and top off as necessary

Note
Ensure that the fluid level is at the Max line, Top off fluid as required
Install coolant bottle cap
Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes):
TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCE
via Toolbox: (link)via Service Mode: Thermal ➜ Actions ➜ Test Thermal Performancevia Service Mode Plus:
Drive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System Test
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System Test
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System Test
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System Test
Drive Unit ➜ Front Drive Unit Replacement ➜ Thermal System Test
Drive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System Test
Note
Select "X" at top right of window to close once complete, If thermal test fails follow https://toolbox.teslamotors.com/articles/206000

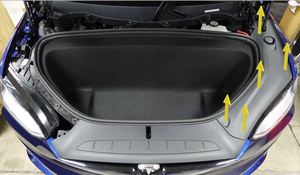

Install frunk assembly

Note
8x bolts, 10mm, 5 Nm
Install frunk carpet

Note
Verify carpet is properly seated under the seal
Install frunk access panel

Note
3x clips, 3x hooks, 1x connector
Install front underhood apron

Note
12x clips, 3x datums
Install LH underhood apron

Note
11x clips, 2 datums
Install RH underhood apron

Note
11x clips, 2x datums
Install rear underhood apron

Note
11x clips
Close hood
Raise vehicle fully and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Remove coolant catcher from under vehicle
Apply Loctite 222 onto front aero shield bolts and install fasteners securing front aero shield to vehicle

Note
9x bolts, 10mm, 6 Nm
Install clips securing front aero shield

Note
5x push clips
Lower vehicle fully

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
Remove vehicle from lift

Note
Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode"
Calibrate the rear doors.

Note
If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.

Model X Service Manual

Coolant Bottle (Remove and Replace)

Remove

Install

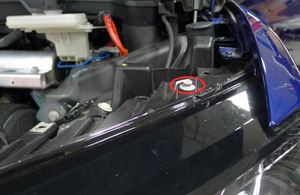

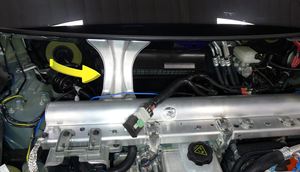

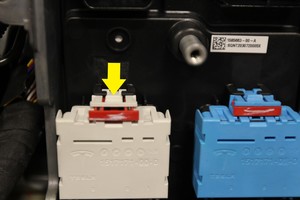

Figure 1

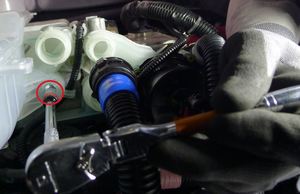

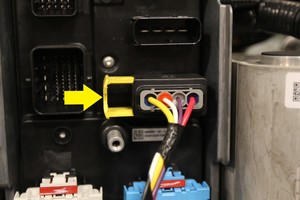

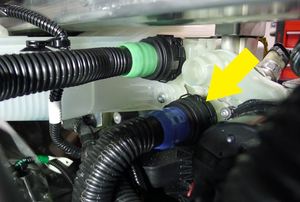

Figure 2

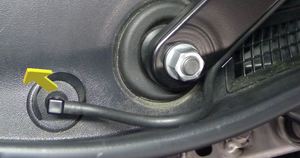

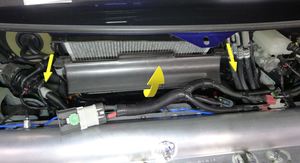

Figure 3
