Air Extractor - Rear - Inner - LH (Remove and Replace)

Correction code 10014702 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  2. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
  3. Release the push clips (x4) and clips (x2) that attach the rear wall load support.
  4. Remove the LH inner rear air extractor shroud. See Shroud - Air Extractor - Rear - Inner - LH (Remove and Replace).

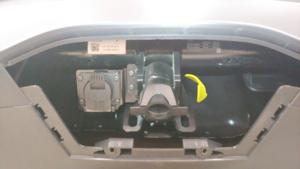

  5. Remove the trailer hitch cover. See Cover - Trailer Hitch (Remove and Replace).

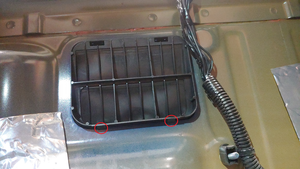

  6. Release the clips (x4) that attach the LH inner rear air extractor to body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the clips from the body by pressing inward.

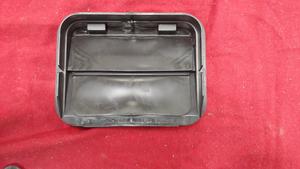

  7. Remove the LH inner rear air extractor from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

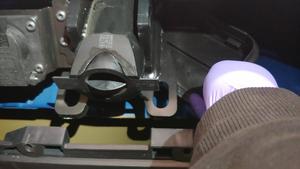

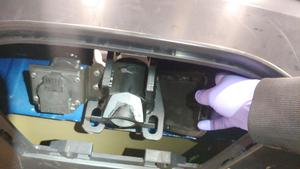

    Slide the extractor from behind the tow hitch on the right hand side.

Install

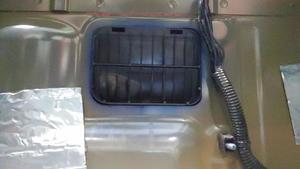

  1. Position the LH inner rear air extractor into the vehicle, insert the air extractor on the RH side of the trailer hitch, and then line the extractor up with the body.

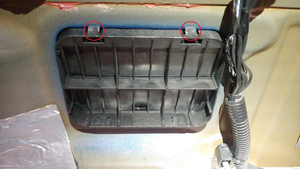

  2. Secure the clips (x4) that attach the LH inner rear air extractor to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press firmly on the extractor and verify all points are properly installed.

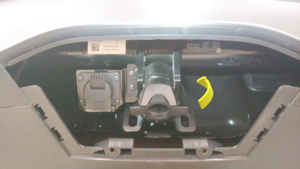

  3. Install the trailer hitch cover. See Cover - Trailer Hitch (Remove and Replace).
  4. Install the LH inner rear air extractor shroud. See Shroud - Air Extractor - Rear - Inner - LH (Remove and Replace).
  5. Position the rear wall load floor support into the vehicle, and then install the clips (x6) that attach the support to the vehicle.
  6. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
  7. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
