Ball Stud - Liftgate - LH (Remove and Replace)

Correction code 11335032 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the liftgate.

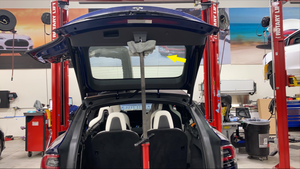

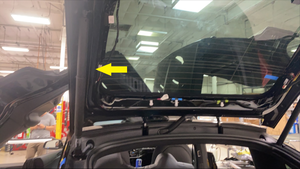

  3. Use an underhoist stand to support the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Place a towel in-between the stand and the liftgate to prevent damage to the liftgate trim.

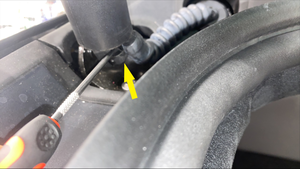

  4. Release the upper C-clip, separate the LH liftgate power strut from the ball stud, and then move the power strut aside.

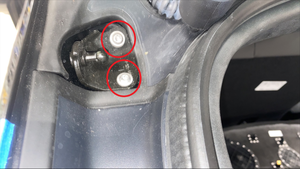

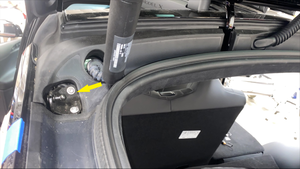

  5. Remove the bolts (x2) that attach the LH liftgate ball stud to the vehicle, and then remove the ball stud from the vehicle.
    12 Nm (8.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

Install

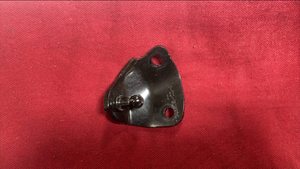

  1. Position the LH liftgate ball stud into the vehicle, and then install the bolts (x2) that attach the ball stud to the vehicle.
    12 Nm (8.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

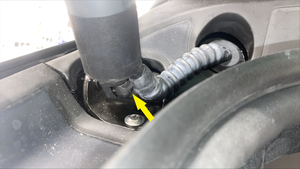

  2. Install the LH liftgate power strut onto the ball stud, and then install the C-clip.
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify that the c-clip is full secured on the ball stud.
  3. Remove the liftgate support.
  4. Close the liftgate.
  5. Raise the LH front window and close the LH front door.
