Grille - Speaker - Rear - LH (Remove and Replace)

Correction code 15133002 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

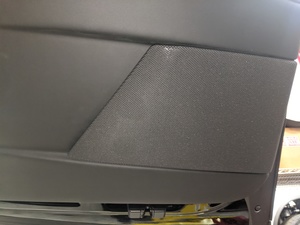

  1. Open the LH falcon wing door.

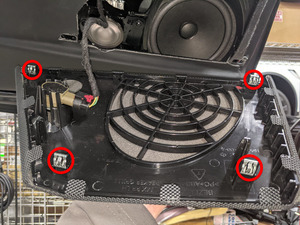

  2. Release the clips (x4) that attach the LH rear speaker grille to the LH rear door.

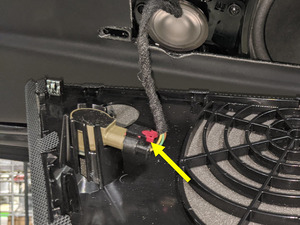

  3. Release the connector lock, disconnect the interior ultrasonic sensor electrical connector from the rear door harness, and then remove LH rear speaker grille assembly from the door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not push down on red tab. Pull the red tab to disengage the lock, and then pull again to release the connector.

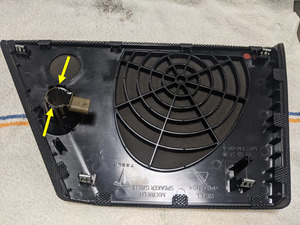

  4. Release the tabs (x2) that attach the interior ultrasonic sensor to the LH rear speaker grille, and then remove the sensor from the assembly.

Install

  1. Install the interior ultrasonic sensor into the LH rear speaker grille assembly.
  2. Position the LH rear speaker grille assembly onto the LH rear door, connect the interior ultrasonic sensor to rear door harness, and then engage the connector lock.
  3. Secure the clips (x4) that attach the LH rear speaker grille to the LH rear door panel.
  4. Close the LH falcon wing door.
