Mirror - Rear View (Remove and Replace)

Correction code 15050202 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the lower camera cover. See Camera Cover - Lower (Remove and Replace).

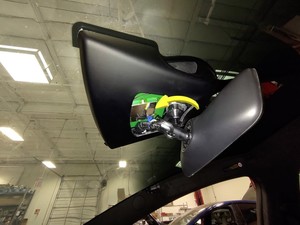

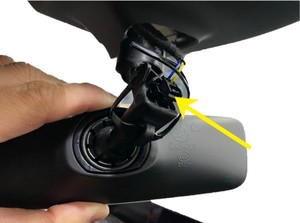

  2. Disconnect the rear view mirror electrical connector.

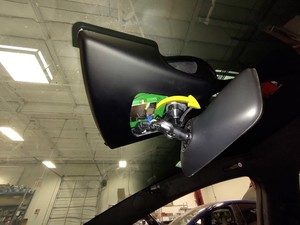

  3. Holding the stalk that connects the rear view mirror to the mount, rotate the mirror counter-clockwise to remove it from the camera assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not rotate the mirror by holding the mirror itself; it will separate from the stalk.

Install

  1. Position the rear view mirror onto the camera assembly, and then rotate the rear view mirror clockwise to install it to the assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Hold the stalk that connects the mirror to the mount to rotate. Do not rotate the mirror by holding the mirror itself; it will separate from the stalk.
  2. Connect rear view mirror electrical connector, and then tuck the harness slack along the arm.
  3. Install the lower camera cover. See Camera Cover - Lower (Remove and Replace).
