Baffle - Fender - LH (Remove and Replace)
Correction code
12013102
0.42
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
-

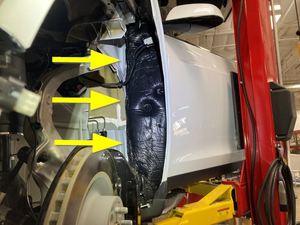

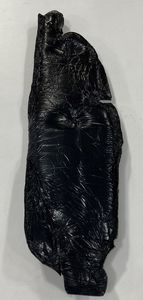

Remove the LH fender baffle.
NoteThe baffle is not attached or adhered to vehicle.
Install
-
Install the LH fender baffle.
NoteThe baffle is press-fit in place.
- Install the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
