Cover - Footwell - Passenger (Remove and Replace)


    Correction code

                                    14055402

                                    0.06


          NOTE: Unless otherwise explicitly
          stated in the procedure, the above correction code and FRT reflect all of the work
          required to perform this procedure, including the linked procedures. Do not stack correction codes unless
            explicitly told to do so.

          NOTE: See Flat Rate Times to learn
          more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.


          NOTE: See Personal Protection to make sure proper PPE is worn when
          performing the below
          procedure.


                                    14055402

                                    0.06


          NOTE: Unless otherwise explicitly
          stated in the procedure, the above correction code and FRT reflect all of the work
          required to perform this procedure, including the linked procedures. Do not stack correction codes unless
            explicitly told to do so.

          NOTE: See Flat Rate Times to learn
          more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.


          NOTE: See Personal Protection to make sure proper PPE is worn when
          performing the below
          procedure.


Remove
-

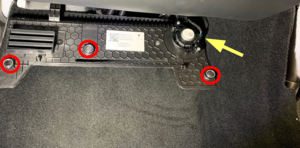

          Release the magnets (x3) that attach
            the passenger footwell cover to the vehicle, disconnect the electrical connector, and
            then remove the cover from the vehicle.


Install
-

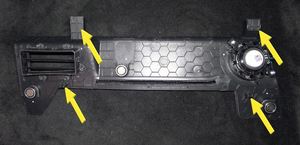

          Position the passenger footwell cover
            into the vehicle, connect the electrical connector, and then secure the magnets (x3)
            that attach the cover to the vehicle.
