Plate - Sliding - Seat - 2nd Row - LH (Remove and Replace)

Correction code 15309102 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Connect a laptop with Toolbox to the vehicle. See Toolbox 3 (Connect and Disconnect).

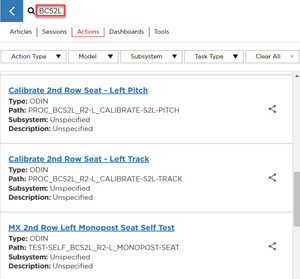

  2. In Toolbox, click Actions, and then search for ‘BCS2L’.

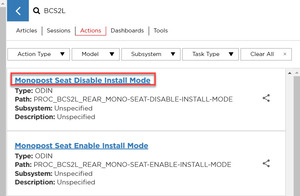

  3. Click PROC_BCREAR_X_SEAT-INSTALL-MODE-ONvia Toolbox: (link), and then click Run. Allow the routine to complete.
  4. Disconnect the laptop from the vehicle. See Toolbox 3 (Connect and Disconnect).
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not close Toolbox as it will be needed to resume later.
  5. Move the driver seat fully forward.
  6. Remove the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  7. Remove the 2nd row floor mat. See Floor Mat - 2nd Row (Remove and Replace).
  8. Remove the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (6 Seat) (Remove and Replace).
  9. Remove the LH 2nd row seat post inner and outer trim panels. See Trim - Outer - Seat Post - 2nd Row - LH (Remove and Replace) and Trim - Inner - Seat Post - 2nd Row - LH (Remove and Replace).

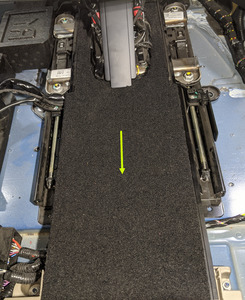

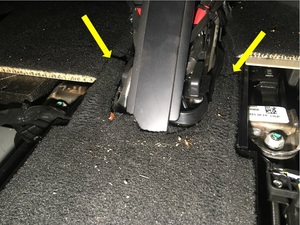

  10. Remove the LH 2nd row seat sliding plate carpet.
    Informational PurposesAn informational icon, calling your attention
    Note
    Carpet is 1 time use only. Replace the carpet after peeling it from the podium.

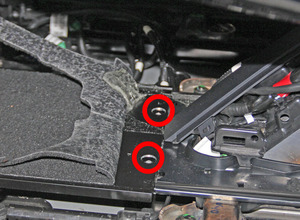

  11. Remove the screws (x2) that attach the LH 2nd row seat sliding plate to the seat base.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket

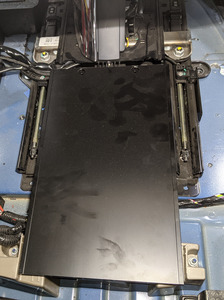

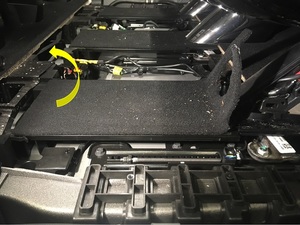

  12. Remove the LH 2nd row seat sliding plate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Gently slide plate forward to release the clips, and then lift up and remove the plate.

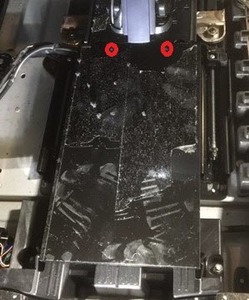

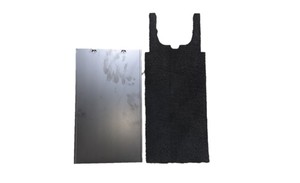

  13. Remove the carpet from the 2nd row seat sliding plate. Remove remaining adhesive residue with IPA wipes.

Install

  1. Position the 2nd row seat sliding plate.
    Informational PurposesAn informational icon, calling your attention
    Note

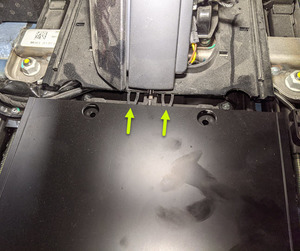

    Gently slide the plate into the tabs (x2) to engage.
  2. Install the screws (x2) that attach the 2nd row seat sliding plate to the lower seat bracket.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  3. Install the new 2nd row seat sliding plate carpet.
    Informational PurposesAn informational icon, calling your attention
    Note
    Carpet is one time use only. Install new carpet anytime it is removed from the panel.
  4. Install the LH 2nd row seat post inner and outer trim panels. See Trim - Outer - Seat Post - 2nd Row - LH (Remove and Replace) and Trim - Inner - Seat Post - 2nd Row - LH (Remove and Replace).
  5. Install the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (6 Seat) (Remove and Replace).
  6. Install the 2nd row floor mat. See Floor Mat - 2nd Row (Remove and Replace).
  7. Install the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  8. Restore the driver seat back to its original position.
  9. Reconnect a laptop with Toolbox to the vehicle. See Toolbox 3 (Connect and Disconnect).

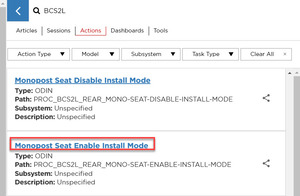

  10. In Toolbox, click PROC_BCREAR_X_SEAT-INSTALL-MODE-OFFvia Toolbox: (link), and then click Run. Allow the routine to complete.
  11. Disconnect the laptop from the vehicle. See Toolbox 3 (Connect and Disconnect).
