Cover - Trailer Hitch (Remove and Replace)
Correction code
10016002
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
-

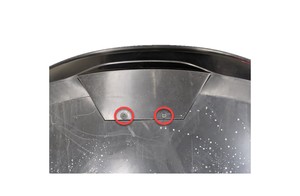

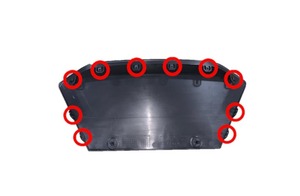

Release the tabs (x10) and plastic
retainers (x2) that attach the trailer hitch cover to the vehicle, and then remove the
cover from the vehicle.
CAUTIONThe plastic retainers are captive. Do not pry on the retainers as they may snap off.
Install
-
Position the trailer hitch cover onto
the vehicle, and then secure the tabs (x10) and plastic retainers (x2) that attach the
cover to the vehicle.
