Seat Back Sub-Assembly - 2nd Row Seat - LH (7 Seat) (Remove and Replace)

Correction code 13058712 1.92 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH 2nd row seat assembly from the vehicle. See Seat Assembly - 2nd Row - LH (7 Seat) (Remove and Replace).
  2. Move the LH 2nd row seat back to the upright position.
  3. Release the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release lower outer hooks (x2) to expose the inner hooks (x4).
  4. Disconnect the 2nd row center seatbelt buckle electrical connector, and then release the edge clip that attaches the connector to the seat assembly.

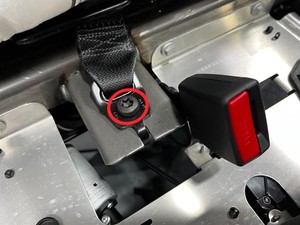

  5. Remove and discard the bolt that attaches the 2nd row center seatbelt buckle to the seat assembly, and then remove the buckle from the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket

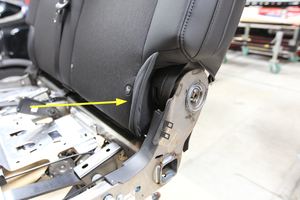

  6. Remove the LH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  7. Remove the LH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  8. Remove the bolt that attaches the LH 2nd row outer seatbelt to the seat assembly, and then remove the seatbelt from the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  9. Release the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
  10. Disconnect the LH 2nd row seat seat cushion electrical connectors (x4), and then release the clips (x2) that attach the black connectors (x2) to the seat frame
  11. Remove the LH 2nd row seat cushion assembly from the seat assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful when feeding the J-hooks and connectors through the seat frame.

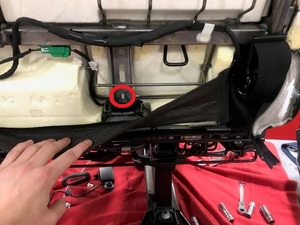

  12. Remove and discard the bolt that attaches the LH 2nd row seat center seatbelt to the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  13. Fold the LH 2nd row seat back to the down position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use the LH recliner lever without installing the clip.

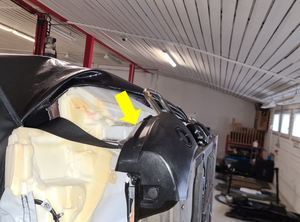

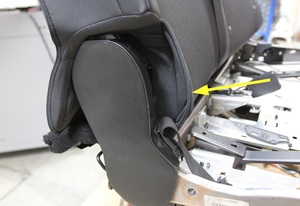

  14. Unzip the LH 2nd row seat back upholstery on both sides.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ends of the zippers are tucked underneath the upholstery. Use a pick to aid in moving the zipper.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in

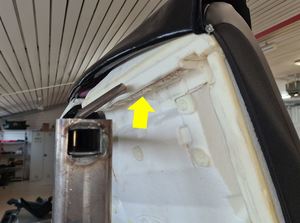

  15. Release the LH 2nd row seat back upholstery, and then lift the upholstery upwards.
  16. Release the clips (x13) that attach the LH 2nd row seat plastic seat back to the seat, and then remove the plastic seat back from the seat.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Clip prytool 20in
  17. Remove the bolt that attaches the LH 2nd row seat torsion spring bearing cap to the seat, and then remove the cap from the seat.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Flex head ratchet/flex head torque wrench

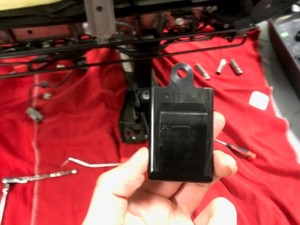

  18. Carefully release the LH 2nd row seat lower rear trim sub-assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull down to release the trim sub-assembly from the seat frame.
  19. Move the LH 2nd row seat back to the upright position.
  20. Disconnect the LH 2nd row seat heater connectors (x2), and then disconnect the seat side airbag connector.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in
  21. Remove and discard the nuts (x2) that attach the LH 2nd row seat side airbag to the seat frame.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm flex head ratcheting combination wrench

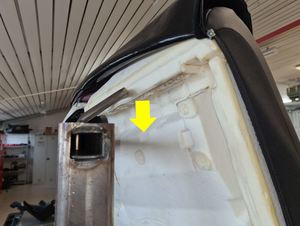

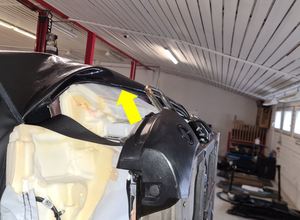

  22. Release the lower portion of the LH 2nd row seat back cushion.

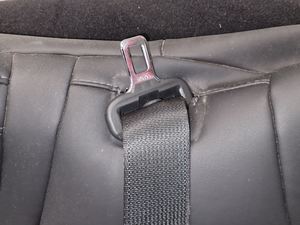

  23. Remove the LH 2nd row seatbelt escutcheon. See GUID-E955C4E4-A213-49F2-913E-5263B4E640AE.html.
  24. Remove the center 2nd row seatbelt escutcheon. See GUID-02B02CE4-7035-453C-92EB-67C8C465E9CC.html.

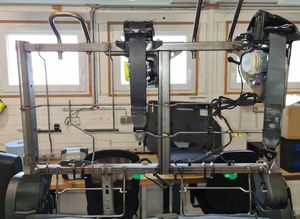

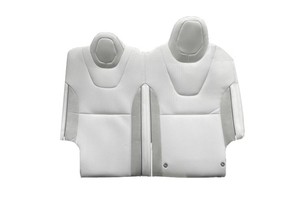

  25. Remove the LH 2nd row seat seat back sub-assembly from the seat frame.
    Informational PurposesAn informational icon, calling your attention
    Note

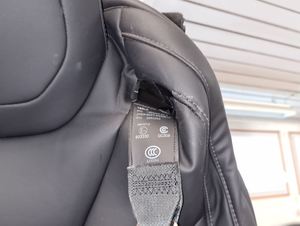

    Feed the outer and center seat belt through the seat cushion pass through, and then lift the trim sub-assembly to release it from the frame.

Install

  1. Position the LH 2nd row seat seat back sub-assembly on the seat frame.
    Informational PurposesAn informational icon, calling your attention
    Note
    Feed the outer and center seat belt through the seat cushion pass through, and then push down on the trim sub-assembly to fit the frame.
  2. Install the center 2nd row seatbelt escutcheon. See GUID-02B02CE4-7035-453C-92EB-67C8C465E9CC.html.
  3. Install the LH 2nd row seatbelt escutcheon. See GUID-E955C4E4-A213-49F2-913E-5263B4E640AE.html.
  4. Push the lower portion of the backrest cushion into position.
  5. Install the lower portion of the LH 2nd row seat back cushion.
  6. Install new nuts (x2) that attach the LH 2nd row seat side airbag to the seat frame.
    20 Nm (14.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
    • 13 mm flex head ratcheting combination wrench
    • Ratchet/torque wrench
  7. Connect the LH 2nd row seat side airbag connector, and then connect the seat heater connectors (x2).
  8. Fold the LH 2nd row seat back to the down position.
  9. Carefully install the LH 2nd row seat lower rear trim sub-assembly on the seat frame.
  10. Position the LH 2nd row seat torsion spring bearing cap on the seat, and then install the bolt that attaches the cap to the seat.
    0.5 Nm (4 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
  11. Fold the LH 2nd row seat back to the down position.
  12. Position the LH 2nd row seat plastic seat back on the seat, and then install the clips (x13) that attach the seat back to the seat.
  13. Zip the LH 2nd row seat back upholstery on both sides.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use caution to not pull the zippers off the track.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a pick to aid in moving the zipper. Tuck the ends of the zippers underneath the upholstery.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pick Miniature Soft Grip, 90 degree tip, 6 in
  14. Secure the J-hook that attaches the lower edge of the LH 2nd row seat back upholstery.
  15. Move the LH 2nd row seat back to the upright position.
  16. Install a new bolt that attaches the center 2nd row seatbelt to the seat frame.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 3 in extension
    • Flex head ratchet/flex head torque wrench
    • Torx T50 socket
  17. Install the LH 2nd row seat cushion assembly into the seat assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use caution when feeding the J-hooks and connectors through the seat frame.
  18. Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).
  19. Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
  20. Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  21. Install the LH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  22. Install the LH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  23. Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  24. Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.
  25. Secure the J-hooks (x6) that attach the toe kick to the LH 2nd row seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Secure the inner clips (x4) first, and then secure the lower outer clips (x2).
  26. Fold the LH 2nd row seat back to the down position.
  27. Install the LH 2nd row seat assembly into the vehicle. See Seat Assembly - 2nd Row - LH (7 Seat) (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to redeploy the vehicle firmware after installing the seat assembly.
