Seal - Hood (Remove and Replace)

Correction code 11701802 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Install

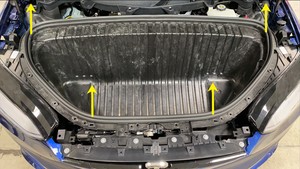

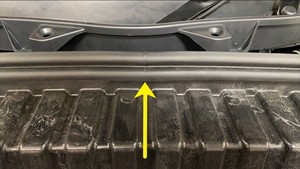

  1. Position the hood seal onto the underhood molding, align the joint seal seam onto the center of the molding, and then press the seal into the molding to install it into the trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the hood seal is fully seated onto the trim.
  2. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  3. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  4. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
