Handle - Exterior Release - Door - Rear - LH (Remove and Replace)

Correction code 11452002 1.02 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH rear door glass. See Door Glass - Rear - LH (Remove and Replace).
  2. Disconnect the LH rear door exterior release handle electrical connector.

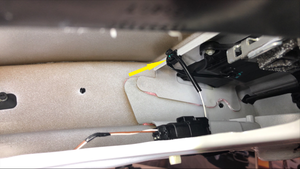

  3. Release the clip that attaches the LH rear door exterior release handle harness to the LH rear door.

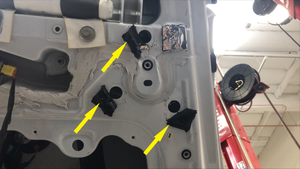

  4. Pull back the butyl patches (x3) to expose the LH rear door exterior release handle fasteners.

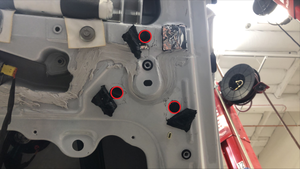

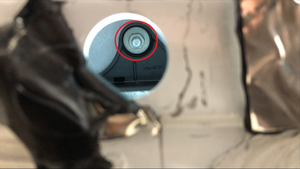

  5. Remove the nuts (x3) that attach the LH rear door exterior release handle to the door assembly.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket

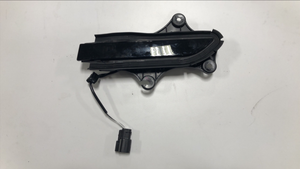

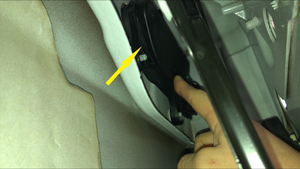

  6. Remove the LH rear door exterior release handle from the vehicle.

Install

  1. Position the LH rear door exterior release handle into the vehicle.
  2. Install the nuts (x3) that attach the LH rear door exterior release handle to the door assembly.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10mm socket

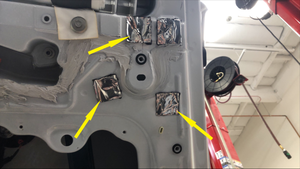

  3. Secure the butyl patches (x3) that covers the LH rear door exterior release handle fastener access holes.
  4. Secure the clip that attaches the LH rear door exterior release handle harness to the LH rear door.
  5. Connect the LH rear door exterior release handle electrical connector.
  6. Remove the LH rear door glass. See Door Glass - Rear - LH (Remove and Replace).
