Tweeter - Rear Door - LH (Remove and Replace)
Correction code
21212712
0.30
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
- Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
-

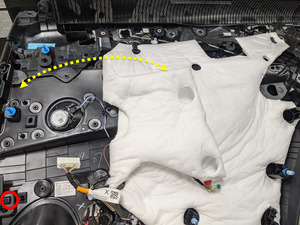

Release the NVH pad from the front
side of the rear door trim panel.
-

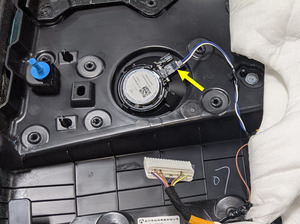

Disconnect the LH rear door tweeter
electrical connector.
-

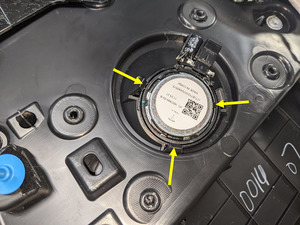

Release the tabs (x3) that attach the
LH rear door tweeter to the door trim panel, and then remove the tweeter from the
assembly.
Install
-
Position the LH rear door tweeter to the door trim panel, and then secure the tabs
(x3) that attach the tweeter to the assembly.
-
Connect the LH rear door tweeter electrical connector.
-
Secure the NVH pad to the front side of the rear door trim panel.
- Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
- Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
