Tesla Badge - Front (Remove and Replace)

Correction code 12050502 0.10 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door.
  2. Lower the LH front window.
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  4. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  5. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace).

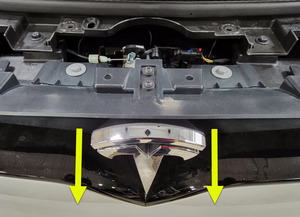

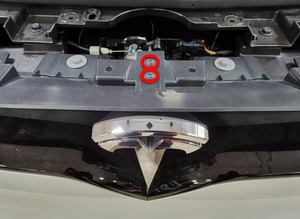

  6. Remove the bolts (x2) that attach the front tesla badge to the vehicle, and then remove the badge from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T25 socket

Install

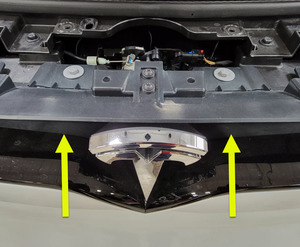

  1. Position the front tesla badge on the vehicle, and then install the bolts (x2) that attach the badge to the vehicle.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T25 socket
  2. Install the front underhood apron. See Underhood Apron - Front (Remove and Replace).
  3. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace).
  4. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  5. Close the hood.
  6. Raise the LH front window.
  7. Close the LH front door.
