Hinge - Door - Front - Upper - LH (Remove and Replace)

Correction code 11336402 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the front windows.

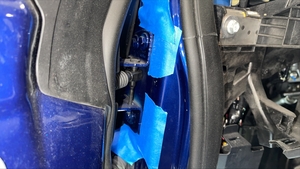

  2. Tape the LH upper front door hinge area on the body side to mark the hinge location.
  3. Remove the pivot pin bolt that attaches the LH front door drive unit to the vehicle.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T30 socket

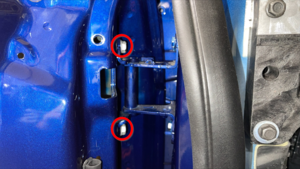

  4. Remove the bolts (x2) that attach the LH upper front door hinge to the LH front door.
    24 Nm (17.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12mm socket

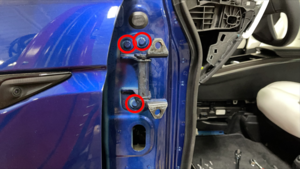

  5. Remove the bolts (x3) that attach the LH upper front door hinge to the body, and then remove the hinge from the vehicle.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12mm socket

Install

  1. Position the LH upper front door hinge onto the LH front door, and then install the bolts (x2) that attach the hinge to the door.
    24 Nm (17.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12mm socket
  2. Position the LH upper front door hinge onto the body side, and then install the bolts (x3) that attach the hinge to the body.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12mm socket
  3. Install the pivot pin bolt that attaches the LH front door drive unit to the vehicle.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T30 socket
  4. Remove the masking tape.
  5. Close the LH front door.

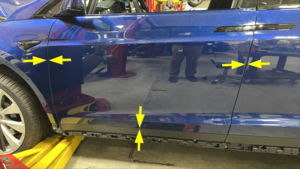

  6. Check the gap and flush of the LH front door to the surrounding components and adjust as necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to CVIS for current gap/flush specifications.
  7. Raise the front windows and close the LH front door.
