Actuator - Intake (Remove and Replace)

Correction code 18102002 1.32 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

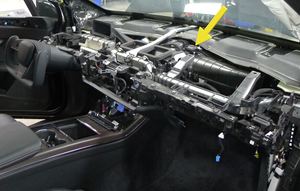

  1. Remove the instrument panel sub-assembly from the vehicle. See Sub Assembly - Instrument Panel (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove components from the sub-assembly after the entire assembly has been removed from the instrument panel.

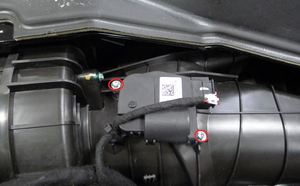

  2. Remove the screws (x2) that attach the intake actuator to the HVAC assembly, and then release the actuator from the assembly.
    2.3 Nm (1.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

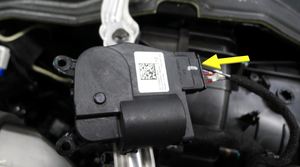

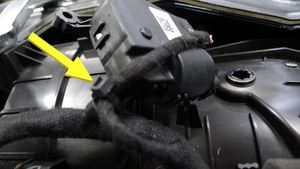

  3. Disconnect the intake actuator electrical connector, remove and discard the zip tie that attaches the harness to the actuator, and then remove the actuator from the vehicle.

Install

  1. Position the intake actuator into the vehicle, connect the actuator electrical connector, and then install a new zip tie that attaches the harness to the actuator.
    Informational PurposesAn informational icon, calling your attention
    Note
    Route the harness on top of the actuator.
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove excess zip tie after tightening.
  2. Install the screws (x2) that attach the intake actuator to the HVAC assembly.
    2.3 Nm (1.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note

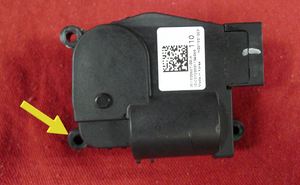

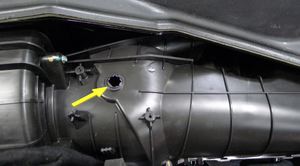

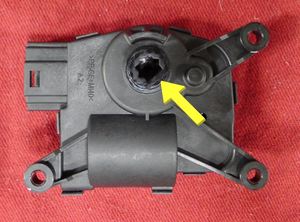

    Note the keyed socket angle upon installation matches the actuator.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  3. Install the instrument panel sub-assembly into the vehicle. See Sub Assembly - Instrument Panel (Remove and Replace).
