Seal - Upper Bright - Front - LH (Remove and Replace)

Correction code 11707102 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door.
  2. Lower the LH front window.

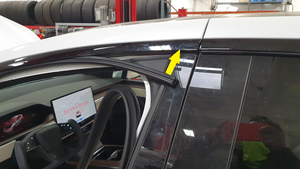

  3. Release the LH front upper bright seal from the upper bright molding.

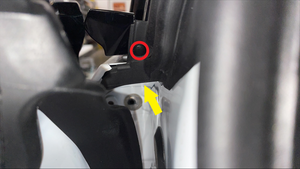

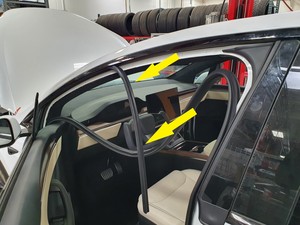

  4. Release the clips (x2) that attach the LH front upper bright seal to the upper bright molding, and then remove the seal from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    The clips are located by the upper fender area towards the side mirror.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Plastic trim tool

Install

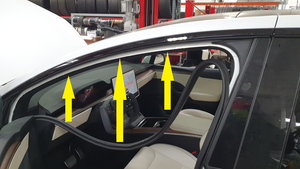

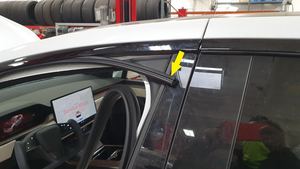

  1. Position the LH front upper bright seal on the vehicle, and then install the clips (x2) that attach the seal to the upper bright molding.

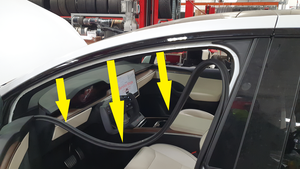

  2. Install the LH front upper bright seal on the upper bright molding.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the seal is properly seated onto the interior trim.
  3. Recalibrate the windows. See Window Regulator (Recalibrate).
  4. Confirm that the window operates correctly and without any abnormal noise.
