USB Hub - Center Console - Rear (Remove and Replace)

Correction code 21260602 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the 2nd row cup holder. See Cup Holder - 2nd Row (Remove and Replace).

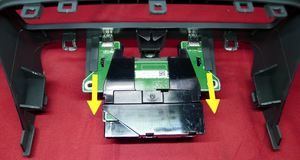

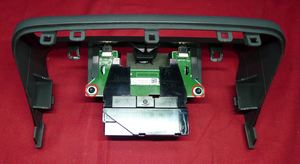

  2. Remove the screws (x2) that attach the rear center console USB hub to the hub assembly, and then remove the hub from the assembly.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit

Install

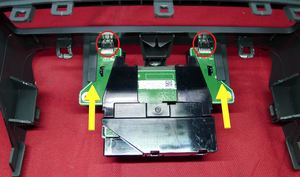

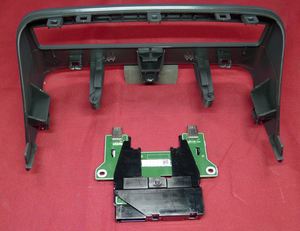

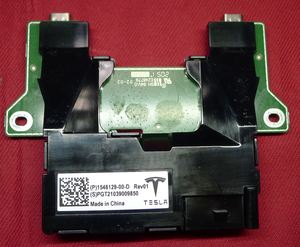

  1. Position the rear center console USB hub into the hub assembly, and then install the screws (x2) that attach the hub to the assembly.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note

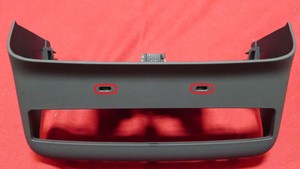

    Make sure the USB sockets are aligned with the openings in the center console panel before securing the assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  2. Install the 2nd row cup holder. See Cup Holder - 2nd Row (Remove and Replace).
