Floor Panel - Front - 2nd Row (6 Seat) (Remove and Replace)
Correction code
15303012
1.98
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the LH and RH front sill panel trims. See Trim - Sill Panel - Front - LH (Remove and Replace).
- Remove the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).
- Remove the 1st row podium. See Podium - 1st Row (Remove and Replace).
-

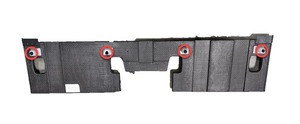

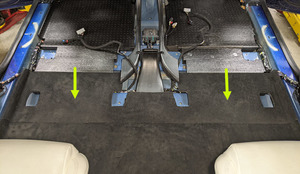

Release the clips (x4) that attach the
2nd row front floor board to the vehicle, and then remove the floor board from the
vehicle.
Install
-
Position the 2nd row front floor board into the vehicle, and then install the clips
(x4) that attach the floor board to the vehicle.
- Install the 1st row podium. See Podium - 1st Row (Remove and Replace).
- Install the LH and RH front sill panel trims. See Trim - Sill Panel - Front - LH (Remove and Replace).
- Install the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).
