Armrest - Center Console (Remove and Replace)

Correction code 15192512 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace).
  2. Remove the rear center console bright strip. See Bright Strip - Center Console - Rear (Remove and Replace).

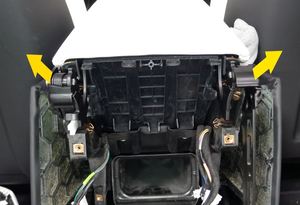

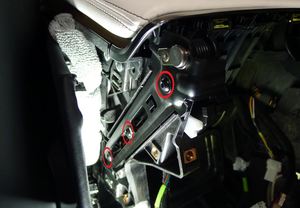

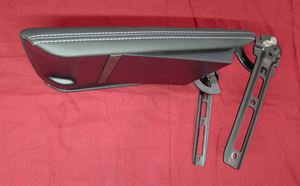

  3. Remove the bolts (x6) that attach the center console armrest to the center console assembly, and then slide the armrest rearward to remove it from the assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit

Install

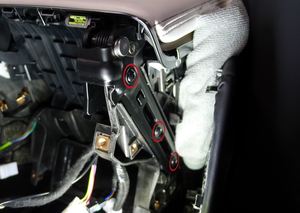

  1. Position the center console armrest onto the center console assembly, and then install the bolts (x6) that attach the armrest to the center console assembly.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note

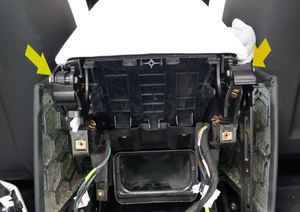

    Slide the armrest down to align the arms with the center console assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  2. Install the rear center console bright strip. See Bright Strip - Center Console - Rear (Remove and Replace).
  3. Install the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to perform the Toolbox routine after installation if the air wave assembly is not replaced.
