Gap Hider - Trunk (5 Seat) (Remove and Replace)
Correction code
15300052
0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH and RH front doors.
- Lower the LH front window.
- Move the driver and front passenger seats fully forward.
- Open the LH and RH rear doors.
- Fold down the LH and RH 2nd row seats.
- Open the liftgate.
- Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
- Remove the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
-

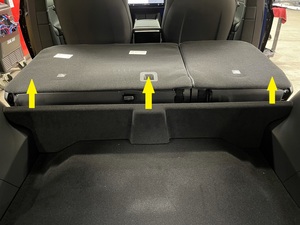

Remove the trunk gap hider.
Install
-

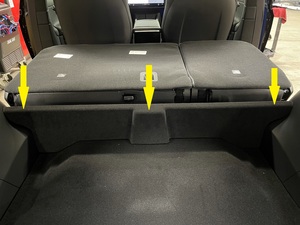

Install the trunk gap hider.
- Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
- Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
- Fold the 2nd row seats into vertical (upright) position.
- Move the driver and front passenger seats back to their original position.
