Actuator - Flap - Center Console - LH (Remove and Replace)

Correction code 18102702 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

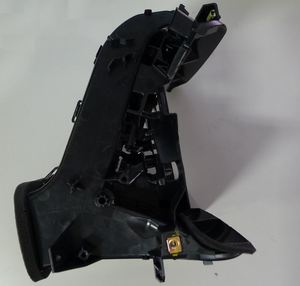

  1. Remove the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace).

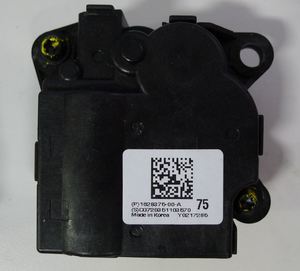

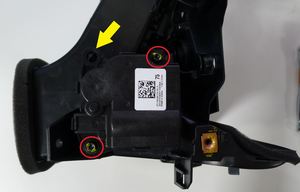

  2. Remove the screws (x2) that attach the LH center console flap actuator to the airwave assembly, and then remove the actuator from the assembly.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note

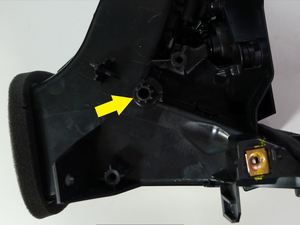

    Take note of the direction of the keyed socket upon removal.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Install

  1. Position the LH center console flap actuator into the airwave assembly, and then install the screws (x2) that attach the actuator to the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

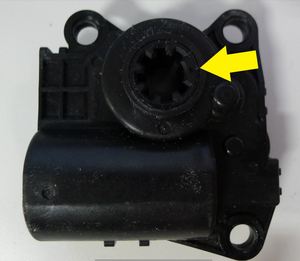

    Note the keyed socket angle upon installation matches the actuator.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not force the installation without alignment.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  2. Install the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace).
