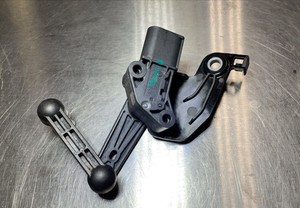

Sensor - Ride Height - Front - LH (Remove and Replace)

Correction code 31102802 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Remove the LH front wheel. See Wheel Assembly (Remove and Install).
  3. Release the clip on the LH front wheel arch liner.
  4. Disconnect the LH front ride height sensor electrical connector.

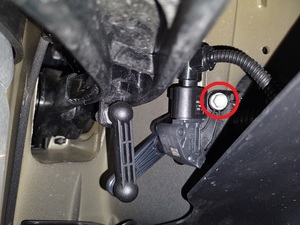

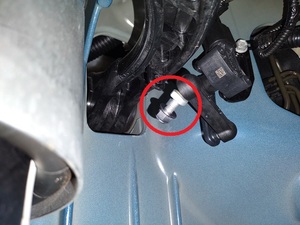

  5. Remove and discard the nut that attaches the LH front ride height sensor to the control arm.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

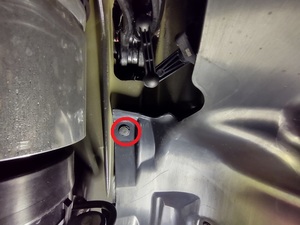

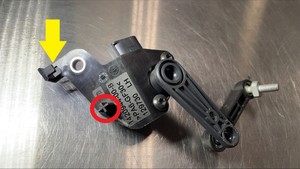

  6. Remove the bolt that attaches the LH front ride height sensor to the vehicle, and then remove the sensor from the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

  1. Position the LH front ride height sensor into the vehicle, and then install the bolt that attaches the sensor to the vehicle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  2. Install a new nut that attaches the LH front ride height sensor to the control arm.
    8 Nm (5.9 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION

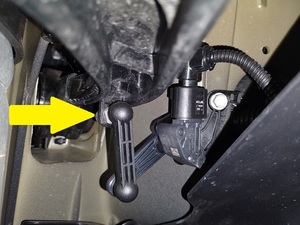

    Do not bind or invert the orientation of the sensor arm.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

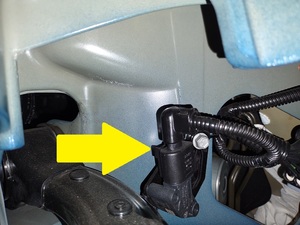

  3. Connect the LH ride height sensor electrical connector.
  4. Secure the clip on LH front wheel arch liner.
  5. Install the LH front wheel. See Wheel Assembly (Remove and Install).
  6. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
  7. Adjust the vehicle ride height. See Ride Height (Adjust).
