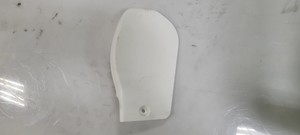

Cover - Recliner - 3rd Row - LH (Remove and Replace)

Correction code 13094502 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the 3rd row seat assembly from the vehicle. See Seat Assembly - 3rd Row (Remove and Replace).

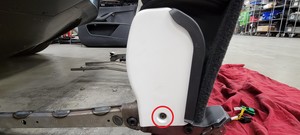

  2. Remove the screw that attaches the LH 3rd row recliner cover to the seat assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T25 socket

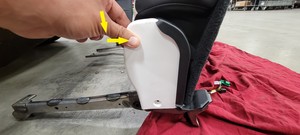

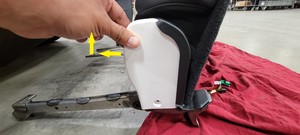

  3. Pull the LH 3rd row recliner cover forward and upward to remove it from the seat assembly.

Install

  1. Angle the LH 3rd row recliner cover down, and then push it back to install it into the 3rd row seat assembly.
  2. Install the screw that attaches the LH 3rd row recliner cover to the seat assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  3. Install the 3rd row seat assembly from the vehicle. See Seat Assembly - 3rd Row (Remove and Replace).
