Knuckle - Suspension - Front - LH (Remove and Replace)

Correction code 31010102 1.02 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

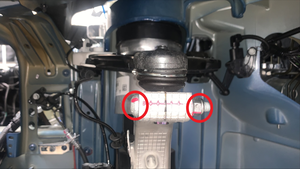

  1. Open the LH front door and lower the LH front window.
  2. Remove the LH front brake dust shield. See Shield - Dust - Brake - Front - LH (Remove and Replace).

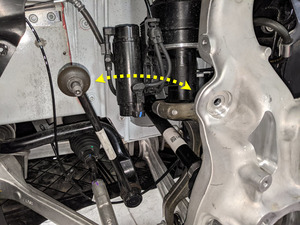

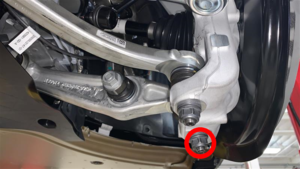

  3. Remove and discard the nut that attaches the front stabilizer bar link to the LH front suspension knuckle, and then move the link aside.
    70 Nm (51.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Counter hold the ball joint with a 5mm hex.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Move the stabilizer bar up/down as needed to remove the end link.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • 5 mm hex

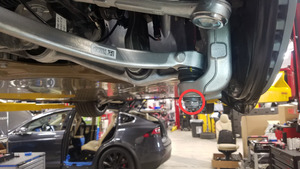

  4. Remove and discard the nut that attaches the LH aft link to the LH front suspension knuckle, and then release the link from the knuckle.
    180 Nm (132.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Counter hold the stud with a T45 socket and use a wrench to loosen the nut.
    Informational PurposesAn informational icon, calling your attention
    Note
    The washer is a Nord-lock washer.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 22 mm socket
    • Torx T45 socket

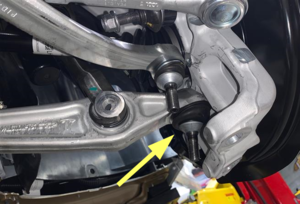

  5. Remove and discard the nut that attaches the LH fore link to the LH front suspension knuckle, and then release the link from the knuckle.
    180 Nm (132.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a breaker bar to break the nut loose.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Counter hold the stud with a T45 socket and use a wrench to loosen the nut.
    Informational PurposesAn informational icon, calling your attention
    Note
    The washer is a Nord-lock washer.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 22 mm socket
    • Torx T45 socket

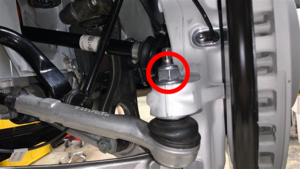

  6. Remove and discard the nut that attaches the LH tie rod to the knuckle assembly, and then release the tie rod from the knuckle.
    102 Nm (75.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket

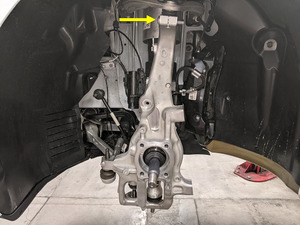

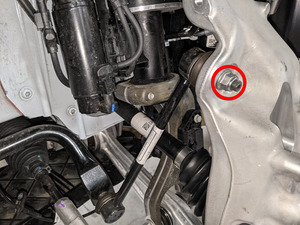

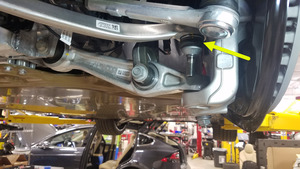

  7. Remove the nut and bolt that attach the LH front upper control arm to the suspension assembly, and then release the control arm from the assembly.
    60 Nm (44.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the nut after removal.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • Torx T50 socket

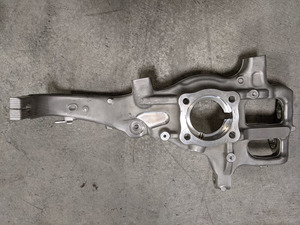

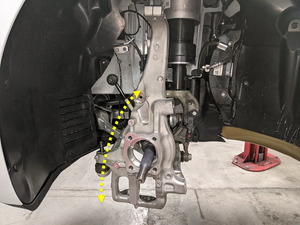

  8. Remove the LH front knuckle from the vehicle.

Install

  1. Position the LH front suspension knuckle around the halfshaft, rest the knuckle on the fore and aft links, and then secure the assembly by inserting the bolt that attaches the knuckle to the front upper control arm.
  2. Position the LH front upper control arm to the suspension assembly, and then install the bolt and new nut that attach the control arm to the assembly.
    60 Nm (44.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • Torx T50 socket
  3. Position the LH tie rod to the LH front suspension knuckle assembly, and then install a new nut that attaches the tie rod to the knuckle.
    102 Nm (75.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket
  4. Position the LH fore link to the LH front suspension knuckle, and then install a new nut that attaches the link to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Counter hold the stud with a T45 socket.
    Informational PurposesAn informational icon, calling your attention
    Note
    The washer is a Nord-lock washer.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 22 mm socket
    • Torx T45 socket
  5. Position the LH aft link to the LH front suspension knuckle, and then install a new nut that attaches the link to the knuckle.
    180 Nm (132.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Counter hold the stud with a T45 socket.
    Informational PurposesAn informational icon, calling your attention
    Note
    The washer is a Nord-lock washer.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 22 mm socket
    • Torx T45 socket
  6. Position the front stabilizer bar link to the LH front suspension knuckle, and then install a new nut that attaches the link to the knuckle.
    70 Nm (51.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Counter hold the ball joint with a 5mm hex.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Move the stabilizer bar up/down as needed to position the end link.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • 5 mm hex
  7. Install the LH front brake dust shield. See Shield - Dust - Brake - Front - LH (Remove and Replace).
  8. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension.
