Supermanifold (Remove and Replace)

Correction code 18400102 2.28 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

2025-07-28: Updated procedure to set pump type configuration to DUAL_MIX and replaced routines using Garage to routines using Toolbox/touchscreen.
2023-04-13: Revised procedure.

1050448-00-B - Vacuum Refill Tool
1065131-00-A - Battery Coolant Drain Kit

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

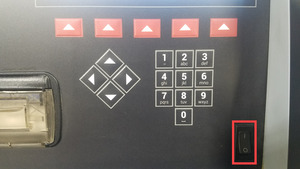

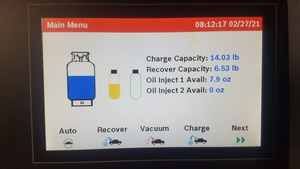

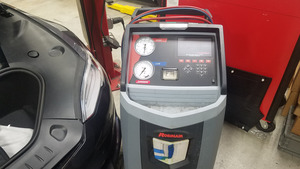

Connect A/C machine to power and switch on

Note
Touch time only, Machine will run various background tasks, Wait until Main Menu comes up before continuing

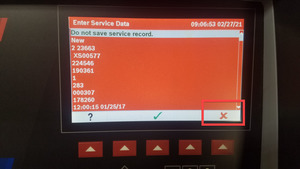

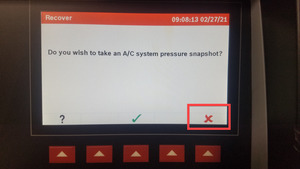

Skip the following panels when prompted

Note

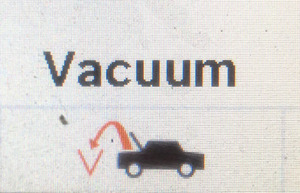

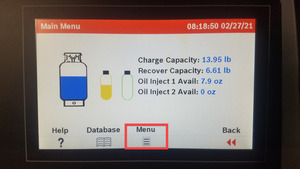

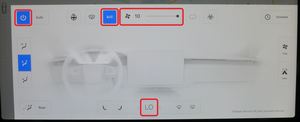

Use selections indicated in pictures

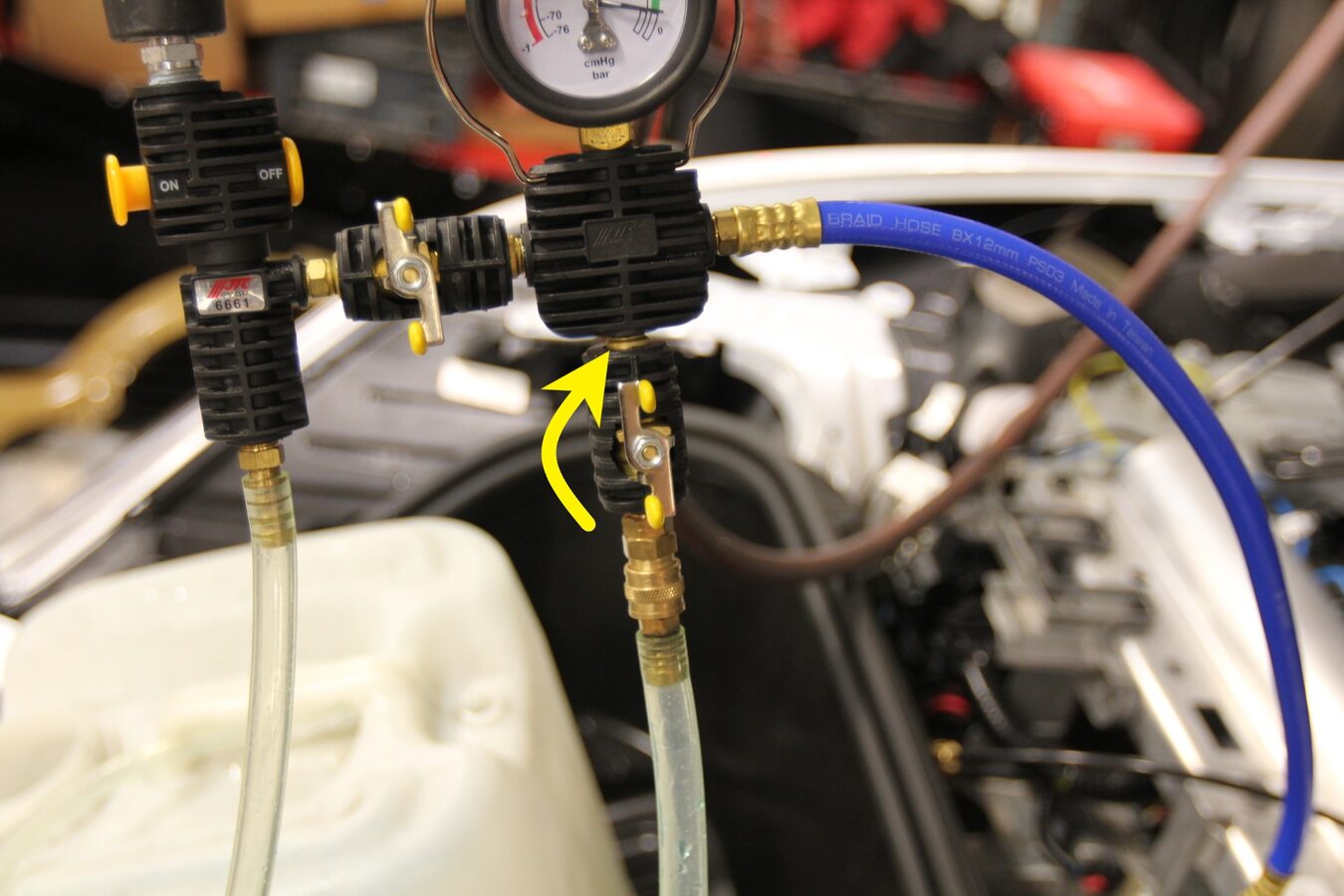

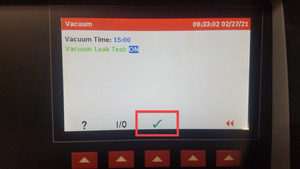

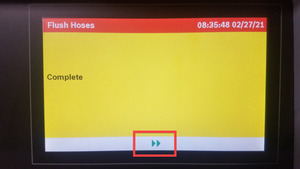

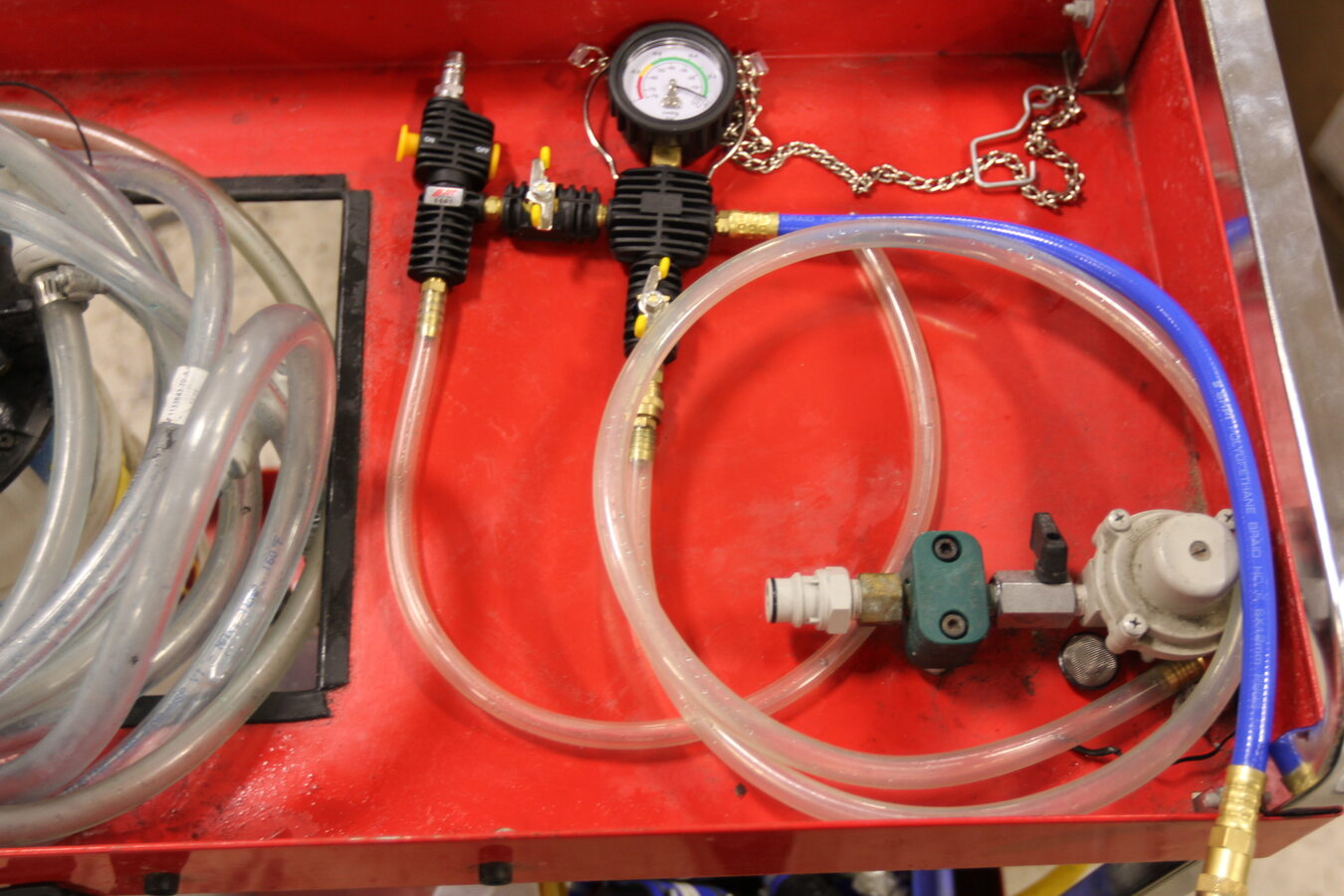

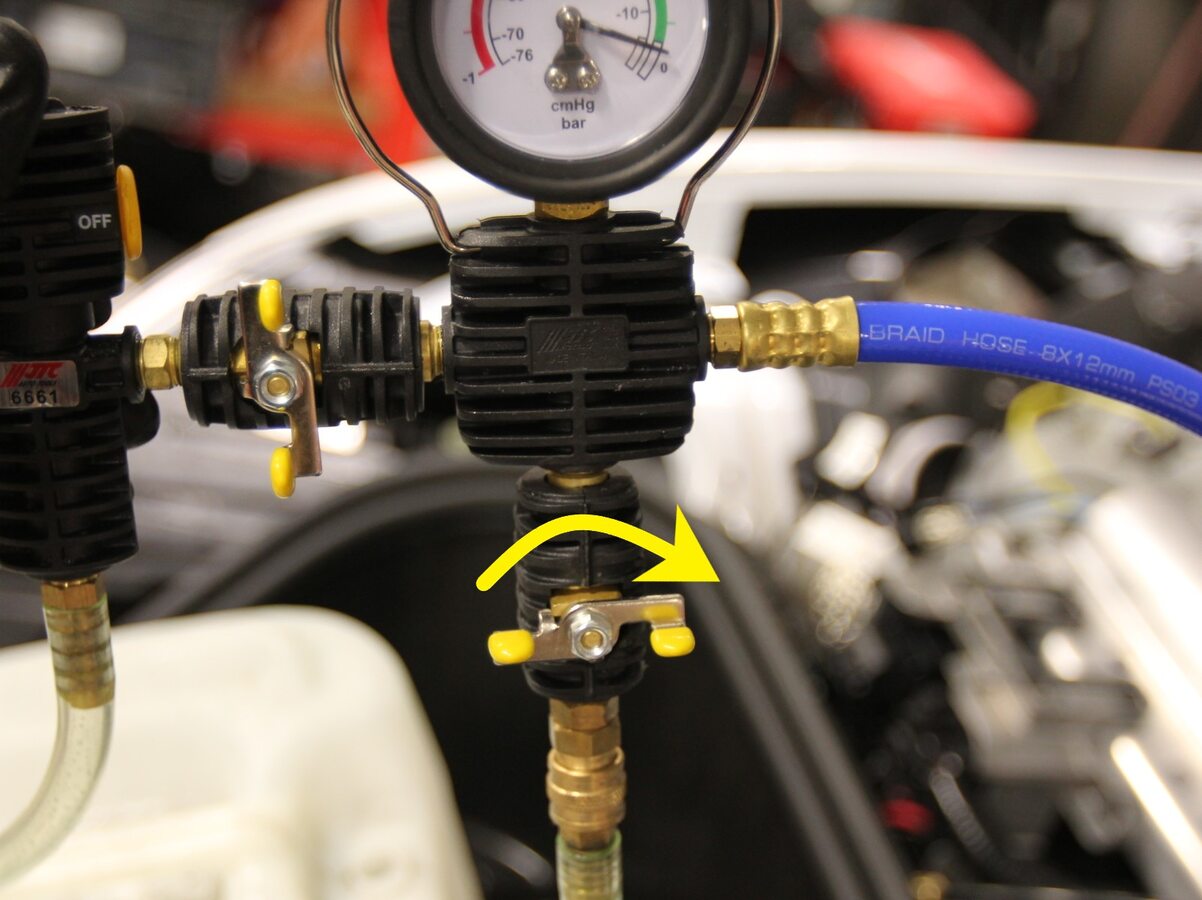

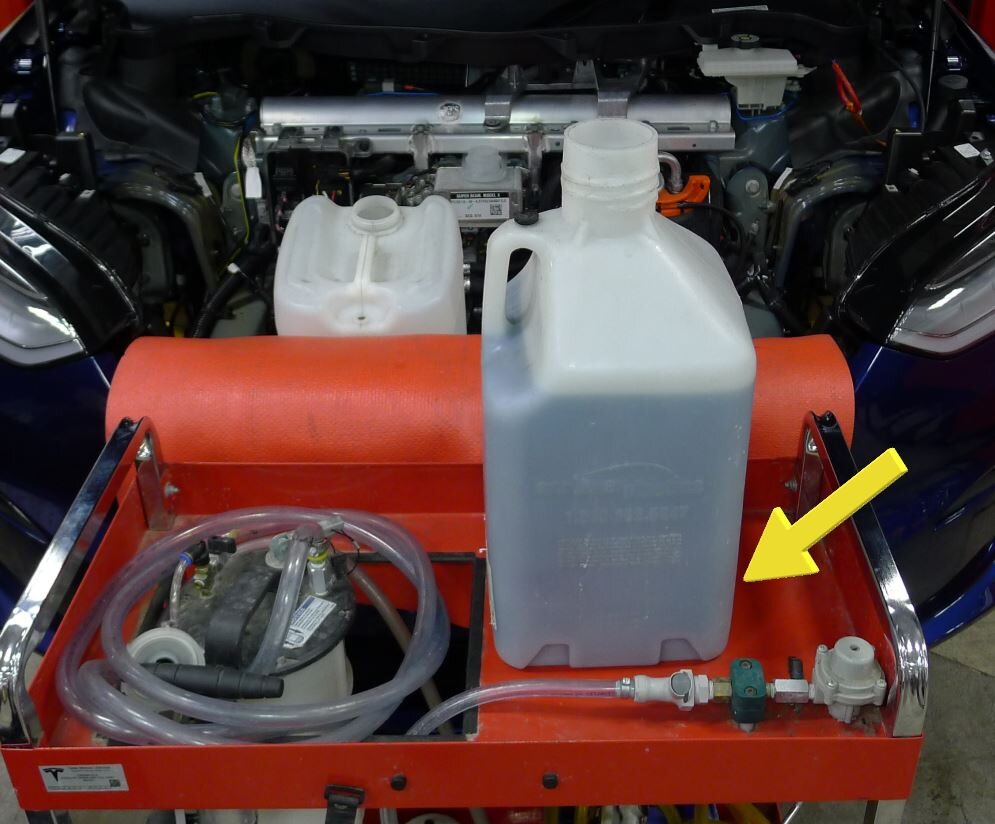

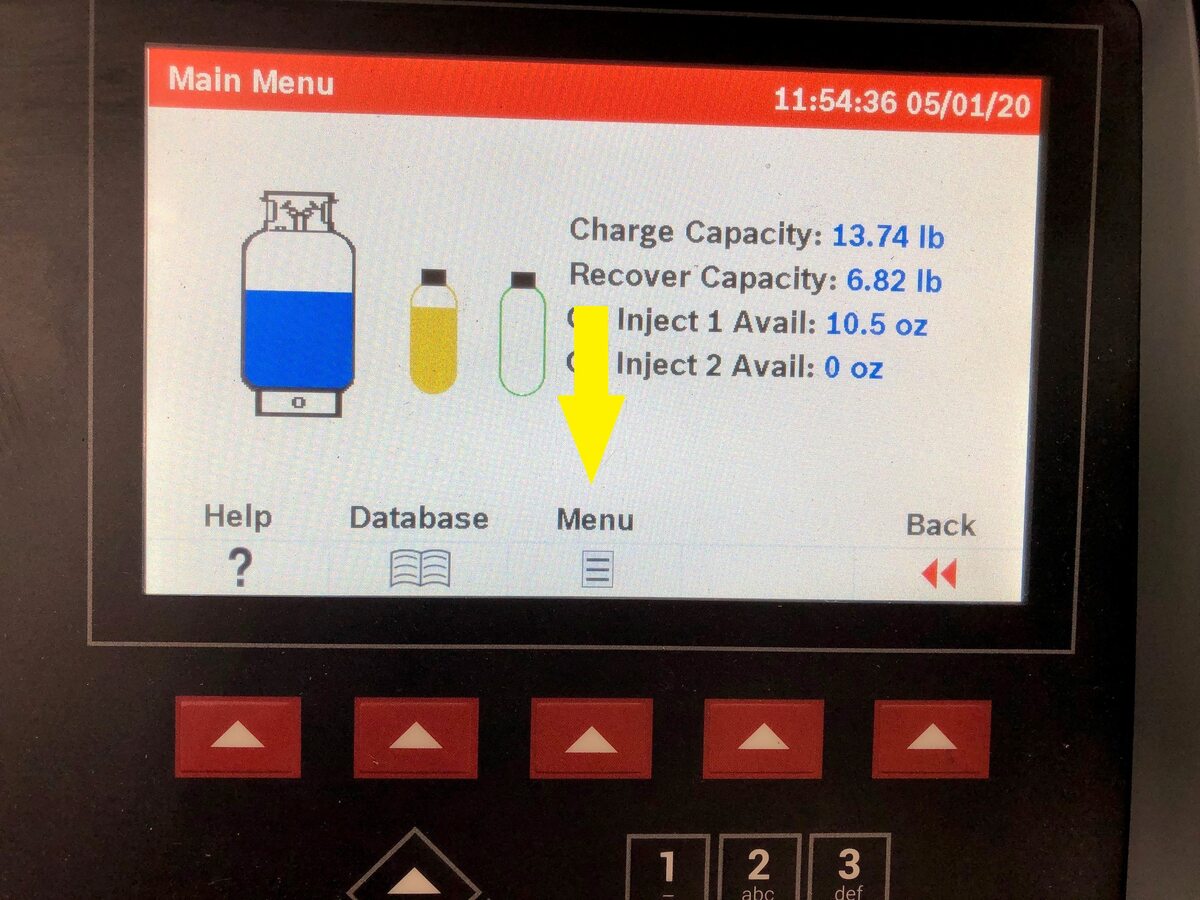

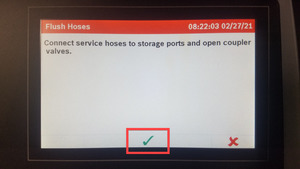

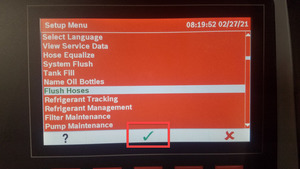

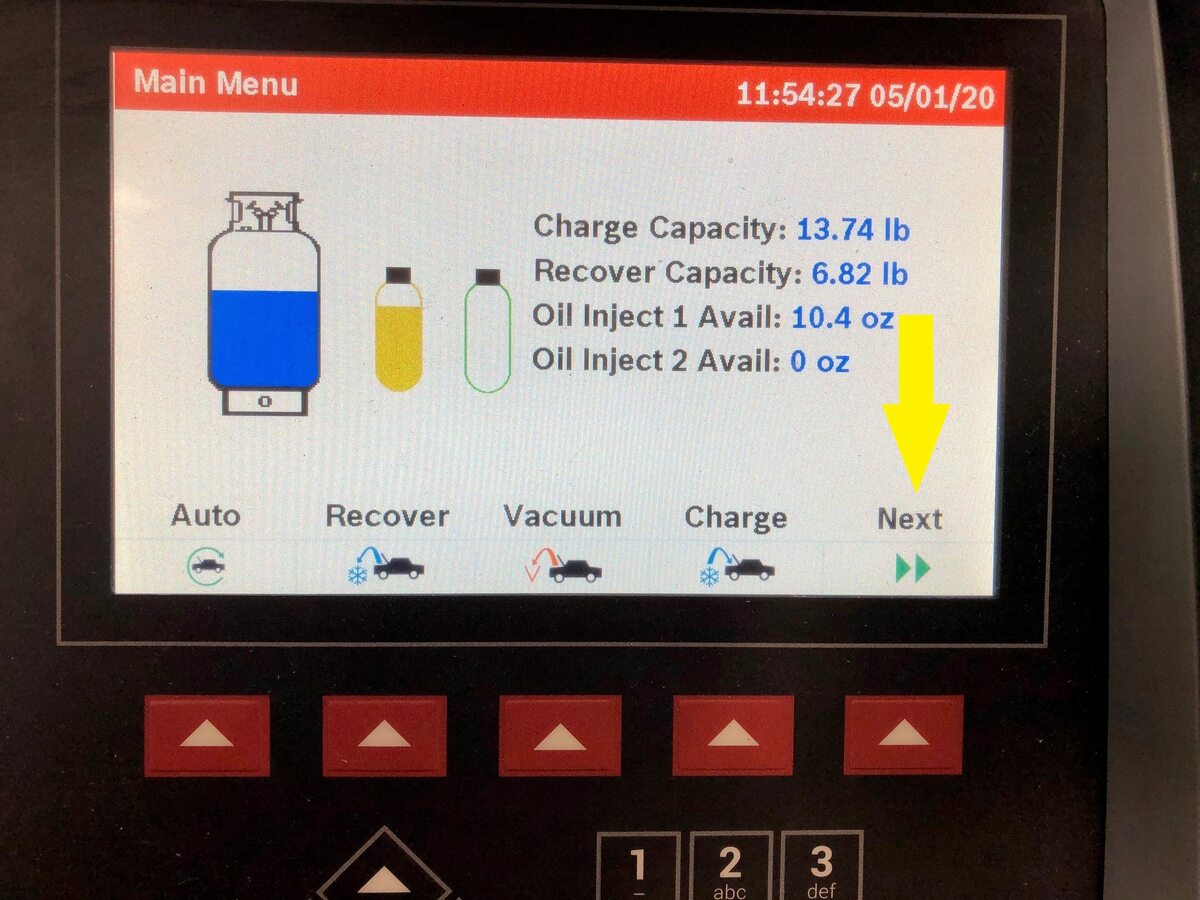

Perform hose flush

Note
Touch time only, Connect couplers to machine, Open couplers by turning clockwise, Using Main Menu > Next > Menu > Flush hoses > Verify hose connection, Machine will chime once process is complete
Raise and support the vehicle.

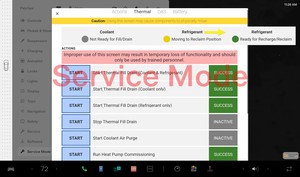

Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes):
PROC_VCFRONT_X_START-THERMAL-FILL-DRAIN
via Toolbox: (link)via Service Mode:
Thermal ➜ Actions ➜ Start Thermal Fill/Drain
Thermal ➜ Coolant System ➜ Start Coolant Fill/Drain
Thermal ➜ Refrigerant System ➜ Start Refrigerant Fill/Drain
via Service Mode Plus: Drive Inverter ➜ Front Drive Inverter Replacement ➜ Start Fluid Fill/Drain
Note
Select ‘X’ at top left of window to close once complete, Verify indicator displays green for both Coolant and Refrigerant readiness, Thermal Fill Drain routine has a 5 hour time limit, After 5 hours EXV's will close and routine must be performed again
Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install).

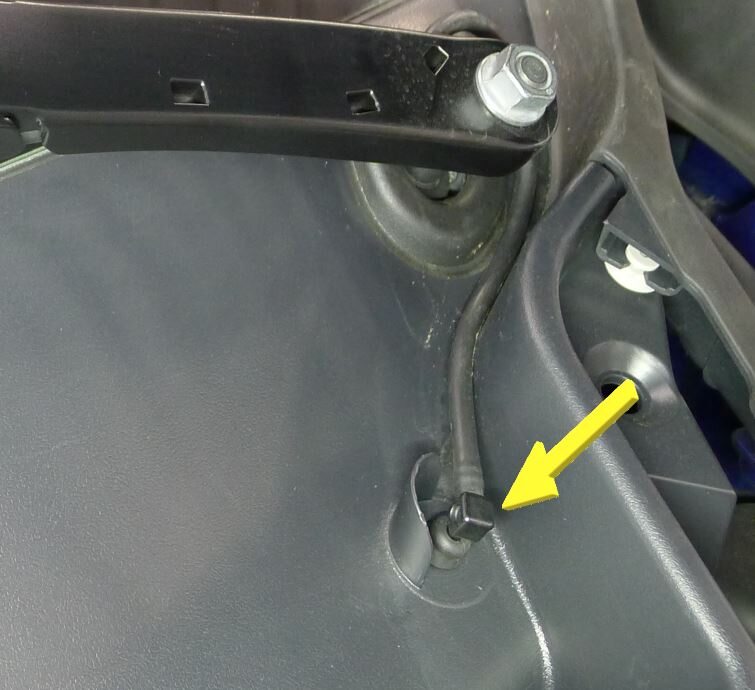

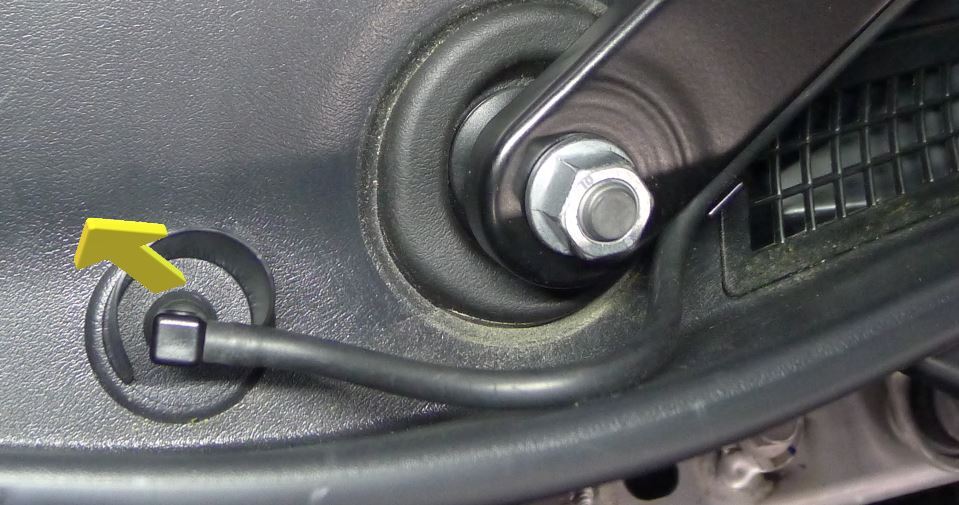

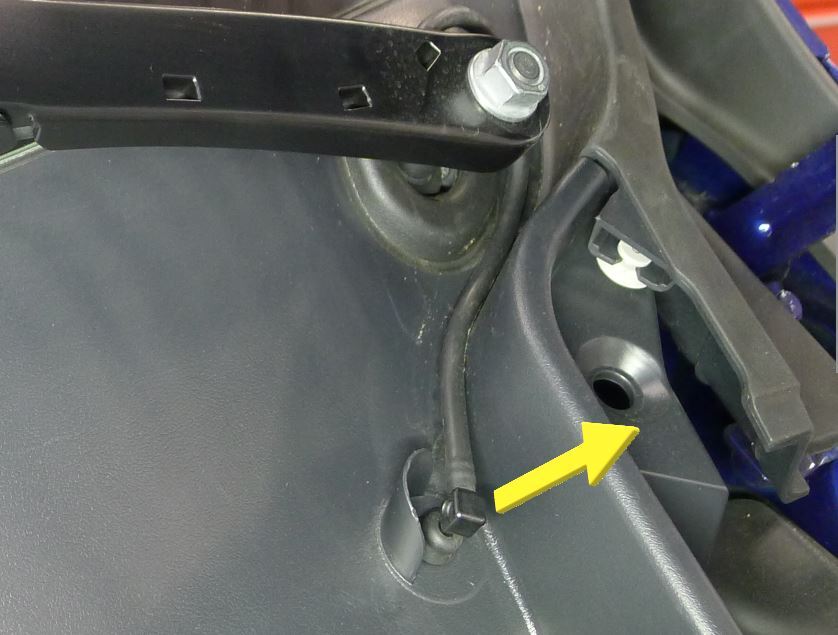

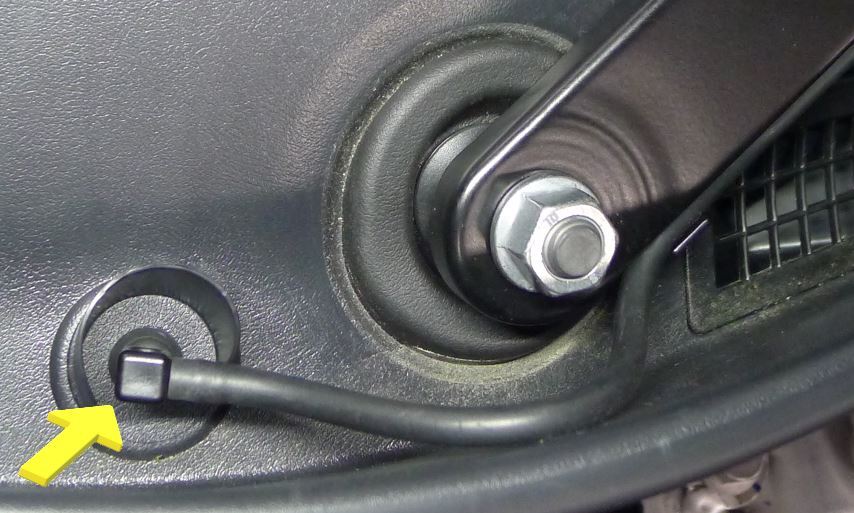

Release RH wiper arm hose nozzle

Note
1x hose
Release LH wiper arm hose nozzle

Note
1x hose

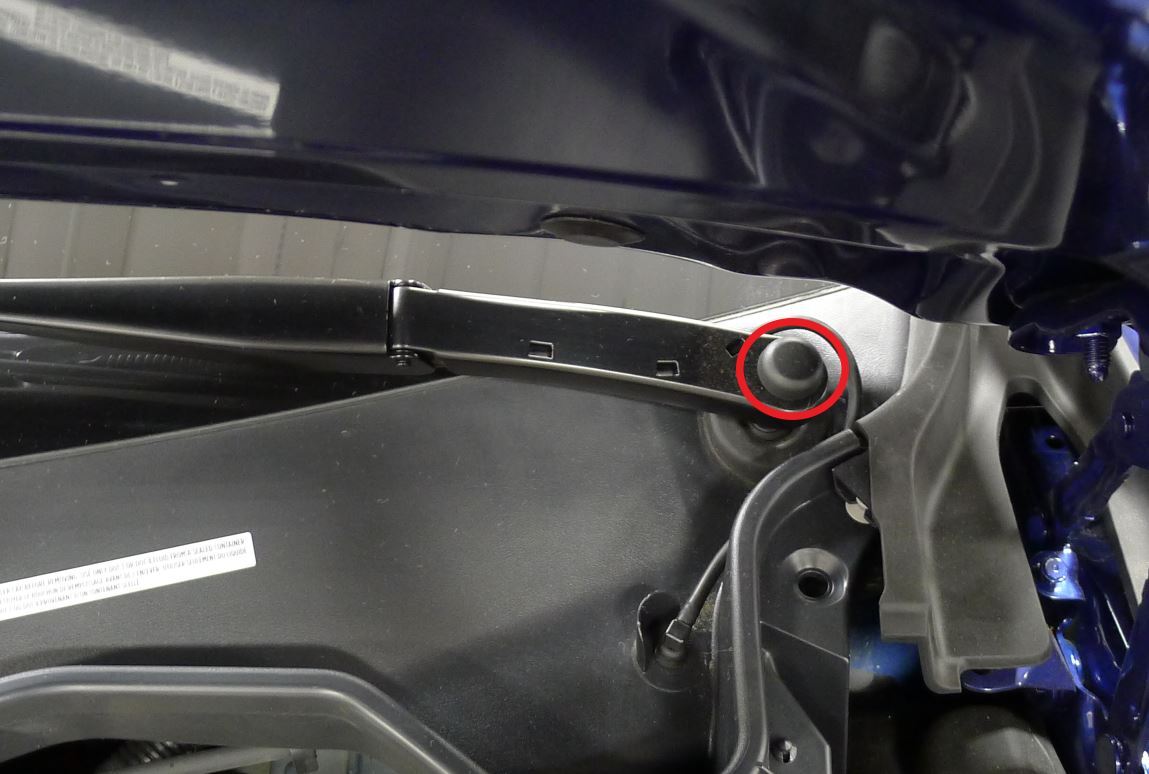

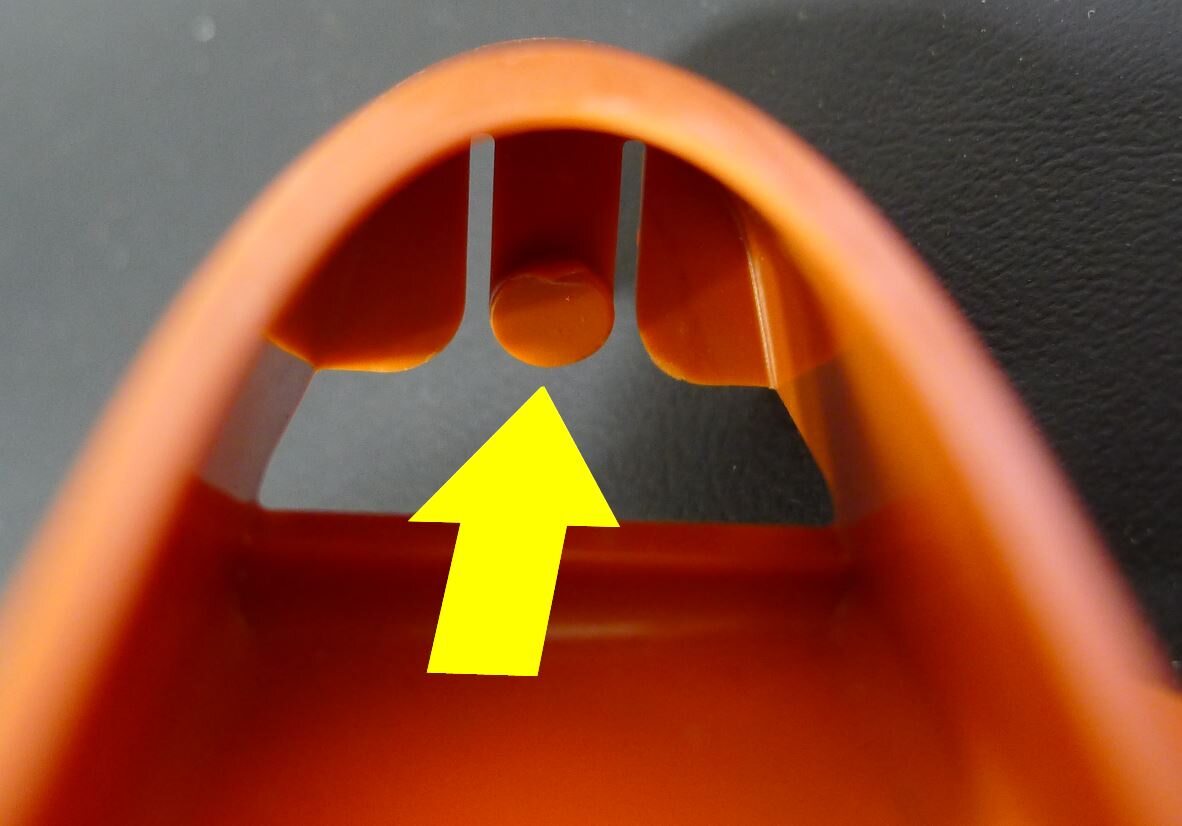

Remove LH wiper arm nut cover

Note
1x cover

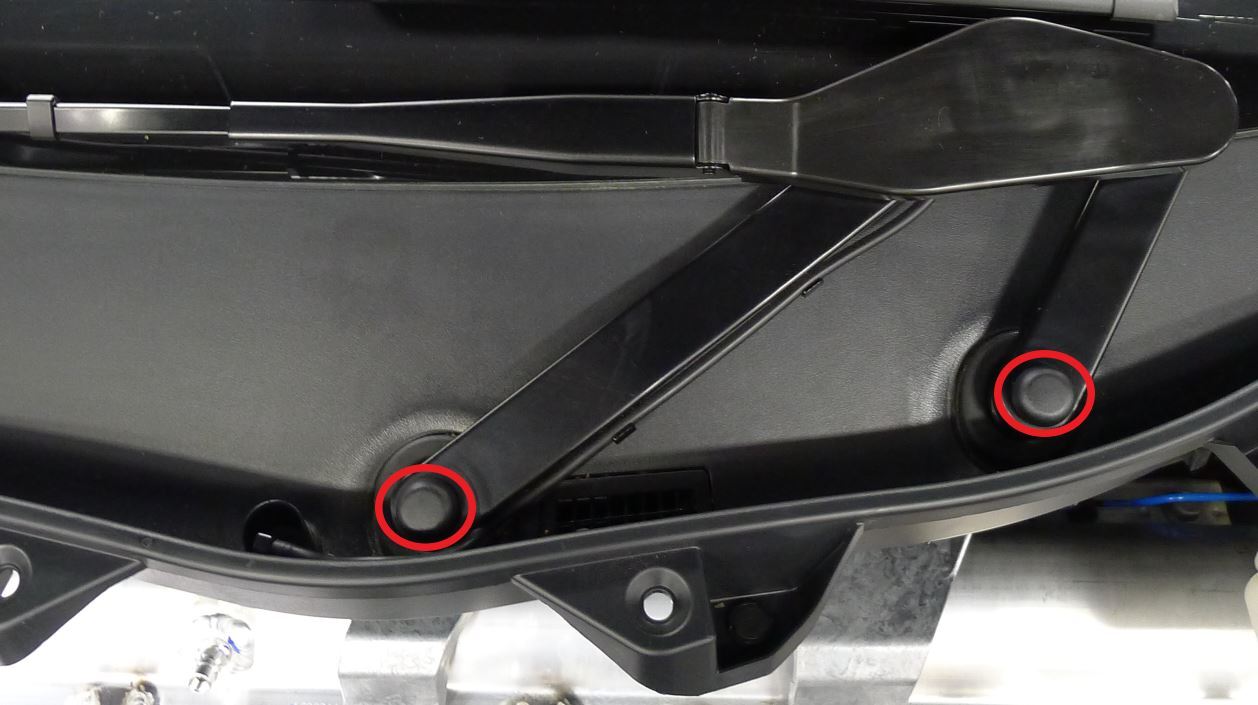

Remove RH wiper arm nut covers

Note
2x cover

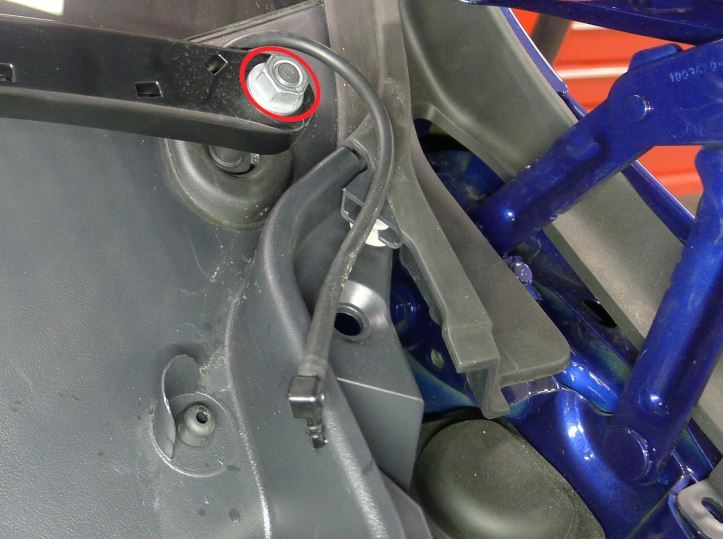

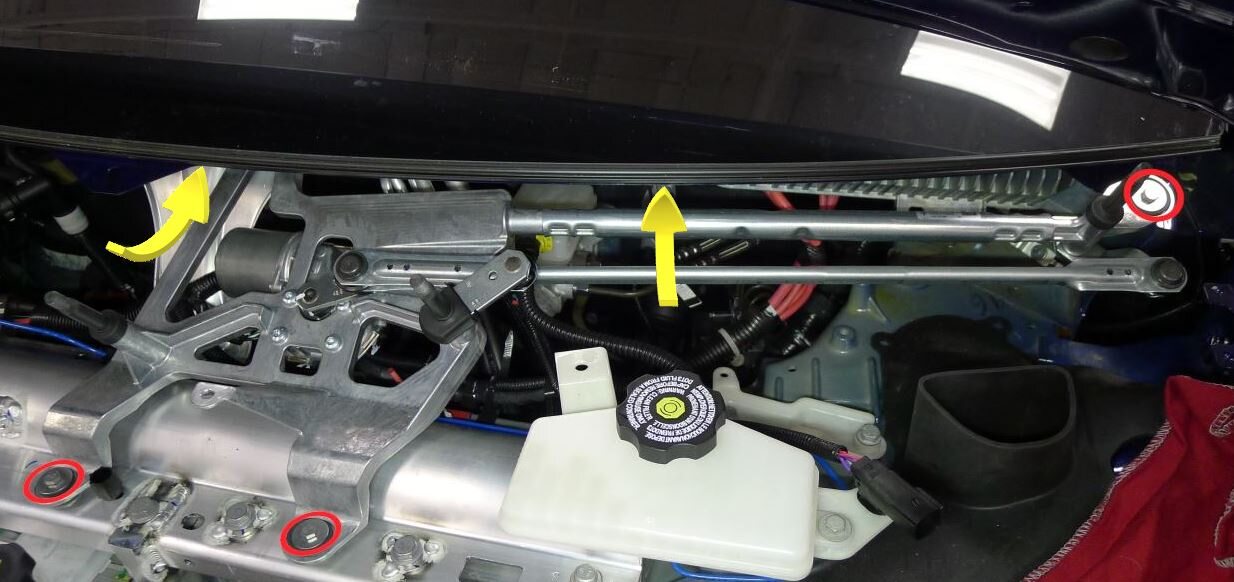

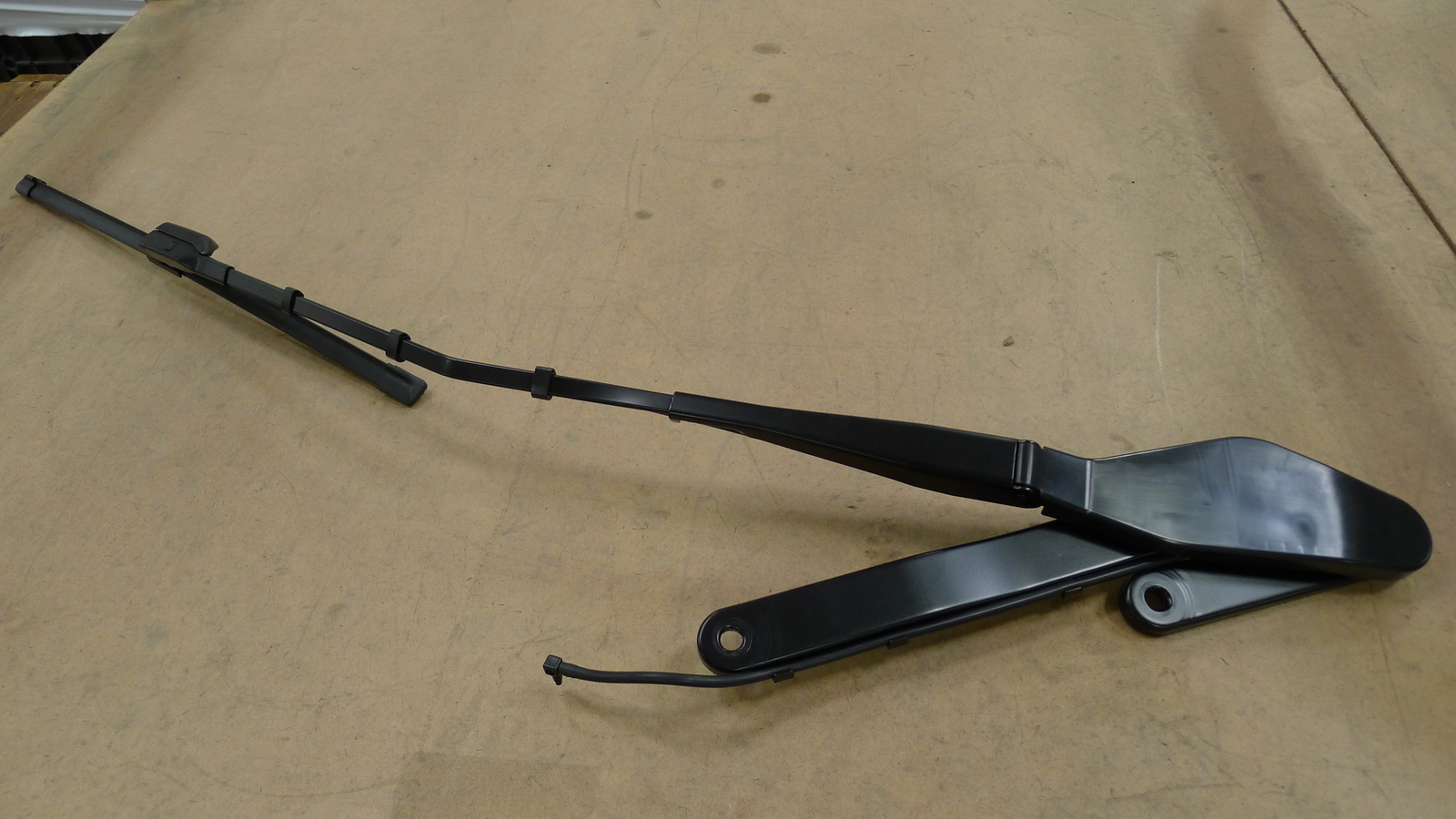

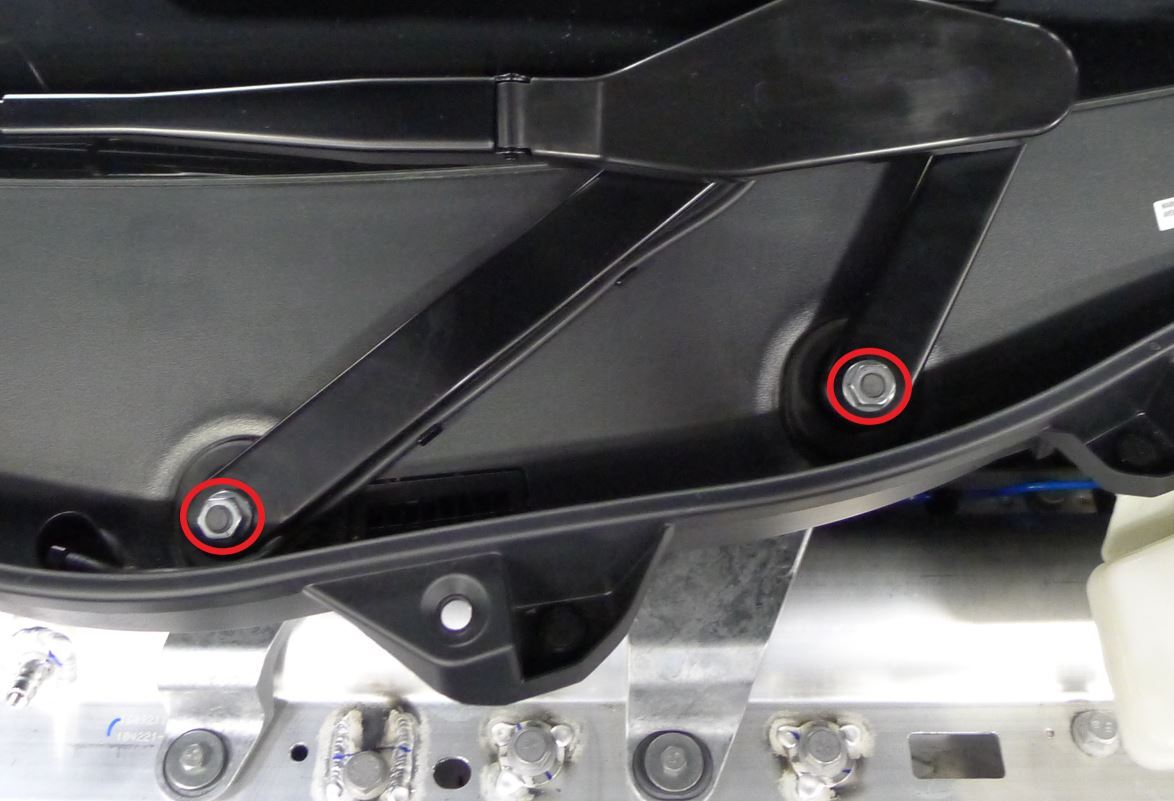

Remove RH wiper arm nuts and release assembly

Note
2x nuts, 15mm, 32 Nm, Do not flex wiper arm to remove

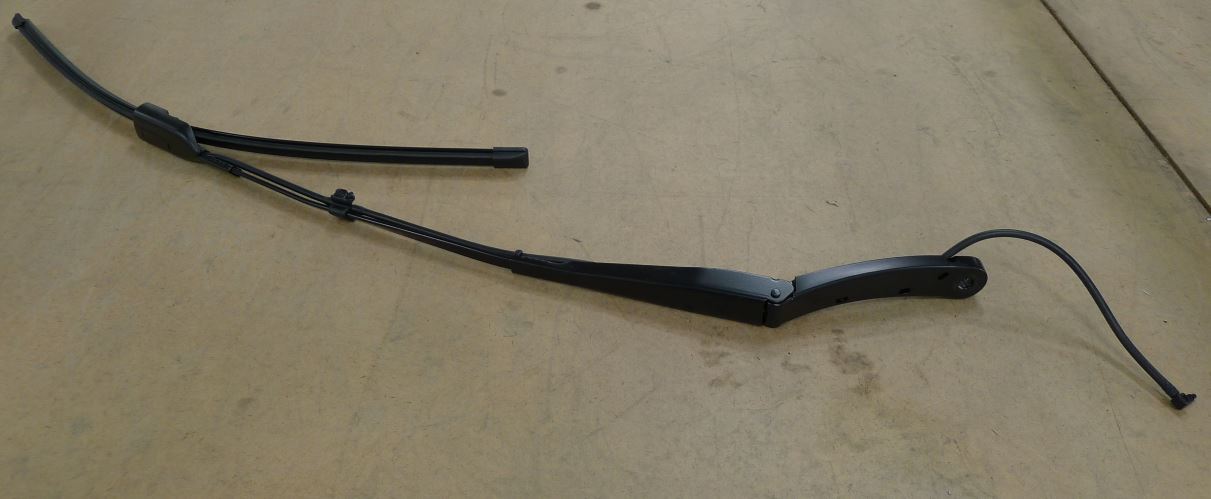

Remove LH wiper arm nut and release assembly

Note
1x nut, 15mm, 32 Nm, Do not flex wiper arm to remove, Lower the hood slightly to fit wiper arm removal tool

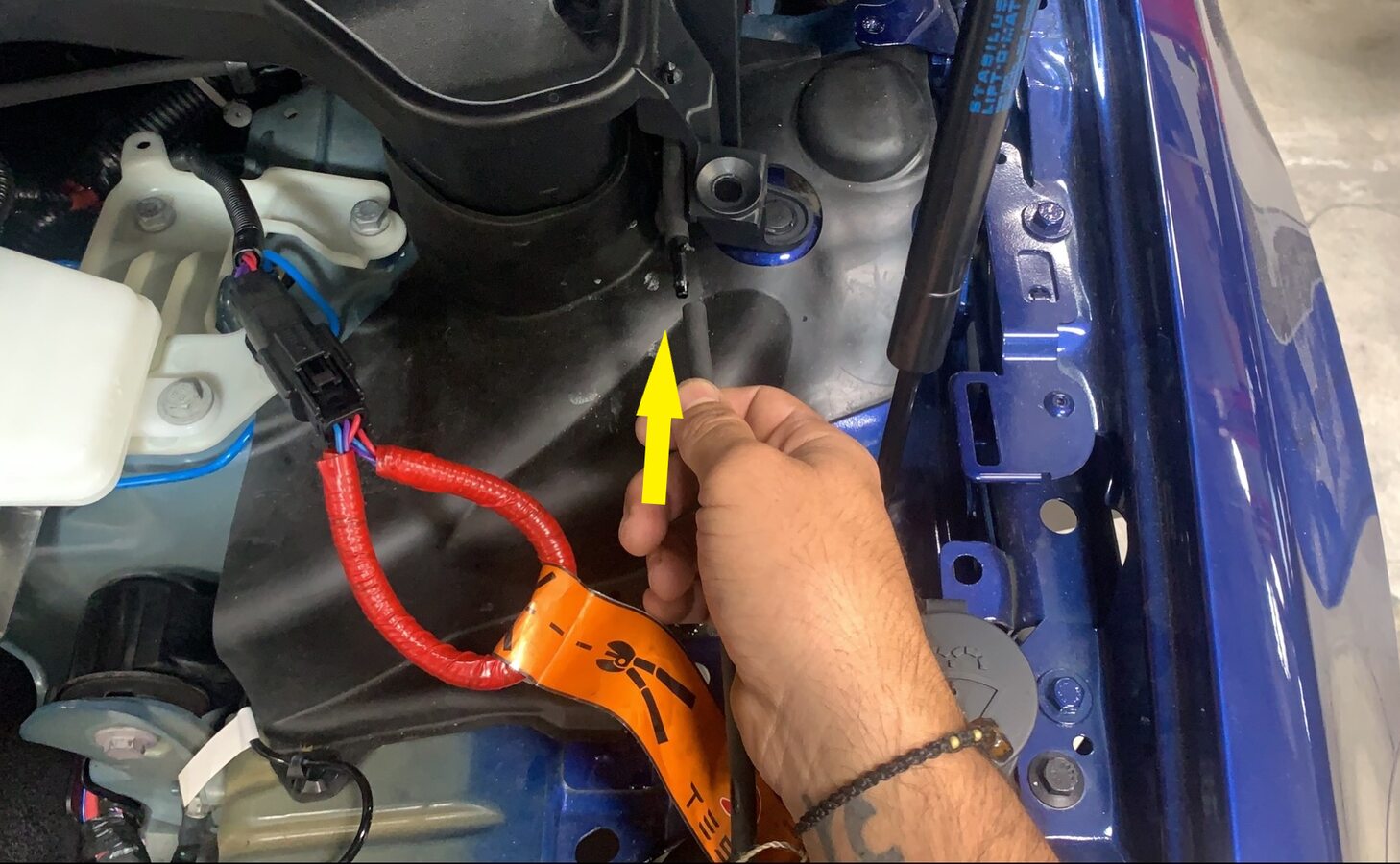

Release cowl screen washer supply hose located above LH shock tower cover

Note
1x hose

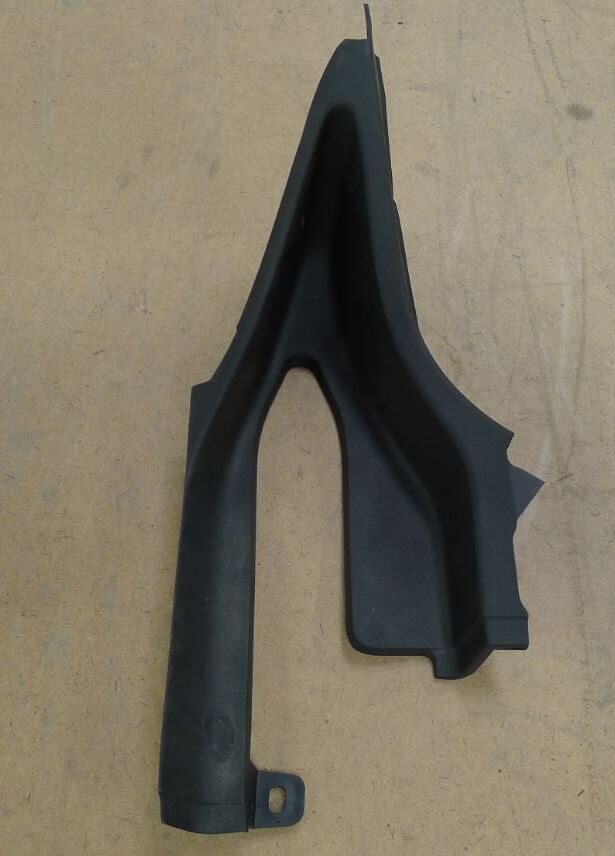

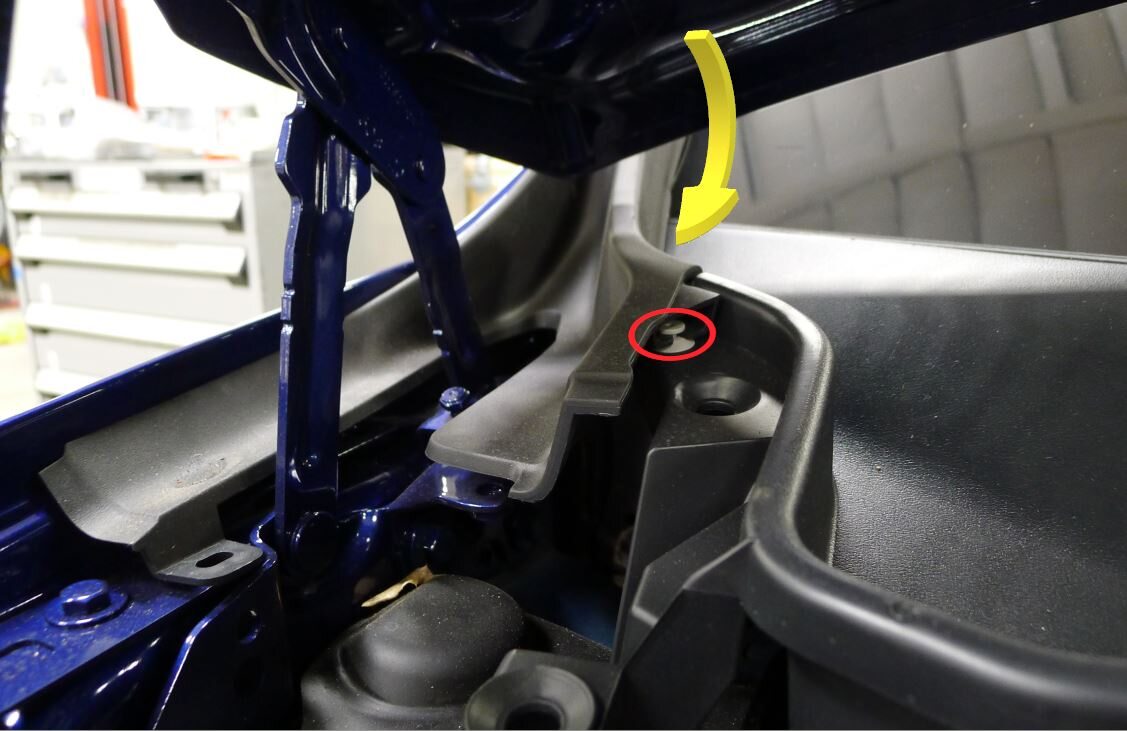

Remove LH outer hood hinge cover

Note
1x clips
Remove RH outer hood hinge cover

Note
1x clips

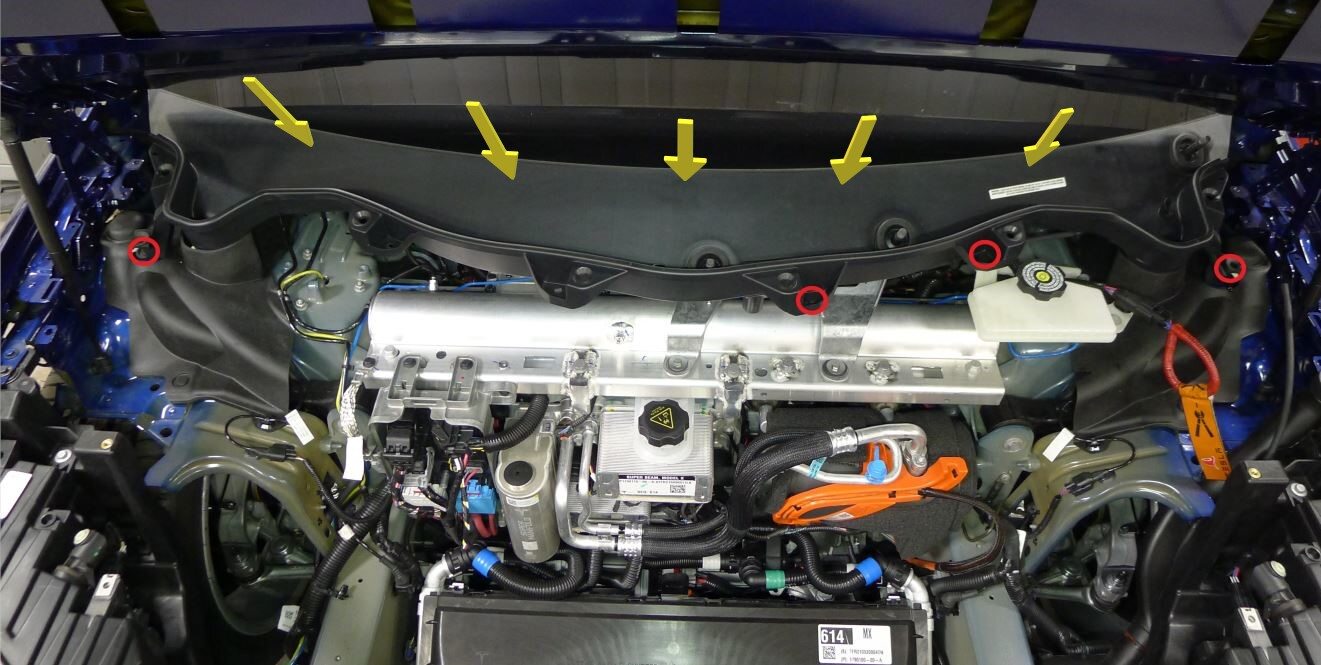

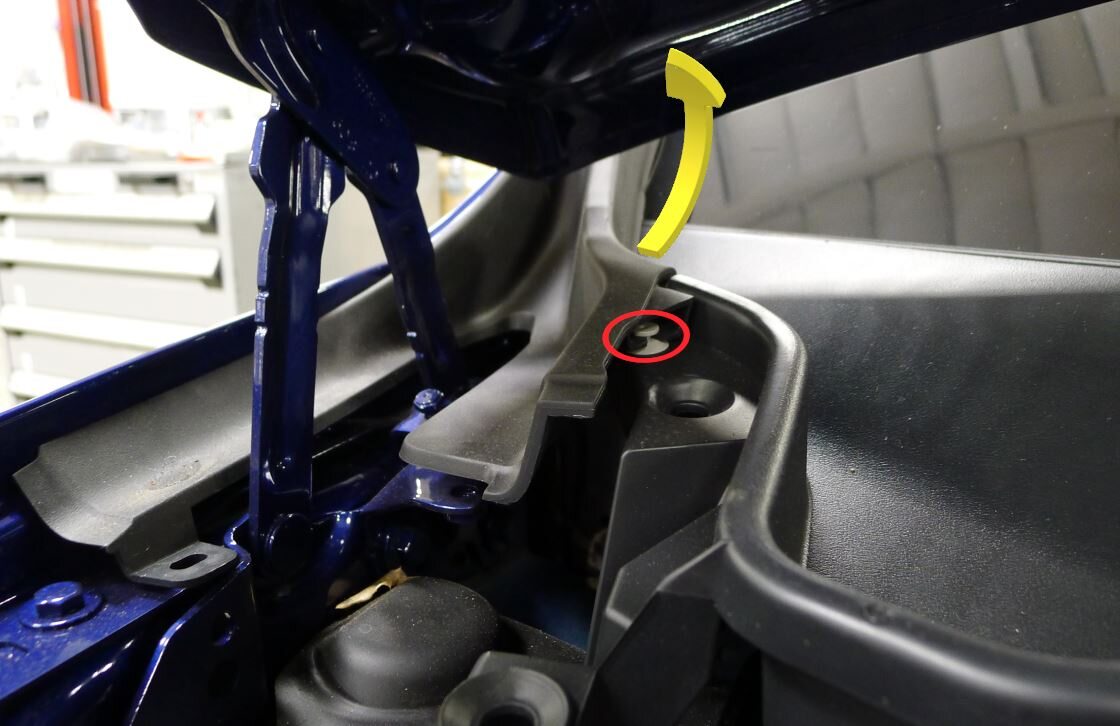

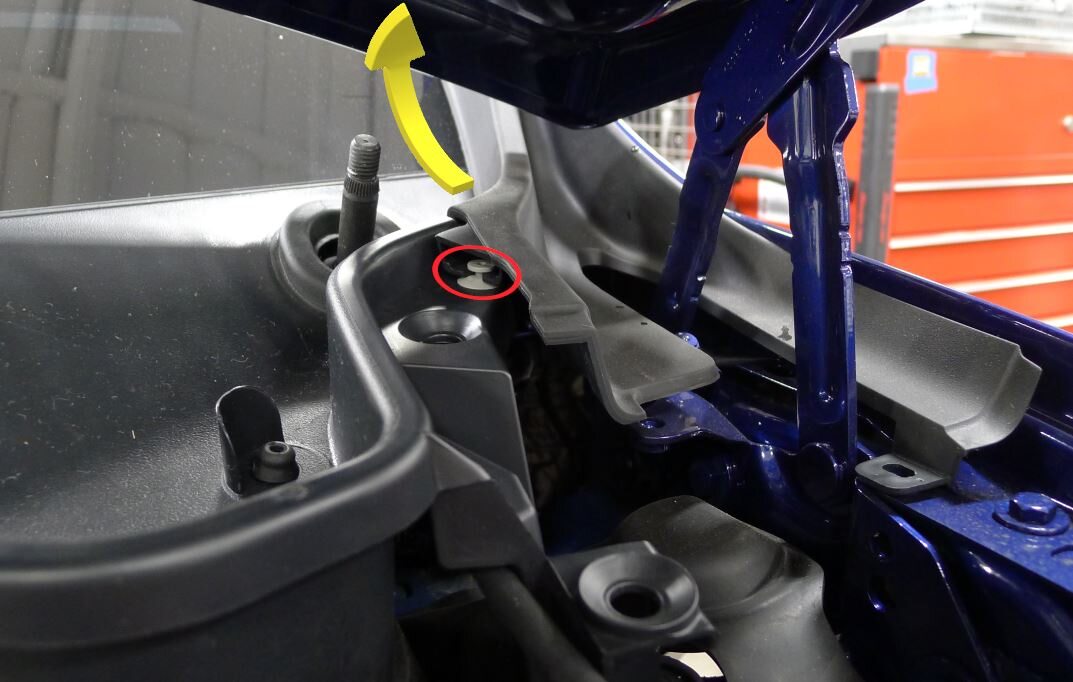

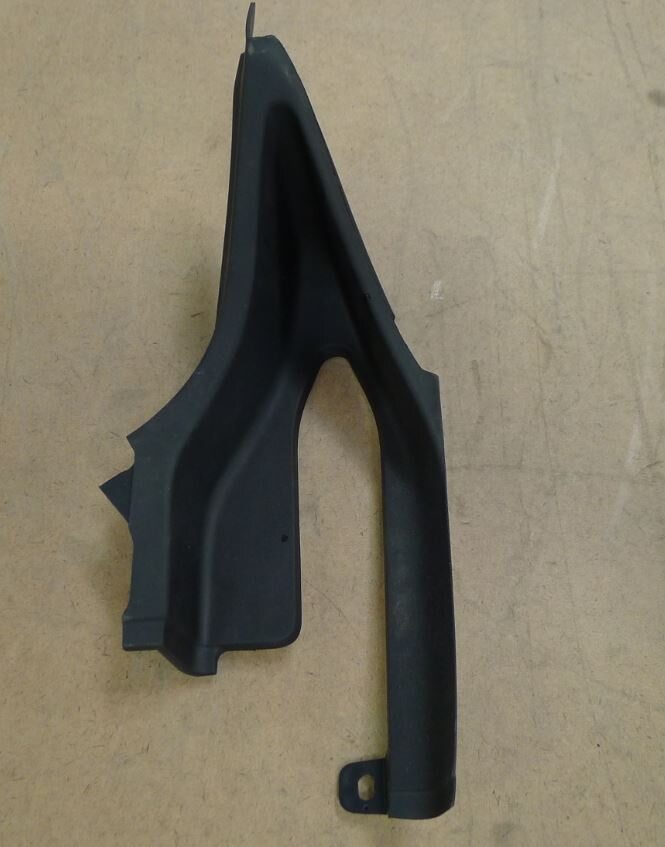

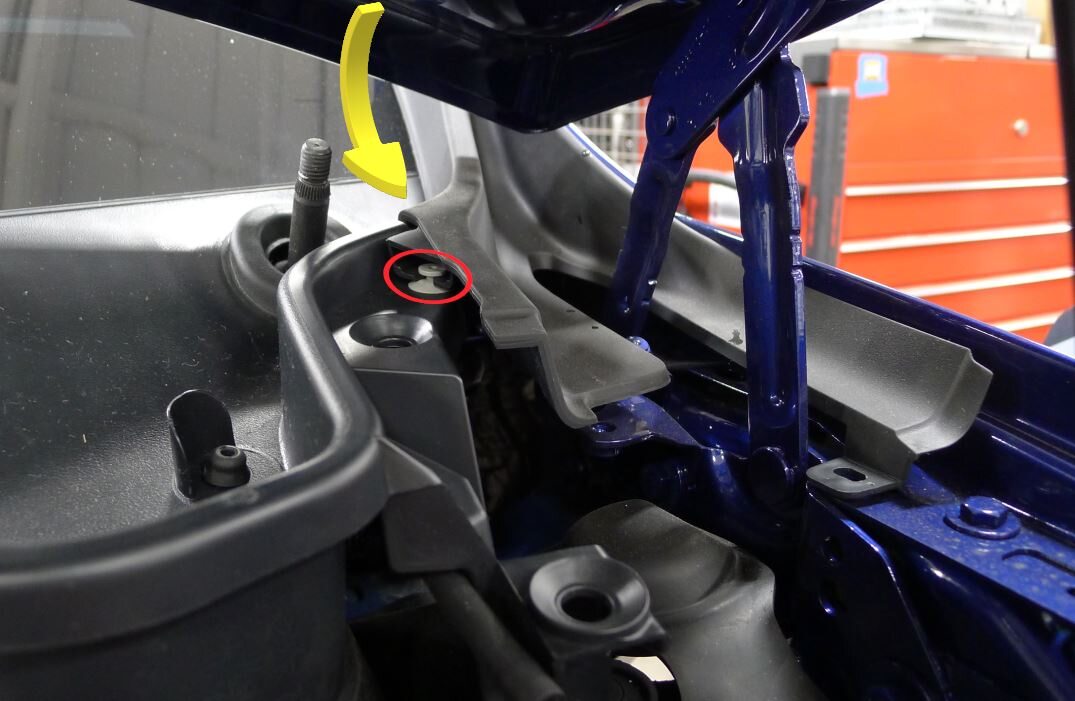

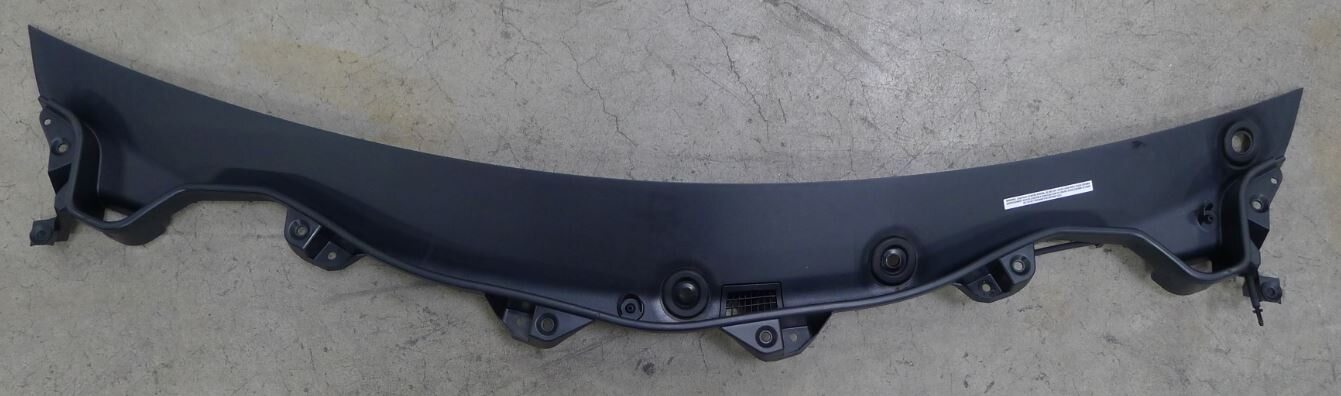

Remove wiper cowl screen panel

Note
4x push clips, Pull cowl up out of lower windshield channel
Power off the vehicle using the touchscreen.

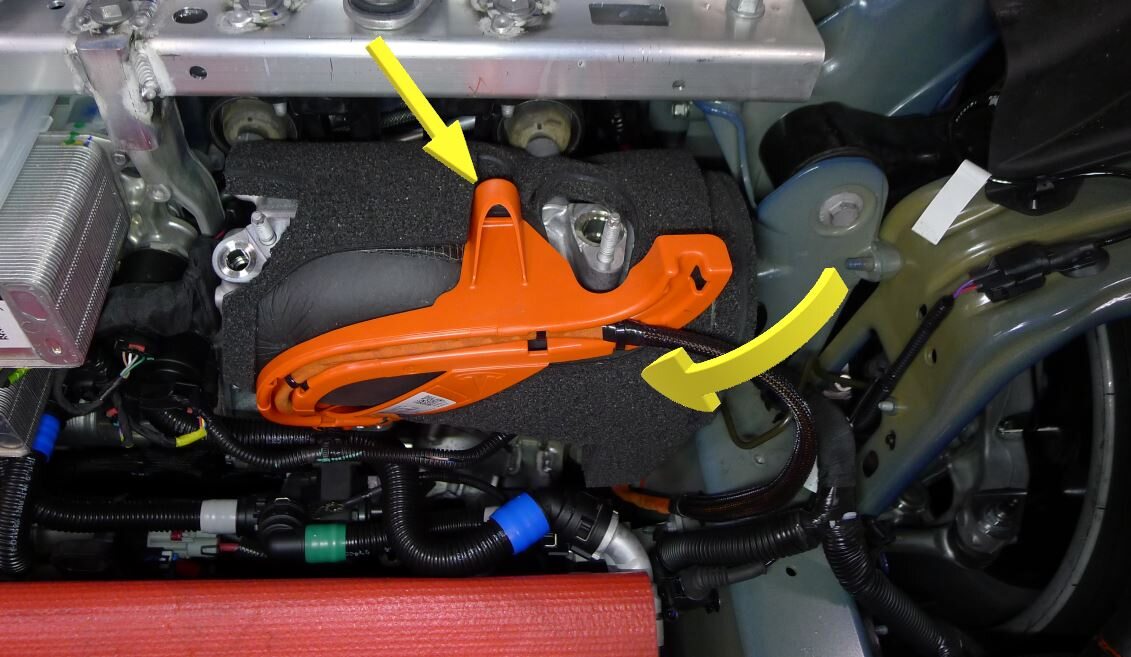

Disconnect the LV battery connector and First Responder Loop.

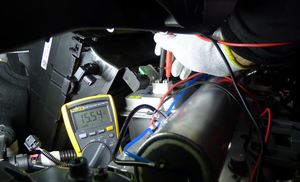

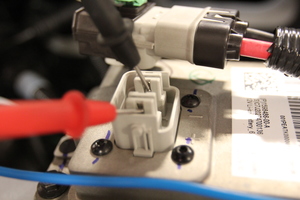

Verify operation of multimeter

Note
Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing LV battery, Touch lightly and do not damage terminals

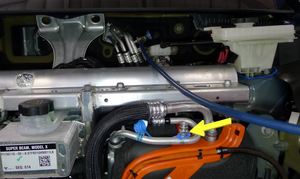

Release coolant hose from LV battery

Note
1x clip

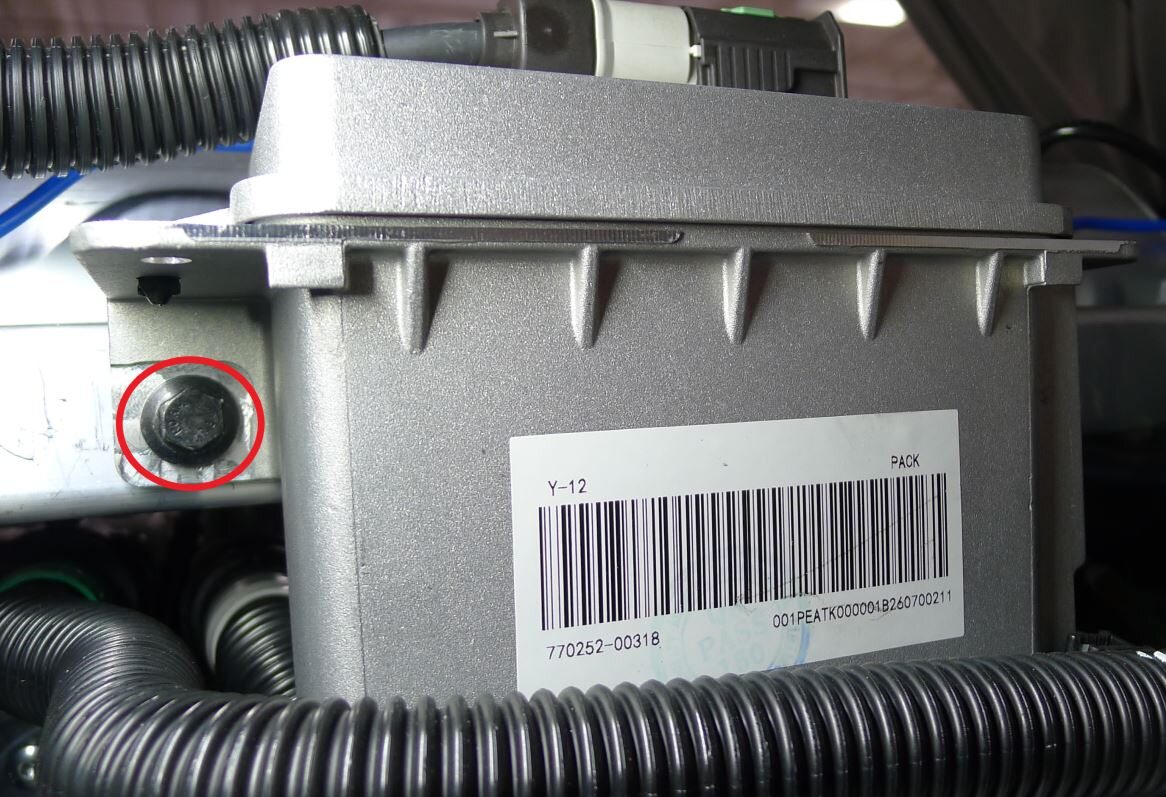

Remove fasteners securing the LV battery and remove assembly

Note
3x bolts, 10mm, 9 Nm, 2x locators

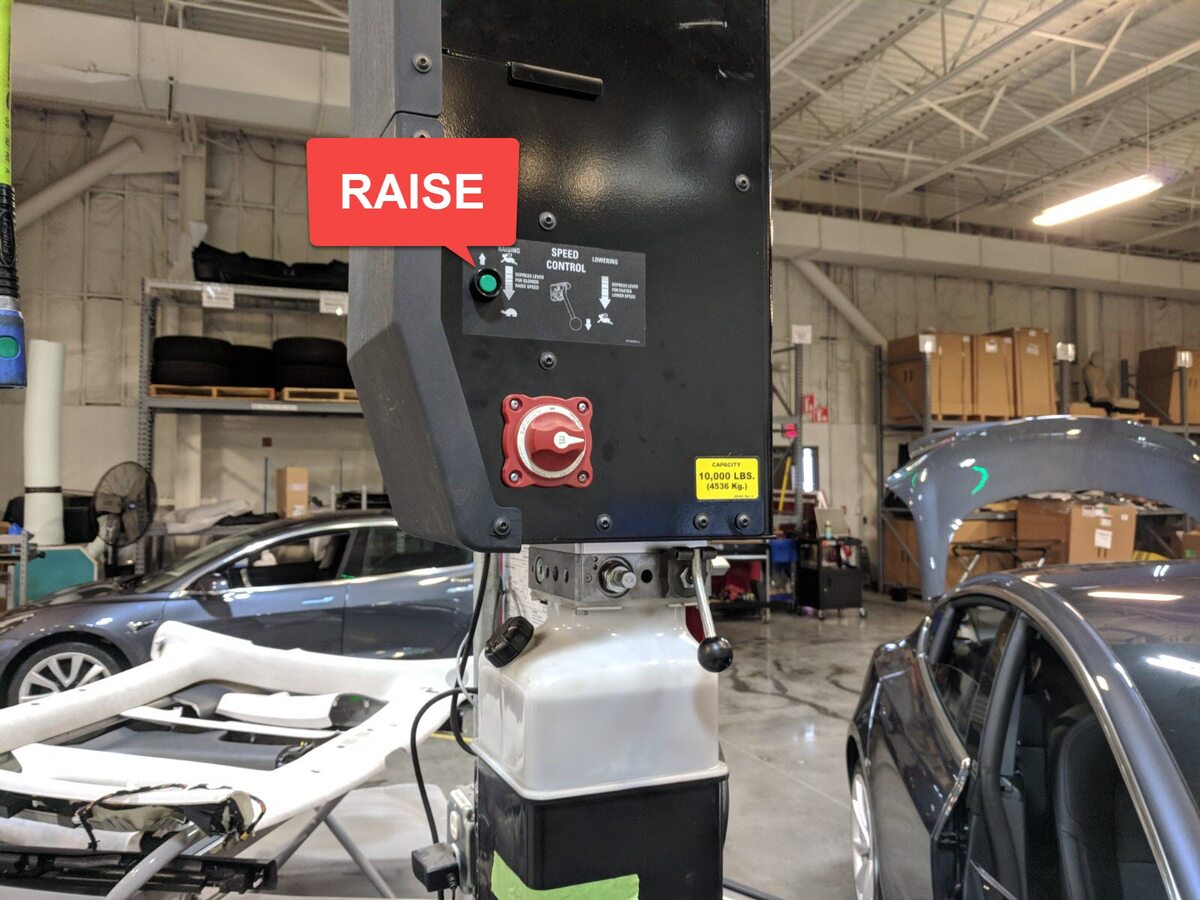

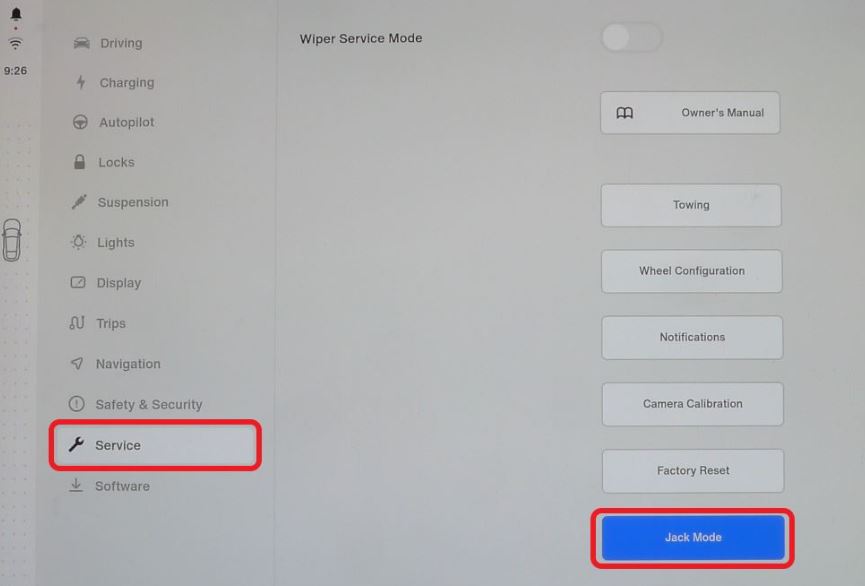

Raise vehicle fully and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side

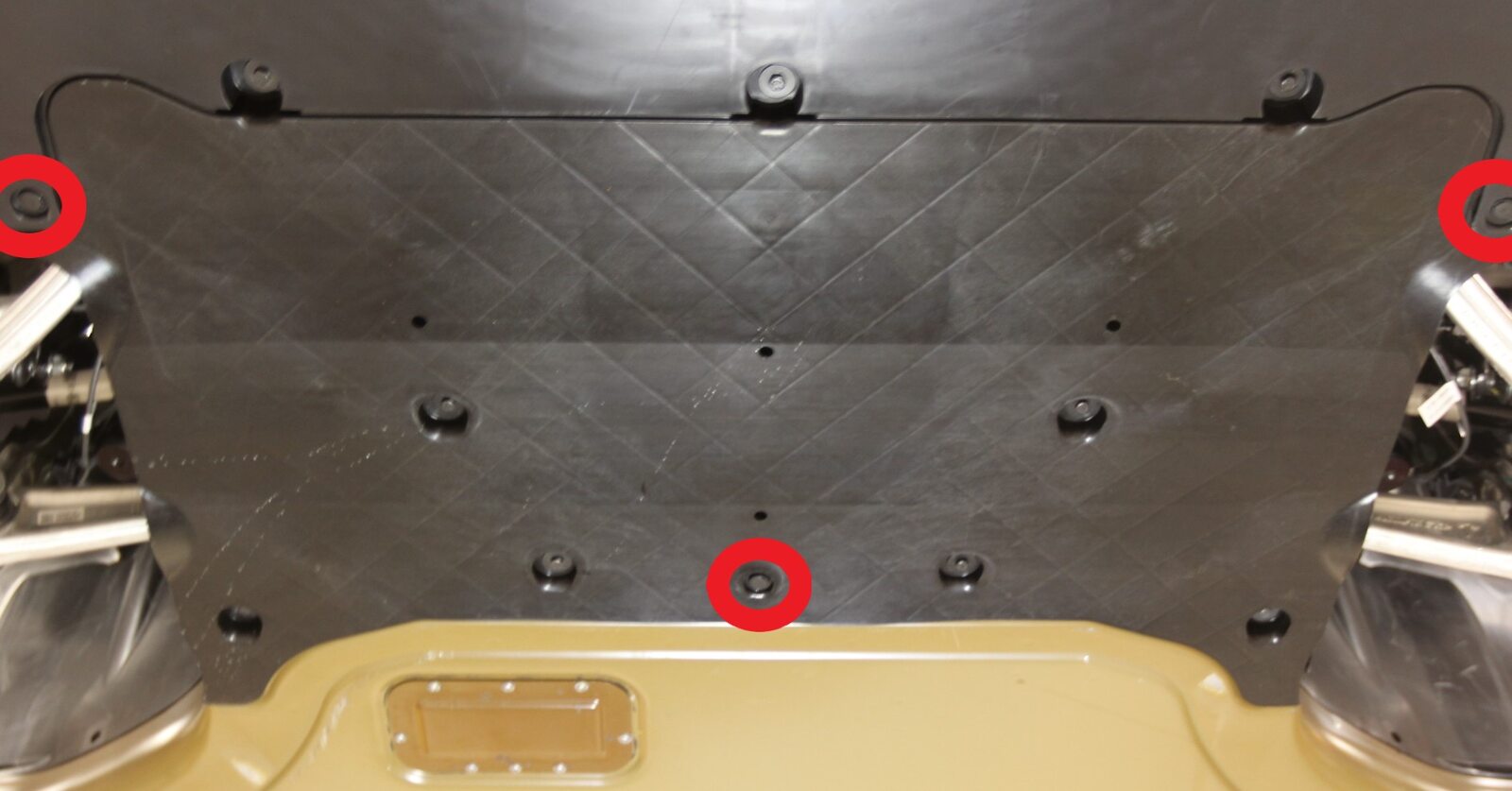

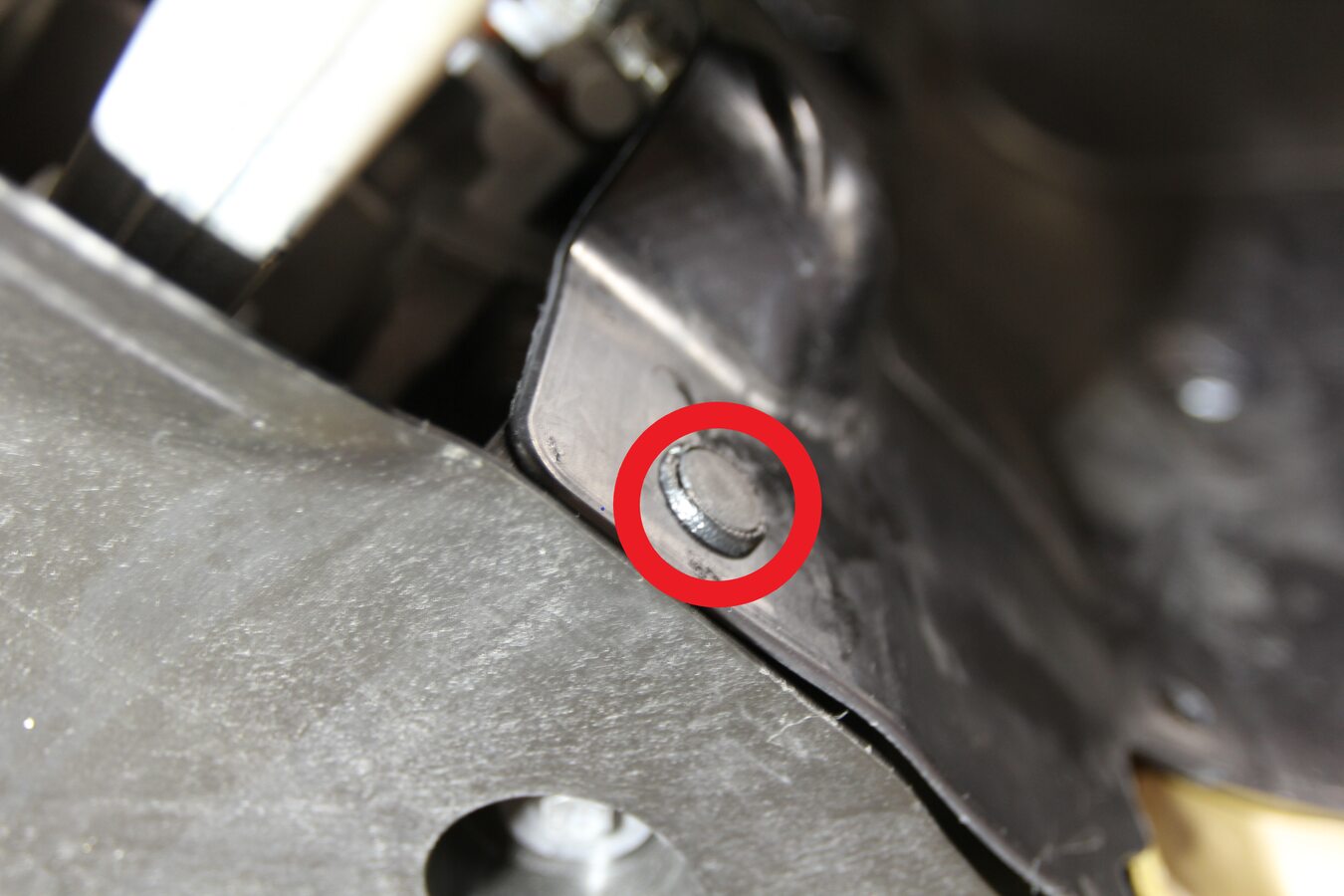

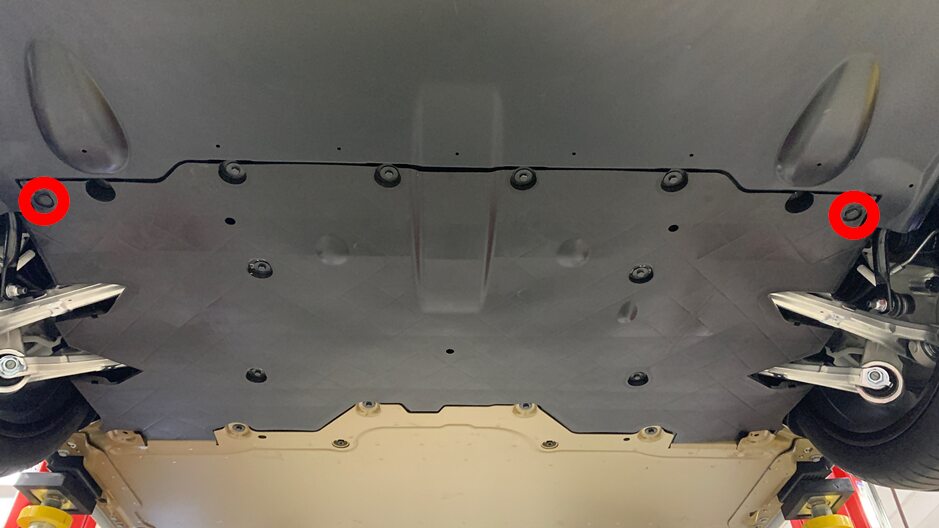

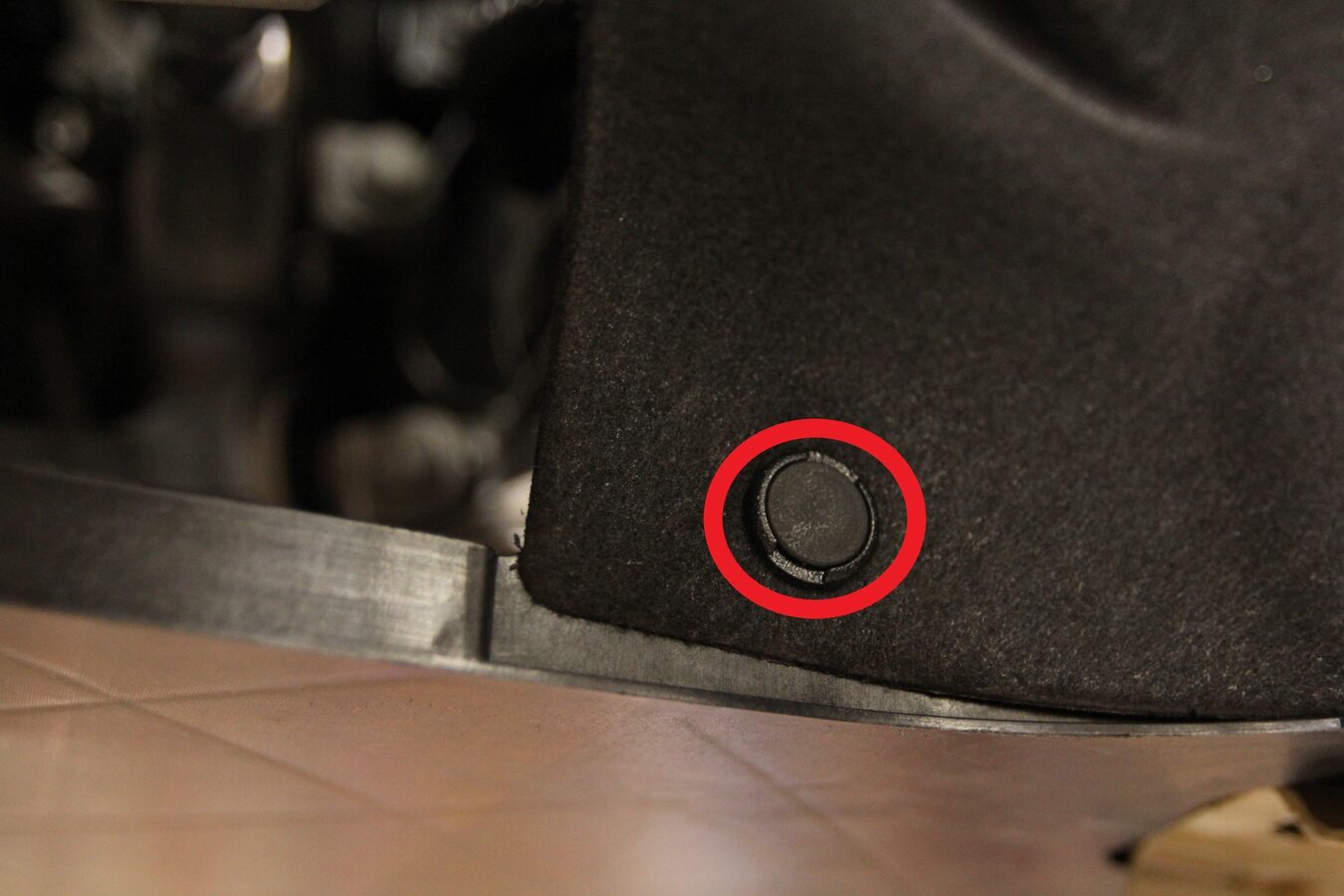

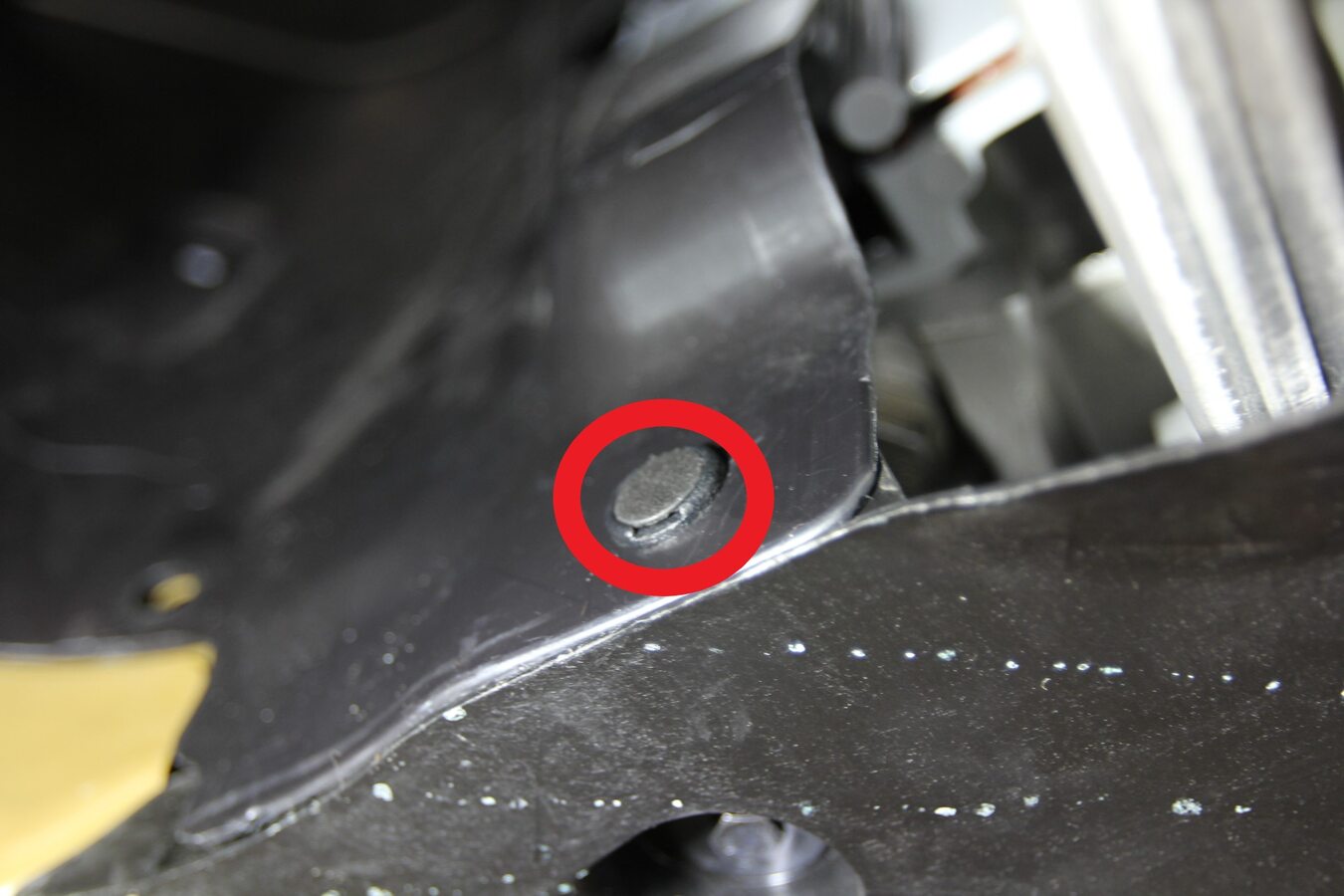

Remove clips securing front aero shield

Note
5x push clips

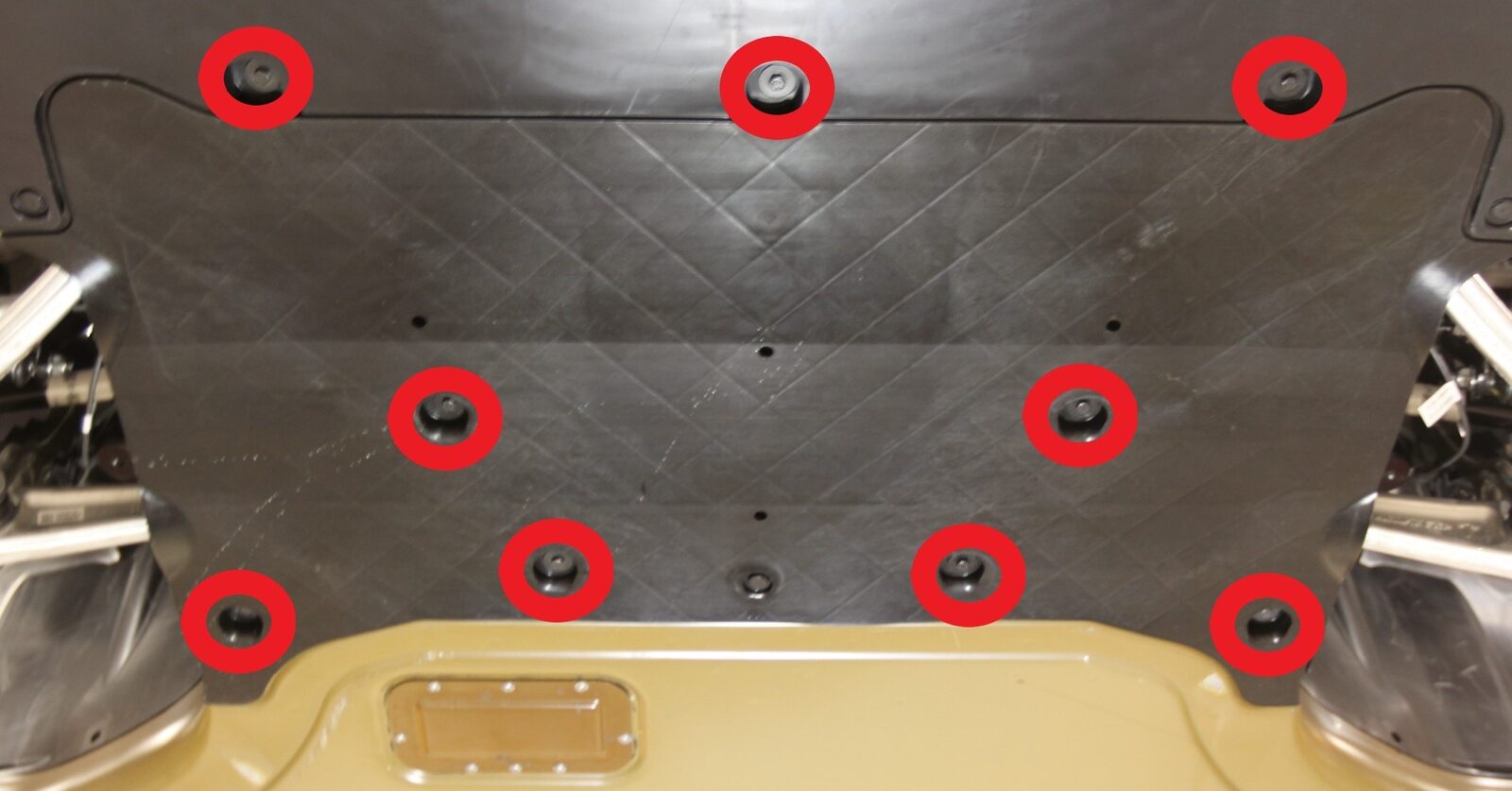

Remove bolts securing front aero shield and remove from vehicle

Note
9x bolts, 10mm, 6 Nm

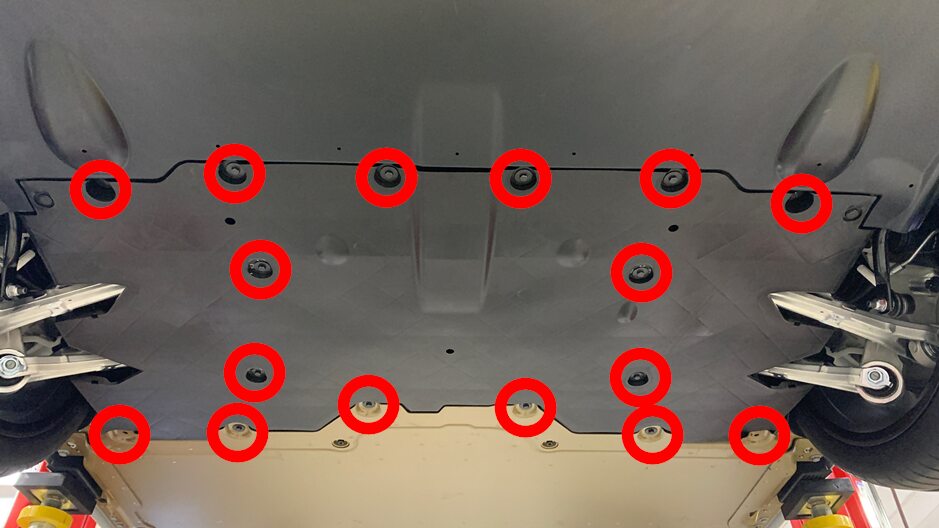

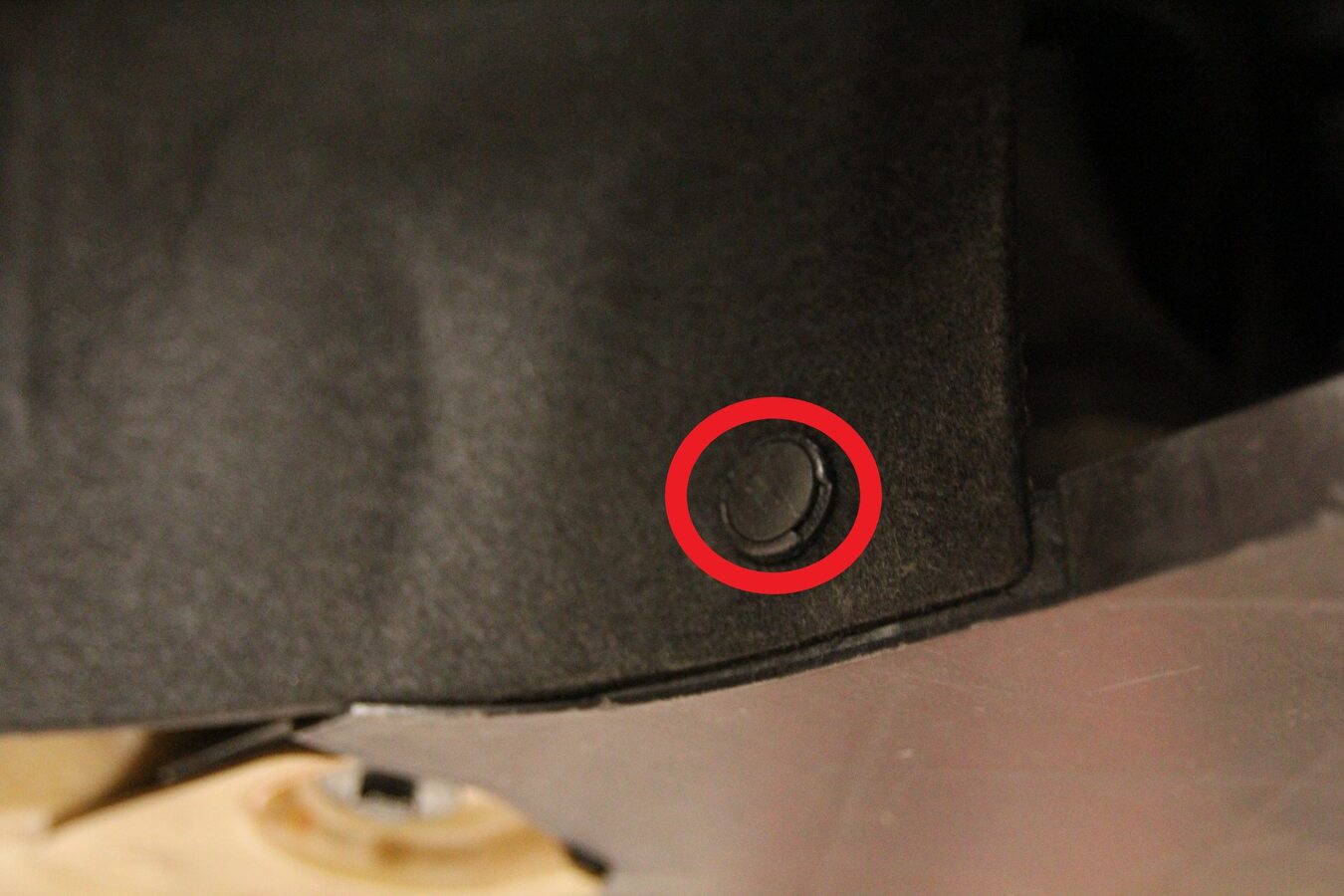

Remove clips securing mid aeroshield

Note
4x push clips
Remove bolts securing mid aeroshield and remove from vehicle

Note
16x bolts, 10mm, 6 Nm

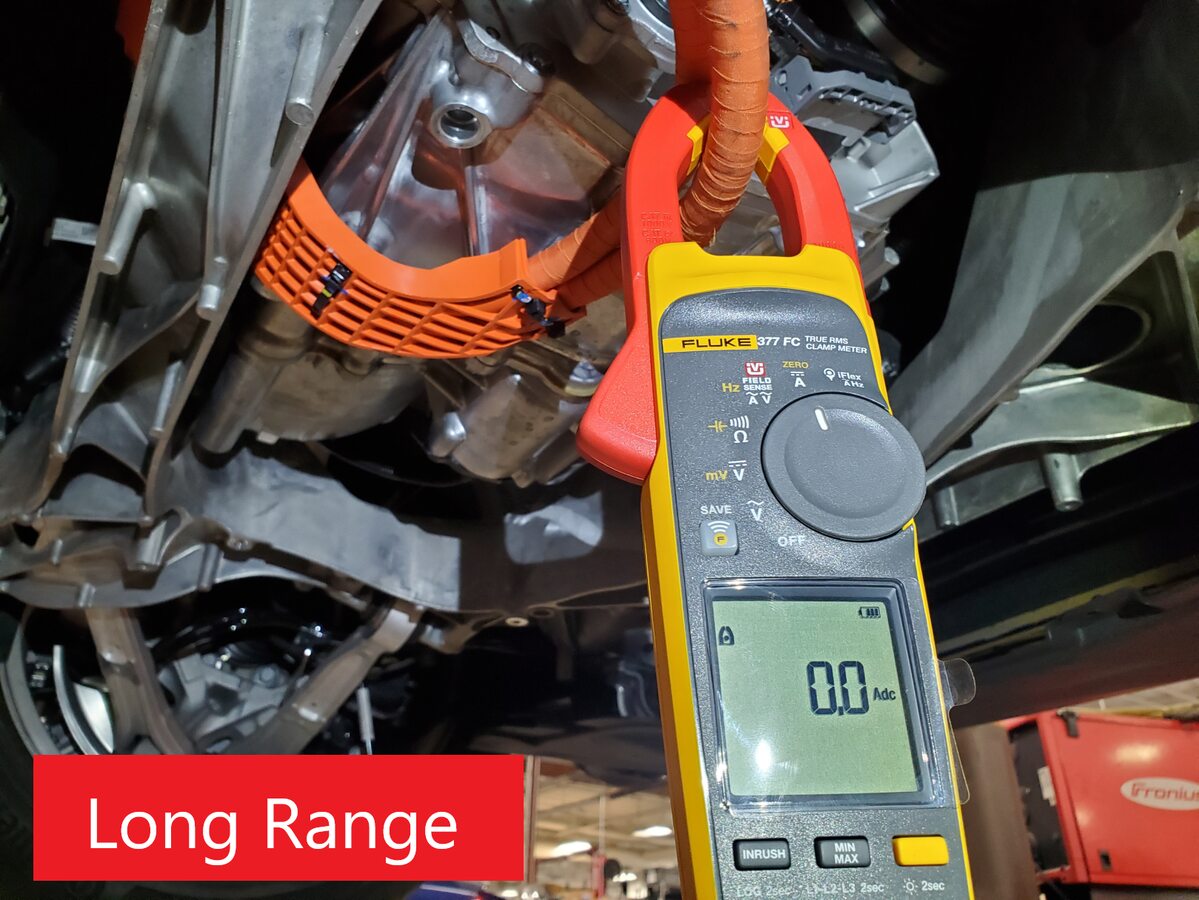

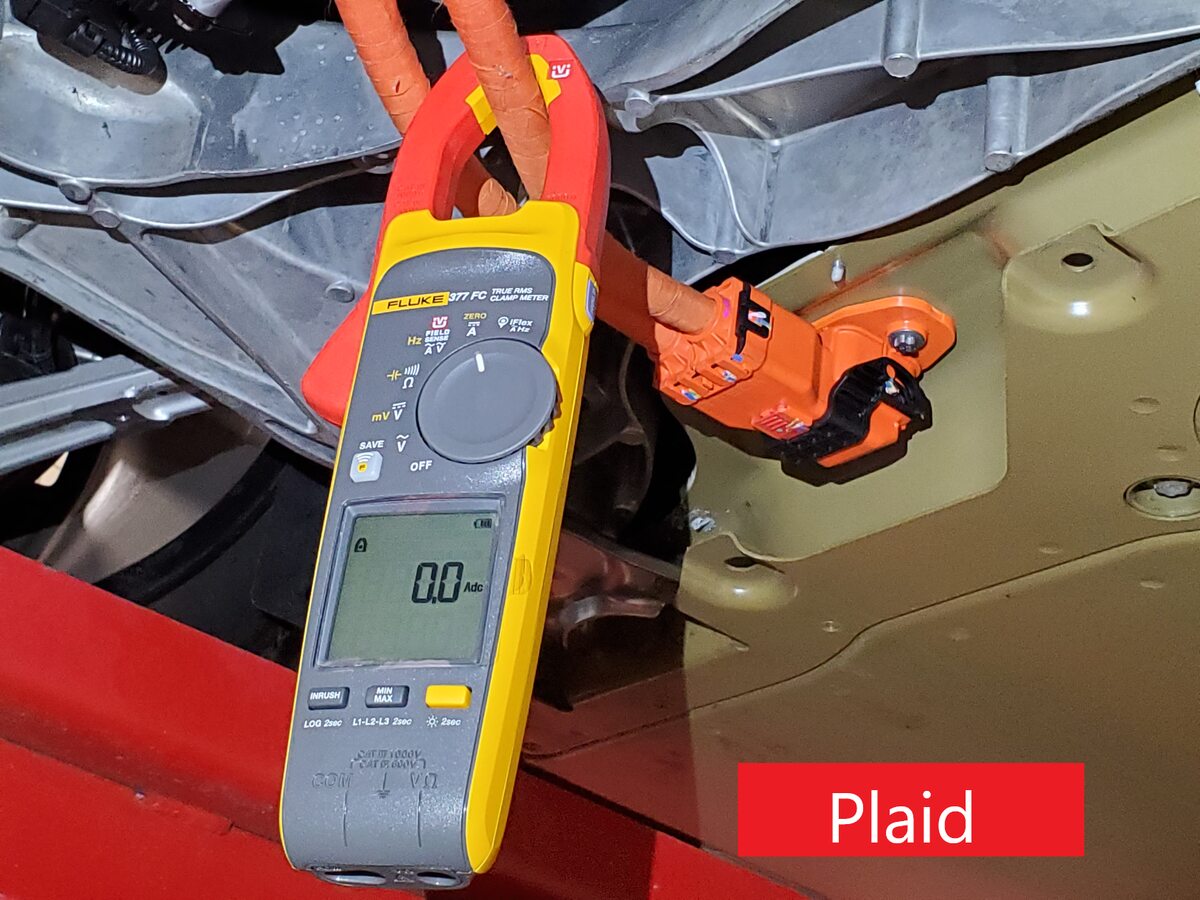

Install amp clamp to LH RDU HV harness

Note
Verify meter is zeroed out before performing measurement, Measure single cable. Verify ammeter is installed in correct direction. If current > 0.5A do not proceed with disconnecting HV connector. In this case, start vehicle electrical isolation again to make sure that all was properly shut down. If current < 0.5A, Ok to disconnect and check voltage at HV plug on the battery side.
Remove all items from pockets and ensure not wearing metal items

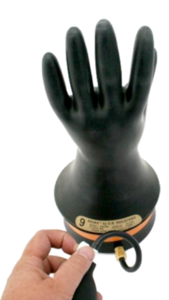

Inspect HV insulating gloves

Note
Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

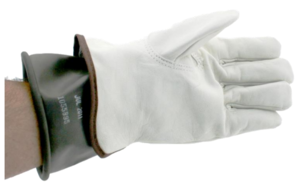

Put on HV insulating gloves and leather over gloves

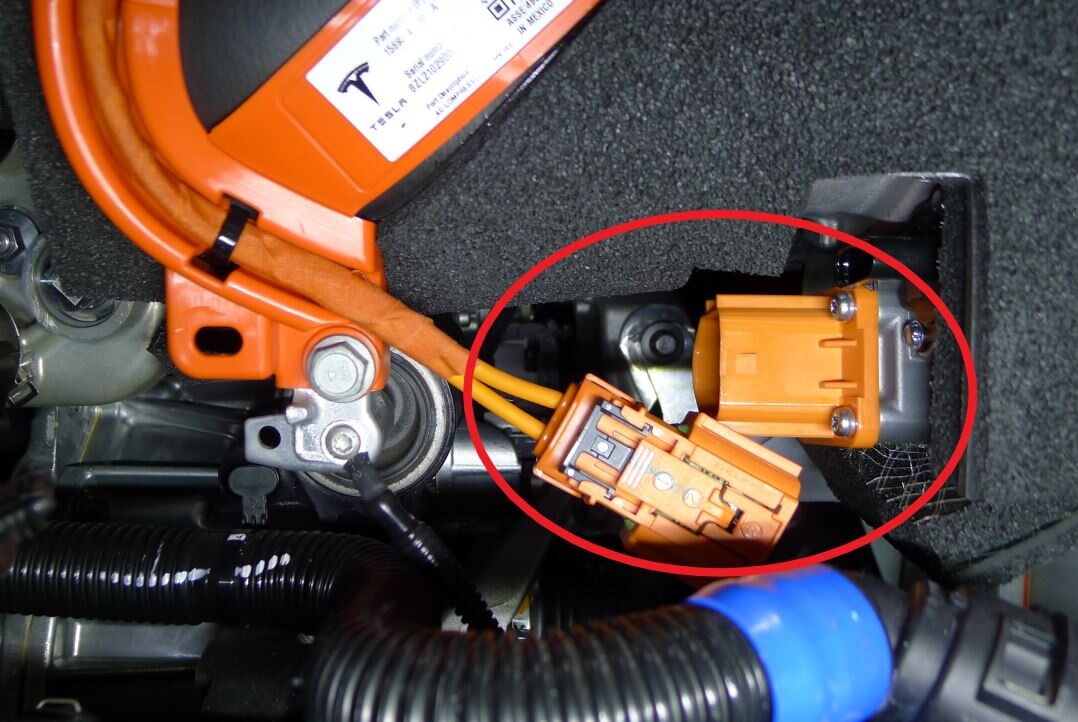

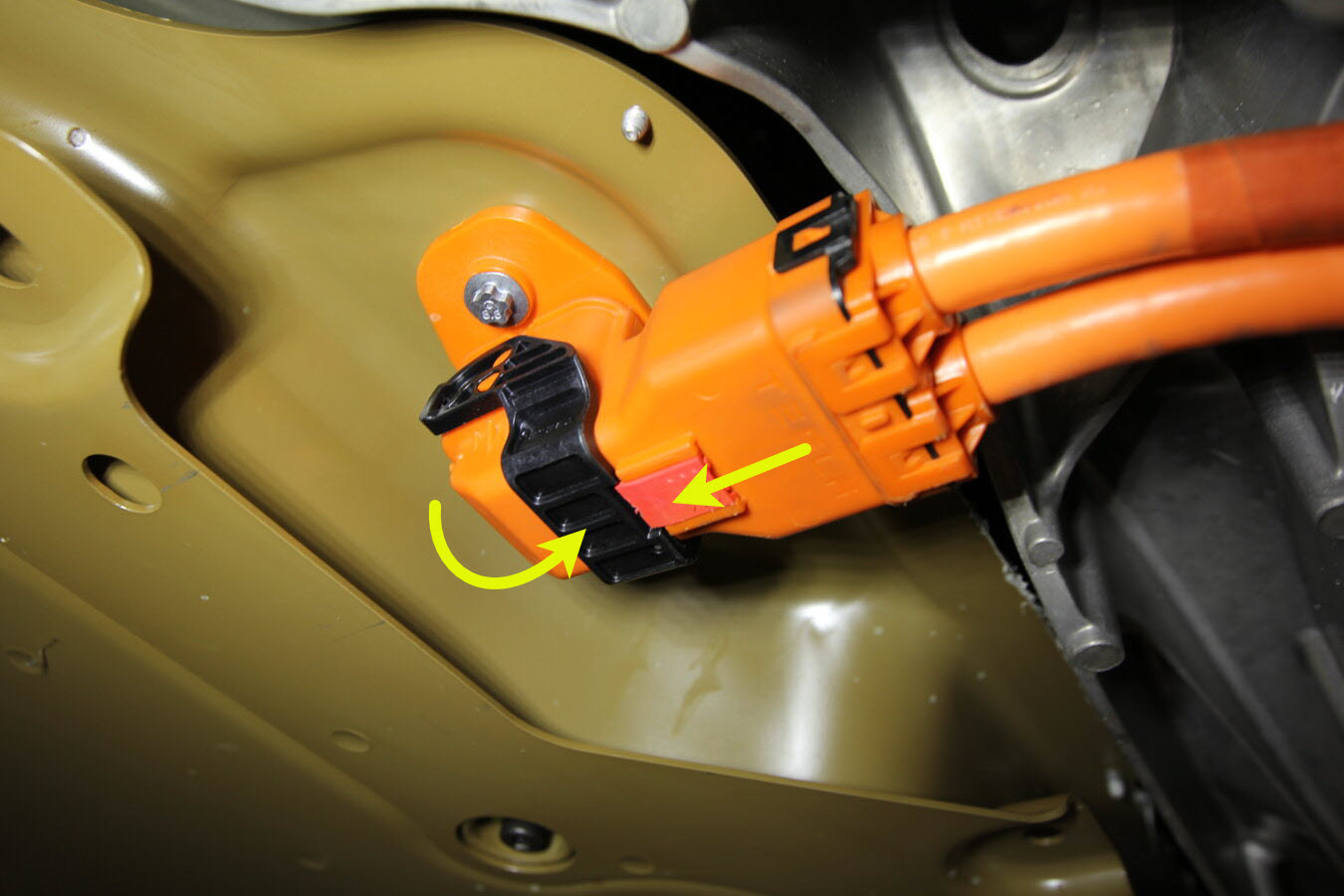

Release LH RDU HV harness from HV battery

Note
1x connector, Hold down red locking tab and disengage the release lever, Do not force the release lever up

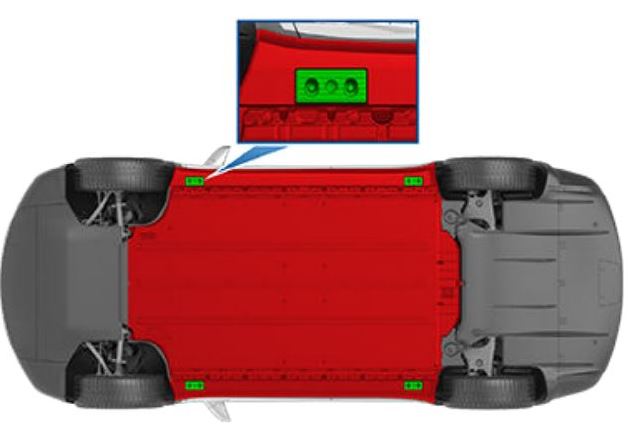

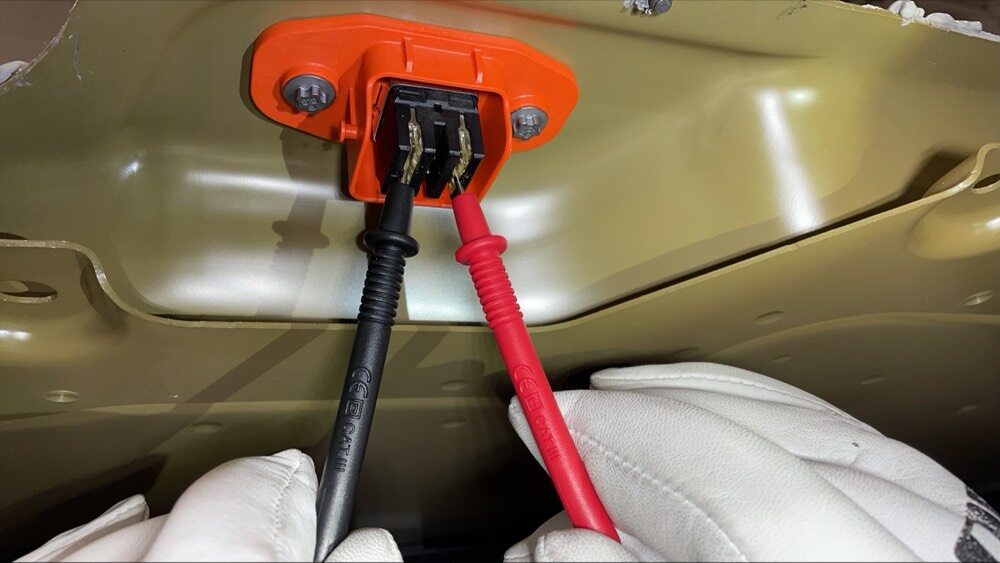

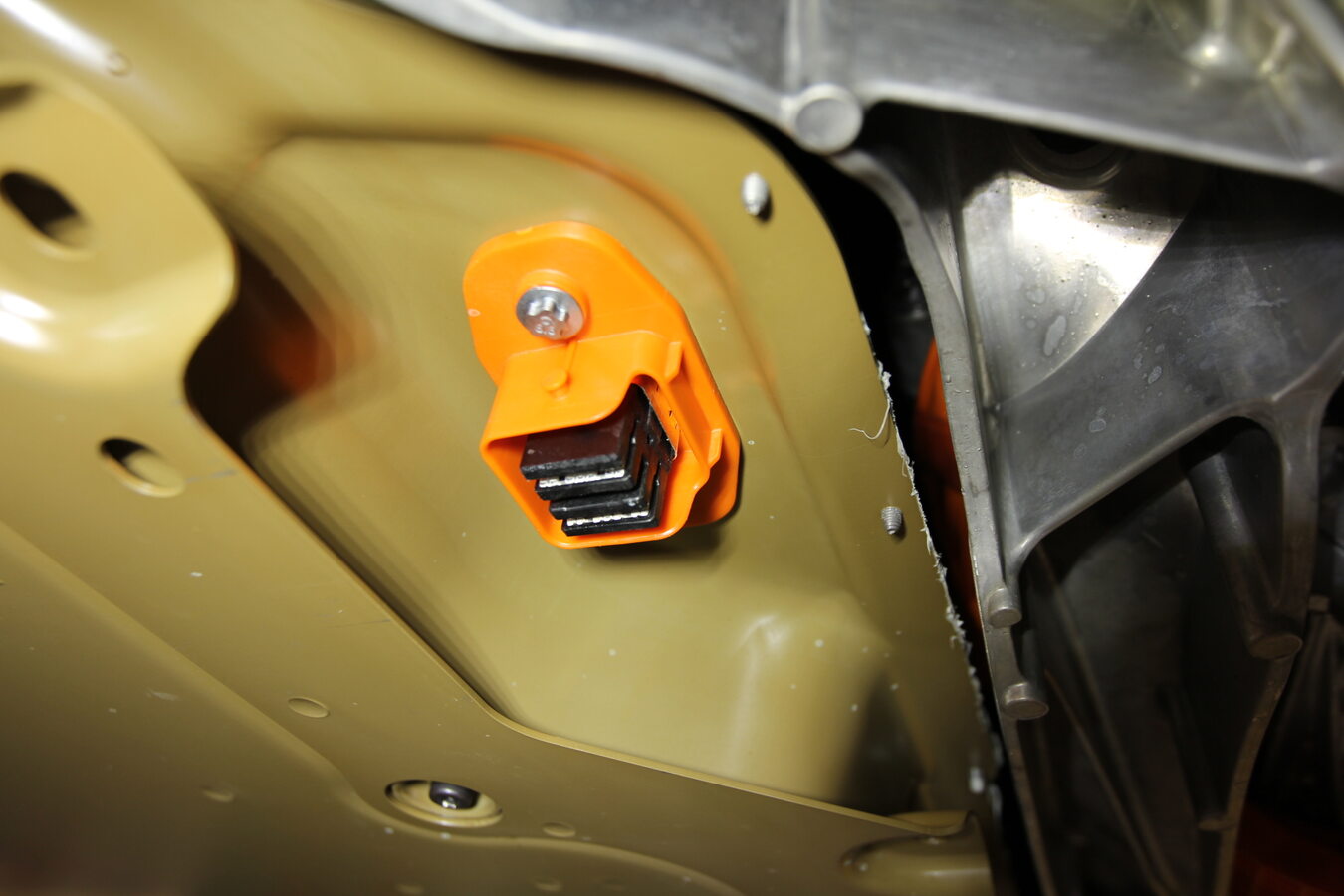

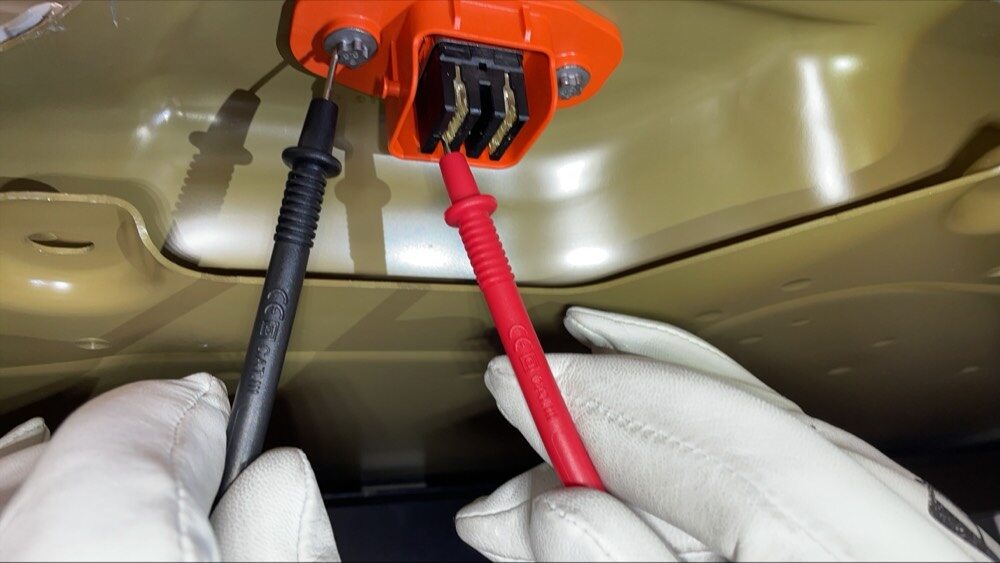

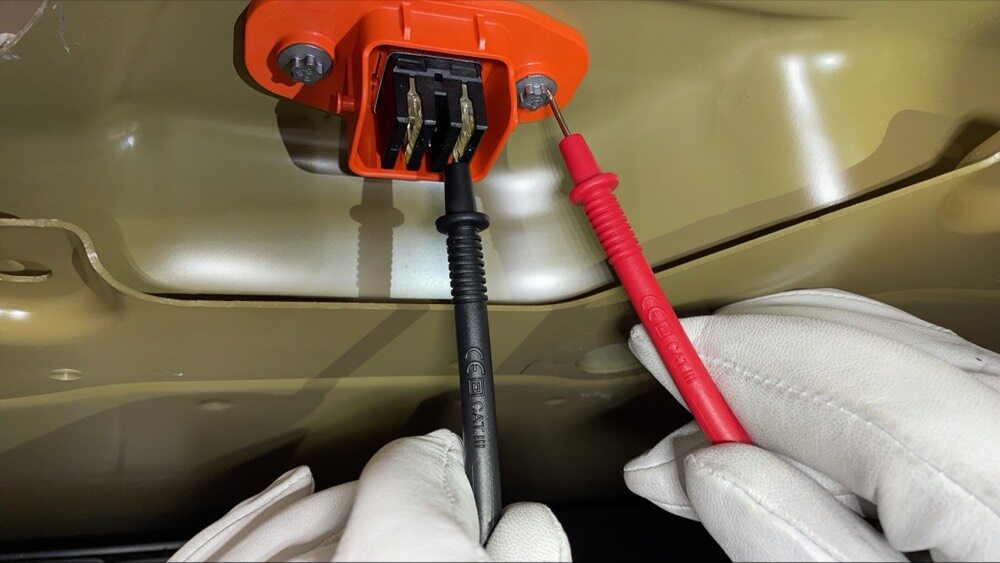

Verify no high voltage at LH rear RDU HV header

Note
Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Verify test equipment is rated CATIII or higher, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
Secure LH RDU HV harness to battery pack

Note
1x connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and verify red tab is locked, Do not damage any pins
Remove the leather glove protectors and HV insulating gloves

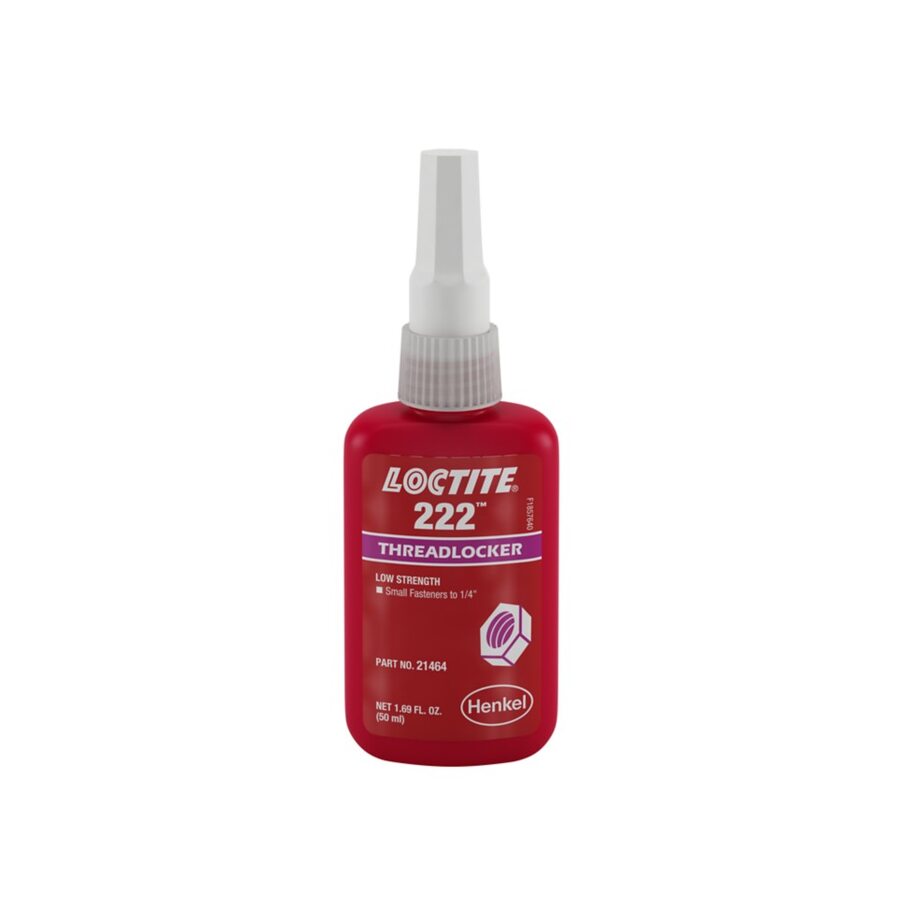

Apply Loctite 222 onto mid aeroshield bolts and install fasteners securing mid aeroshield to vehicle

Note
16x bolts, 10mm, 6 Nm
Install clips securing mid aeroshield

Note
4x push clips

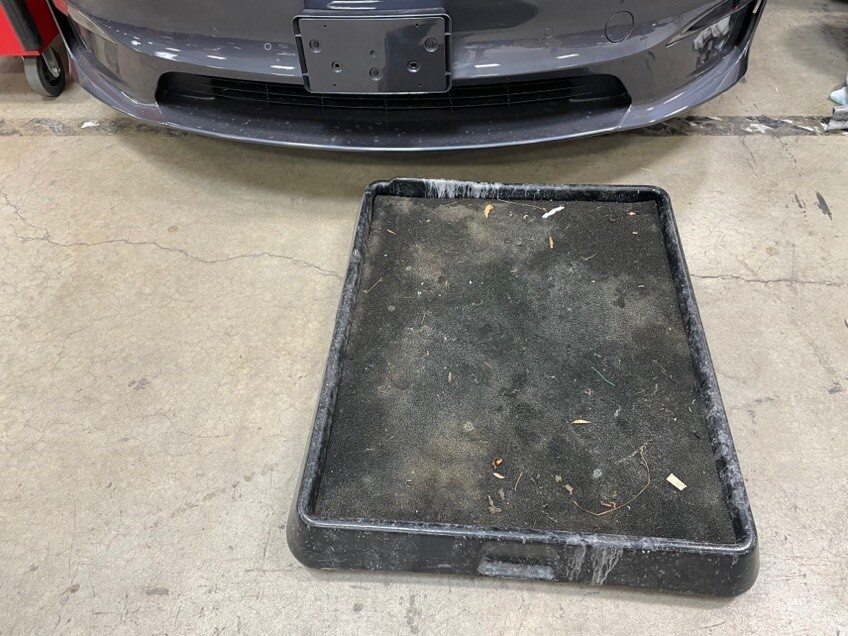

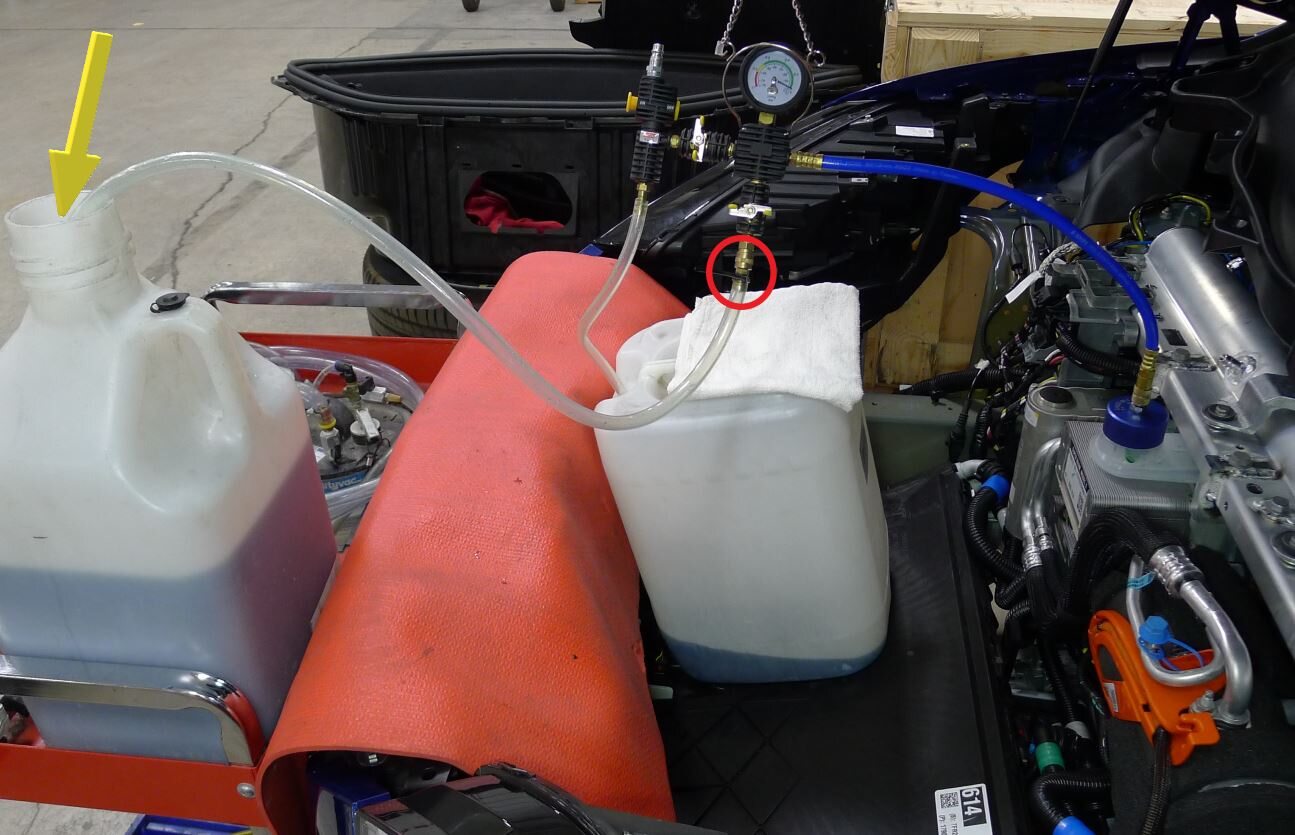

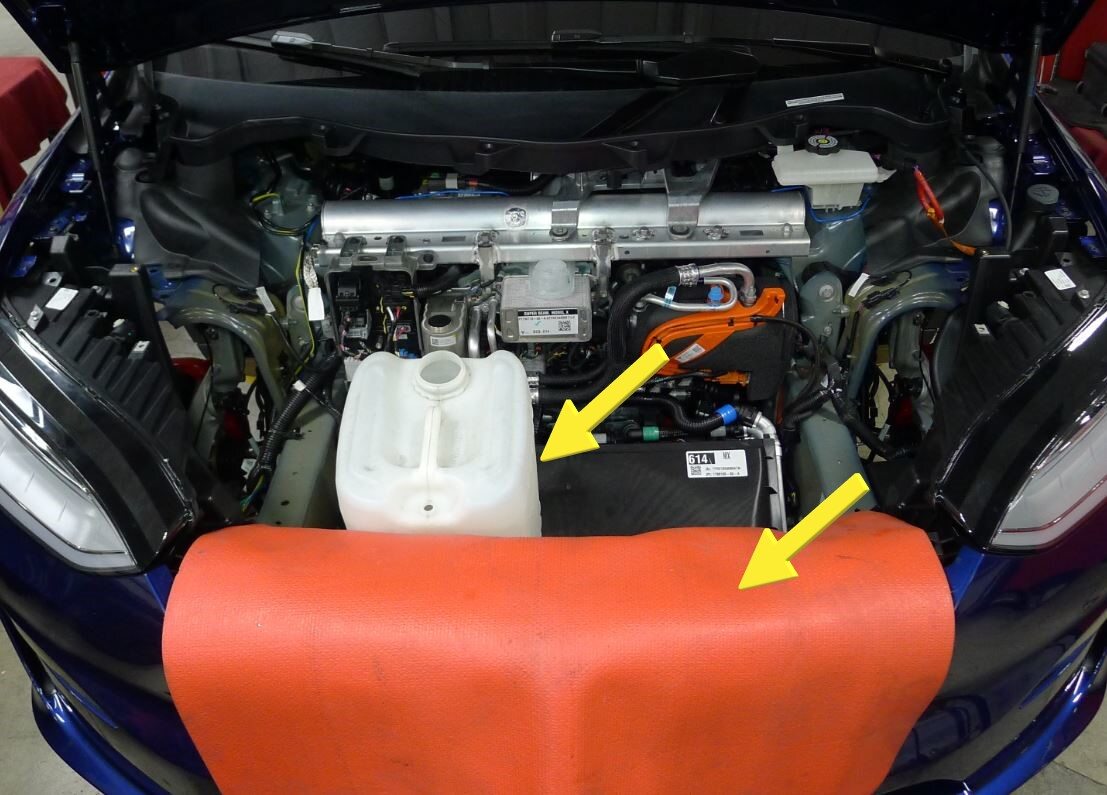

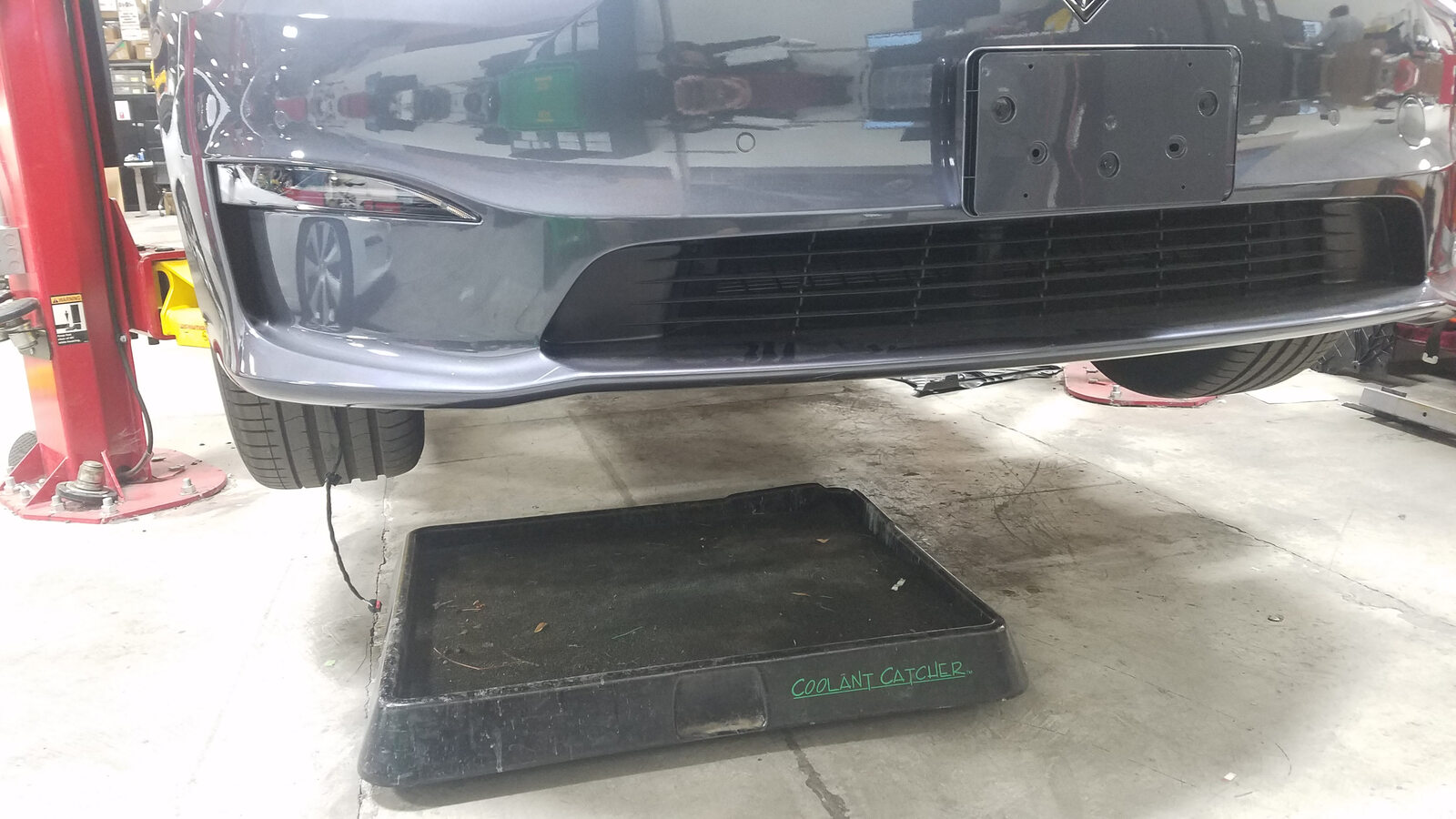

Place coolant catcher below RH front of vehicle

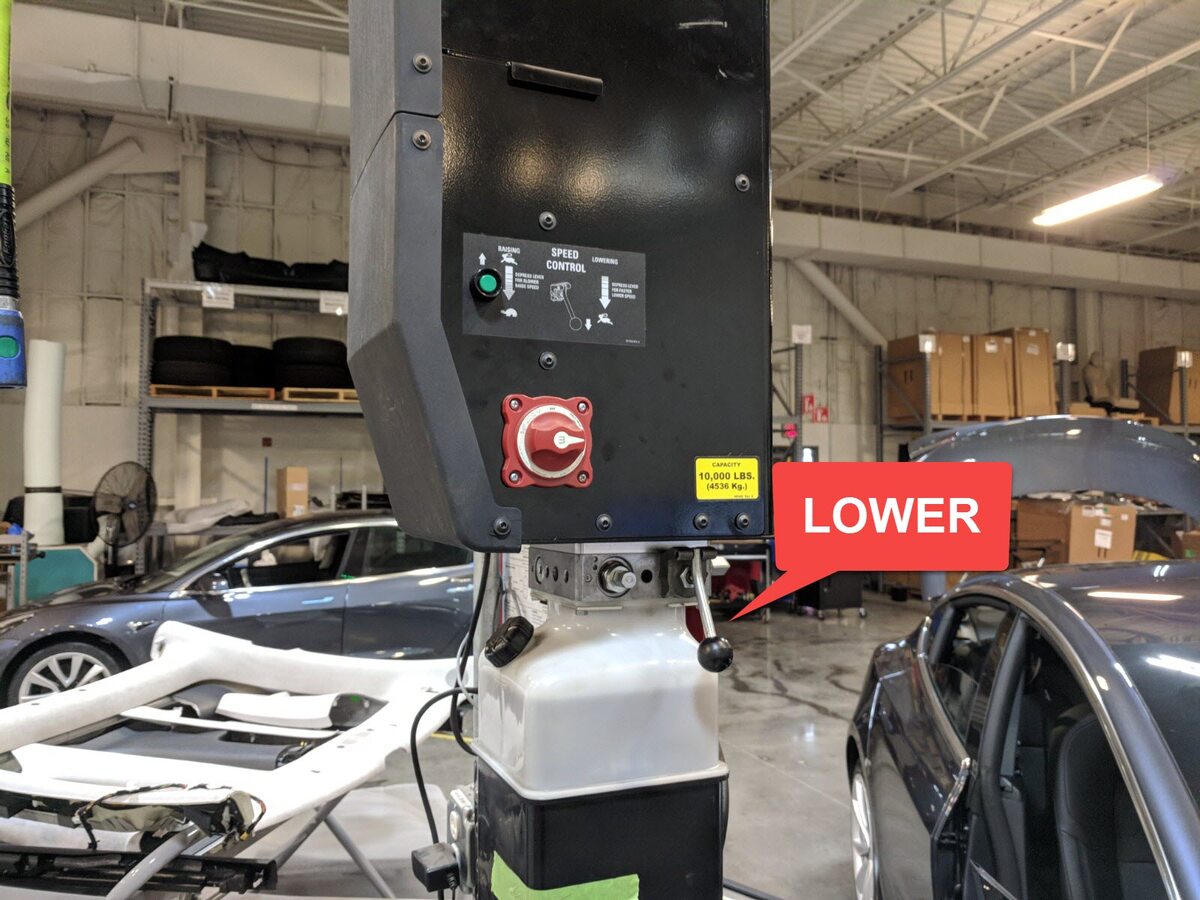

Lower vehicle until tires are touching the ground

Note

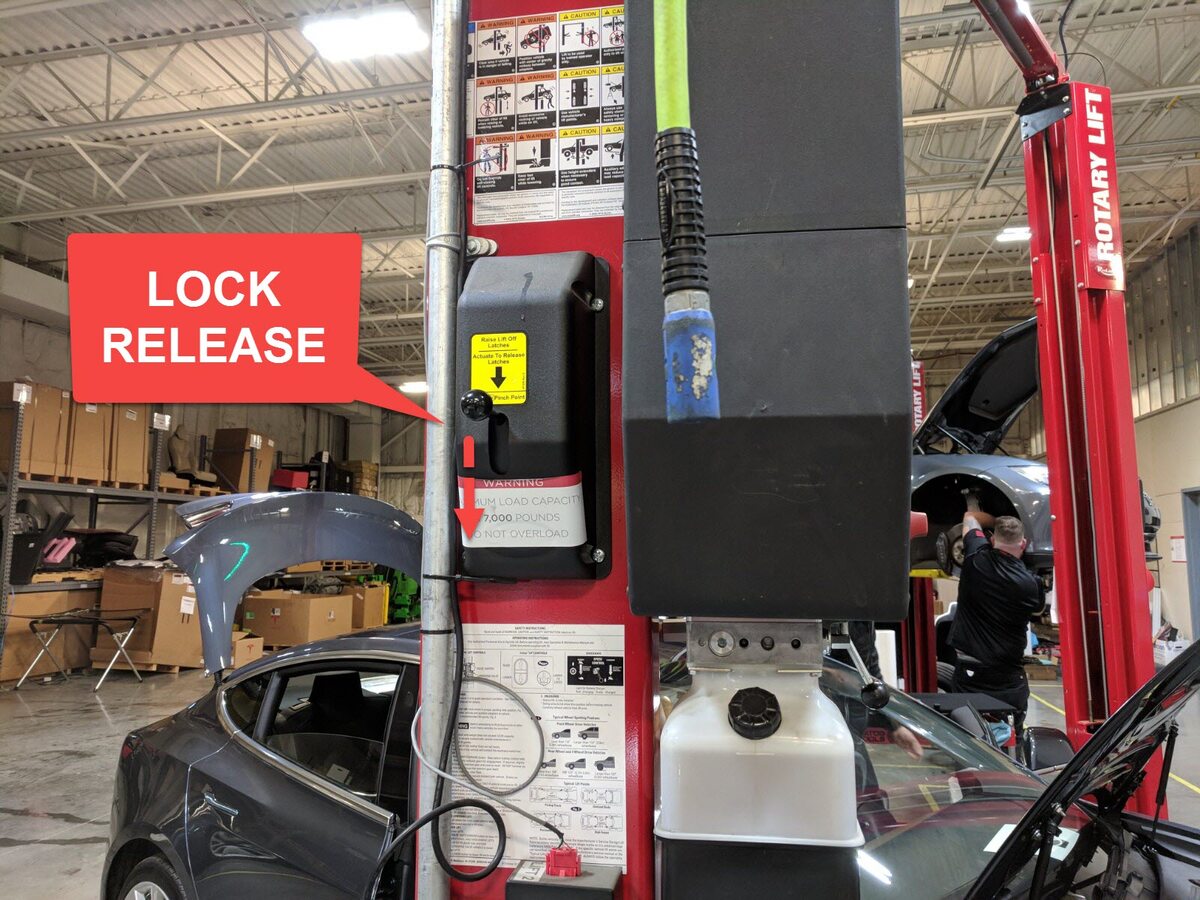

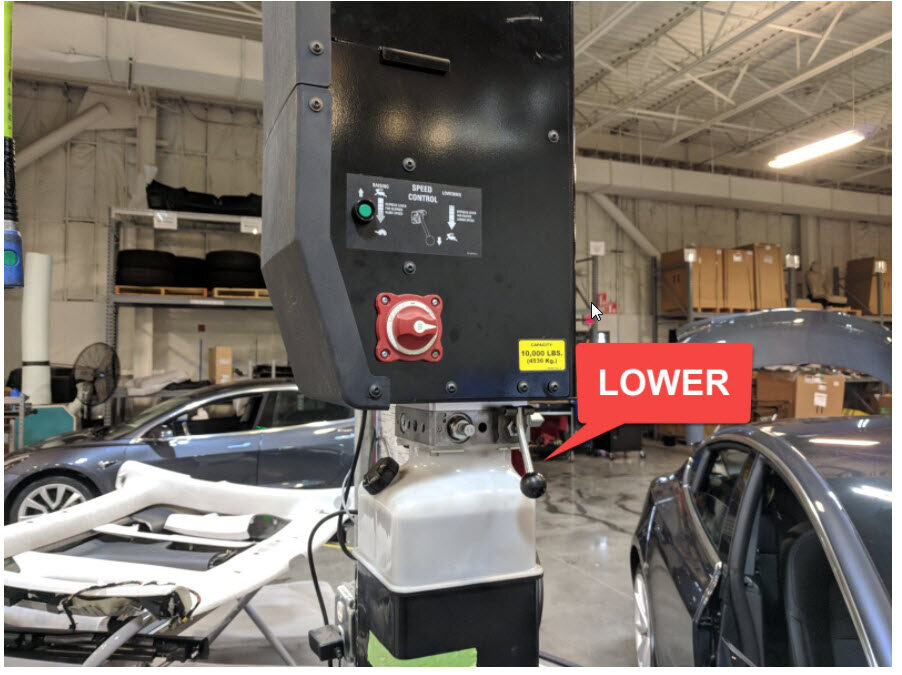

Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

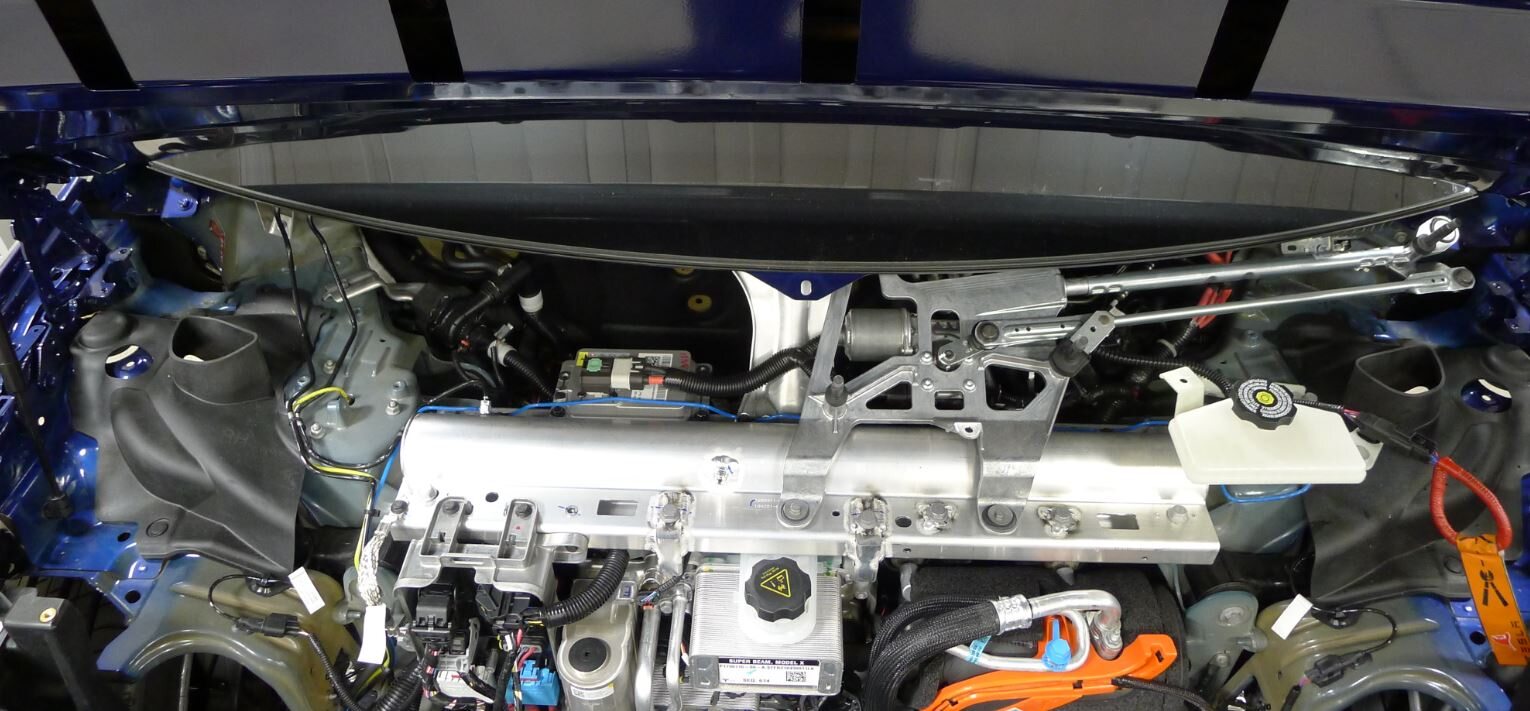

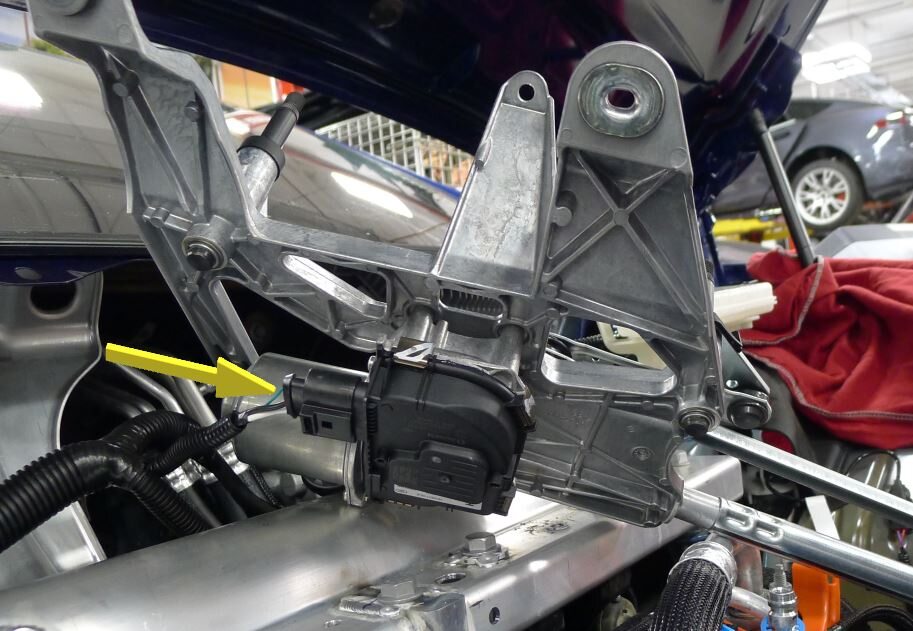

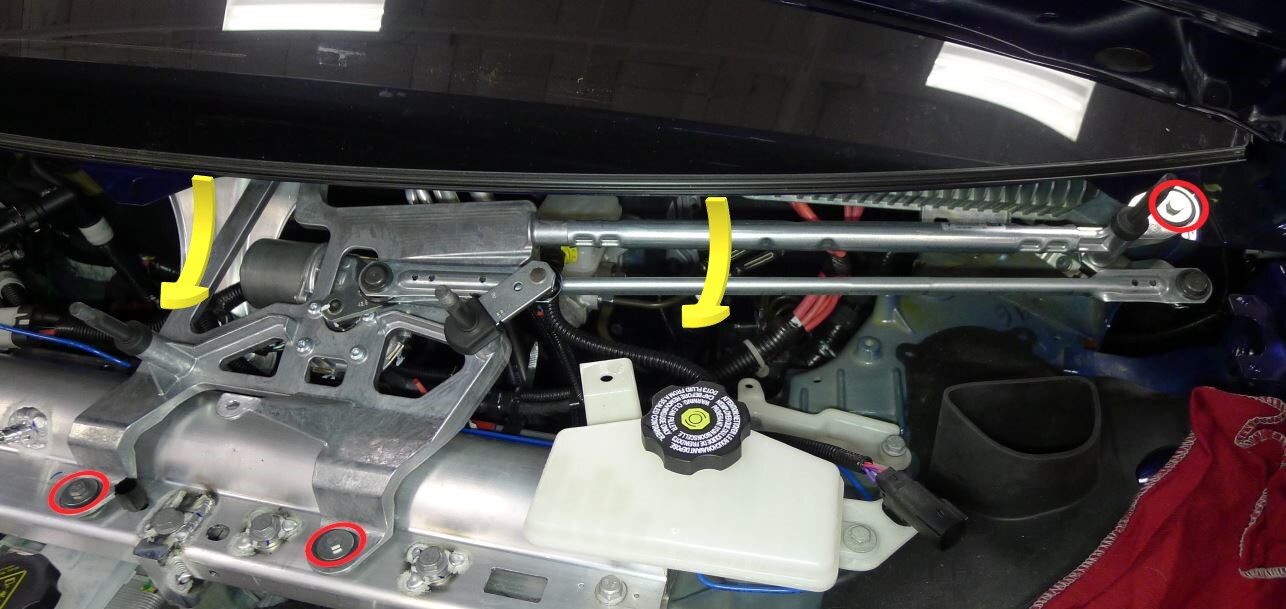

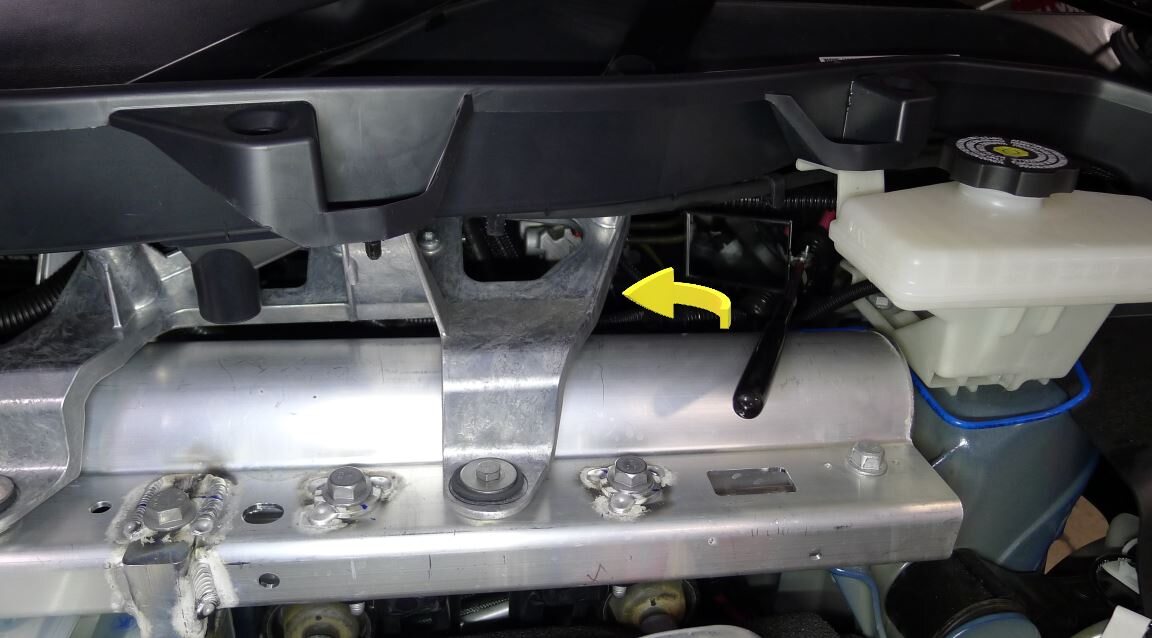

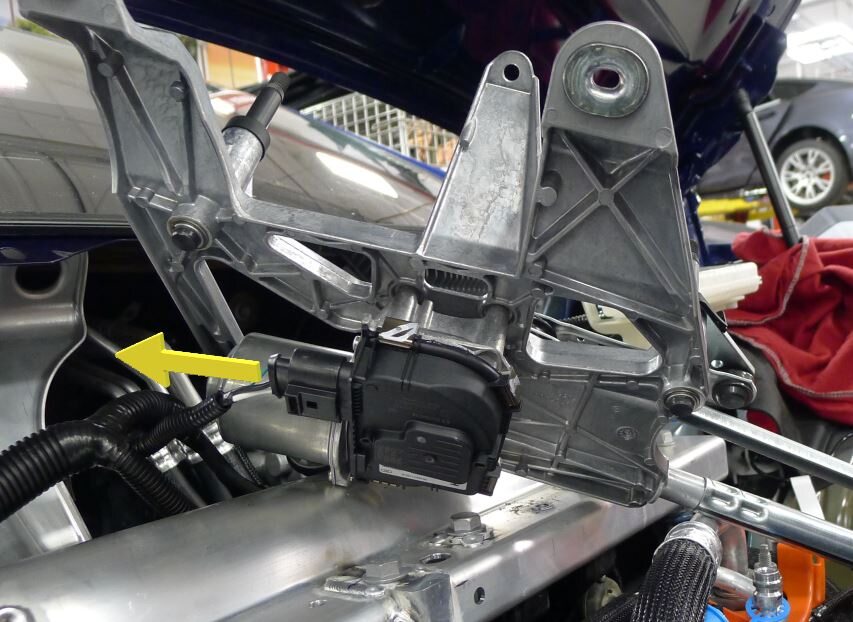

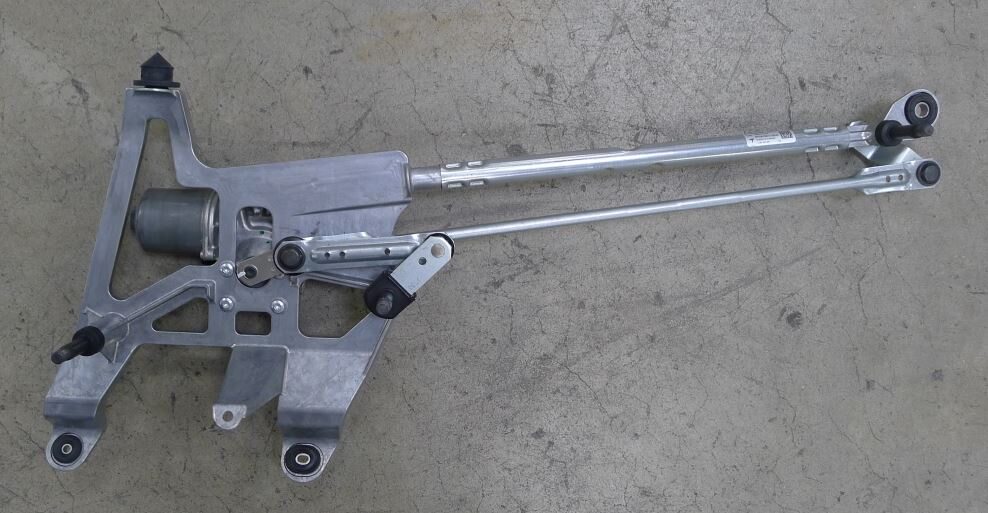

Remove wiper module

Note
3x bolts, 10mm, 9 Nm, 1x connector, Rotate module forward and up to access connector

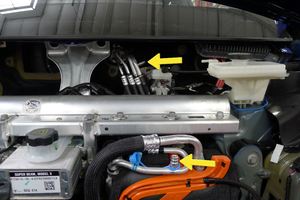

Remove caps from low side and high side AC ports

Note
2x caps

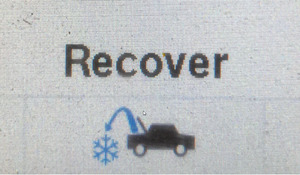

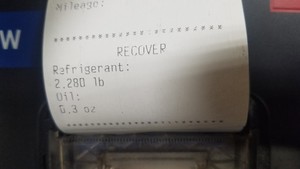

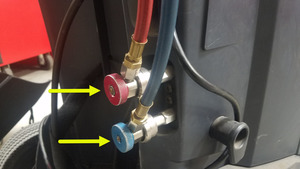

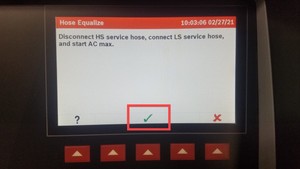

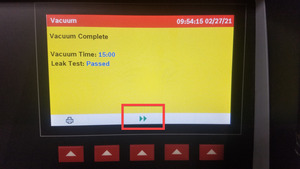

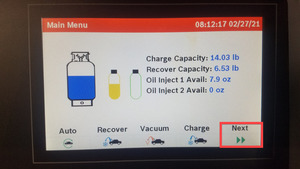

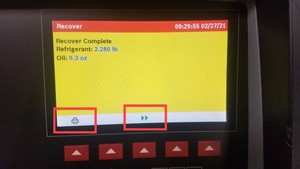

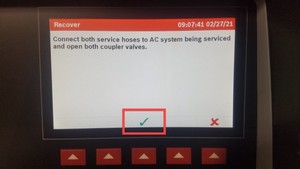

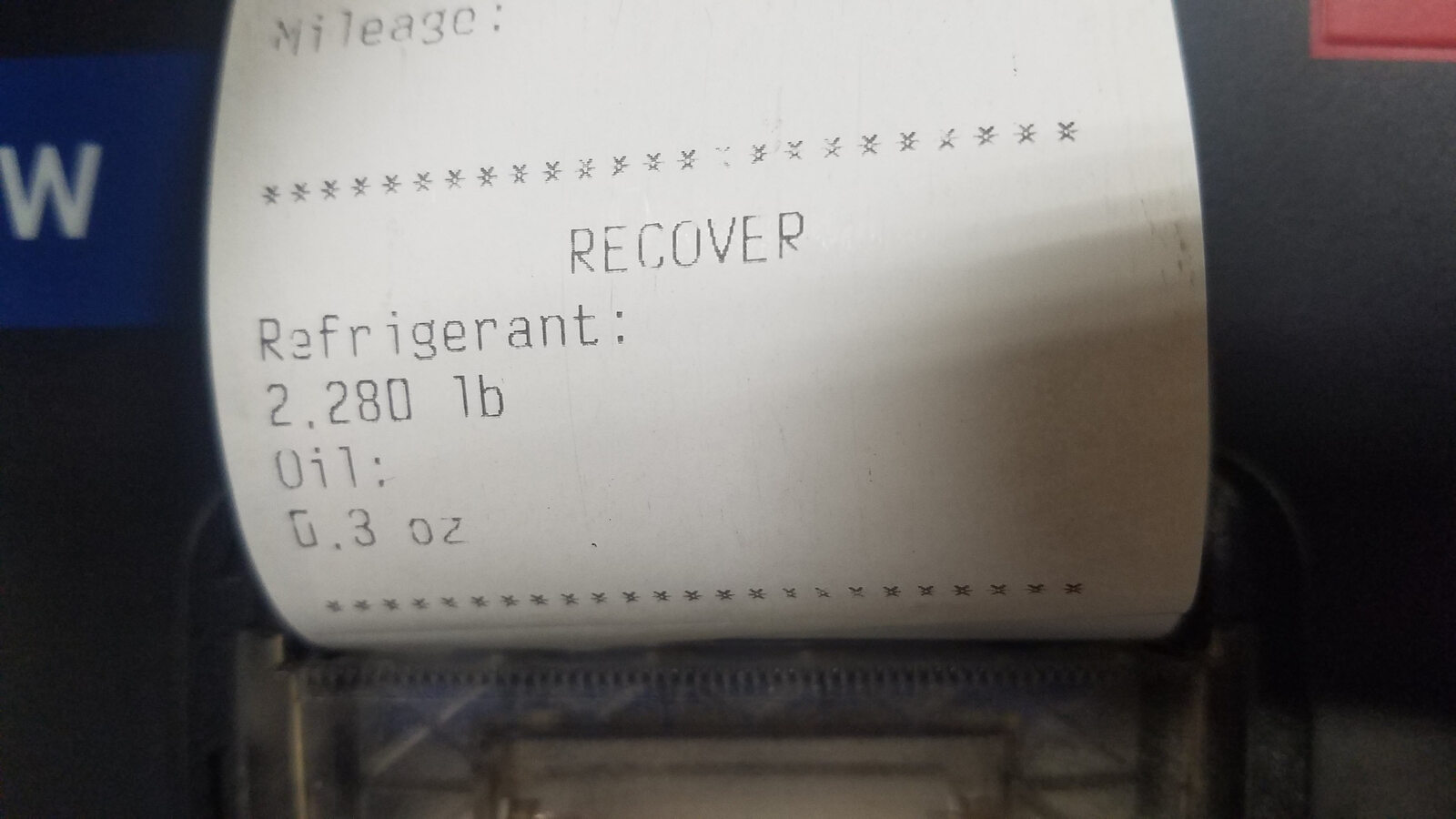

Verify Thermal Fill Drain then connect hoses to vehicle and perform A/C recovery

Note
First verify indicator displays green if it is vehicle is ready to be reclaimed, Connect couplers to vehicle, Note the amount of refrigerant and oil recovered, mark oil drain bottle oil level (use a piece of tape marking the fluid level), Open couplers by turning clockwise, Using Main Menu > Recover > Verify hose connection, Machine will chime once process is complete, Vehicle may be left unattended, Note or print the amount of refrigerant and oil recovered, Refrigerant recovered should be ~2.24 lb (1.02 kg), Oil recovered should be ~0.3 oz (8.87 mL), If drained oil level increased more than 1.01 oz (30 mL) refer to drained oil loss chart https://toolbox.teslamotors.com/articles/353700

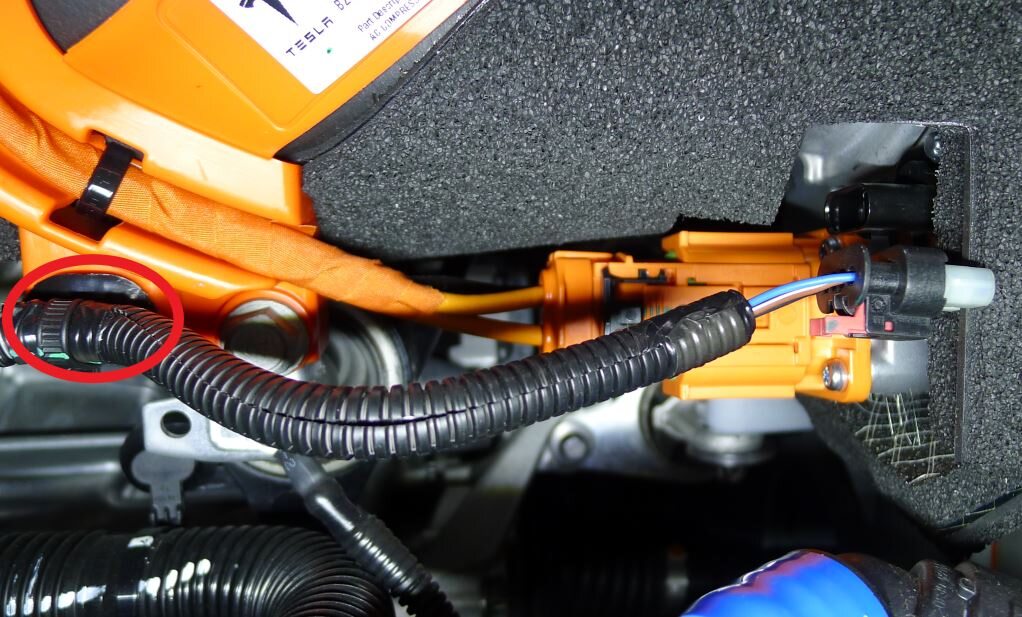

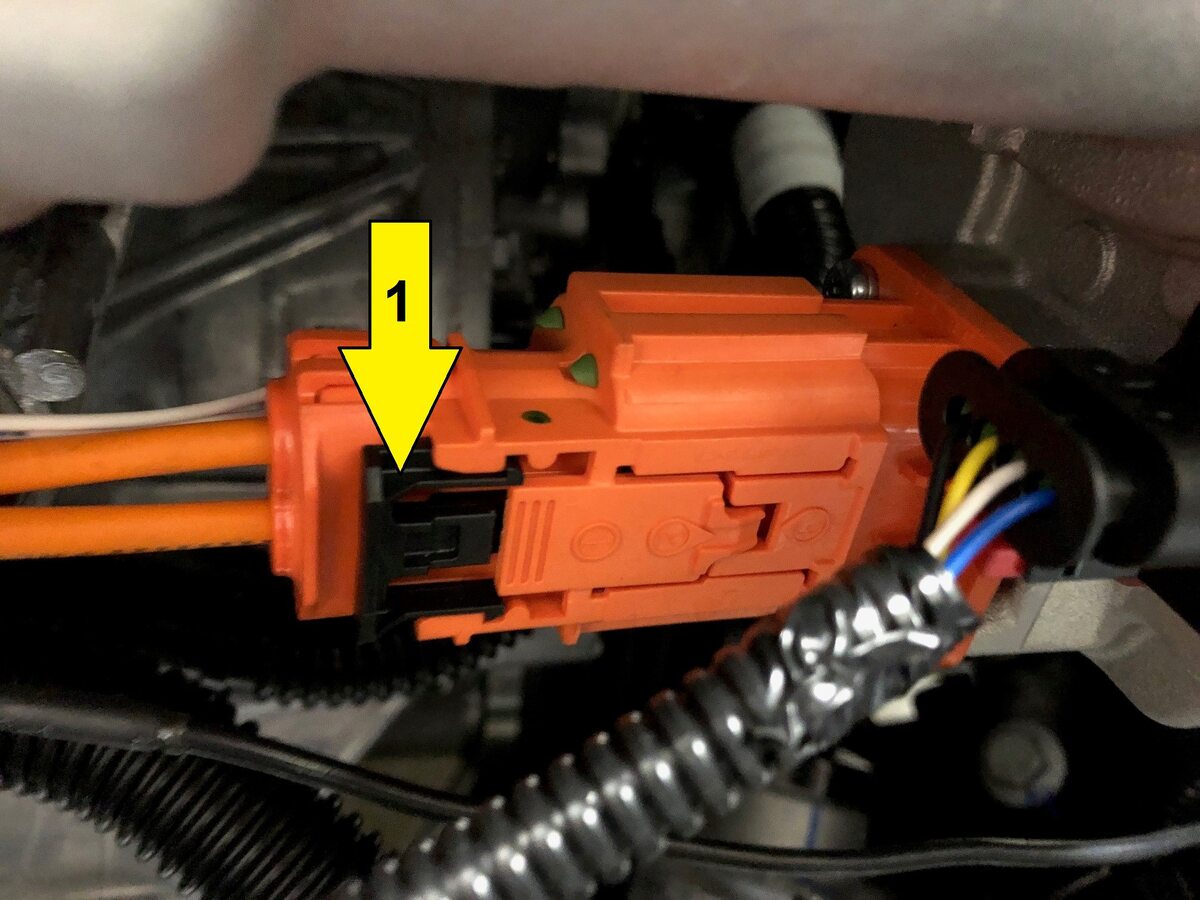

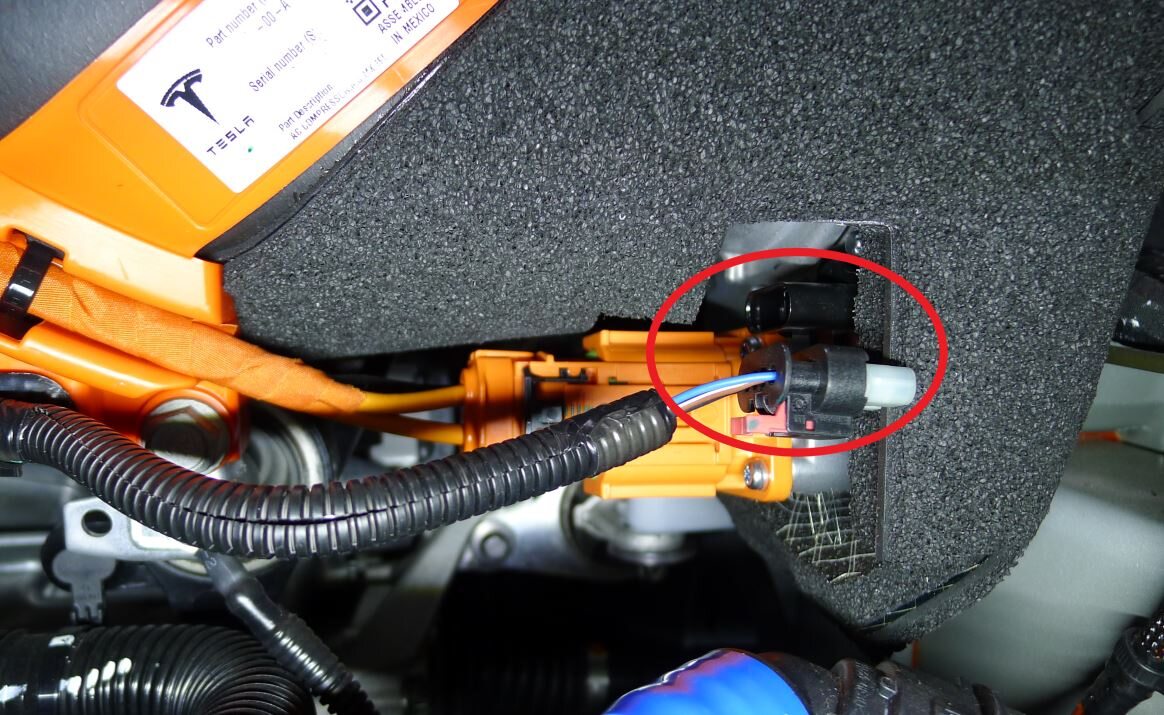

Disconnect AC compressor logic connector

Note
1x locking electrical connector, Do not push down on red tab, Pull to disengage lock, Pull again to release connector

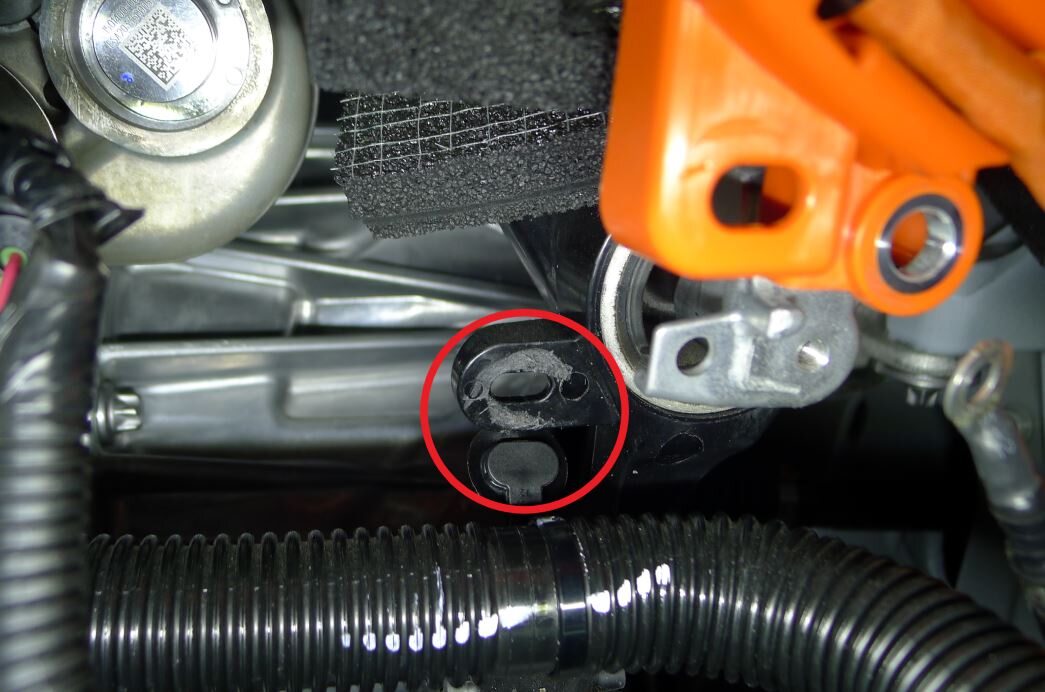

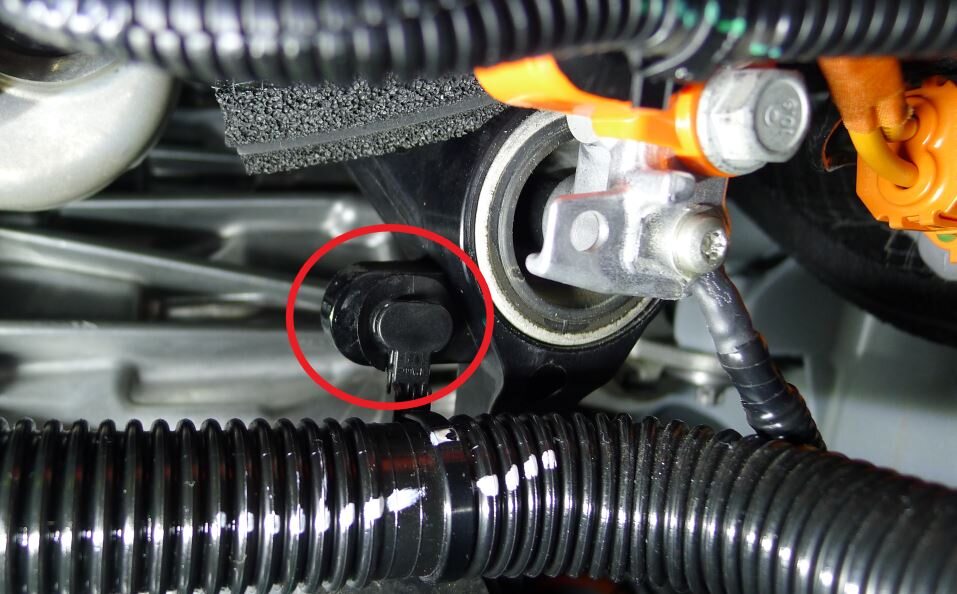

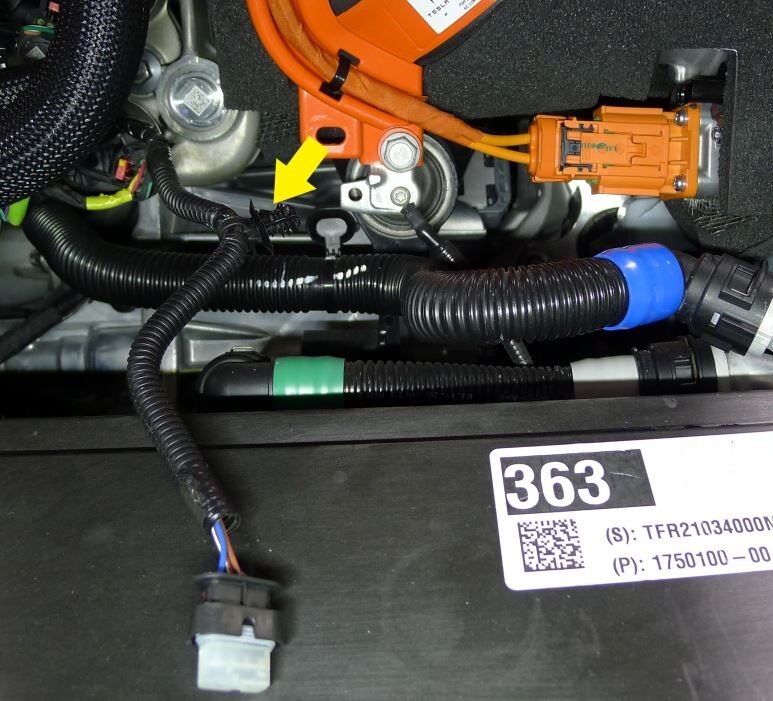

Remove retaining clip securing AC compressor logic harness to AC compressor HV harness bracket

Note
1x fir tree clip

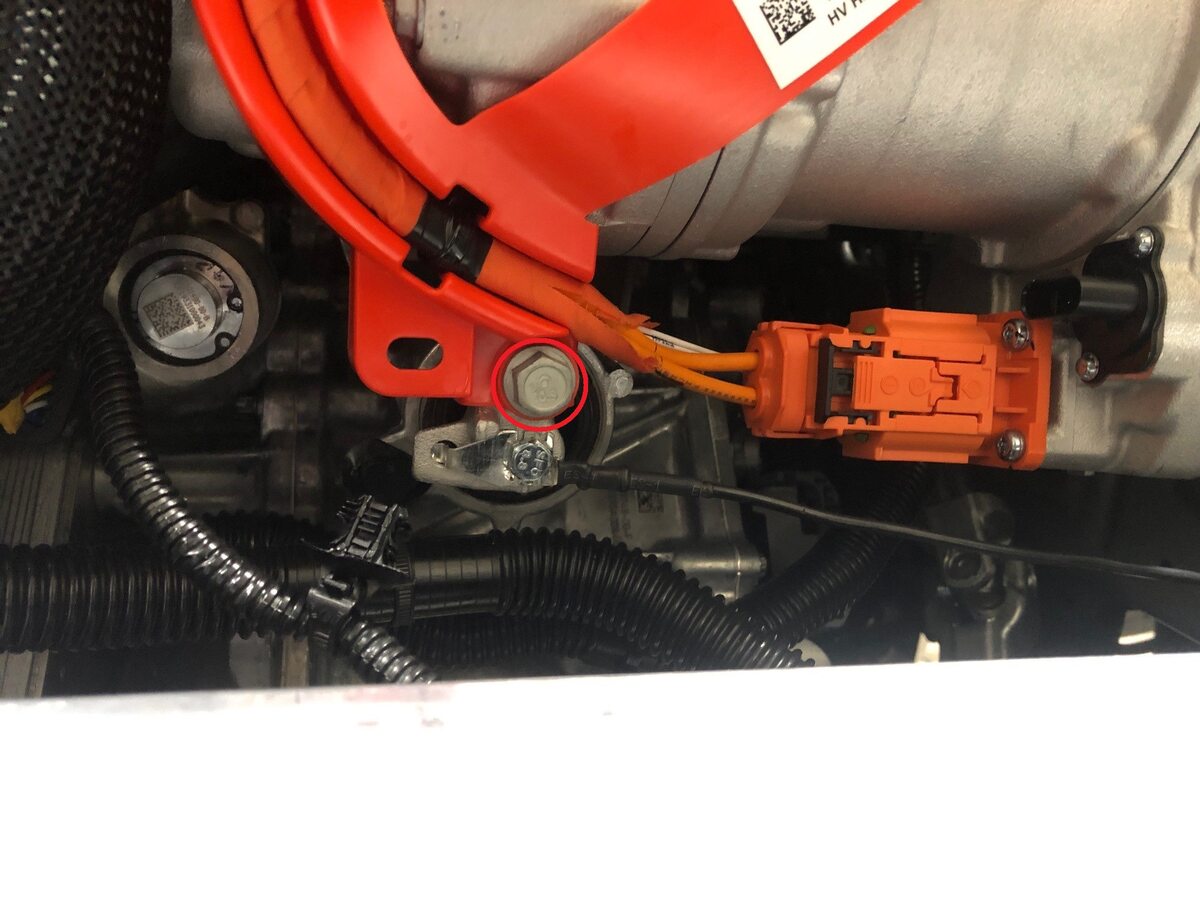

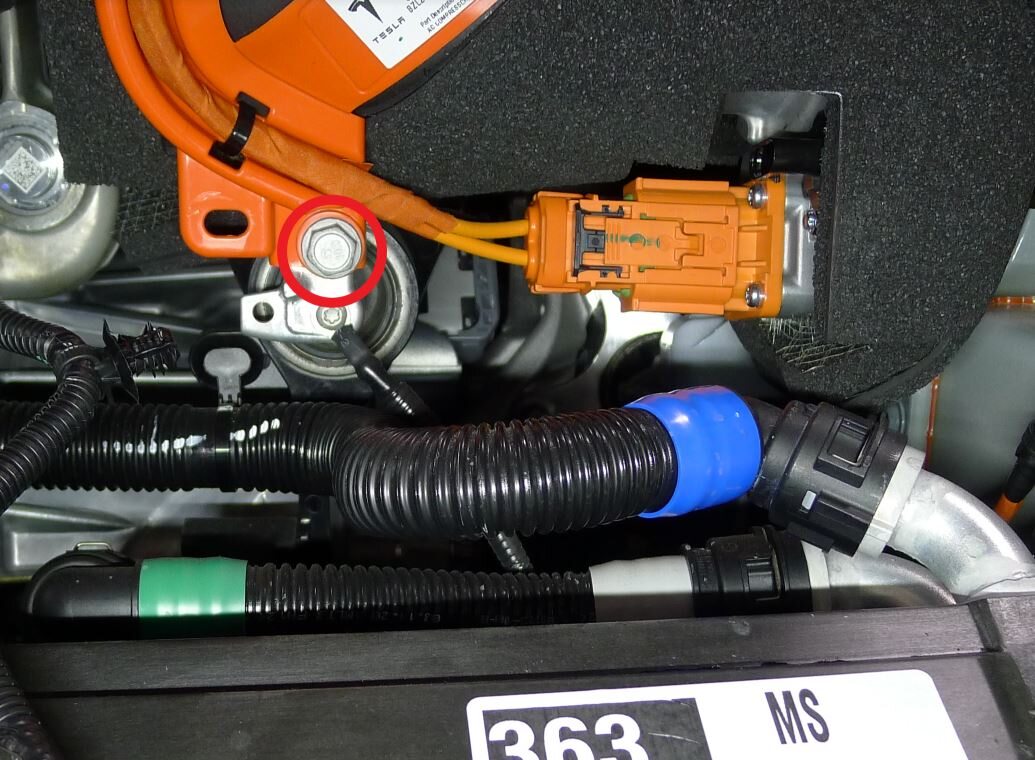

Remove fastener securing AC compressor HV harness bracket to AC compressor

Note
1x bolt, 13mm, 9 Nm

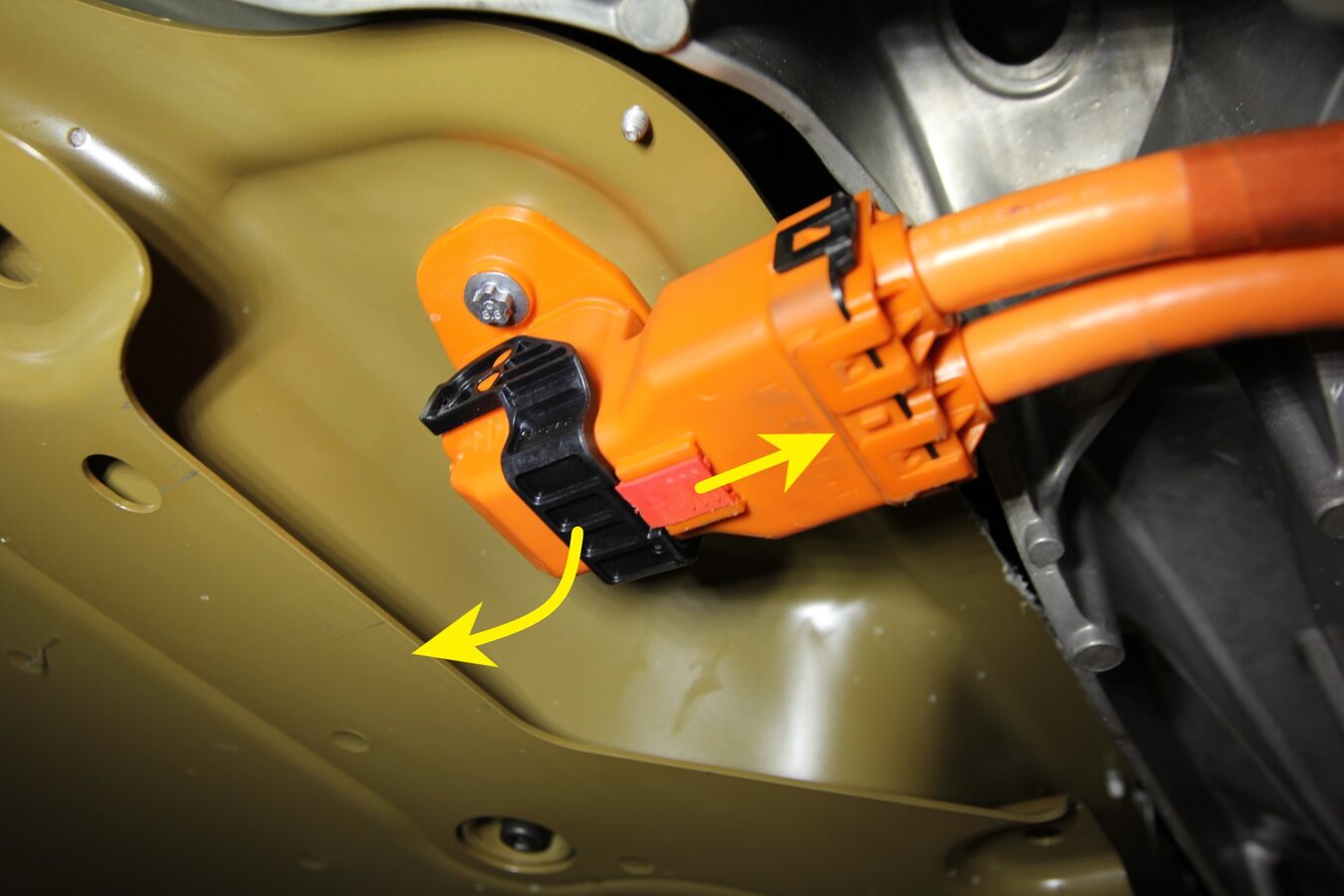

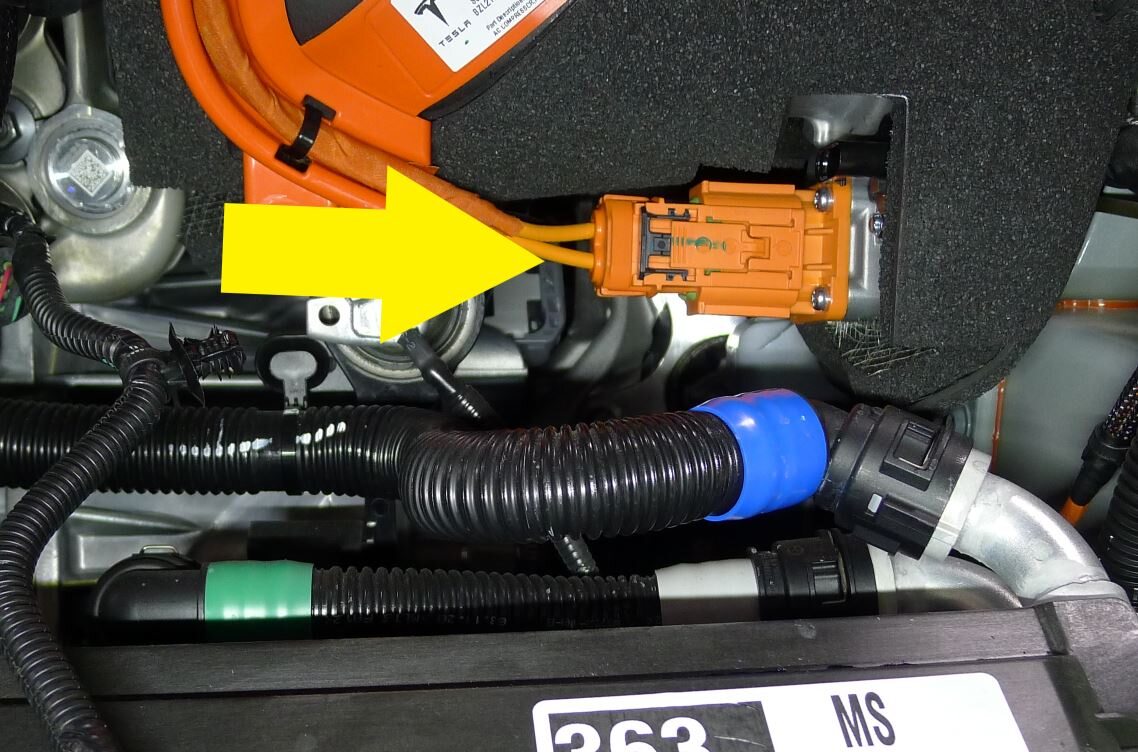

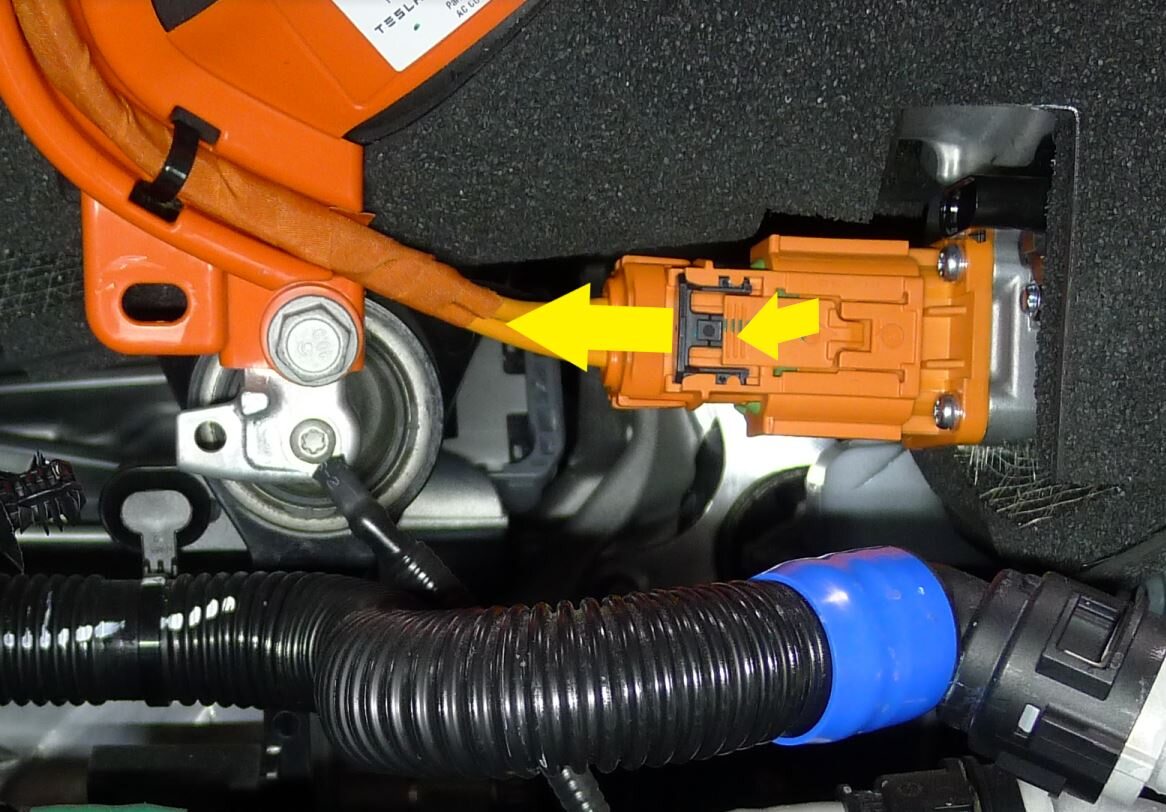

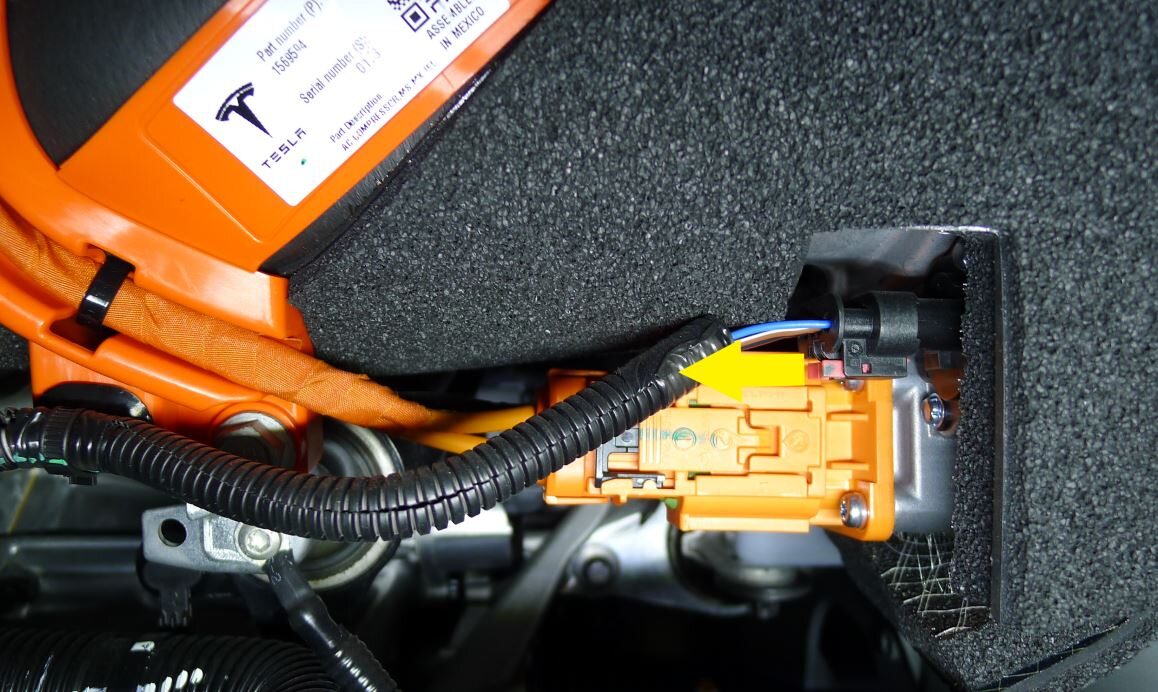

Disconnect HV harness connector from AC compressor

Note
1x locking electrical connector, Move black locking tab away form the AC compressor, Push down on locking connector to release and pull straight out of socket

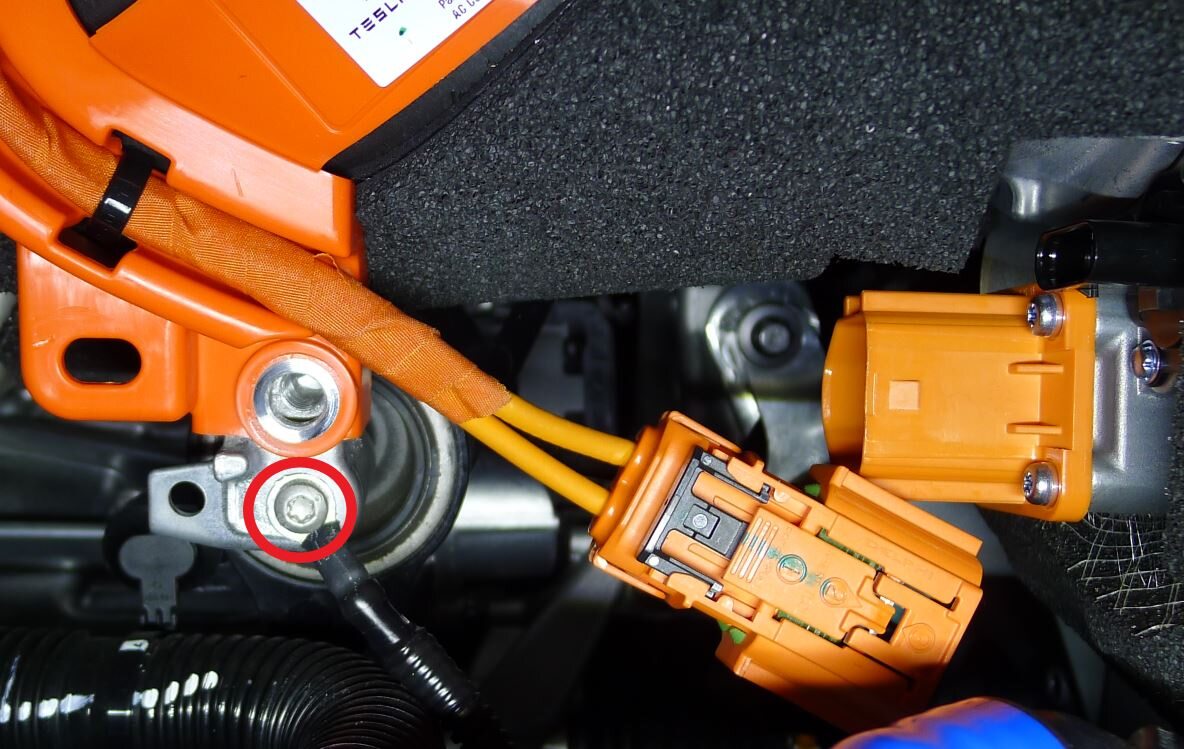

Remove AC compressor ground strap

Note
1x bolt, T25, 7 Nm
Release clip securing the coolant hose to the AC compressor bracket

Note
1x fir tree clip

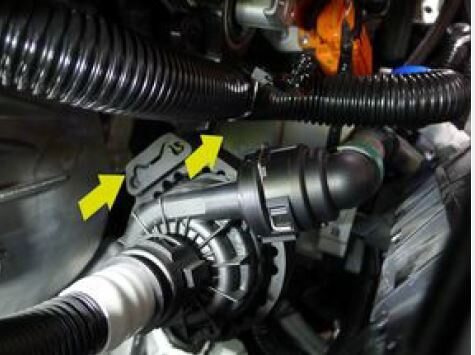

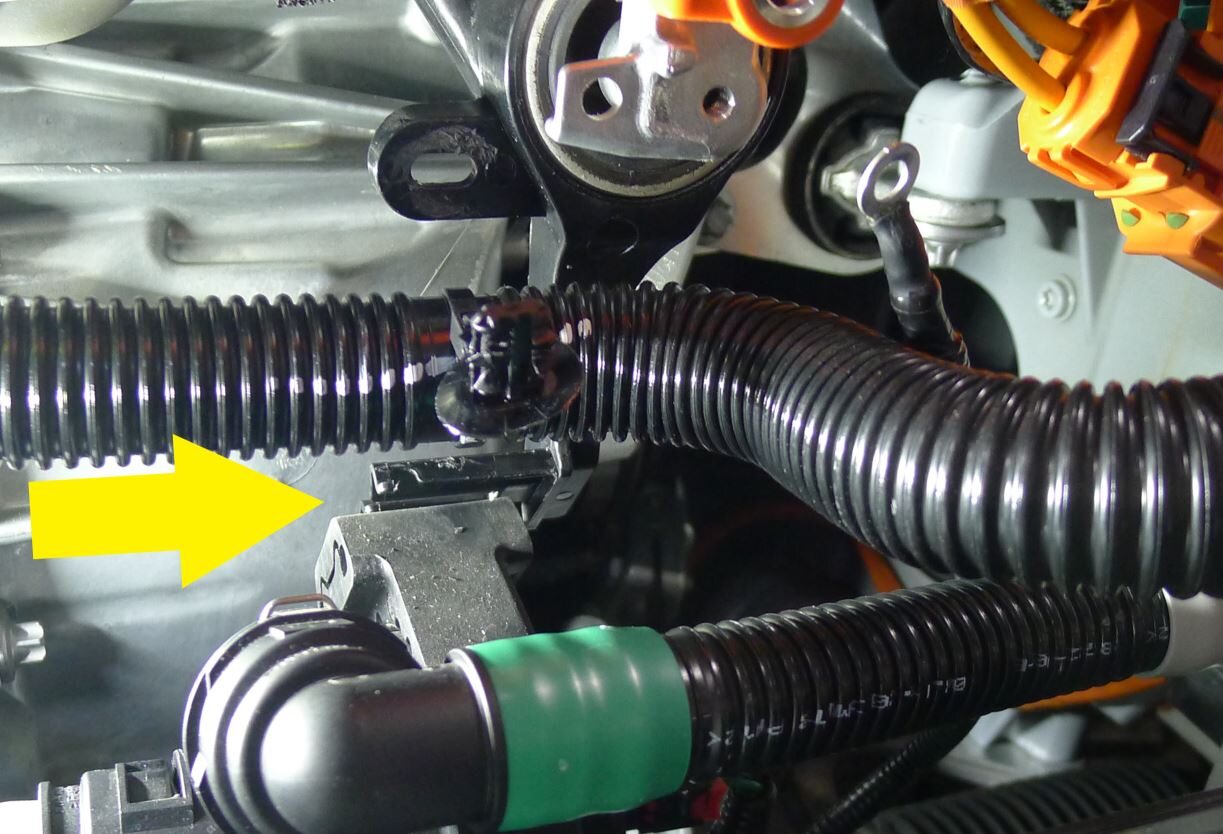

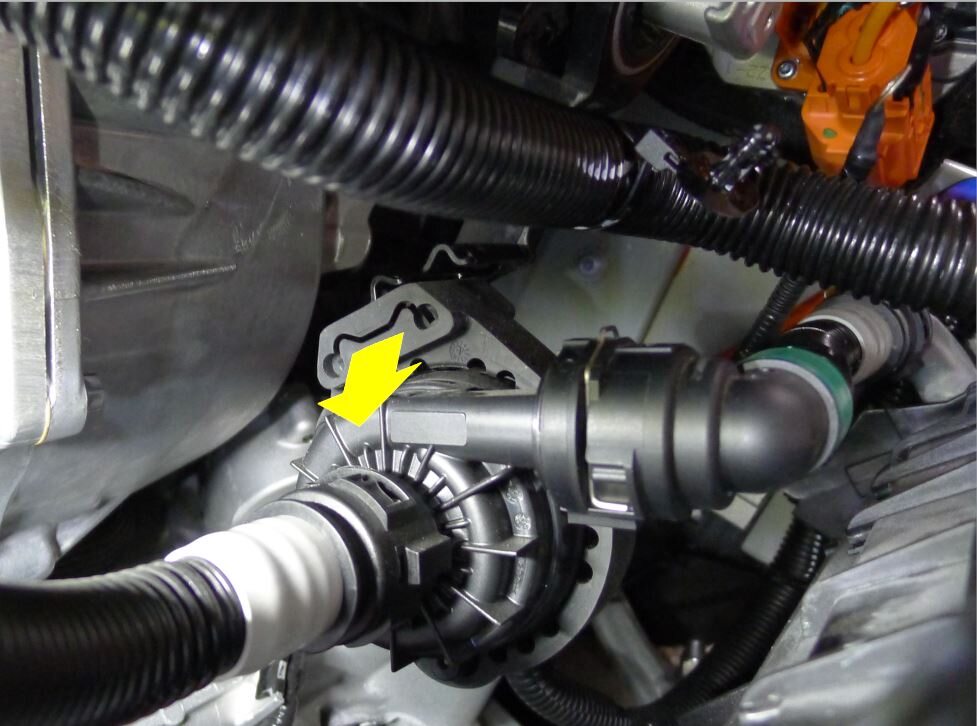

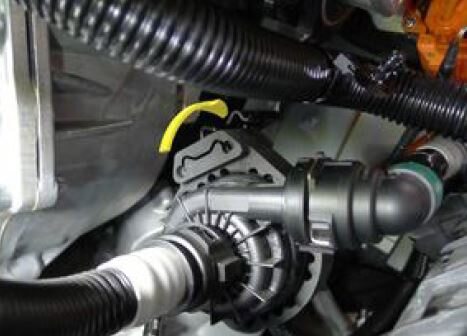

Remove PT coolant pump from AC compressor bracket

Note
Slide pump assembly away from compressor off lower bracket

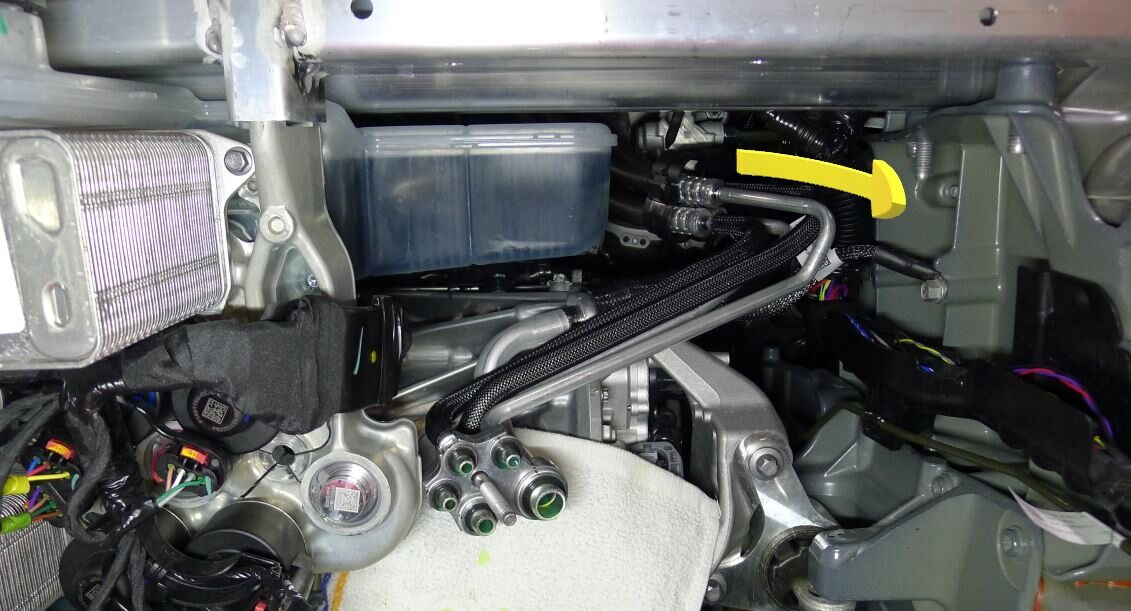

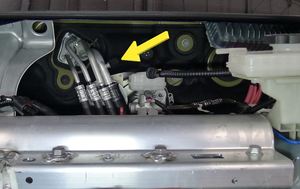

Remove AC hoses from vehicle

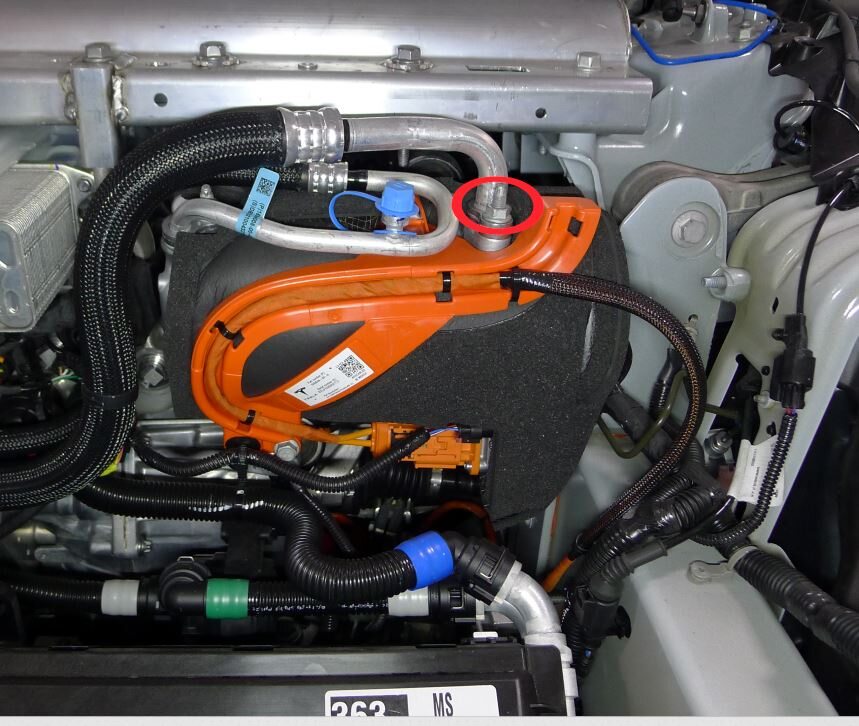

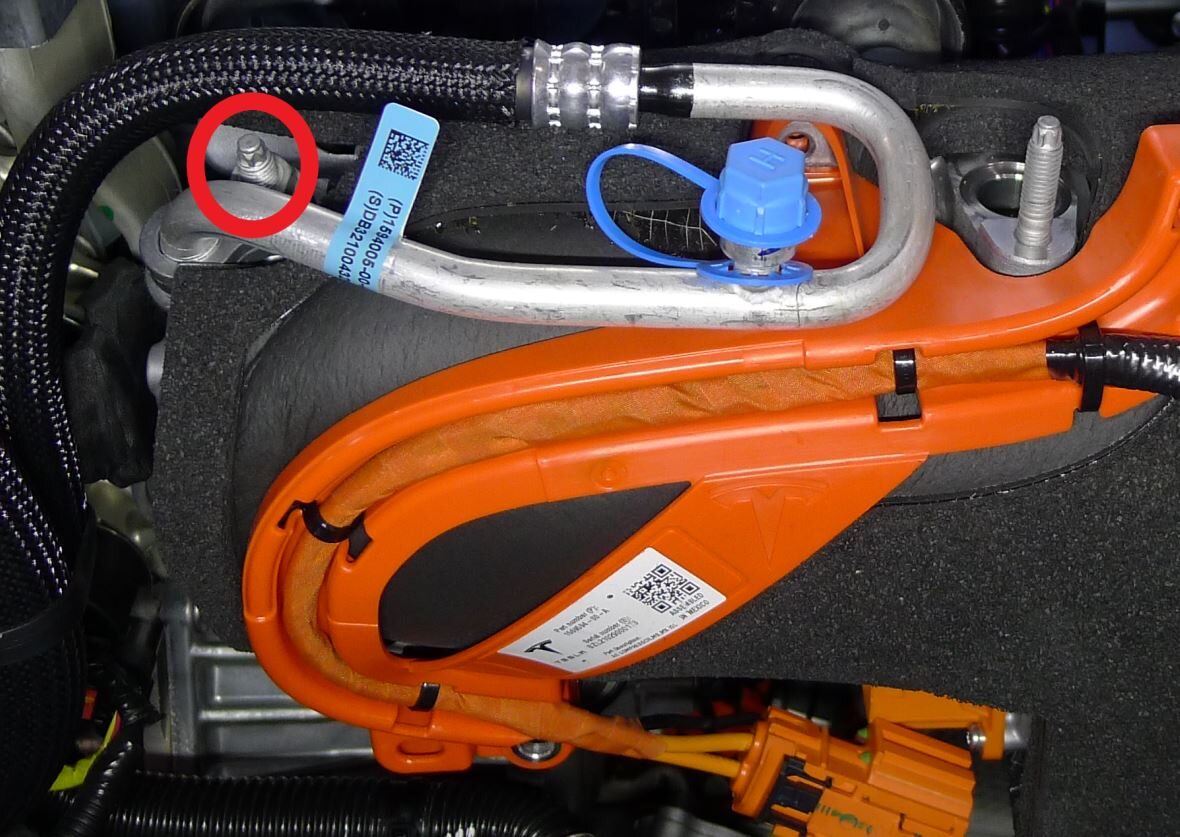

Remove nut securing supermanifold to compressor suction line to compressor and remove line

Note
1x nut, 13mm, 22 Nm
Remove nut securing supermanifold to compressor discharge line to compressor and remove line

Note
1x nut, 13mm, 22 Nm

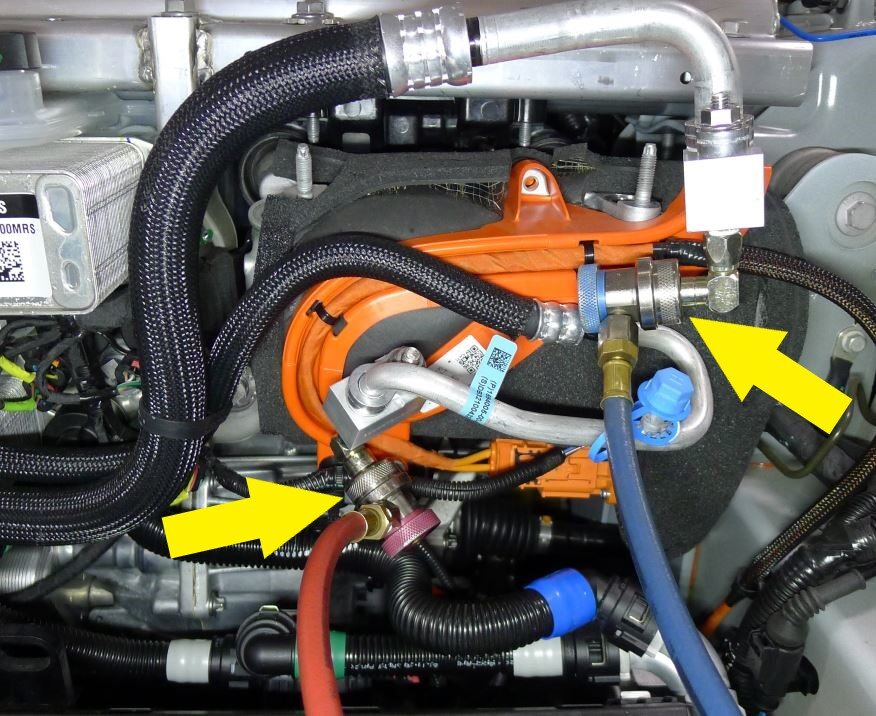

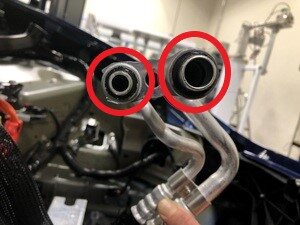

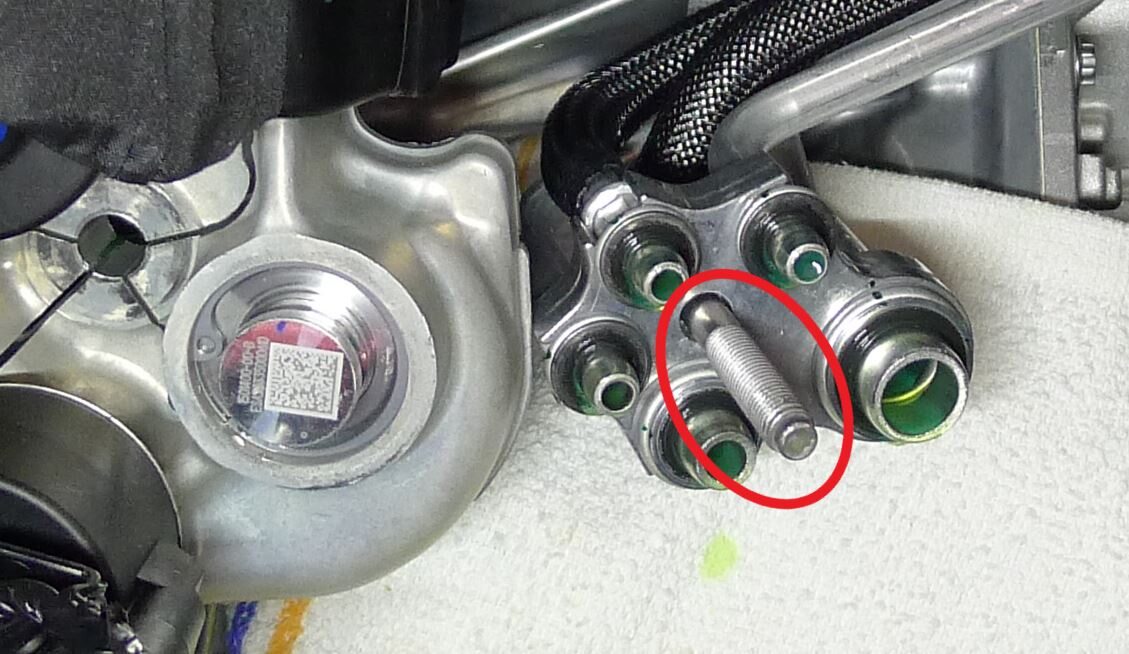

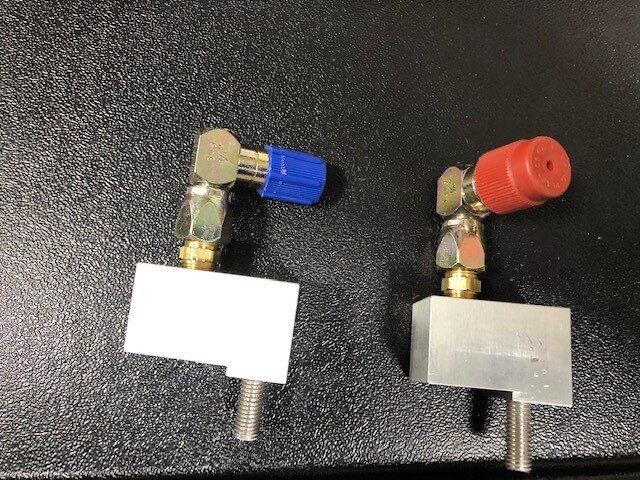

Install AC flush adapters onto AC manifold to compressor lines

Note
2x nuts, 13mm, 22 Nm, Install flush adapters onto suction and discharge lines on compressor side, Leave seal washers on AC manifold line, Inspect o-rings and replace if damaged, Use 13mm nuts from compressor to secure flush adapters

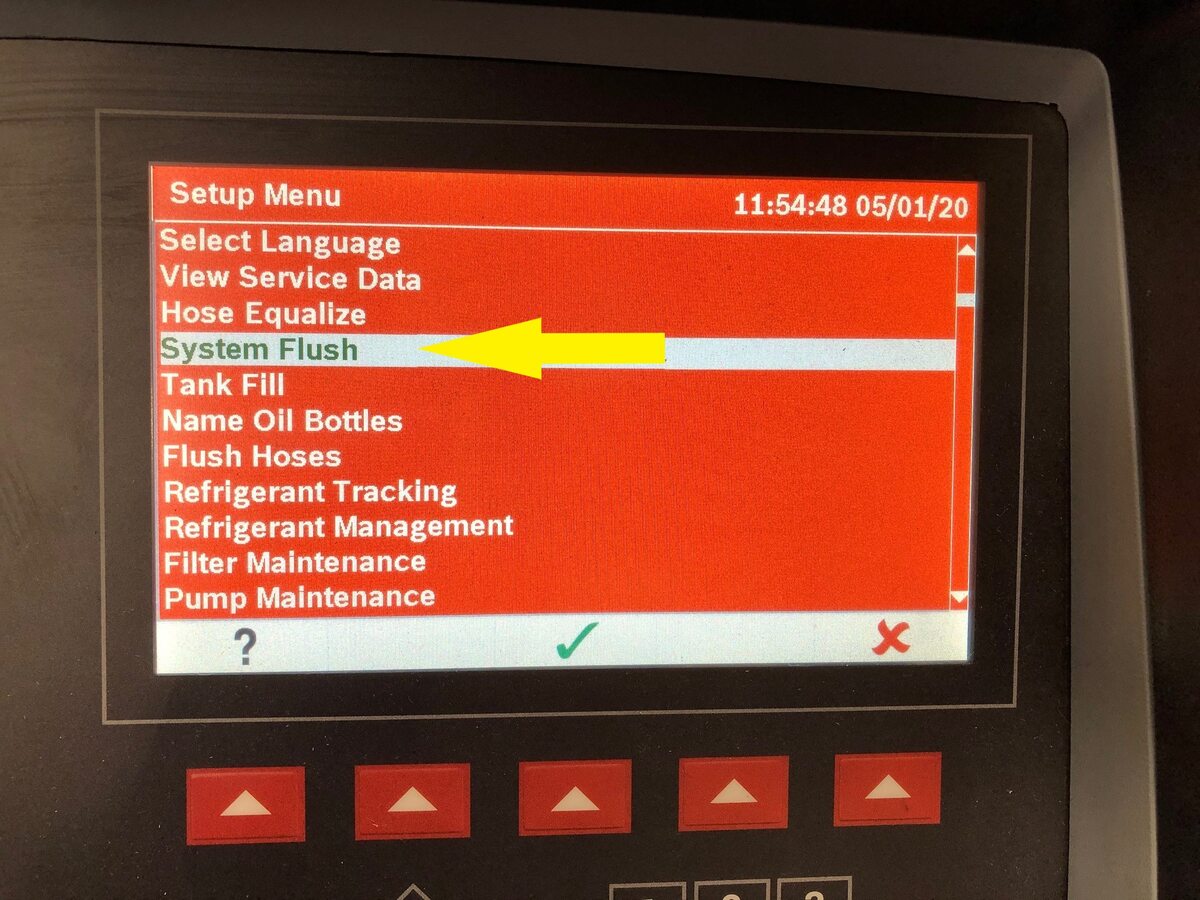

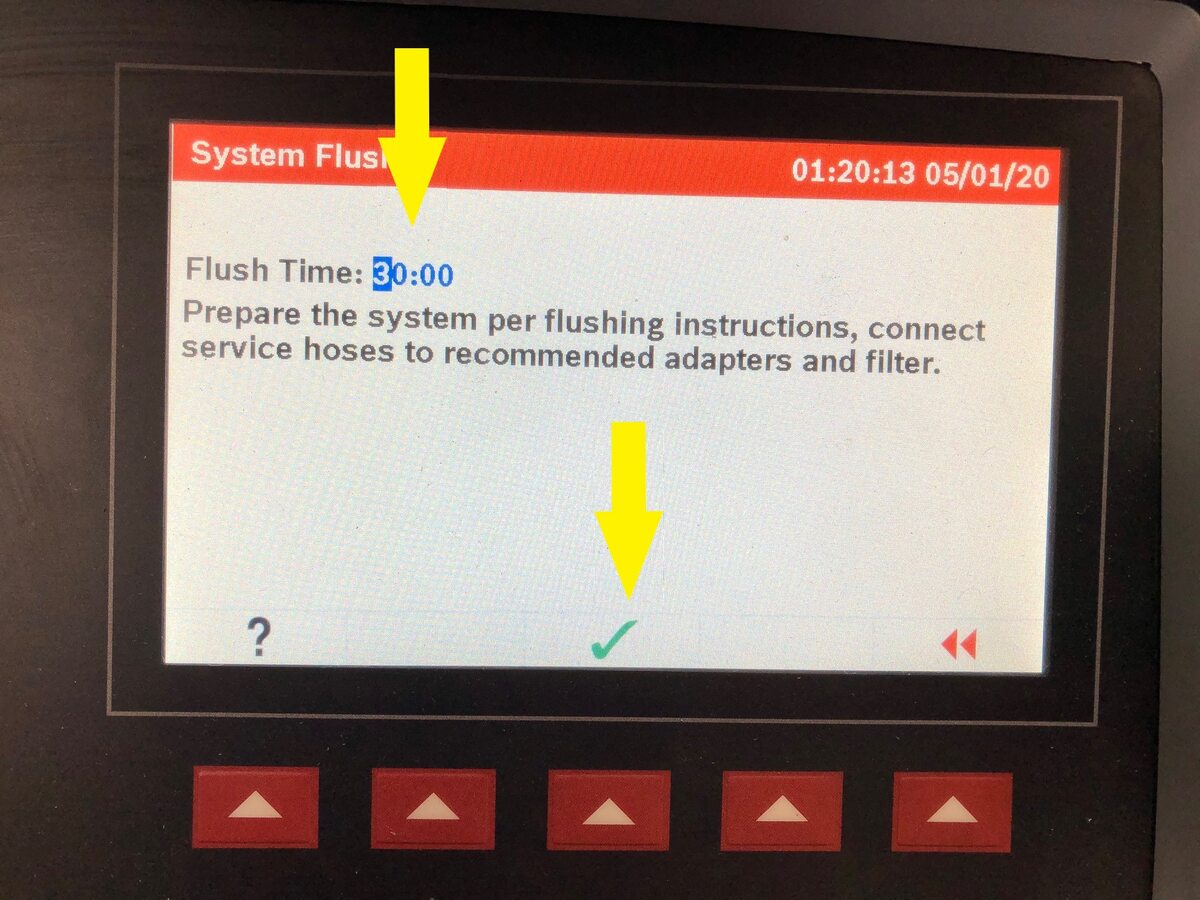

Connect AC machine hoses to AC flush adapters and run System Flush procedure

Note
Touch time only, System flush procedure runs for approximately 90 minutes, Must use Robinair 34988ni machine (R134a) to run system flush procedure, Minimum of 13lb of refrigerant needed in tank to run system flush procedure, On AC machine main menu click next, Click menu, Scroll down to system flush, Enter 30 min run time

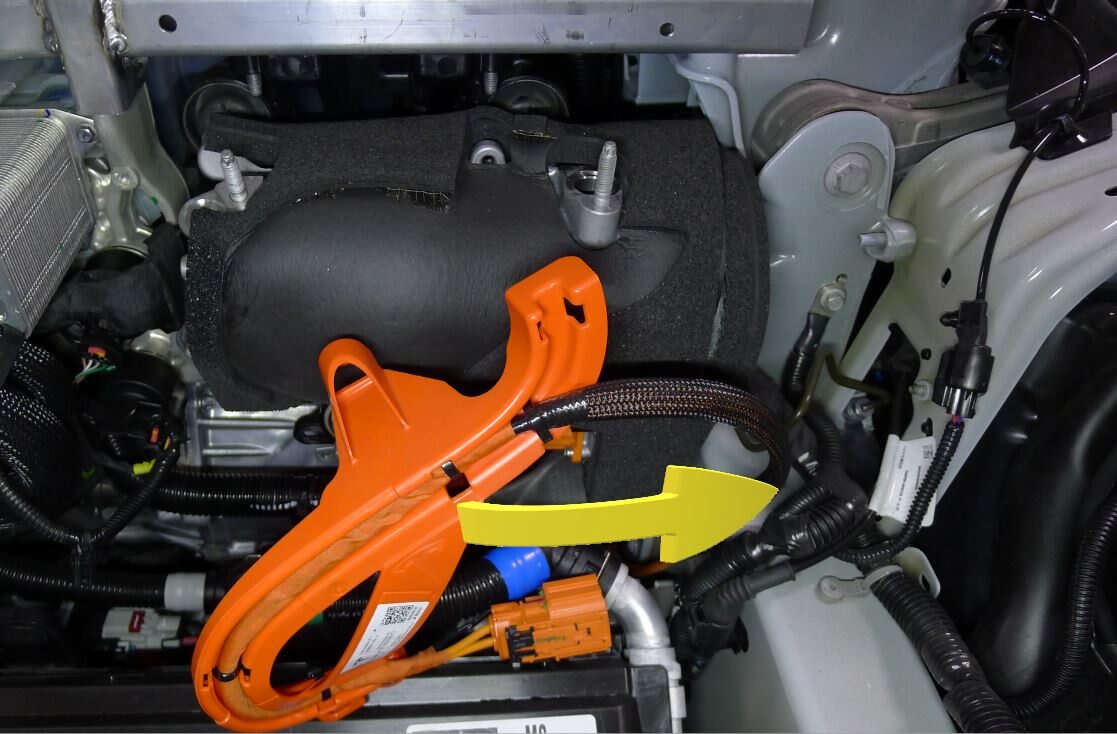

Remove AC compressor HV harness from the AC compressor and set aside

Note
Move AC compressor HV harness bracket toward the front of the vehicle, Lift the bracket up to clear the upper bracket mount, Carefully set harness and bracket aside

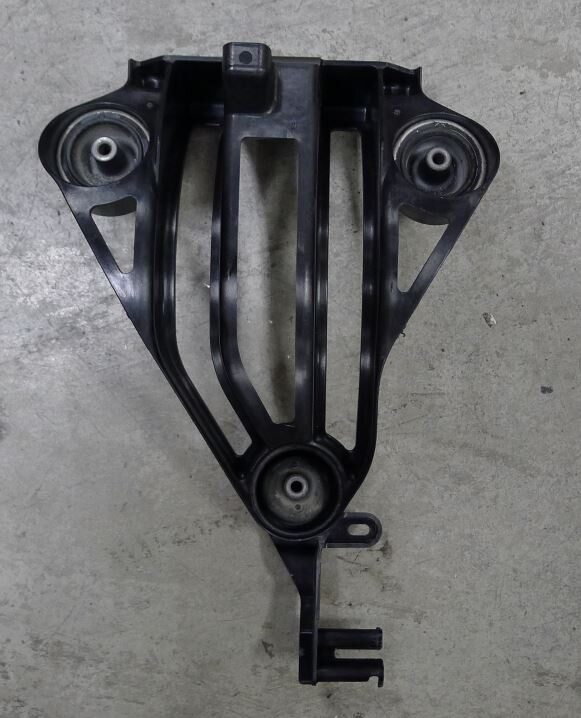

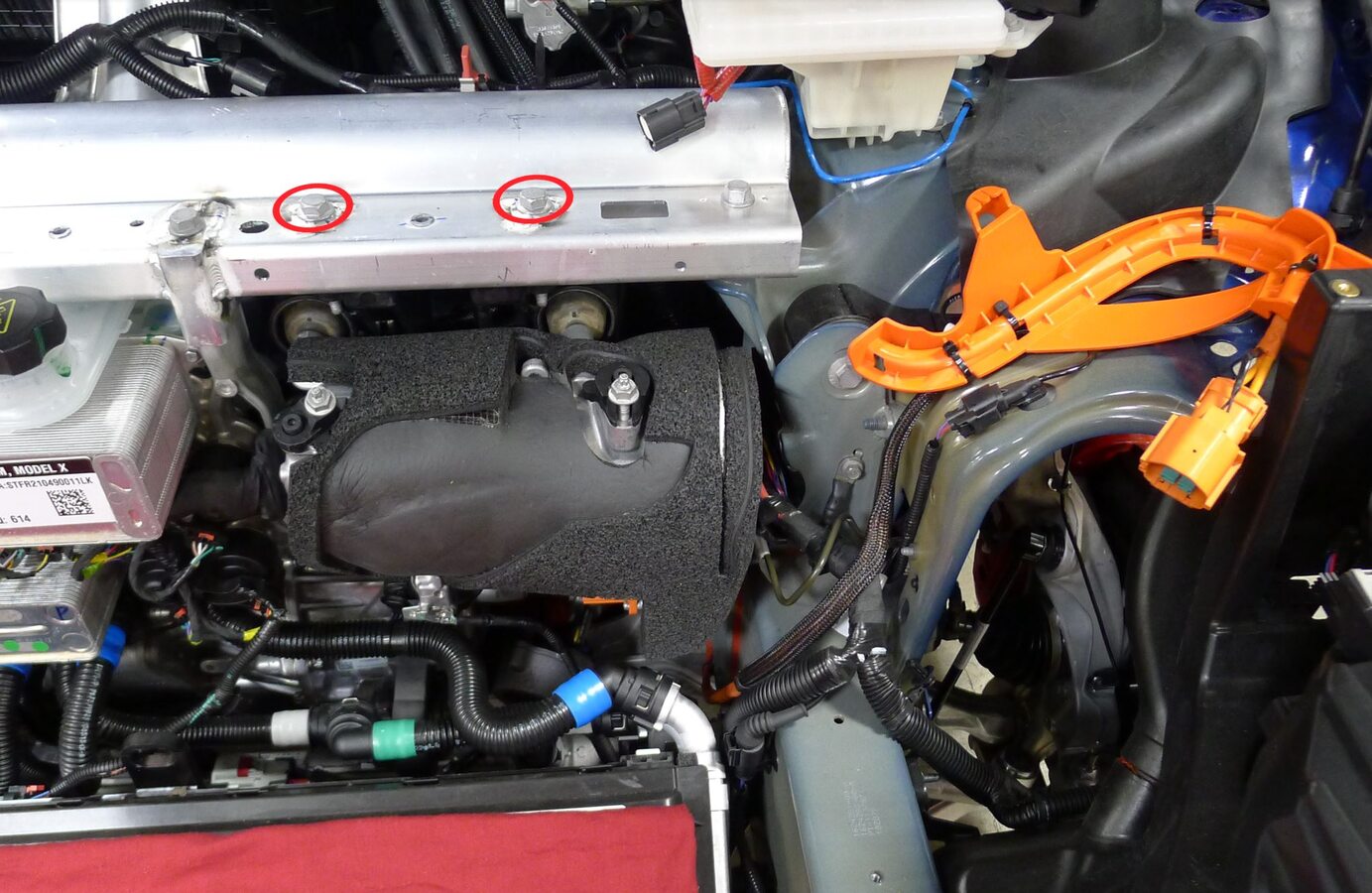

Remove the fasteners securing the AC compressor bracket to the multi-system beam and remove the AC compressor and AC compressor bracket assembly

Note
2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while removing the fasteners, Carefully remove the AC compressor and AC compressor bracket towards the front of the vehicle and under the multi-system beam, Be cautious around the coolant hose and supermanifold harness

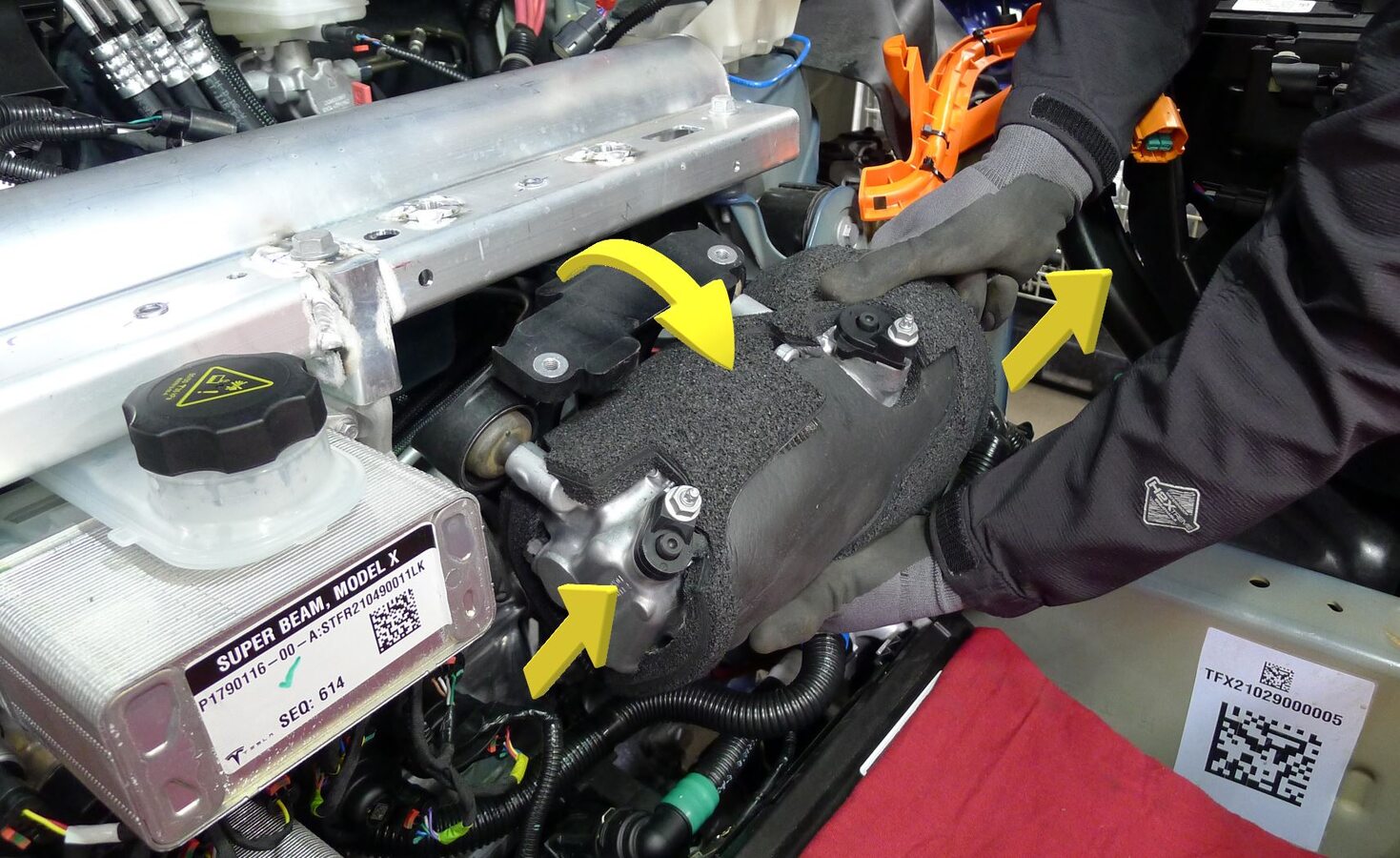

Remove the AC compressor bracket from the AC compressor

Note
3x bolts, 10mm, 9 Nm

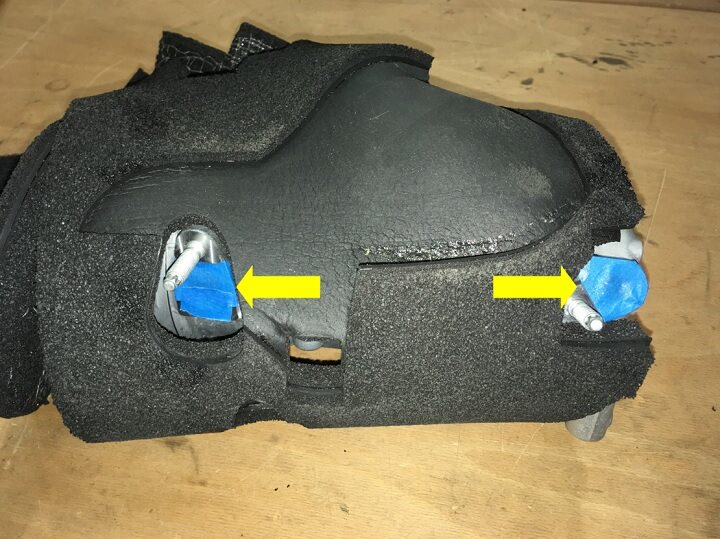

Protect the LP and HP opening ports on the AC compressor

Note
Need to be fully covered when cleaning the AC compressor in next step

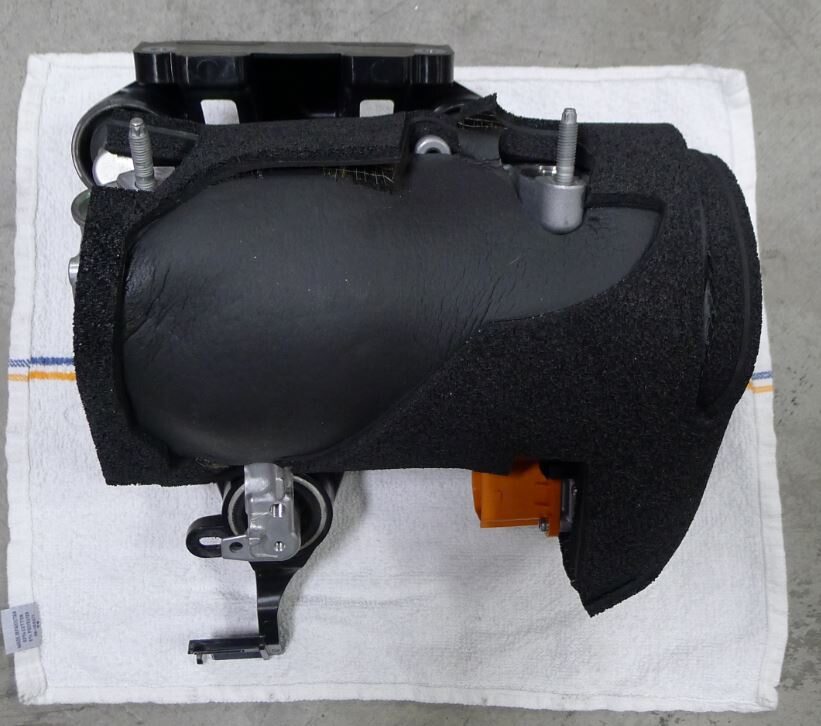

Remove NVH acoustic cover from AC compressor

Note

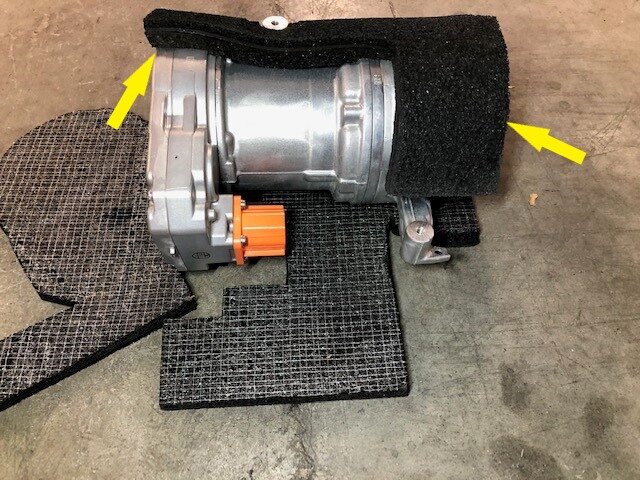

NVH acoustic cover must be removed to properly weigh compressor

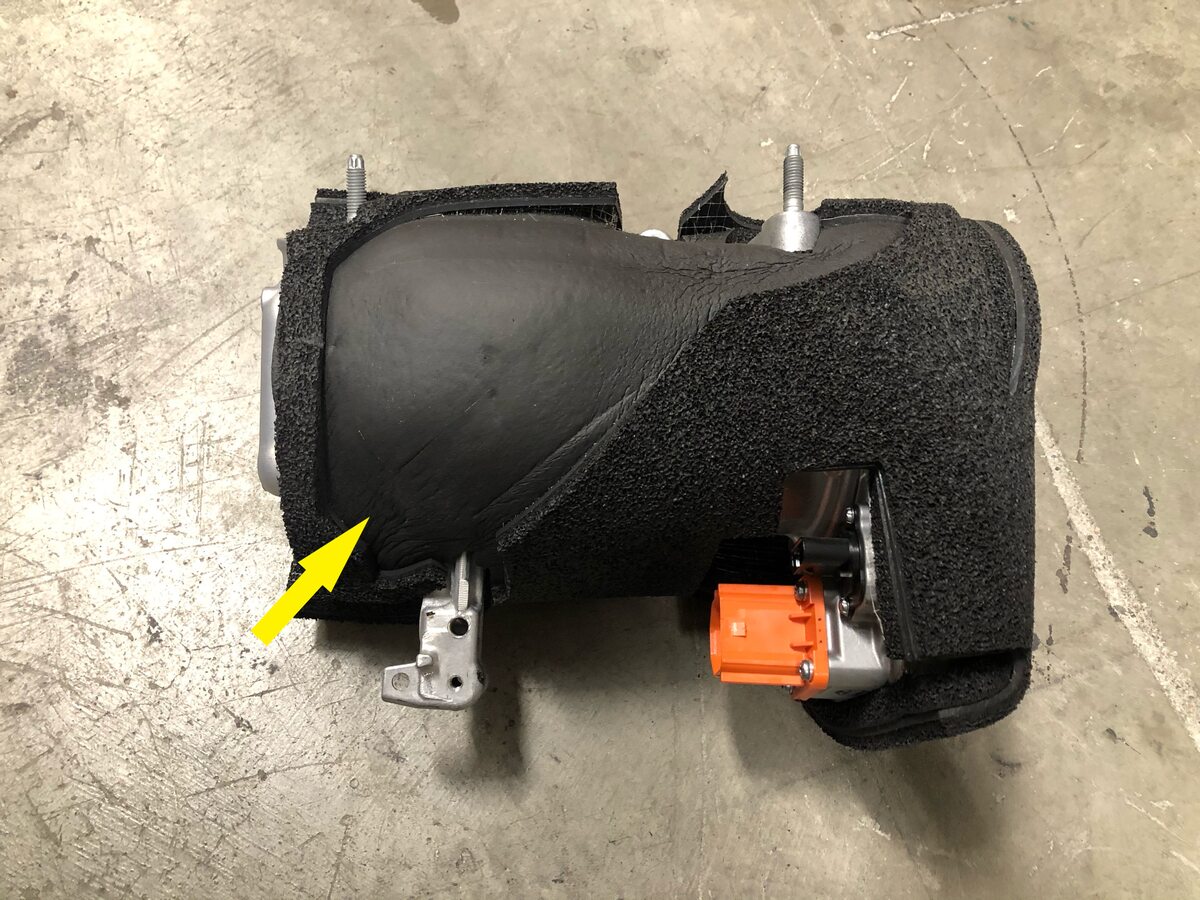

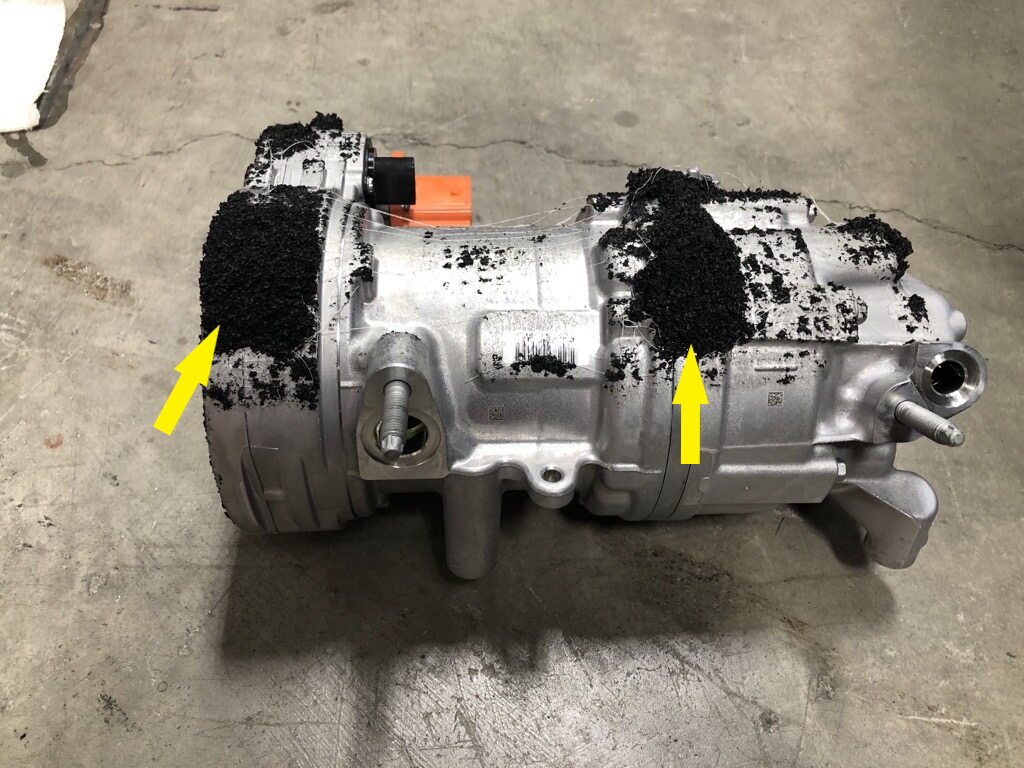

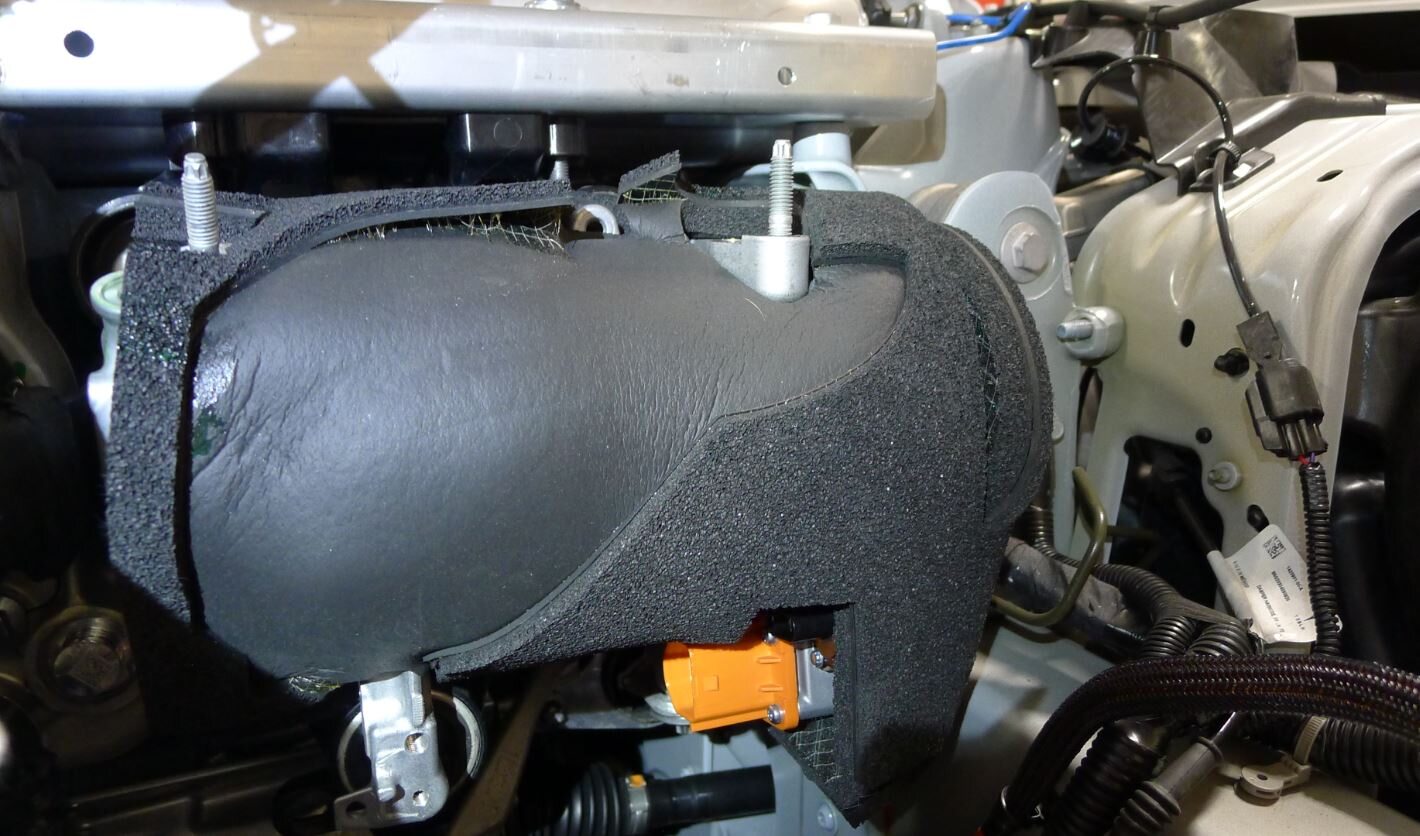

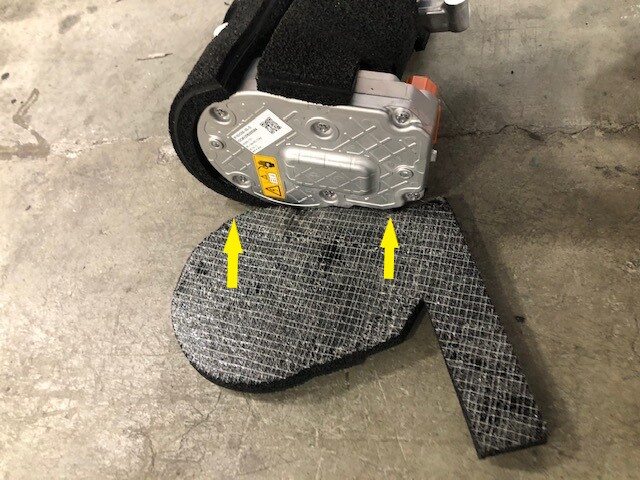

Remove NVH cover material from compressor

Note
Remove as much material of the NVH acoustic cover as possible, Excessive material left on AC compressor will cause an inaccurate weight measurement

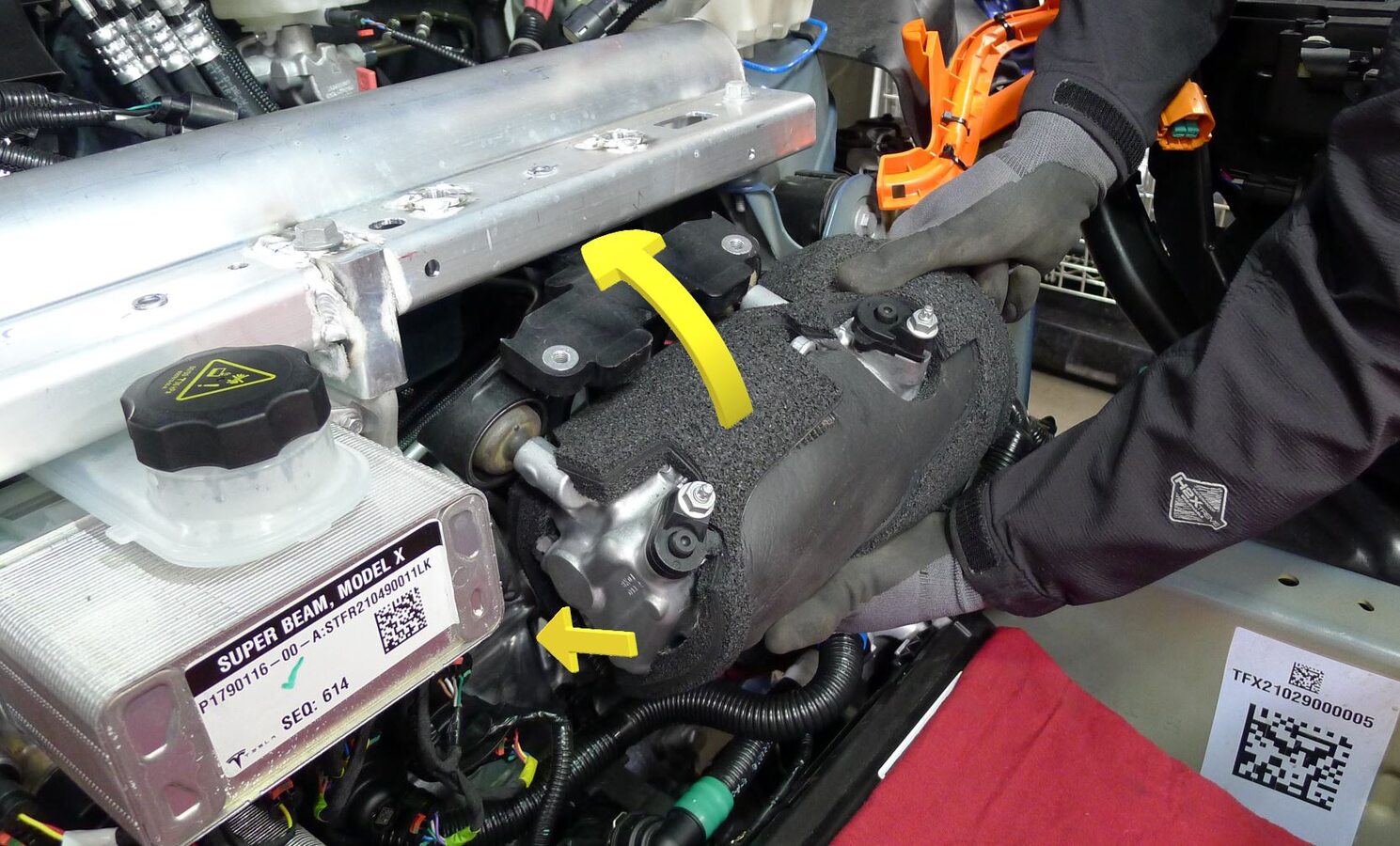

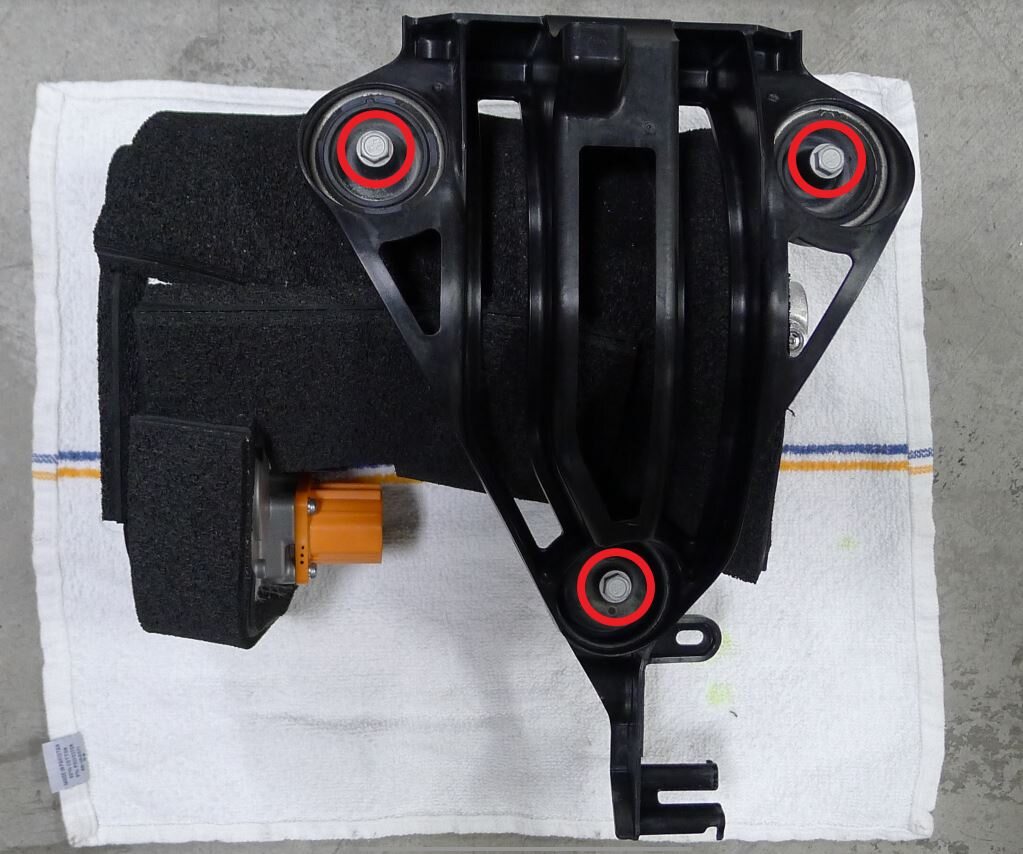

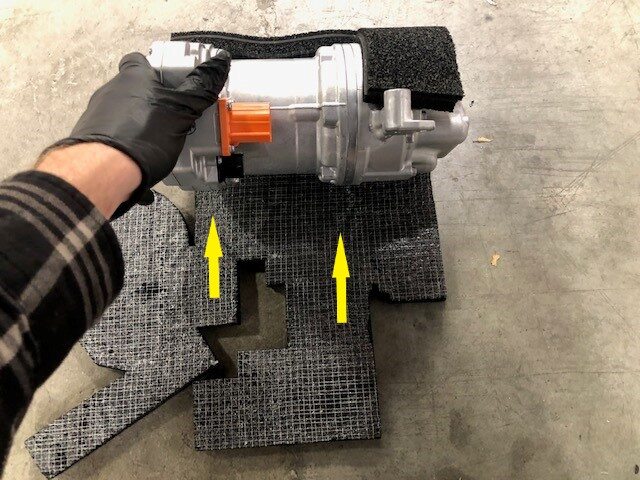

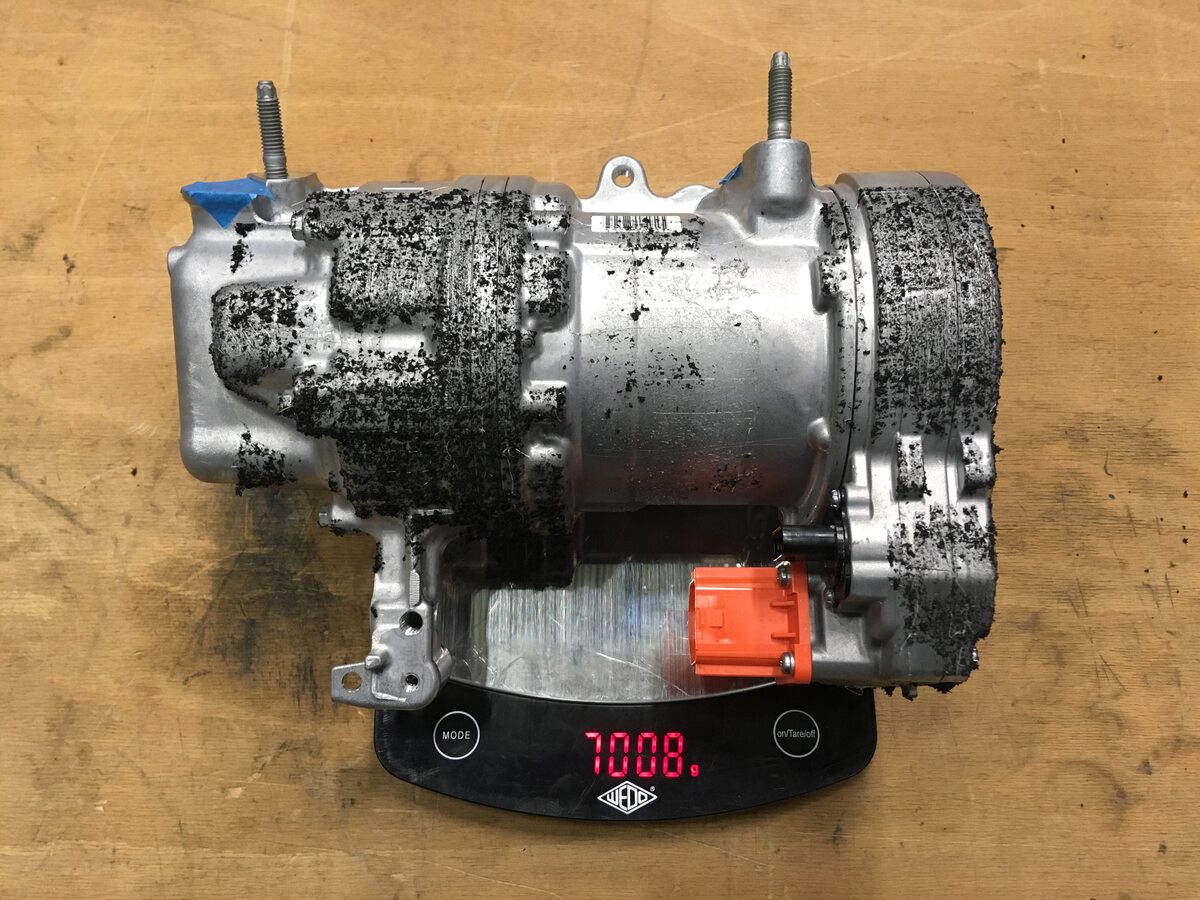

Weigh compressor and reset compressor oil amount

Note
Weight measured in grams, Take note of the compressor weight, Add ND-11 oil through suction port of compressor until it weighs 7193 grams

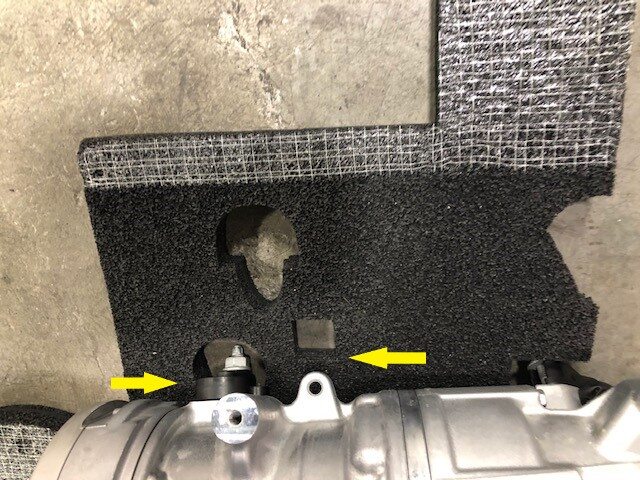

Install NVH acoustic cover onto AC compressor

Note
Install new NVH blanket or re-use old one if new one is not available and adhesive is in good working condition,Remove adhesive backing, Lay NVH acoustic cover down with adhesive side facing up, Align cut outs of NVH acoustic cover to suction port on AC compressor, Install NVH acoustic cover around suction port on AC compressor then continue to wrap NVH acoustic cover around compressor
Install the AC compressor bracket to the AC compressor

Note
3x bolts, 10mm, 9 Nm
Disconnect AC machine hoses from AC flush adapters

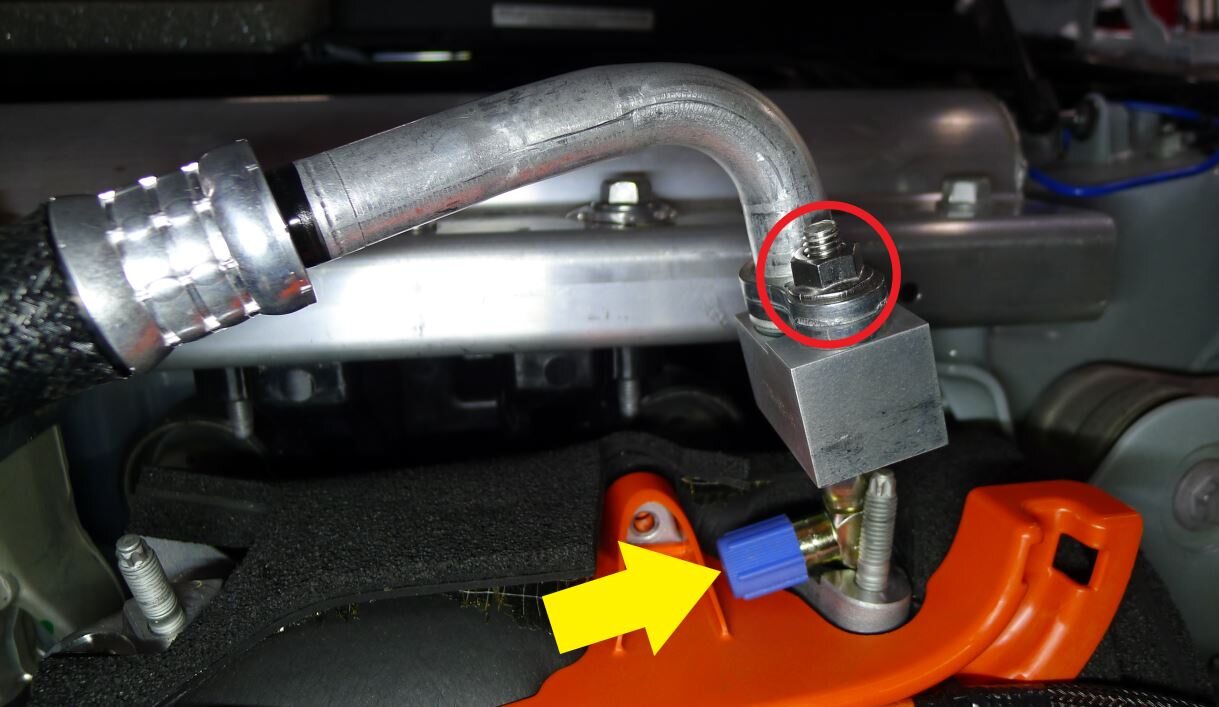

Remove AC flush adapters from supermanifold to compressor AC line assembly

Note
2x nuts, 13mm, 22 Nm

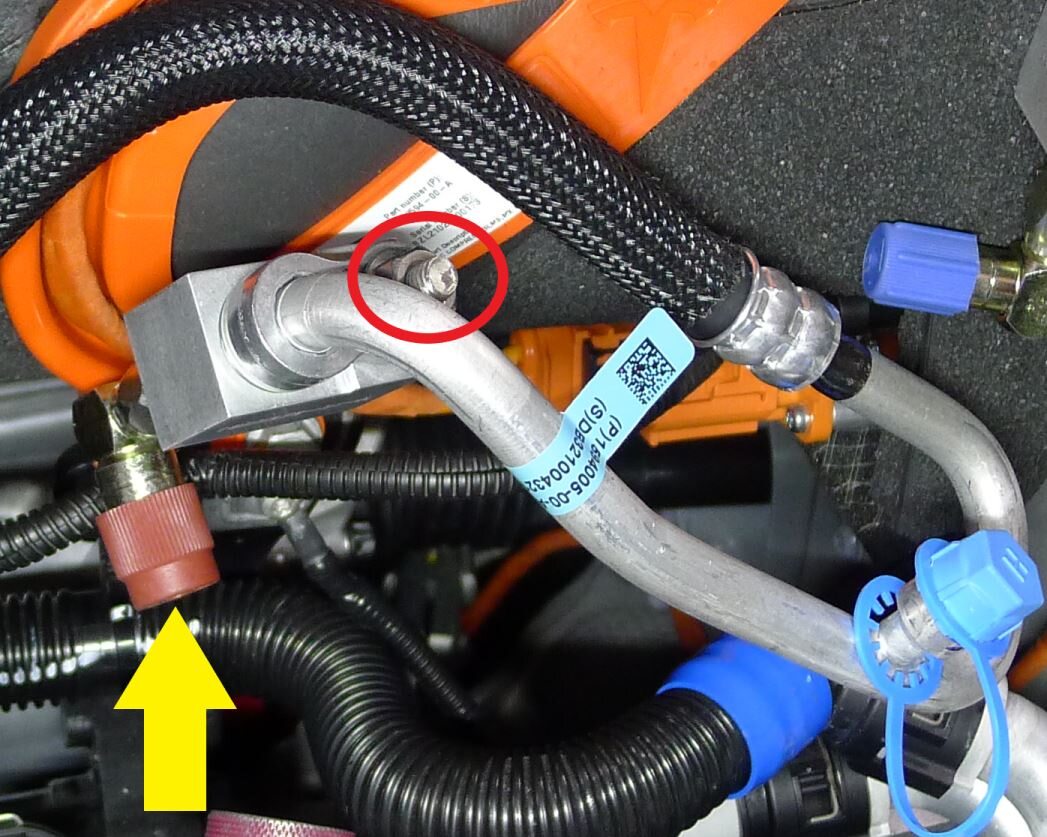

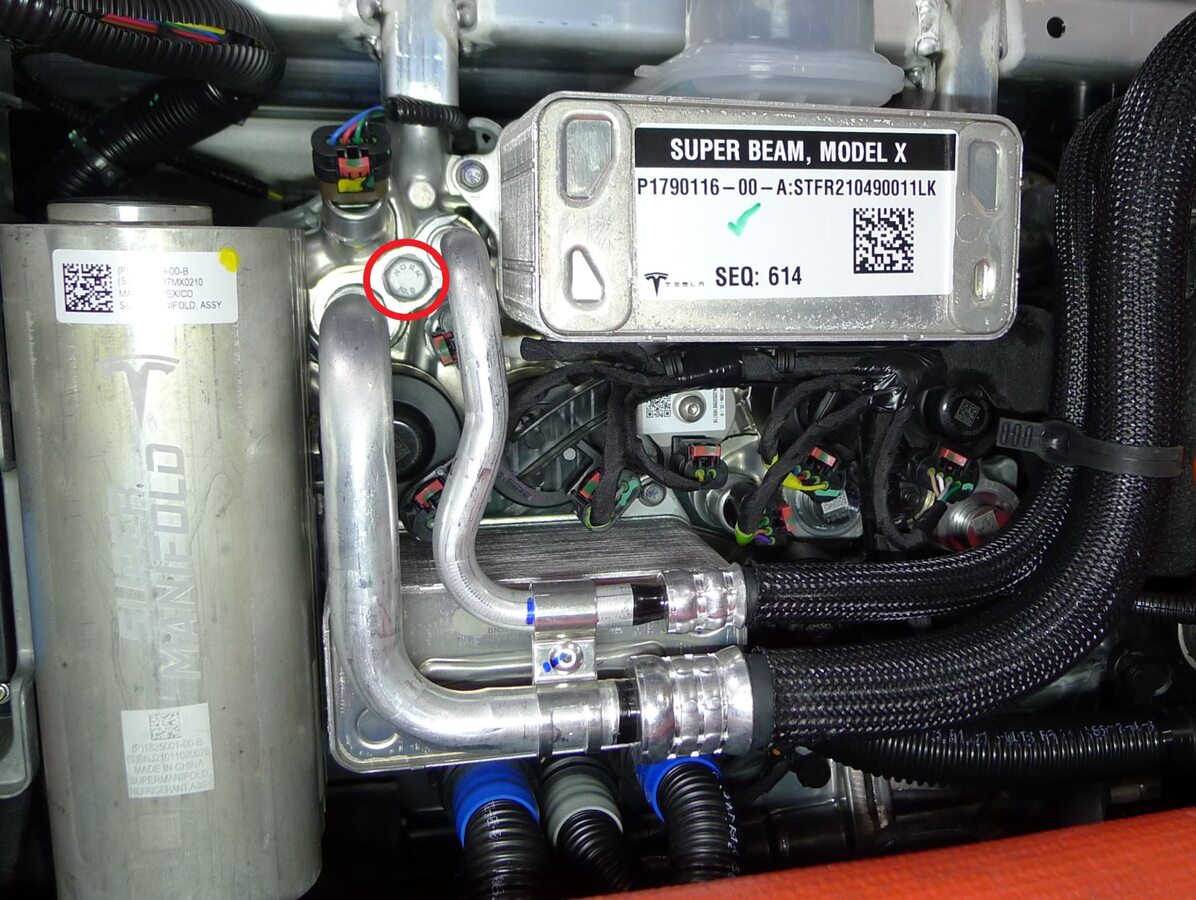

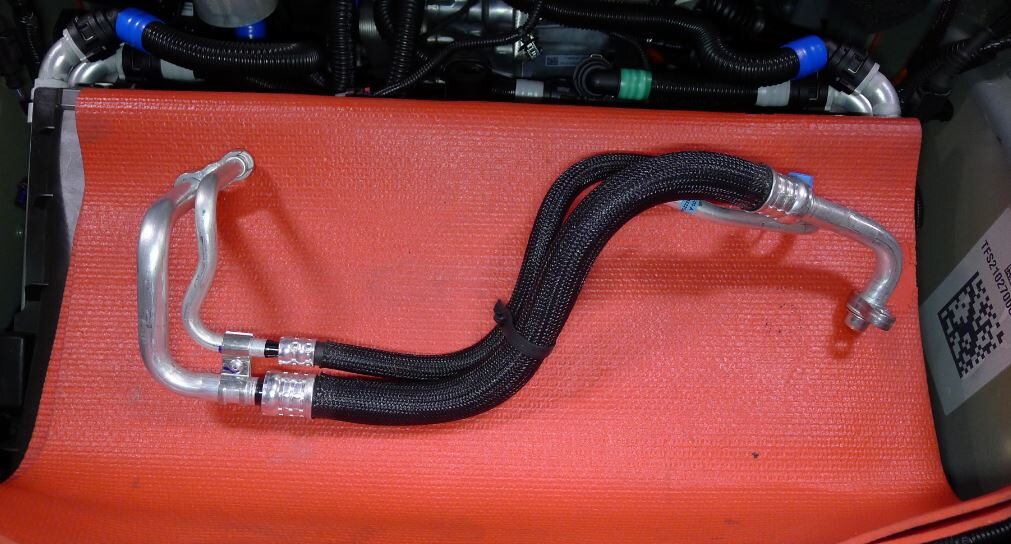

Remove AC manifold line from Supermanifold and remove AC manifold line assembly out of the vehicle

Note
1x bolt, 13mm, 22 Nm

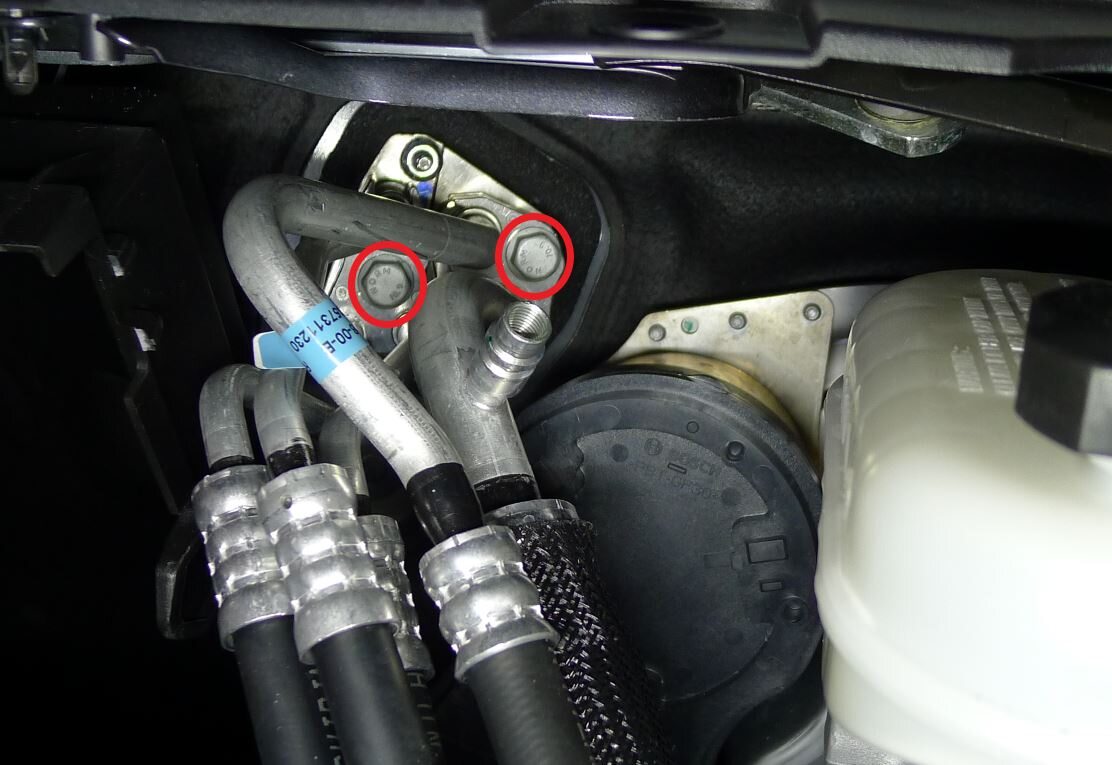

Remove Penta HVAC line from HVAC assembly

Note
2x bolts, 13mm, 22 Nm

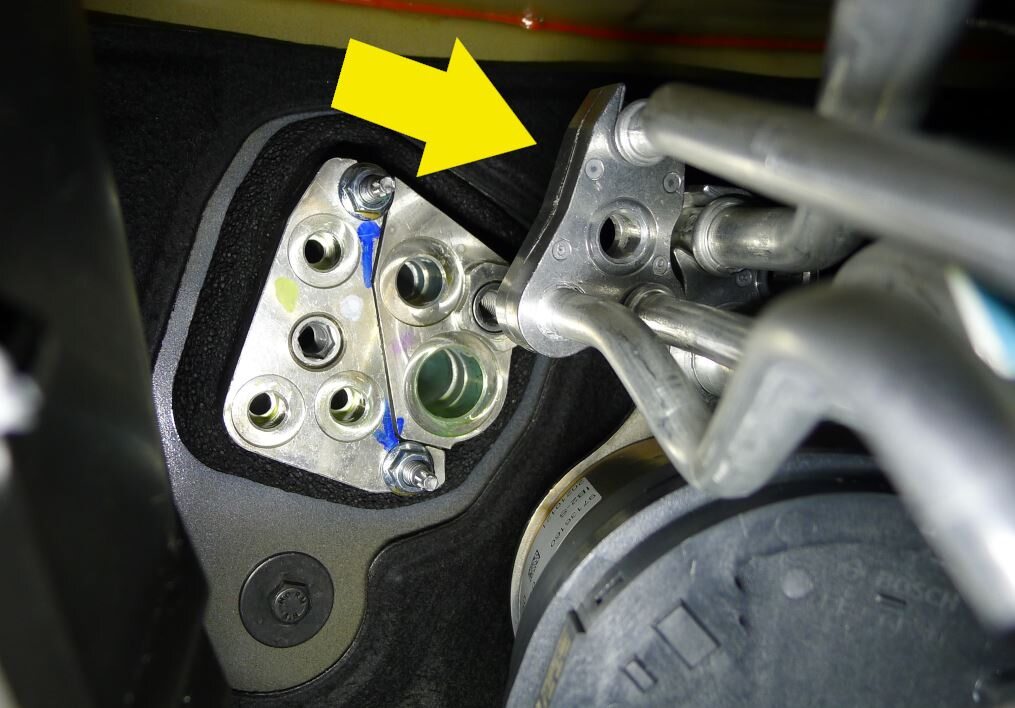

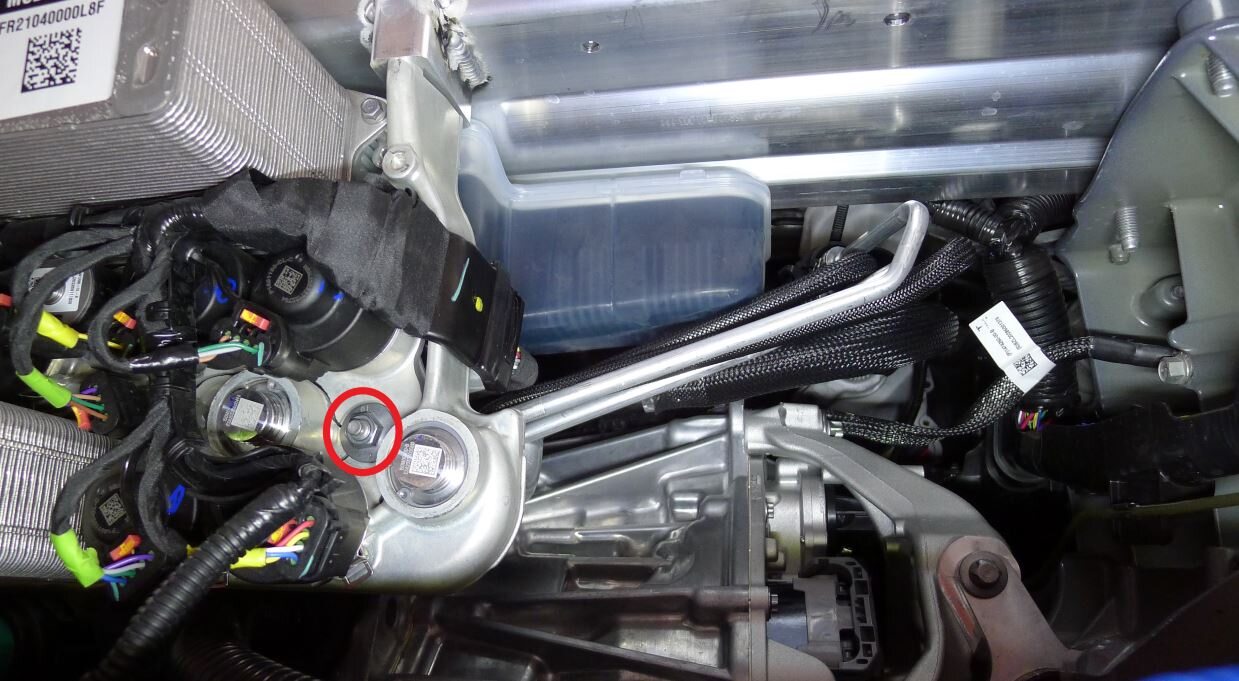

Remove nut securing Penta HVAC line assembly to the Supermanifold plate

Note
1x nut, 13mm, 27 Nm, Located under multi-system beam

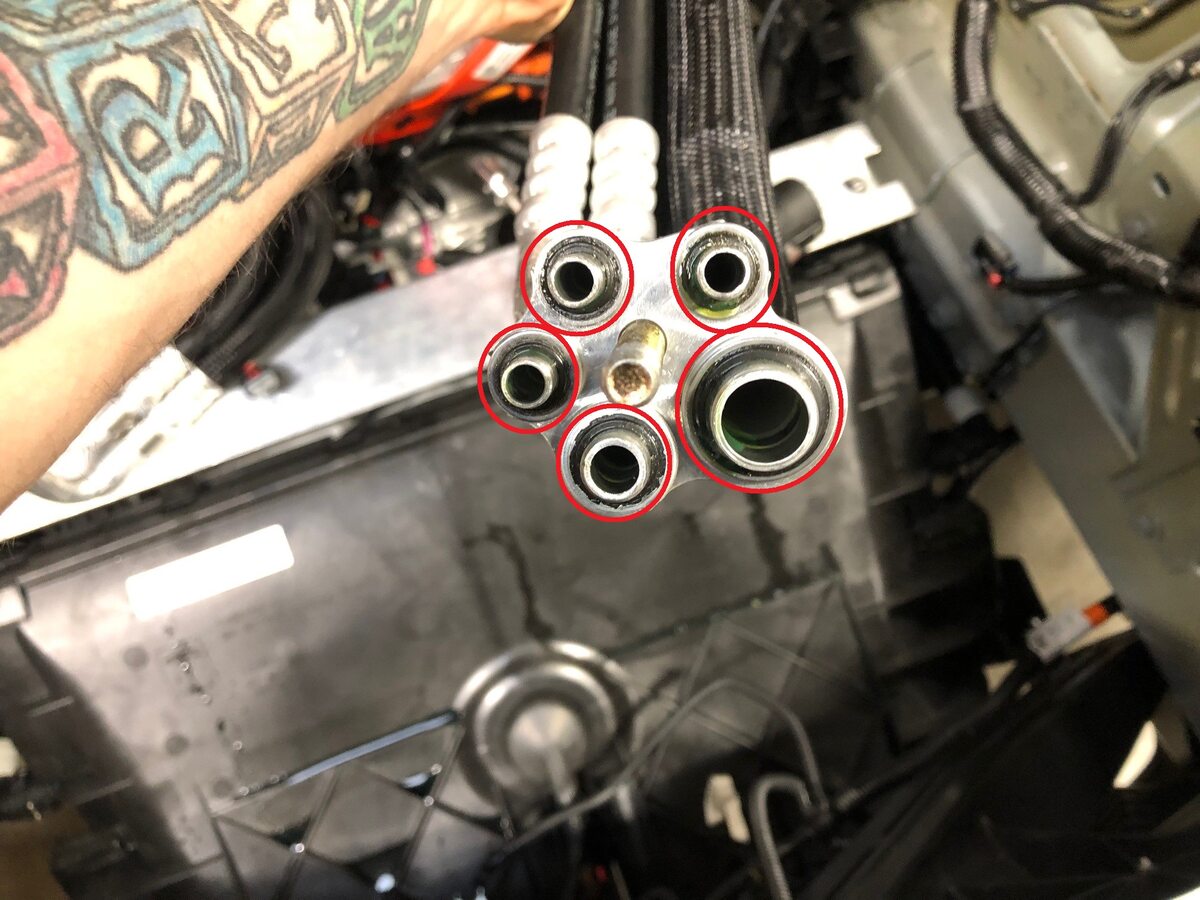

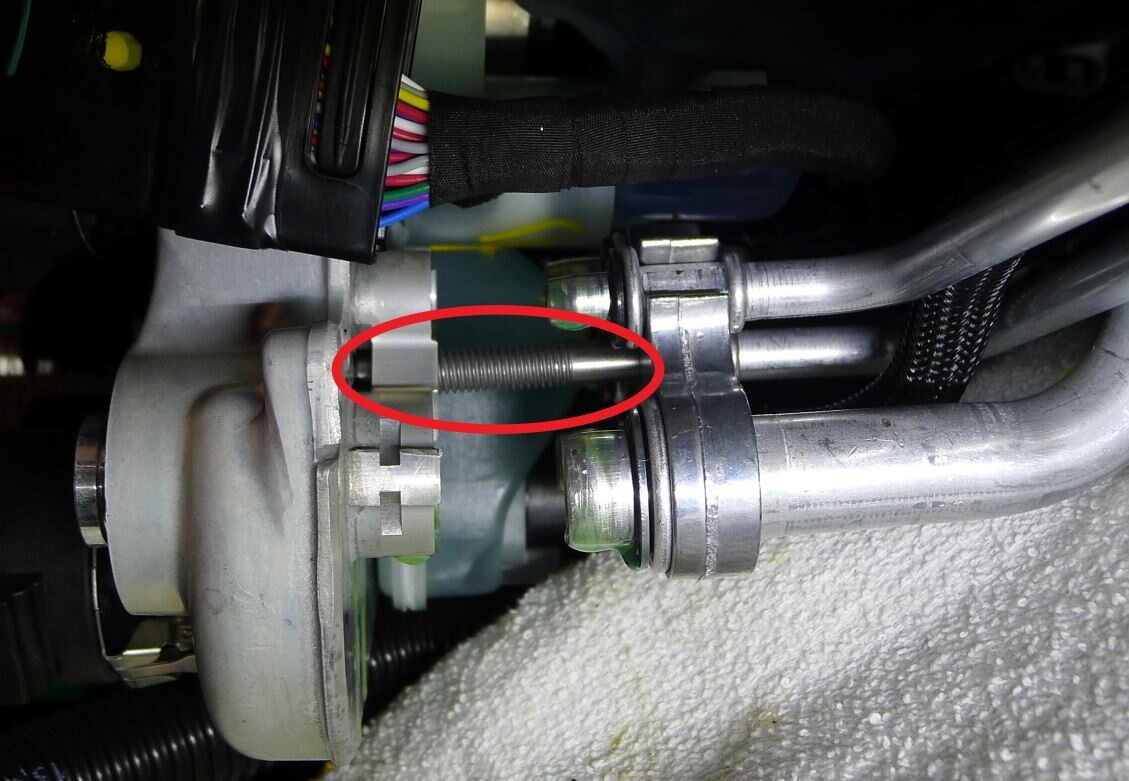

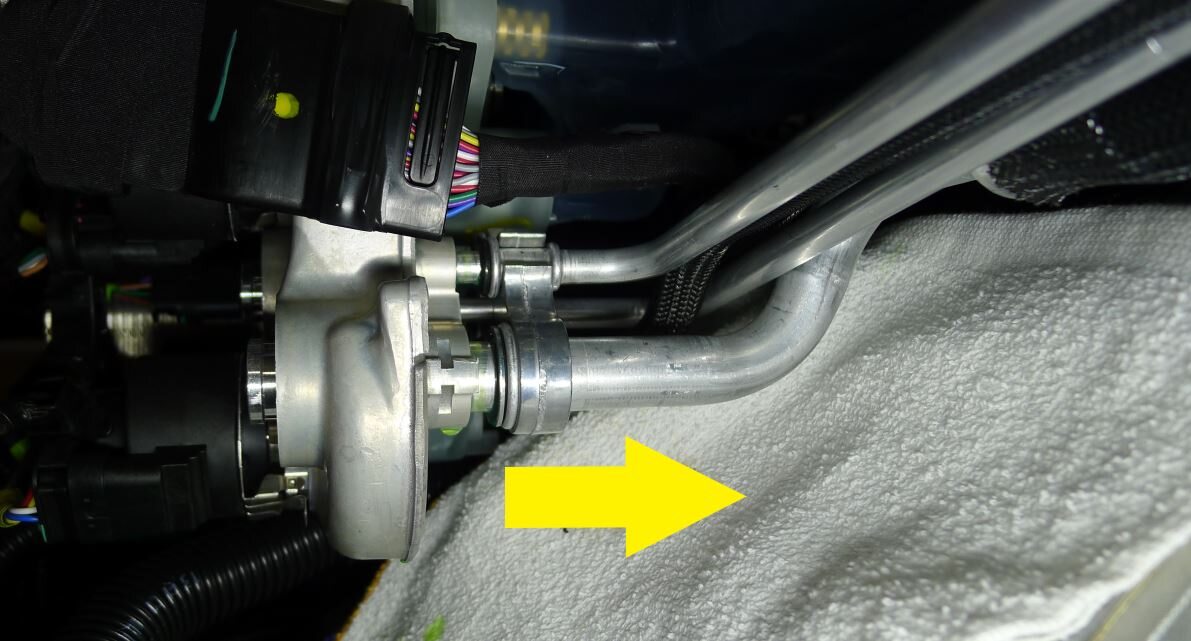

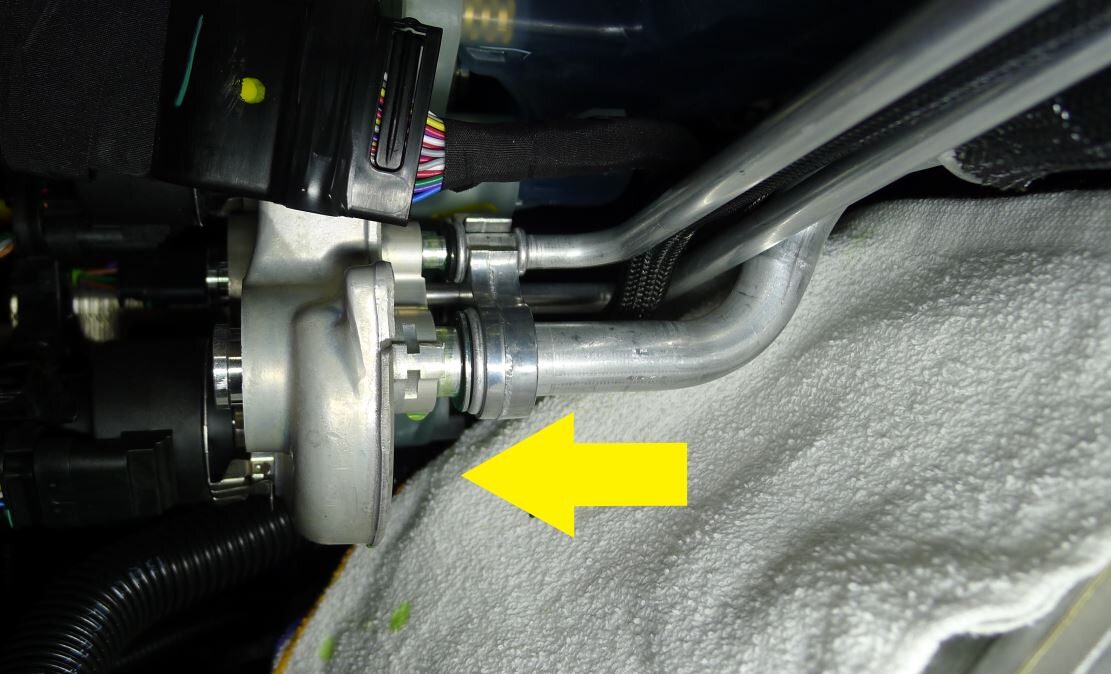

Remove Penta HVAC line from the Supermanifold plate

Note

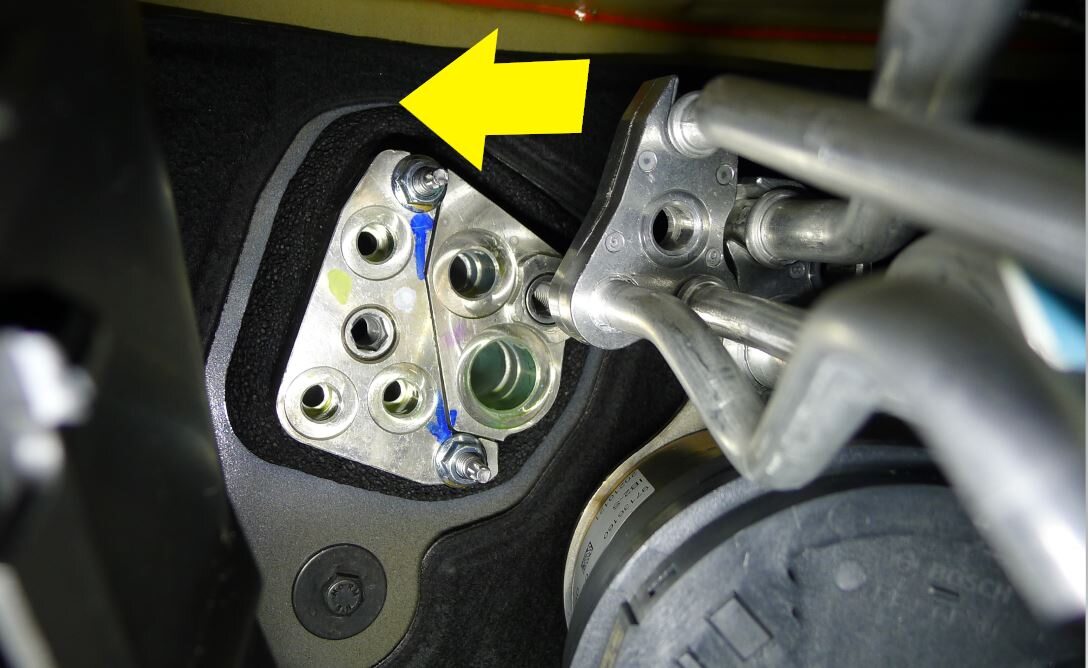

Located under multi-system beam, Move line rearward until Penta HVAC line stud clears Supermanifold plate, Place rag underneath line
Remove Penta HVAC line from vehicle

Note
Negotiate line around coolant reservoir

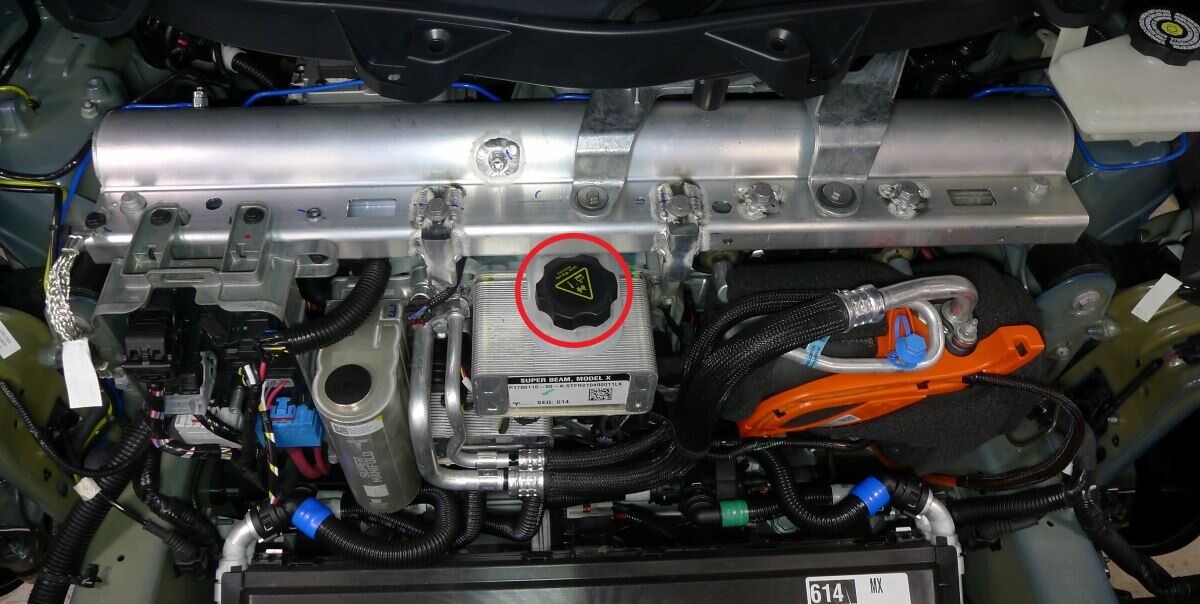

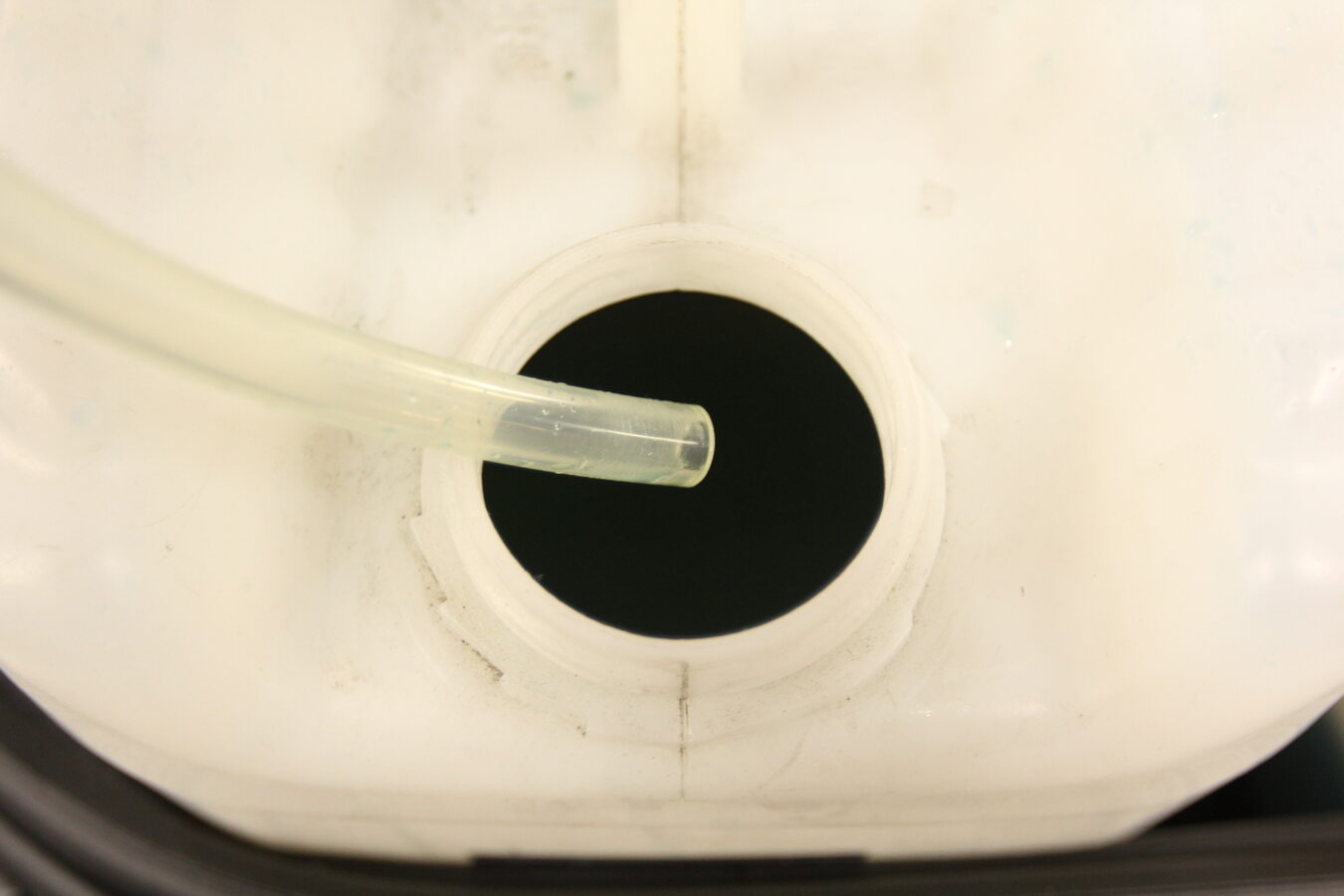

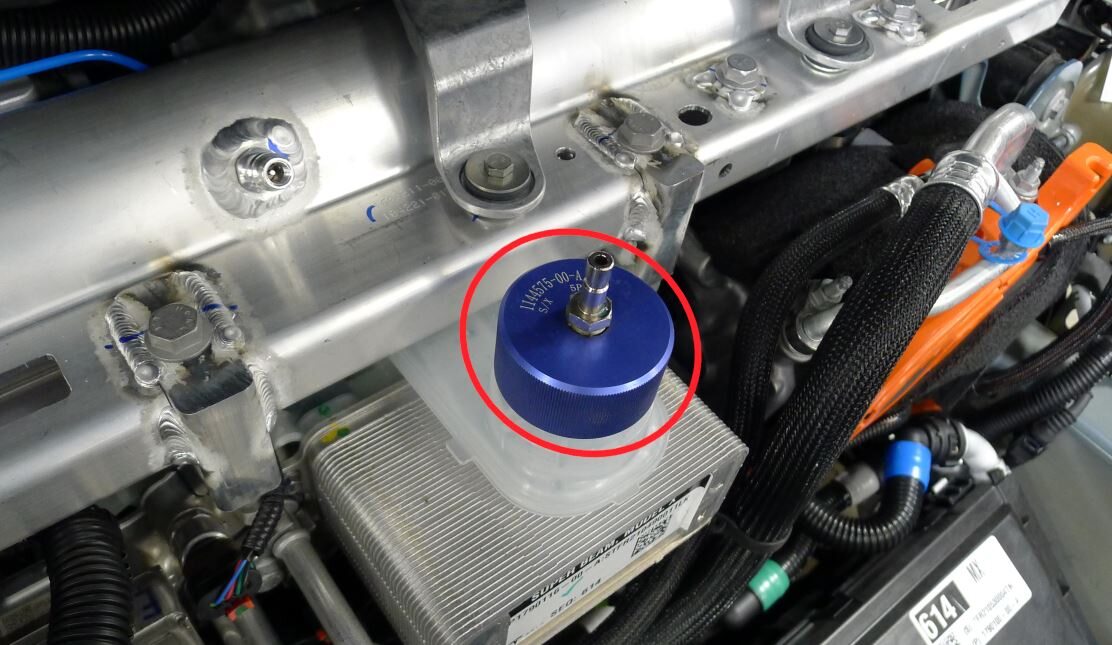

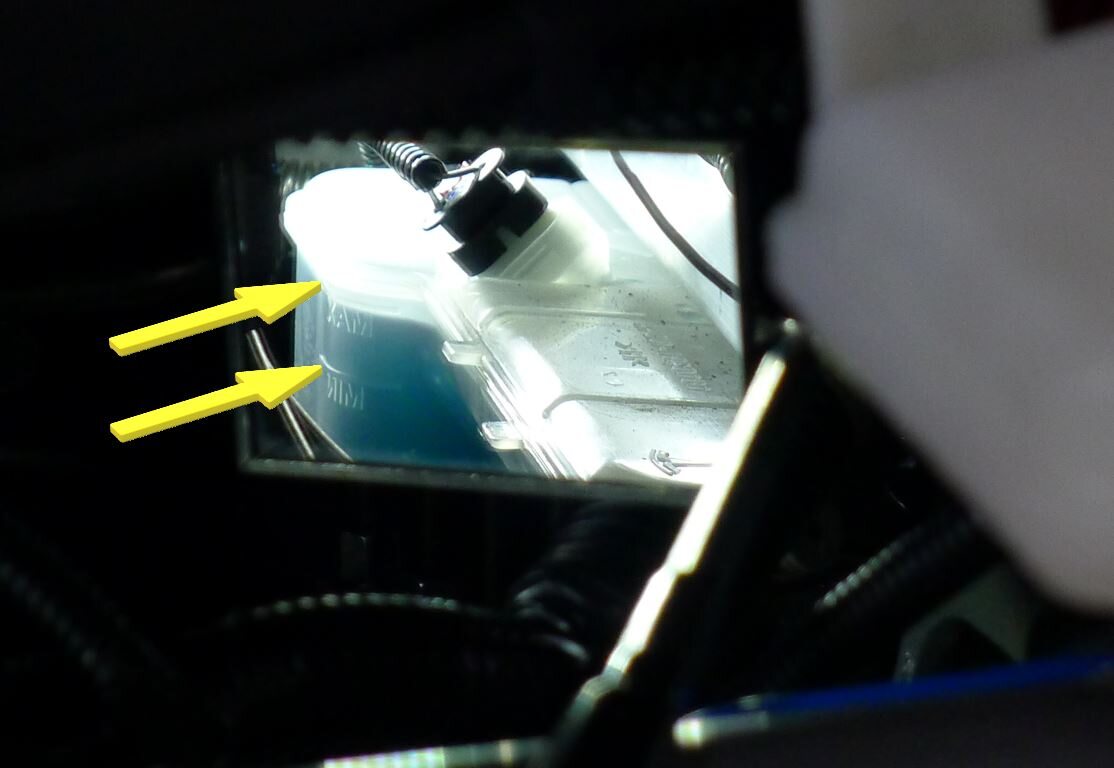

Remove coolant bottle cap

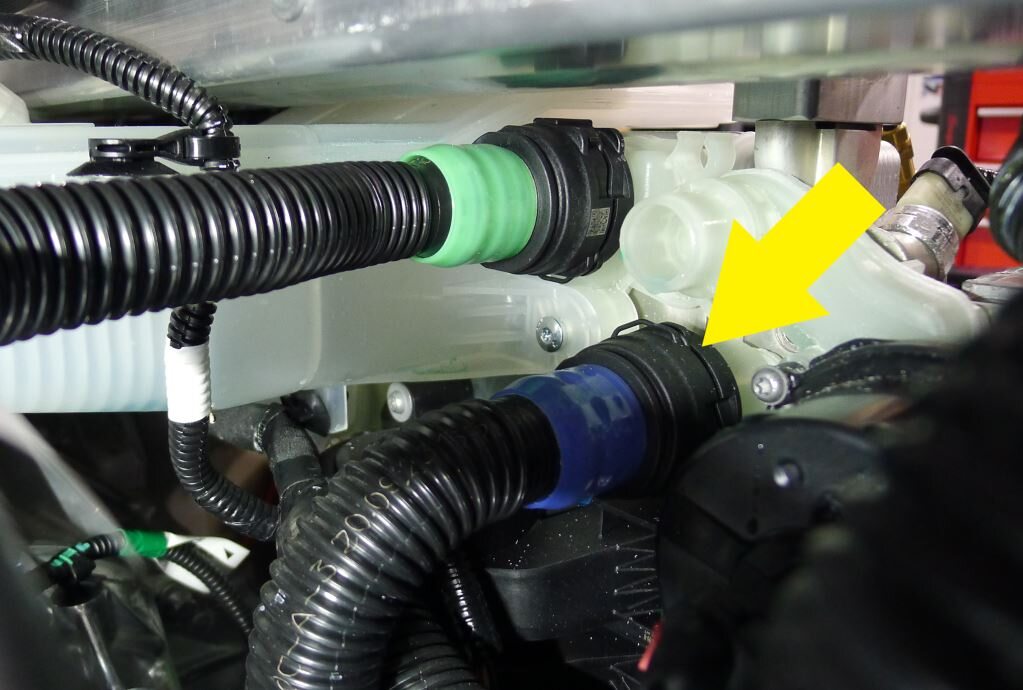

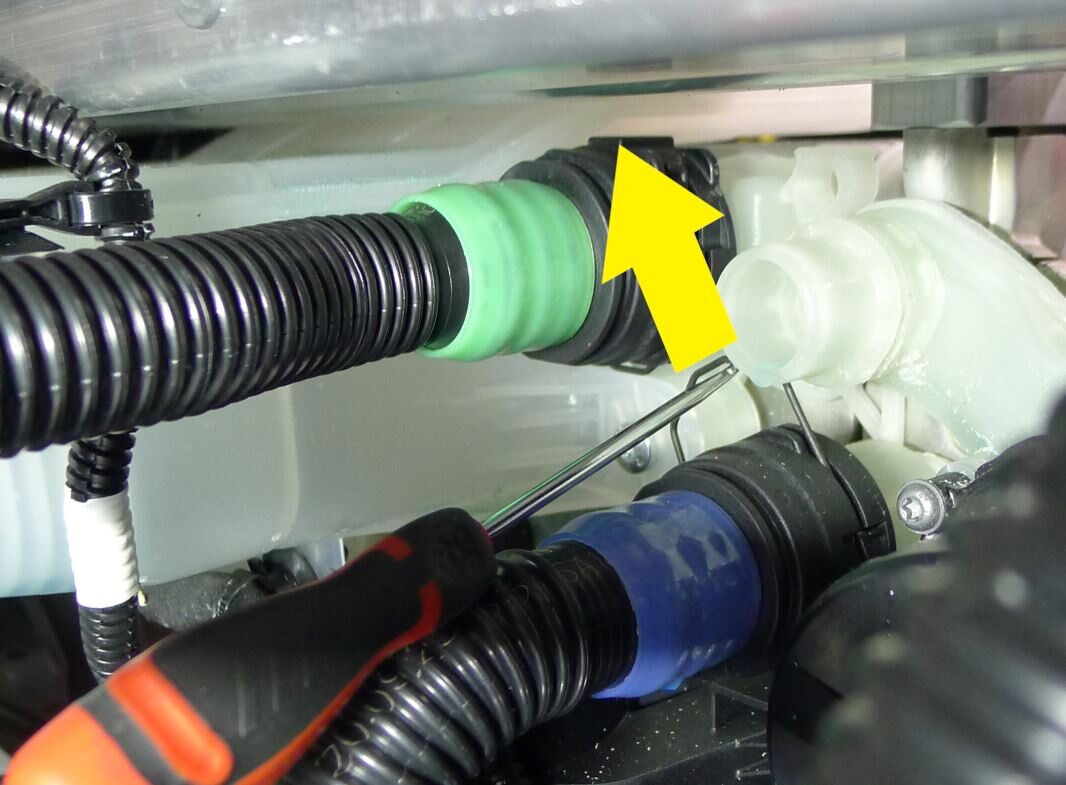

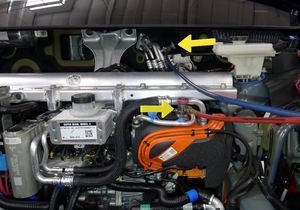

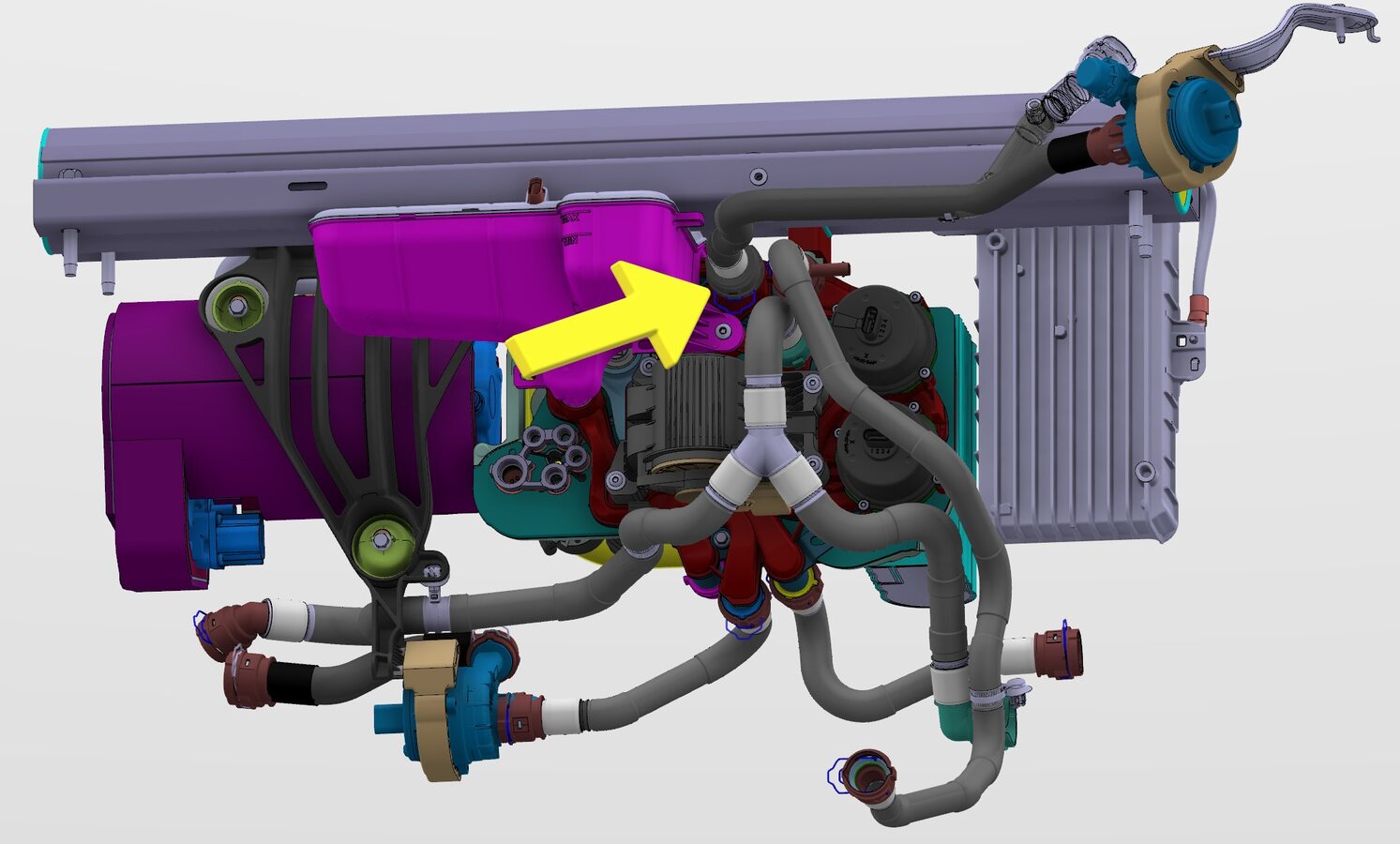

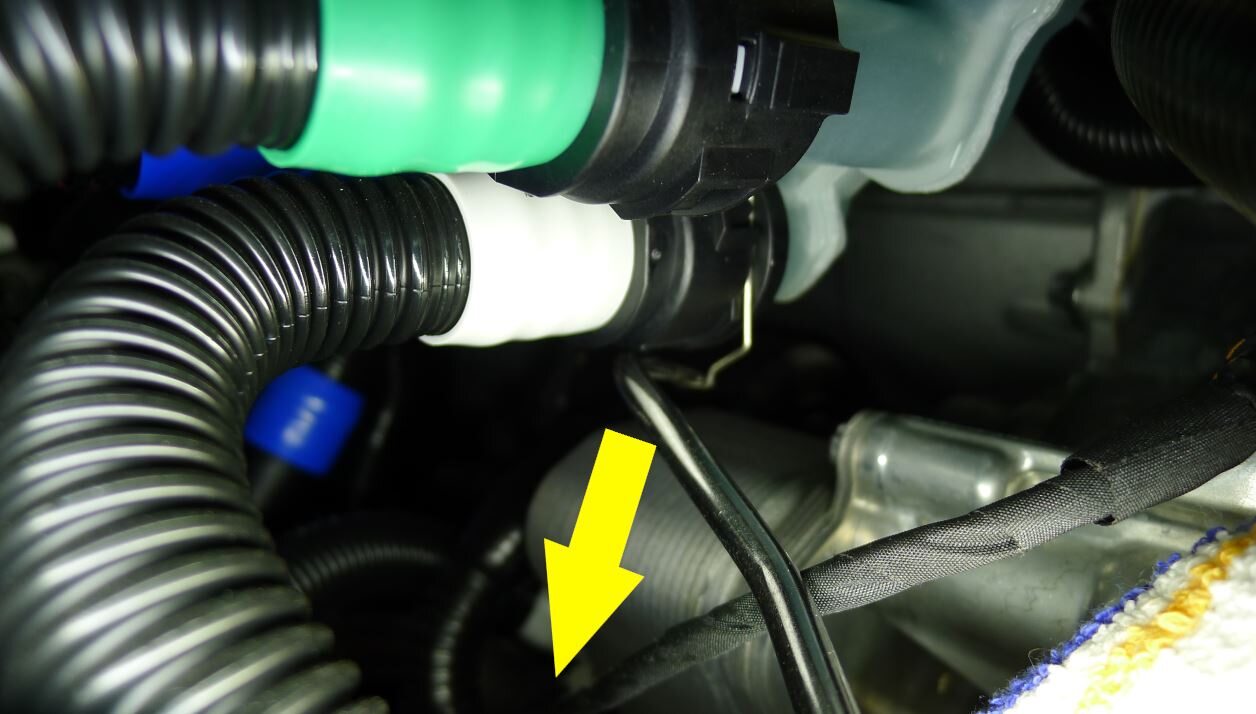

Disconnect the powertrain bypass hose from the Supermanifold

Note
1x spring clip, This will drain the coolant reservoir
Disconnect the radiator outlet hose from the Supermanifold

Note
1x spring clip
Disconnect the radiator inlet hose from the Supermanifold

Note
1x spring clip

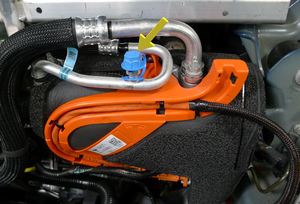

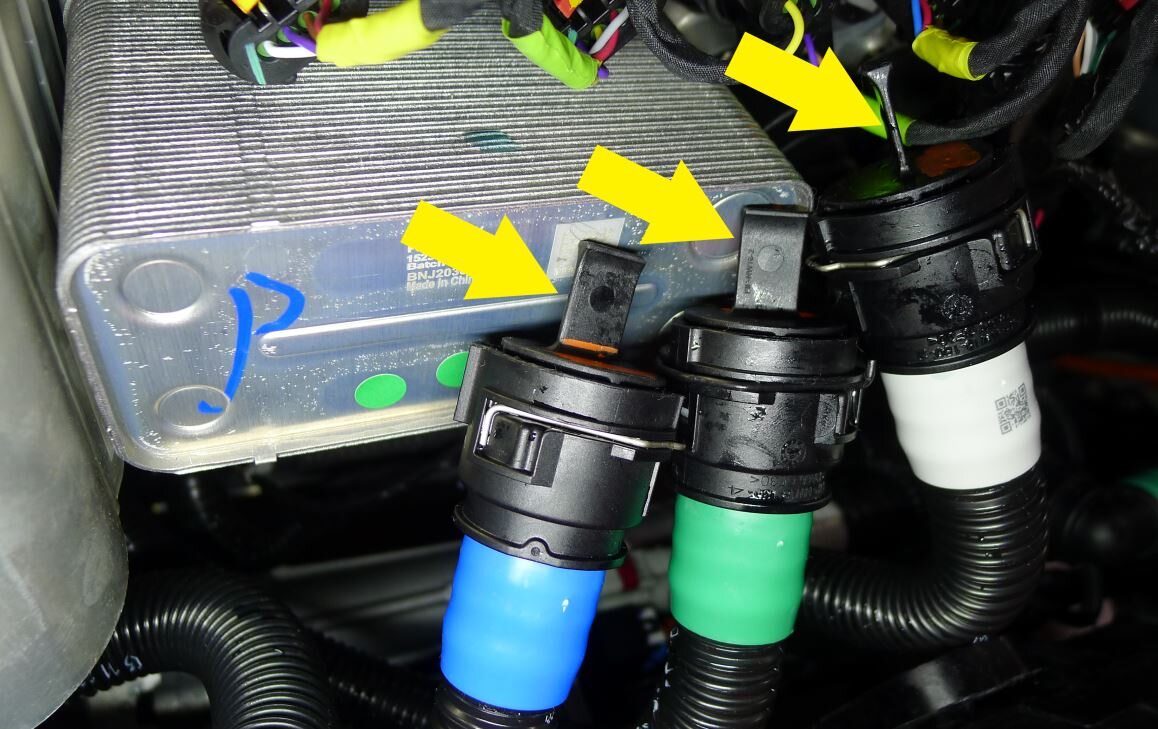

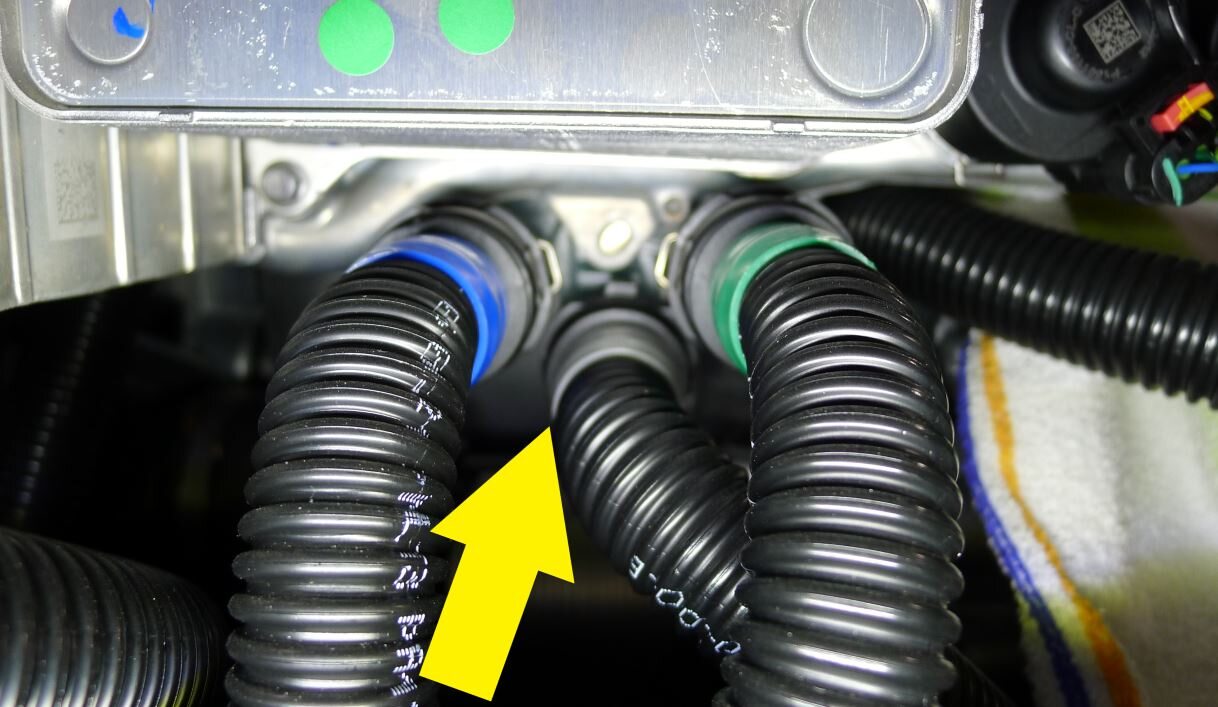

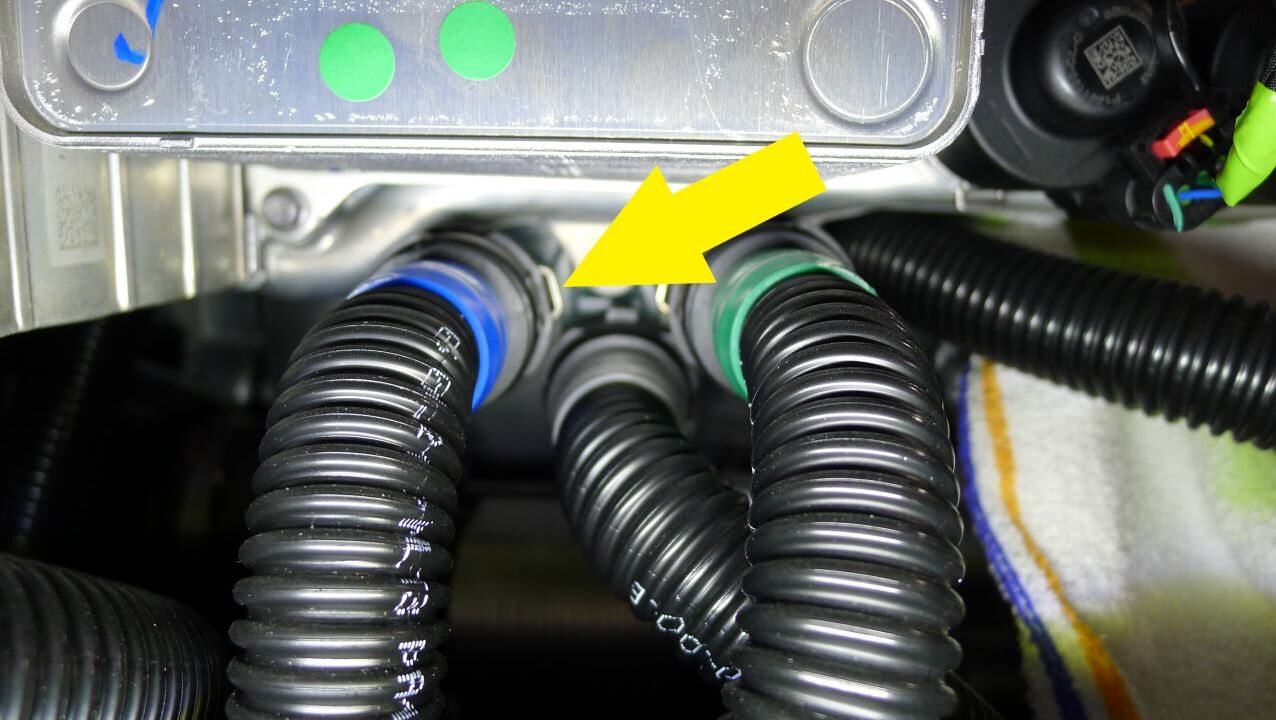

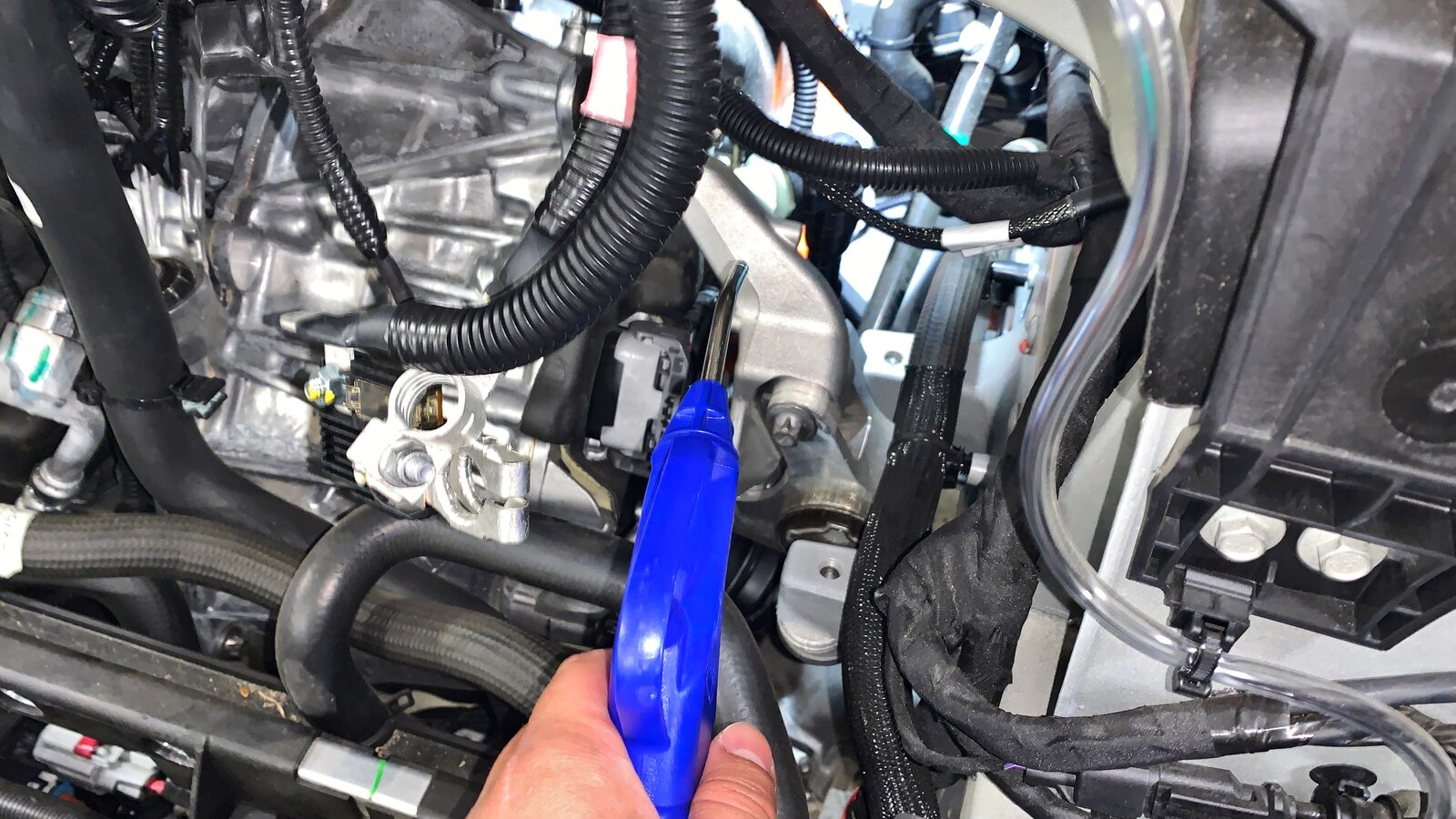

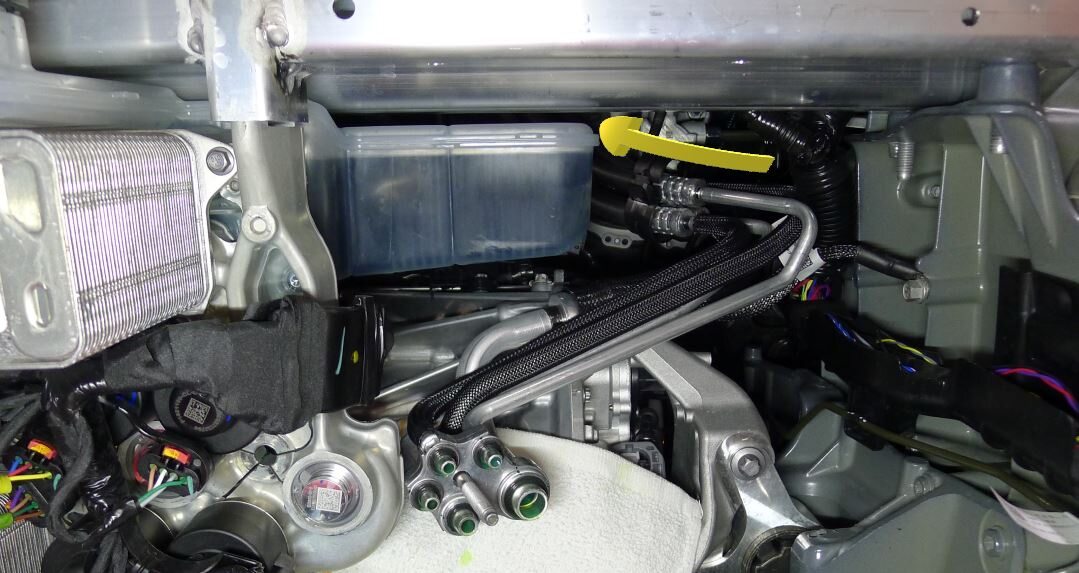

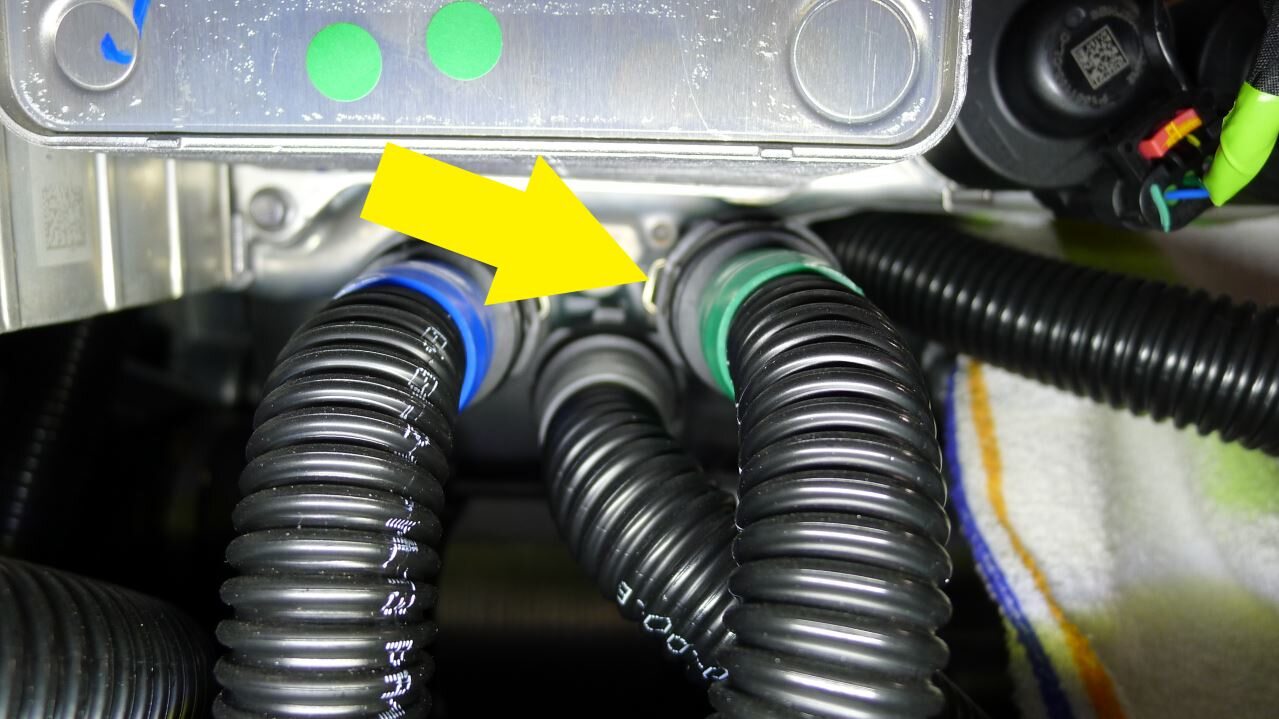

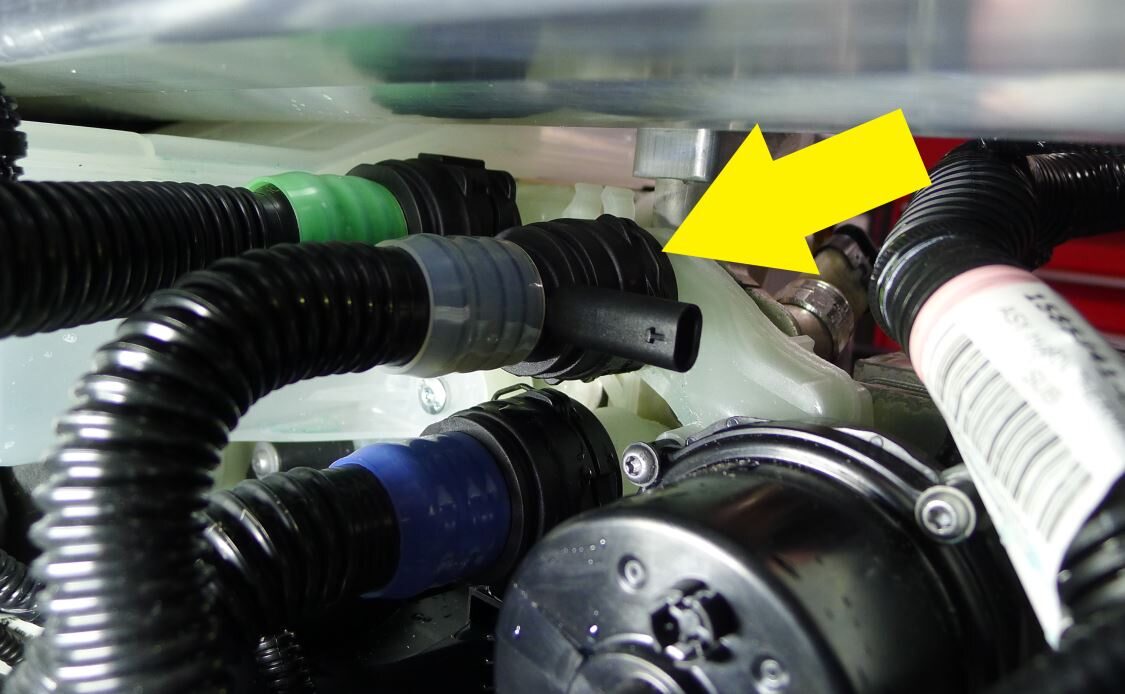

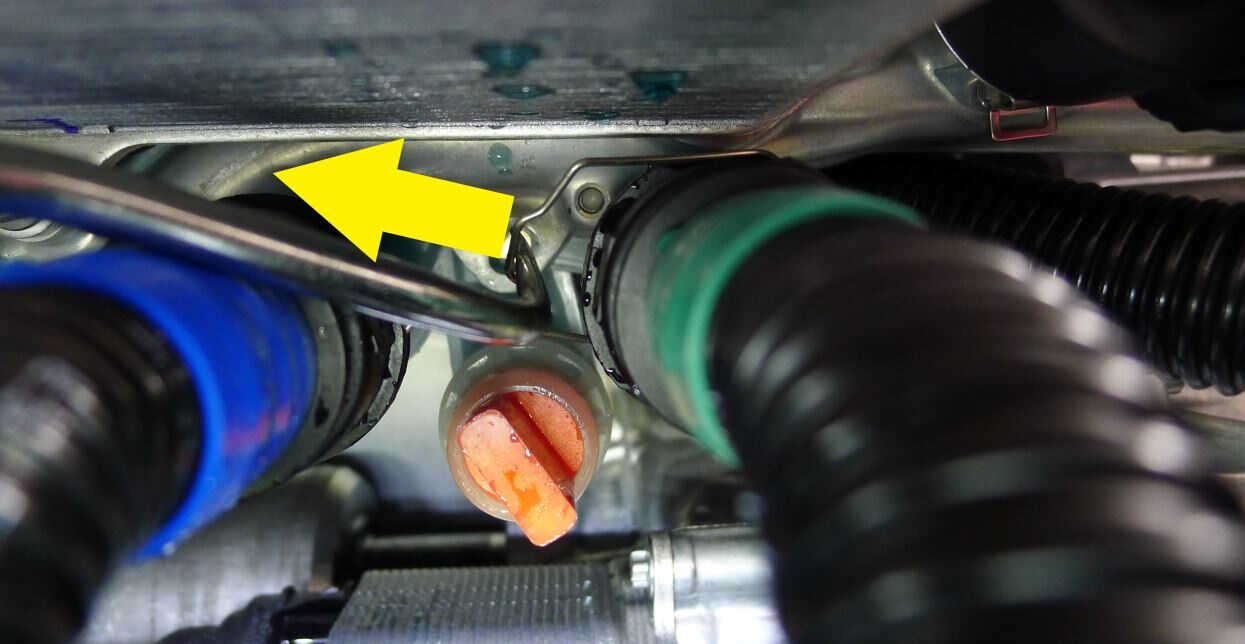

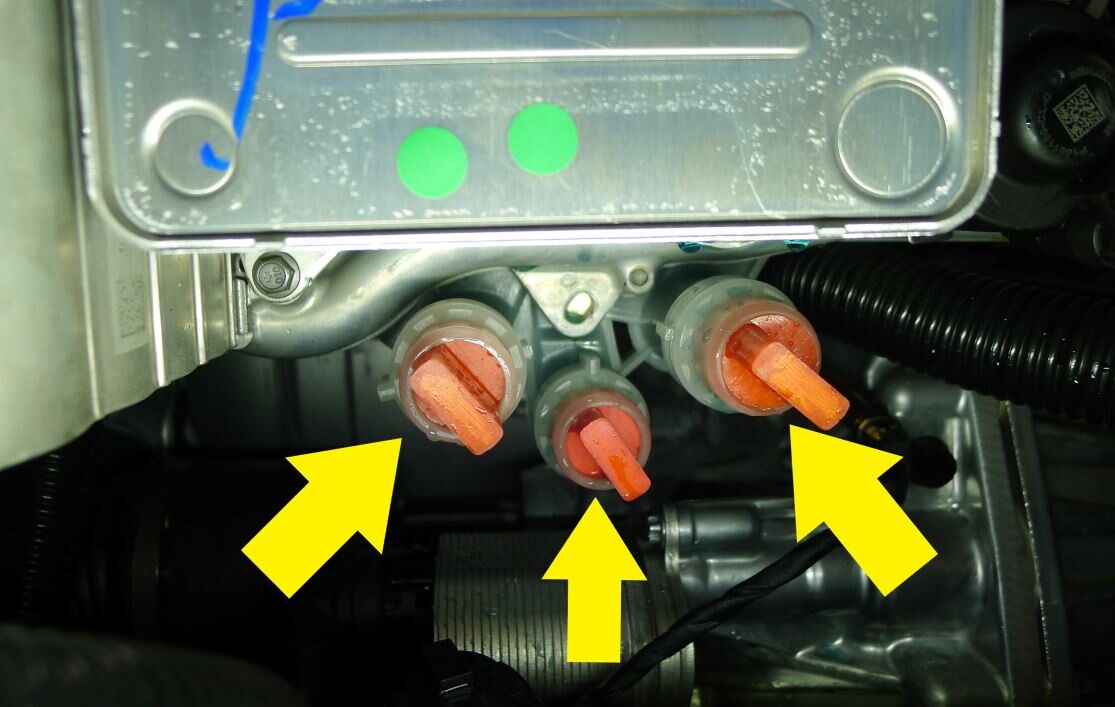

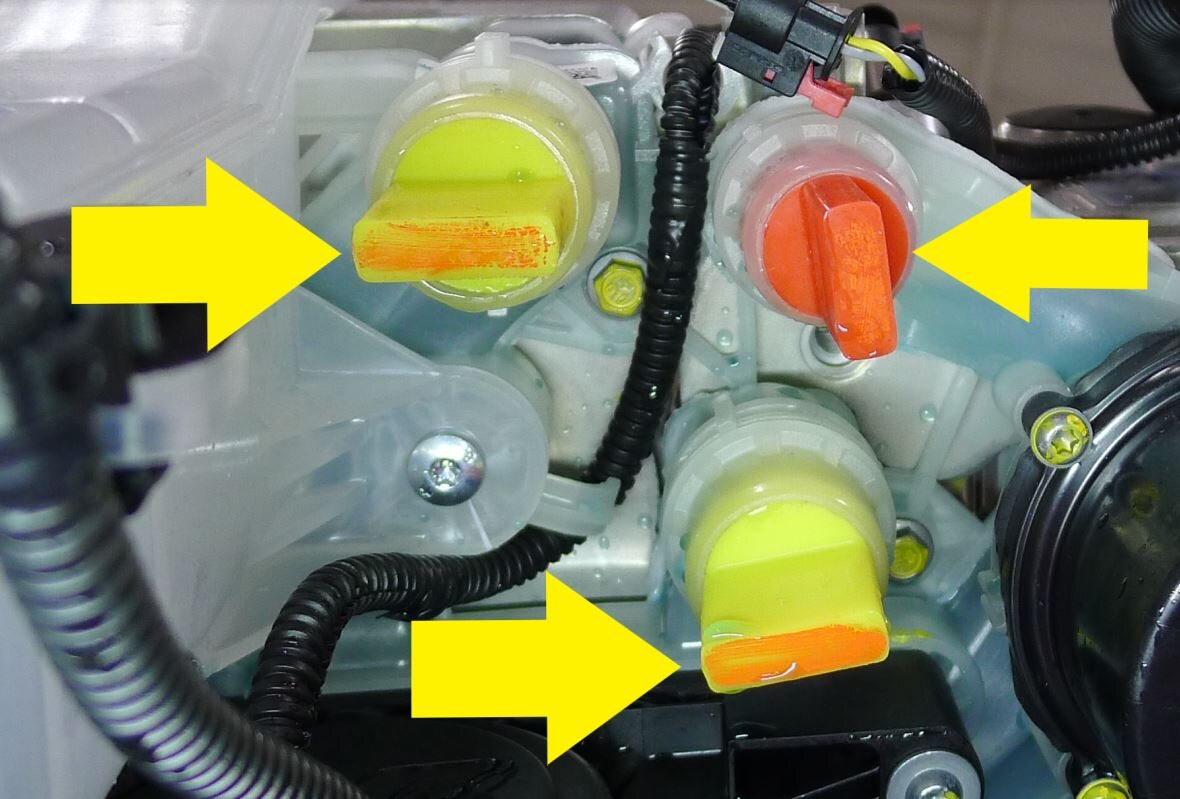

Install 3 male plugs into the coolant ports at the front of the Supermanifold and 3 female plugs at the removed hoses

Note
3x male plugs, 3x female plugs, This will avoid any cross contamination

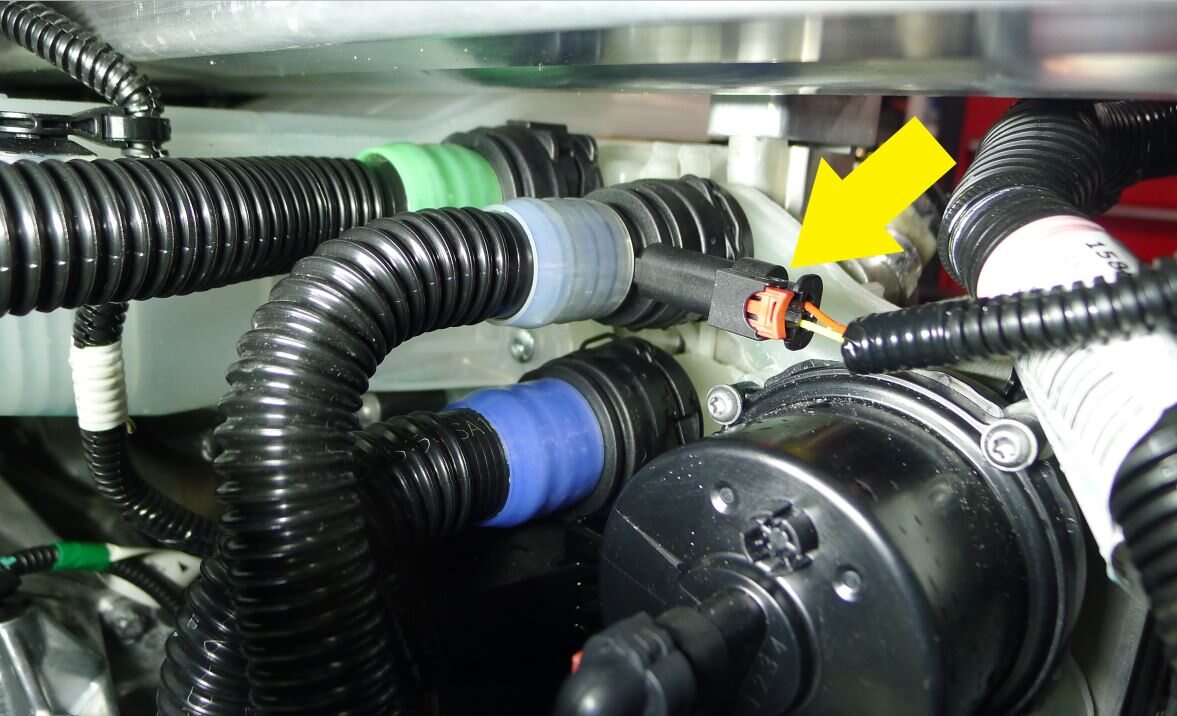

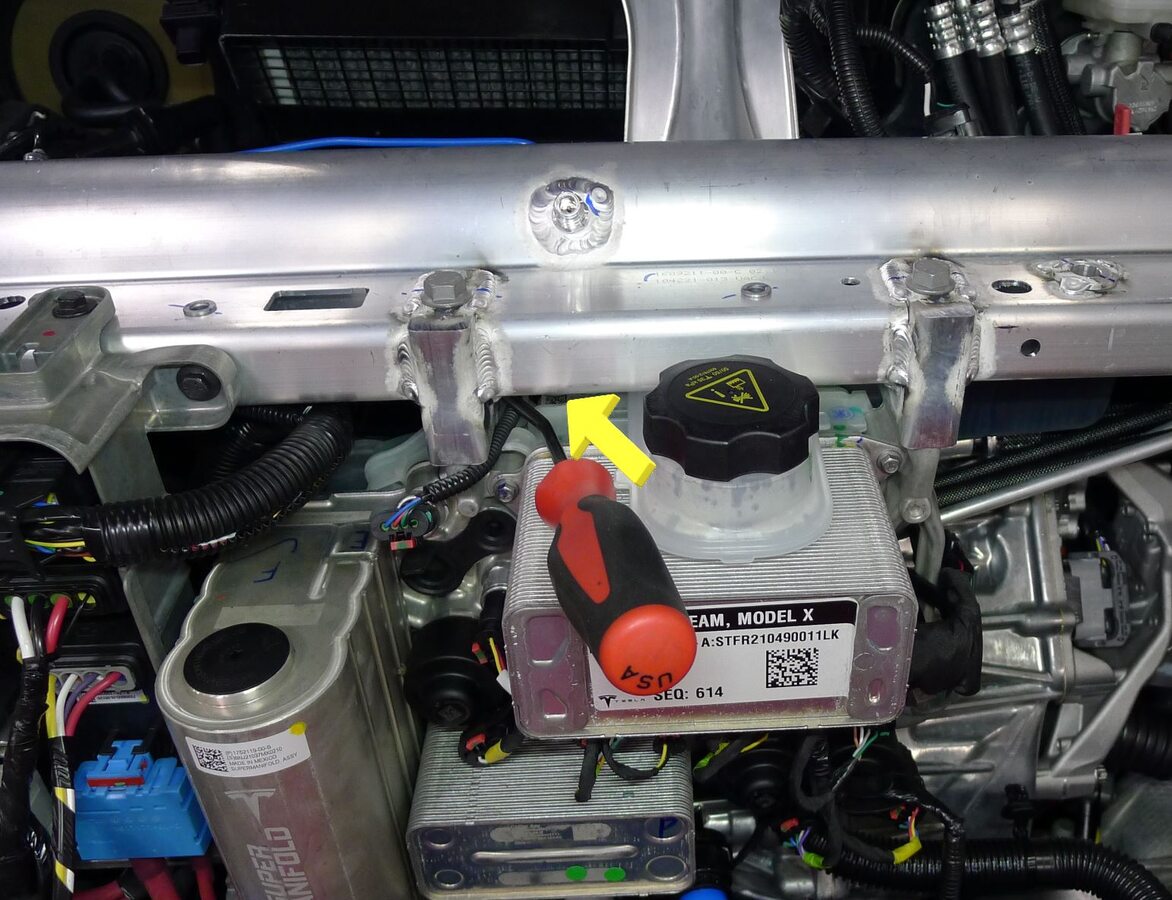

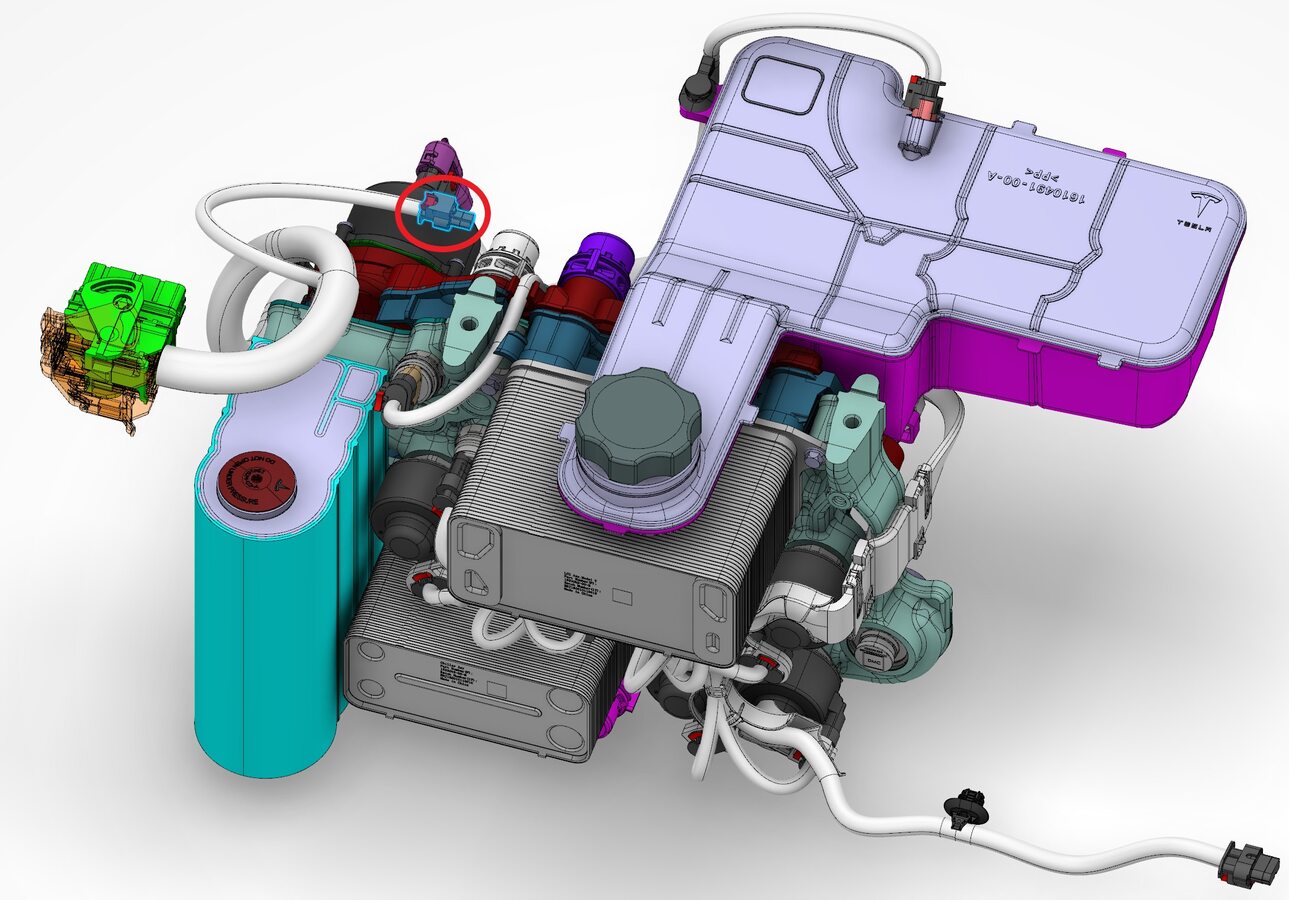

Disconnect the sensor for the powertrain supply hose

Note
1x locking electrical connector, Do not push down on Red tab, Pull red tab to disengage lock, Pull again to release connector

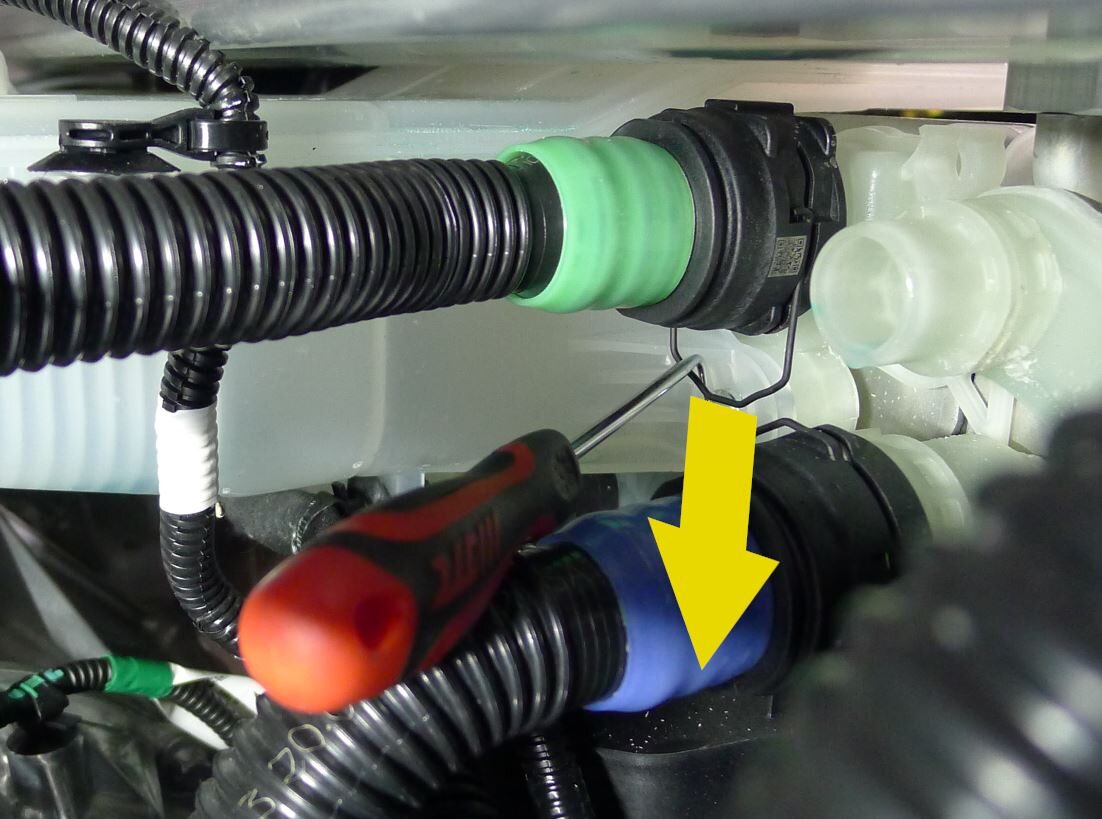

Disconnect powertrain supply hose from supermanifold

Note

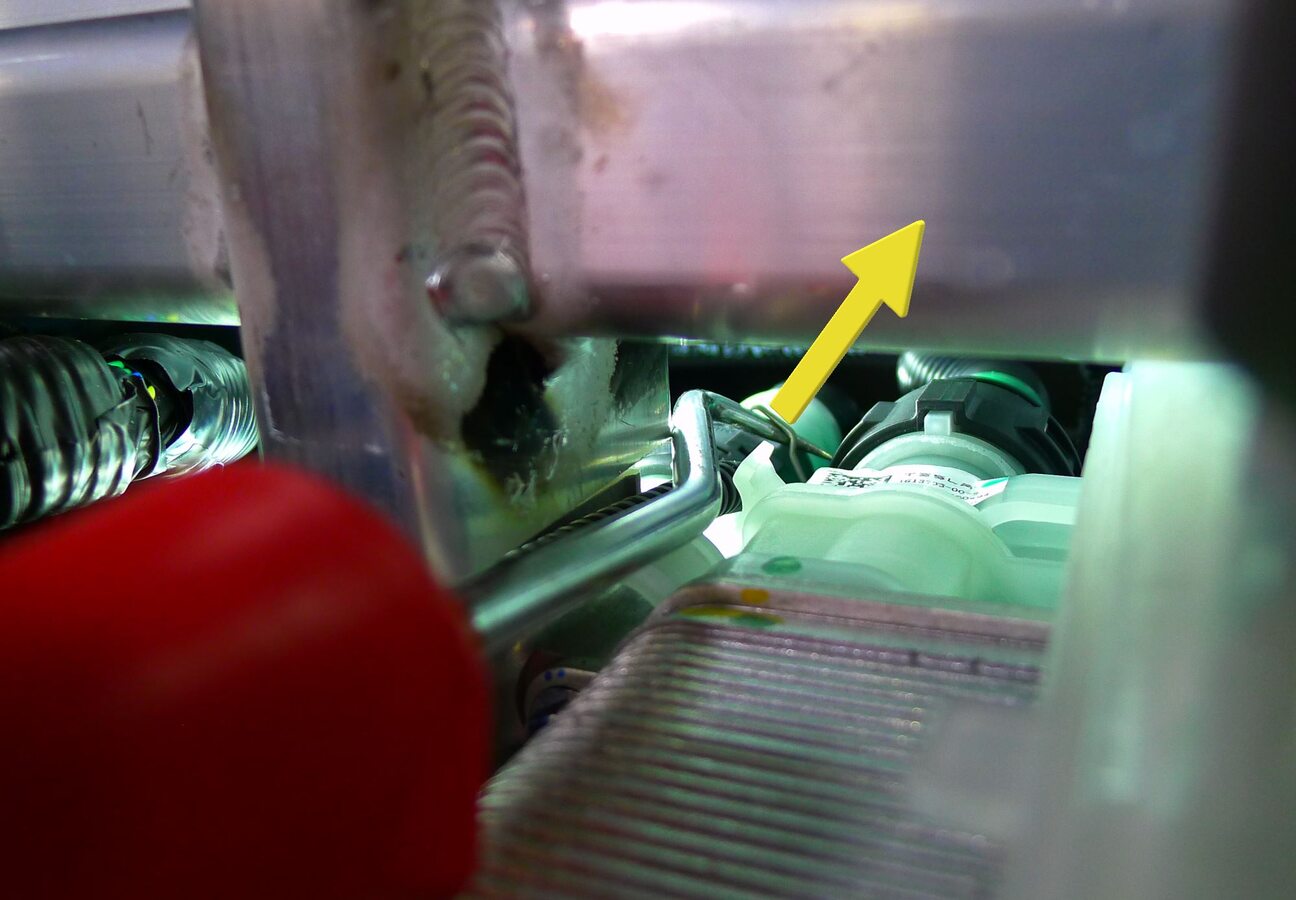

1x spring clip, Spring is accessible from the front of the supermanifold
Disconnect the HV battery return hose from the Supermanifold

Note
1x spring clip

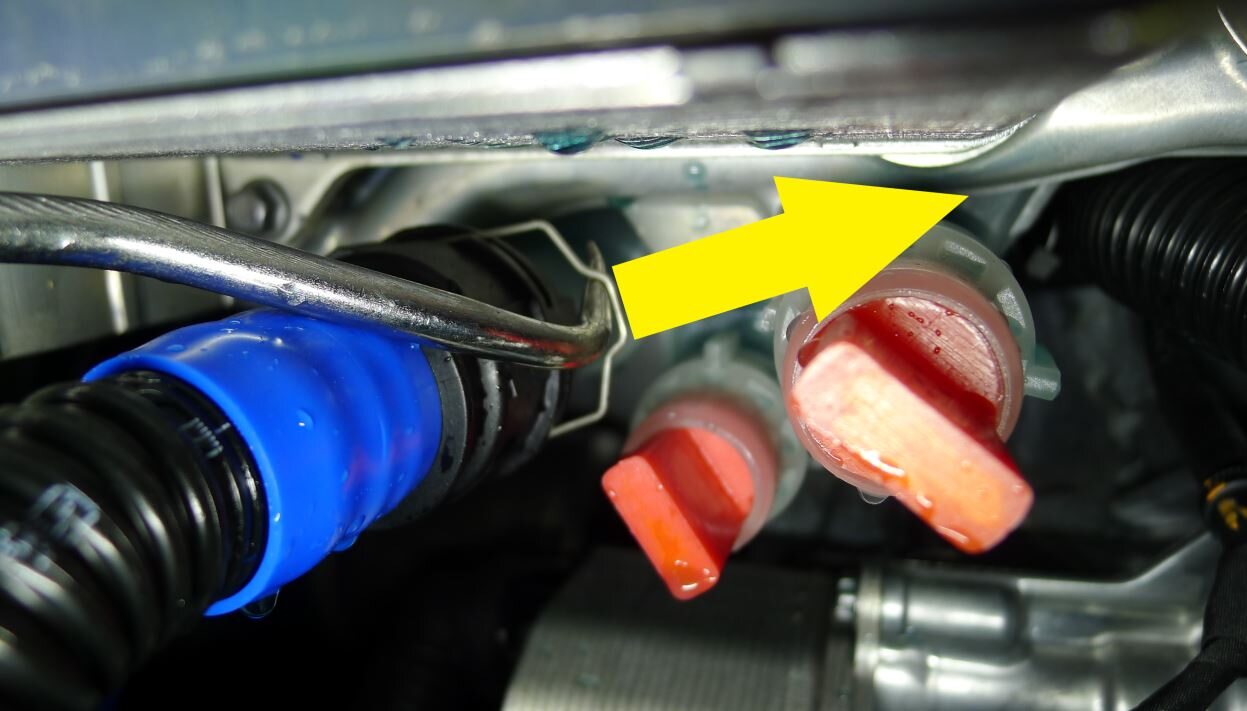

Disconnect chiller to battery hose from supermanifold

Note
1x spring clip

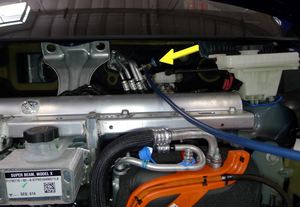

Install 3 male plugs into the coolant ports at the rear of the Supermanifold

Note
3x plugs, This will avoid any cross contamination

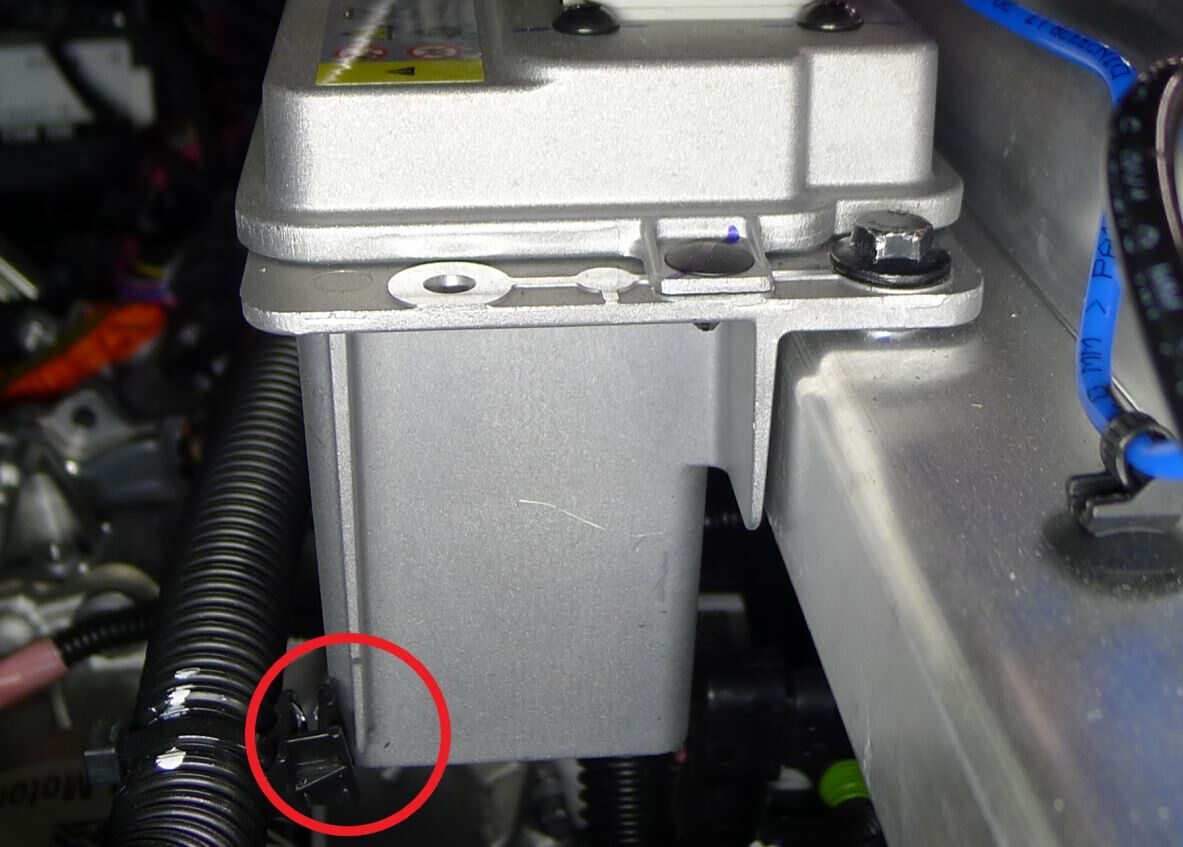

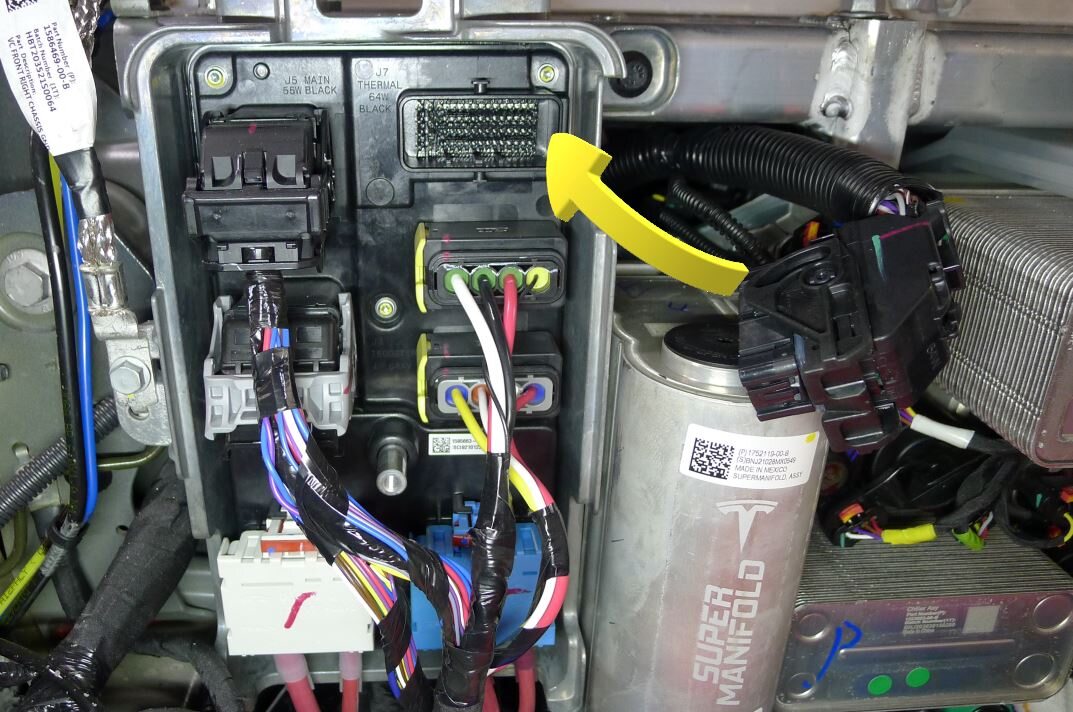

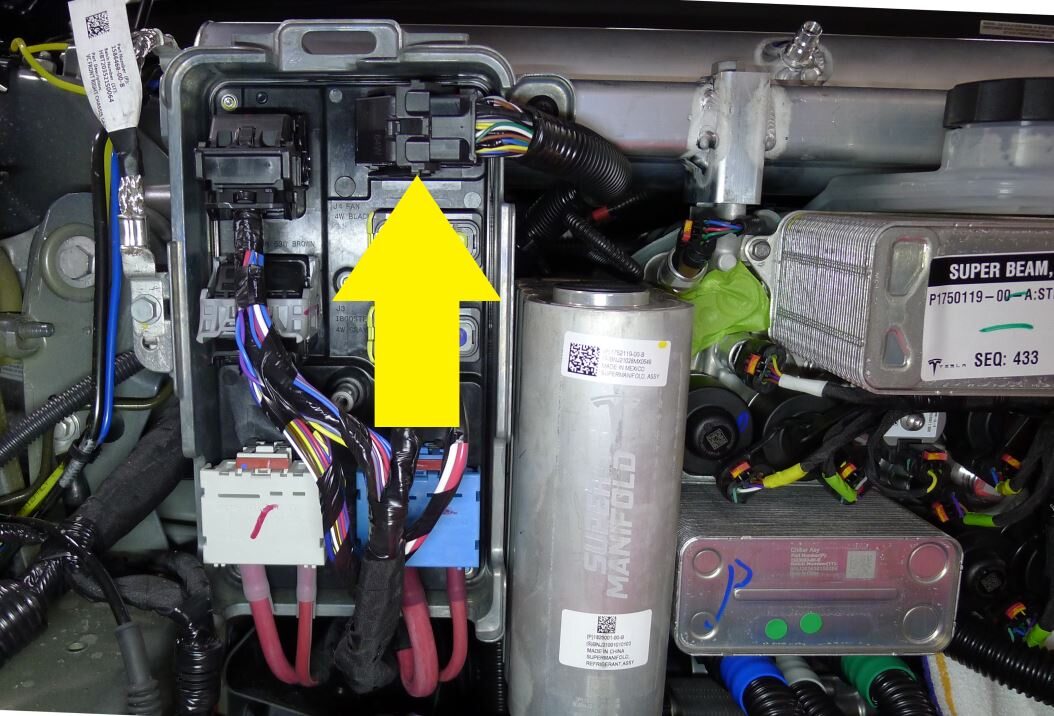

Disconnect the supermanifold harness from the front controller

Note
1x connector

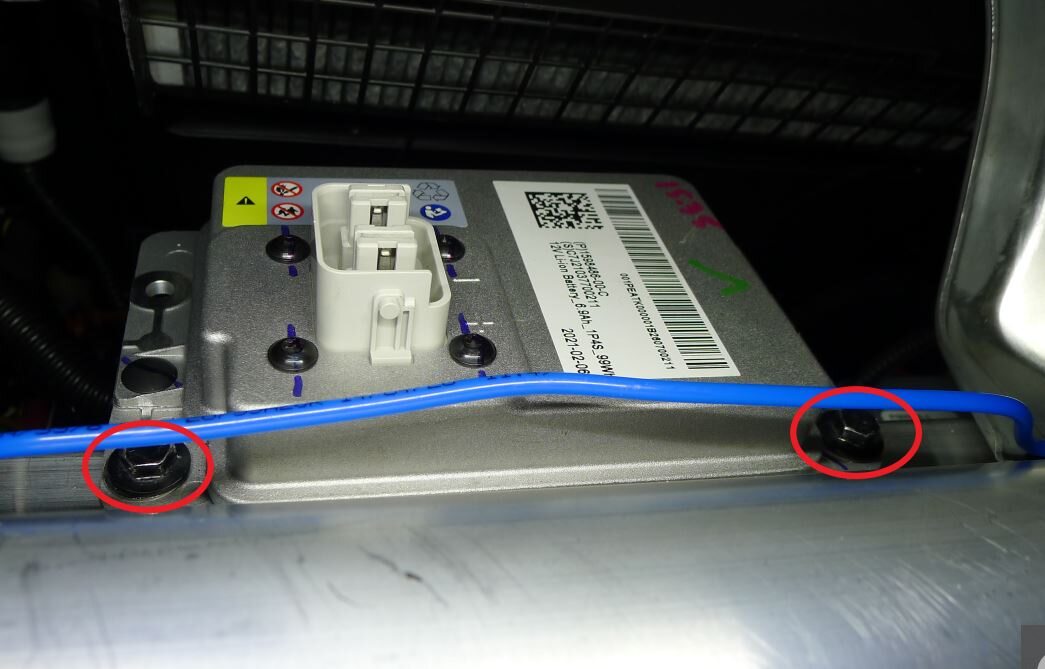

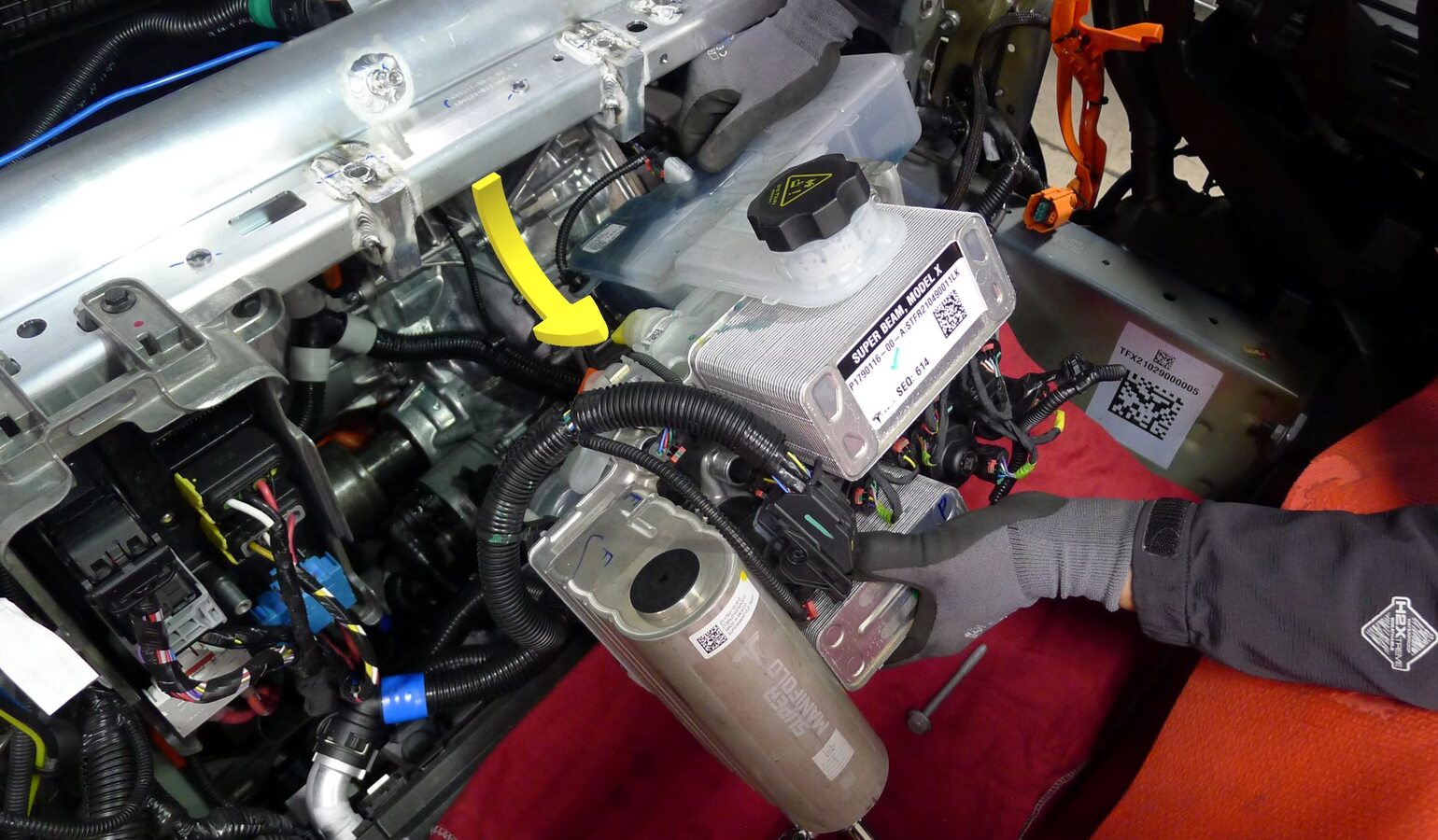

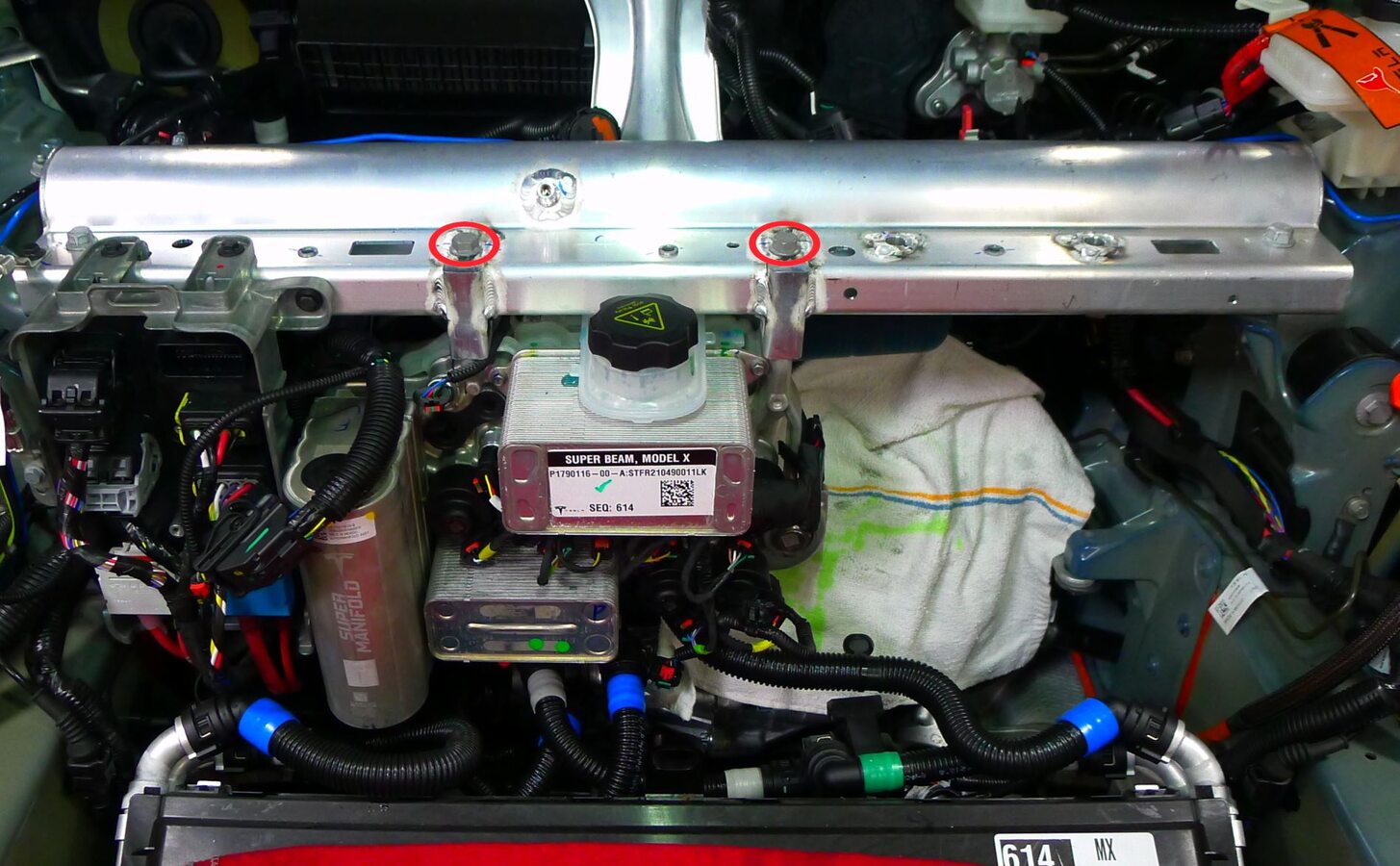

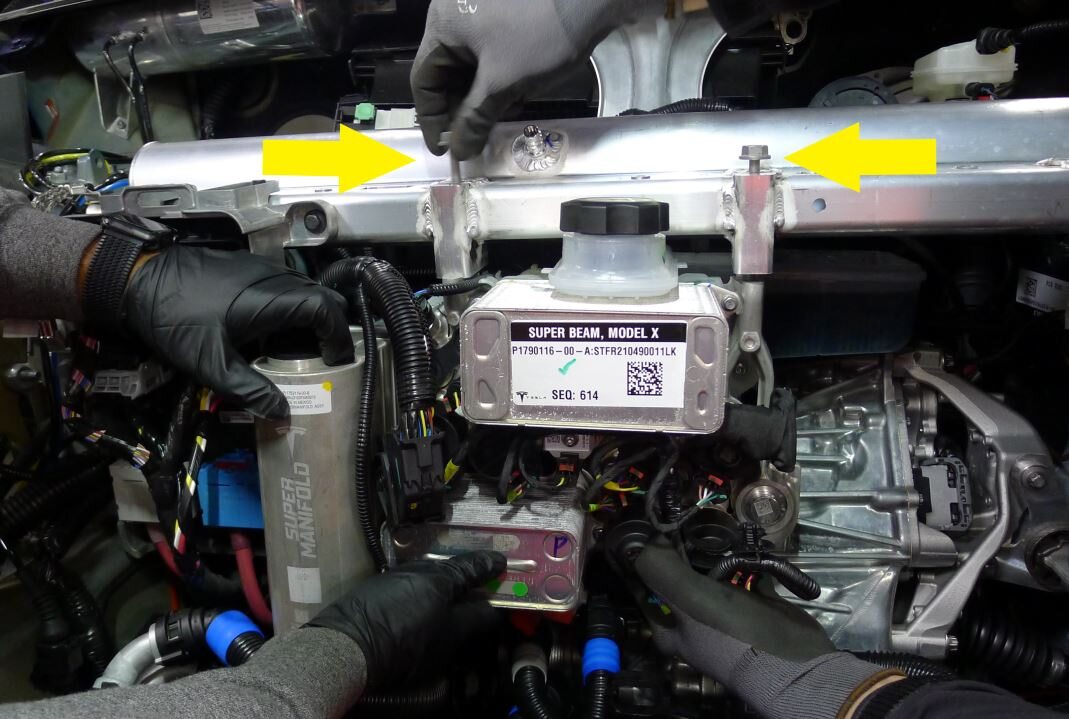

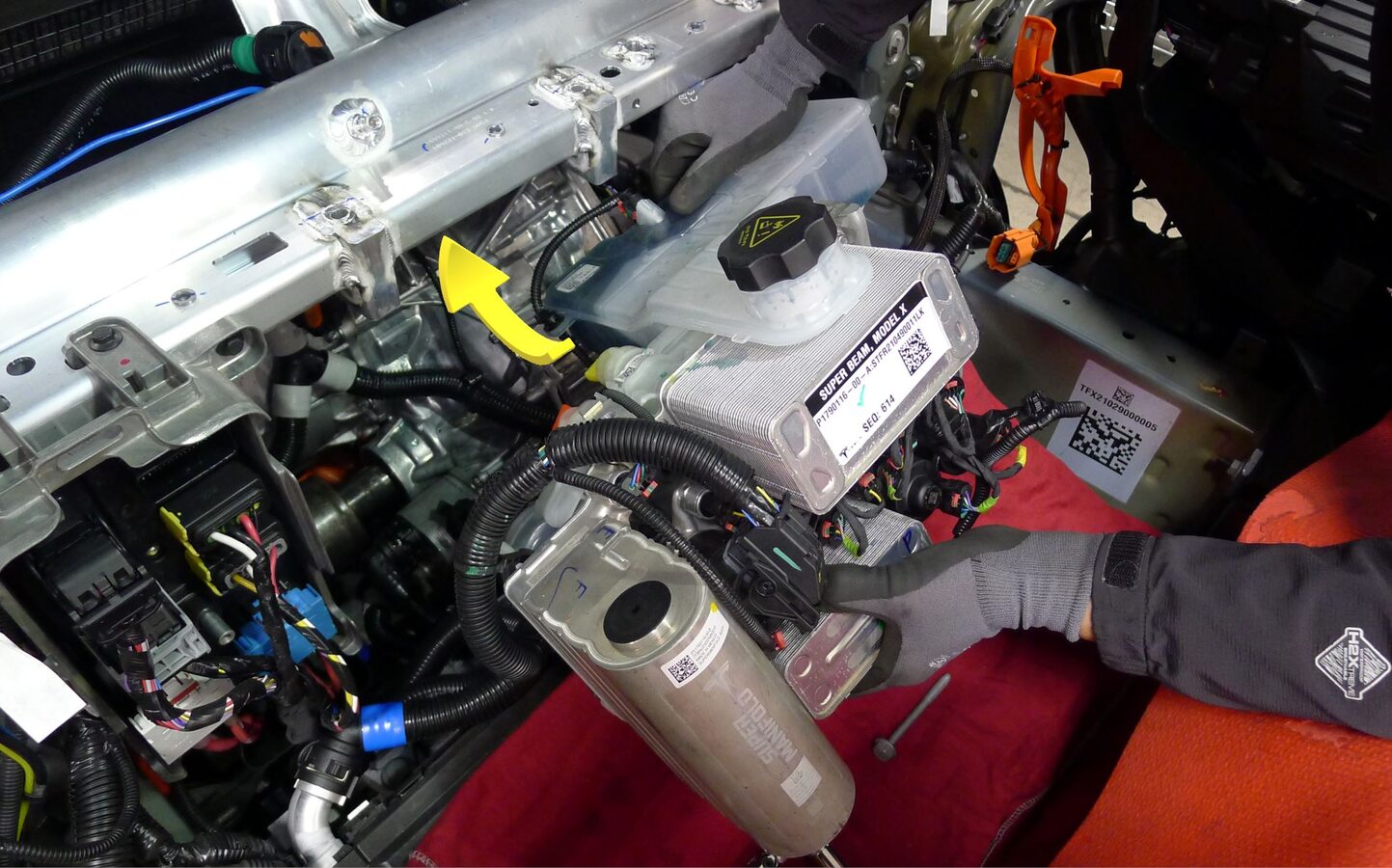

Remove the bolts securing the supermanifold to the multi-system beam and remove the Supermanifold from the vehicle

Note
2x bolts, 15 mm, 31 Nm, Recommend assistance, Rotate the Supermanifold counter clockwise under the multi-system beam, Support from underneath and at reservoir

Install

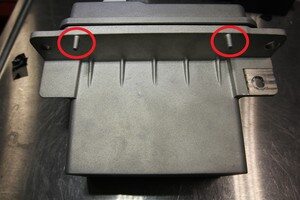

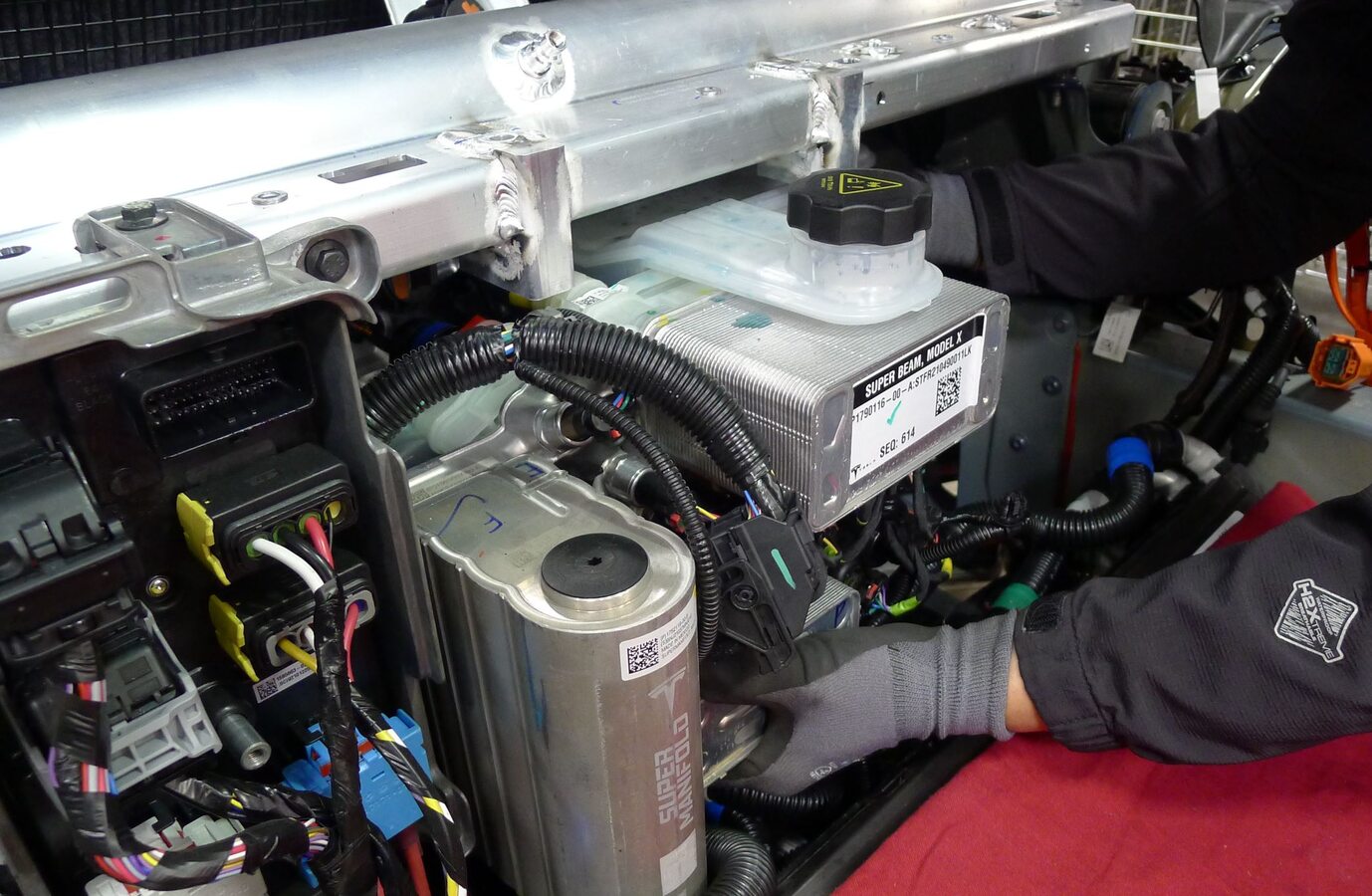

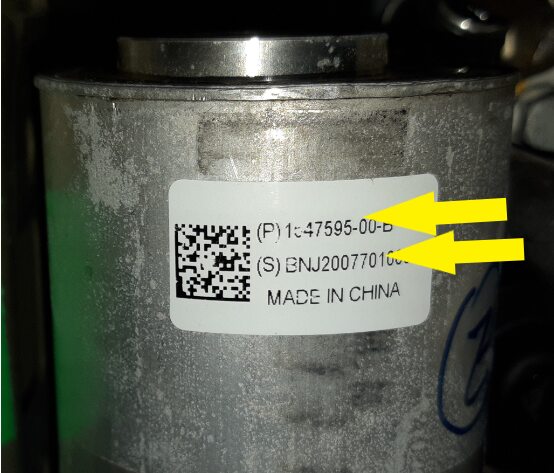

Document old and new part numbers and serial numbers for Supermanifold

Note
Label is located in front of accumulator, document part numbers and serial numbers into the repair order

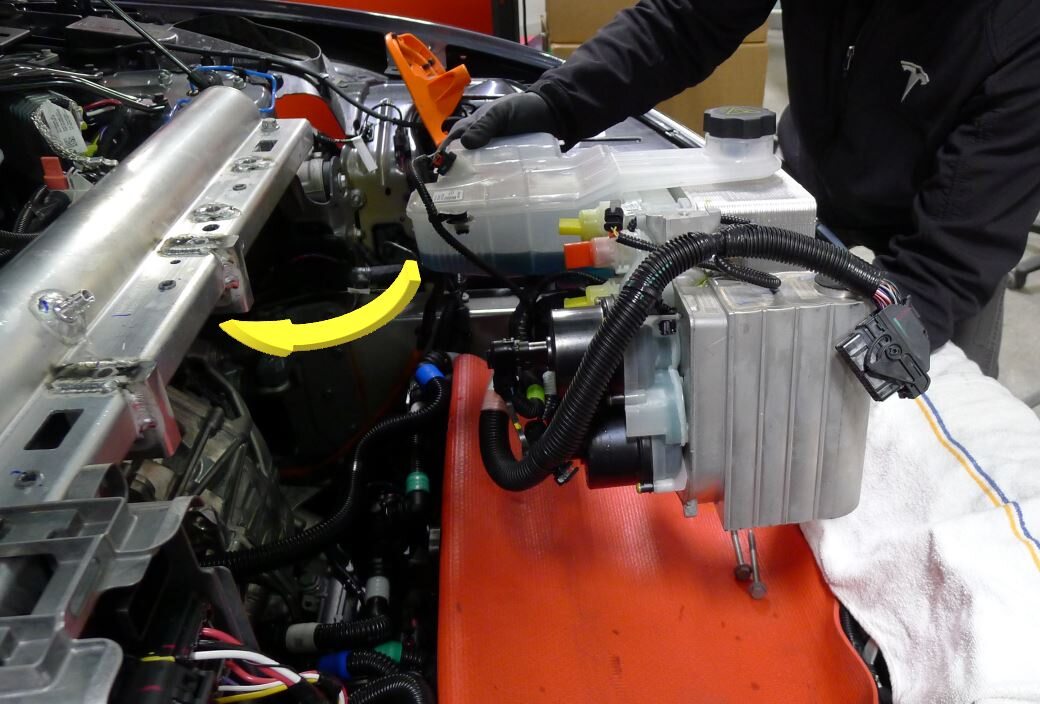

Install the Supermanifold into the vehicle and install the bolts securing the Supermanifold to the multi-system beam

Note
2x bolts, 15 mm, 31 Nm, Recommend assistance, Rotate the Supermanifold clockwise under the multi-system beam, Support from underneath and at reservoir, Hand start bolts to Supermanifold
Connect the supermanifold harness from the front controller

Note
1x connector
Connect the chiller to battery hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated
Connect the HV battery return hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated
Connect the powertrain supply hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated
Connect the sensor for the powertrain supply hose

Note
1x locking electrical connector, Engage locking tab
Remove female plugs from inlet, outlet, and bypass hoses

Note
3x female plugs
Connect the radiator inlet hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated
Connect the radiator outlet hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated
Connect the powertrain bypass hose to the Supermanifold

Note
1x spring clip, Perform push-pull-push test to make sure hose is fully seated

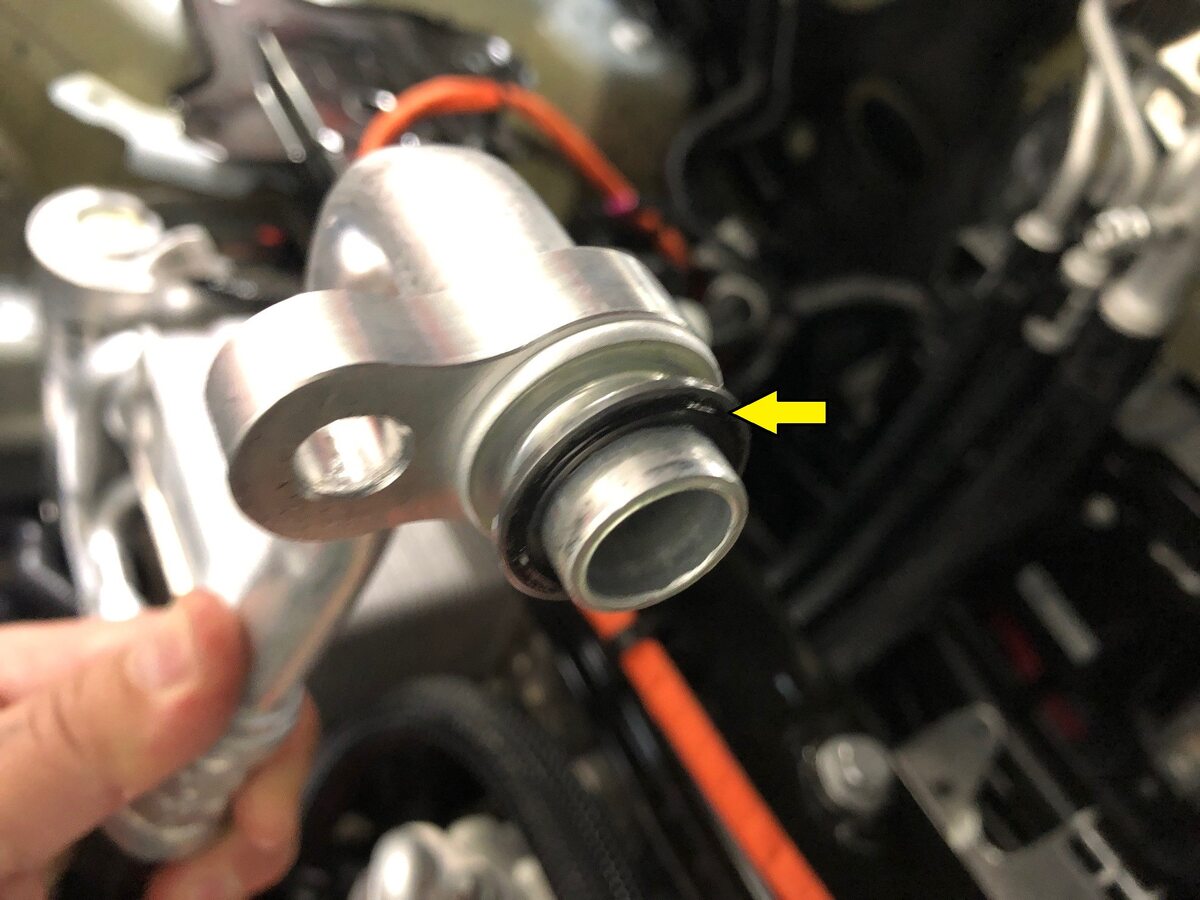

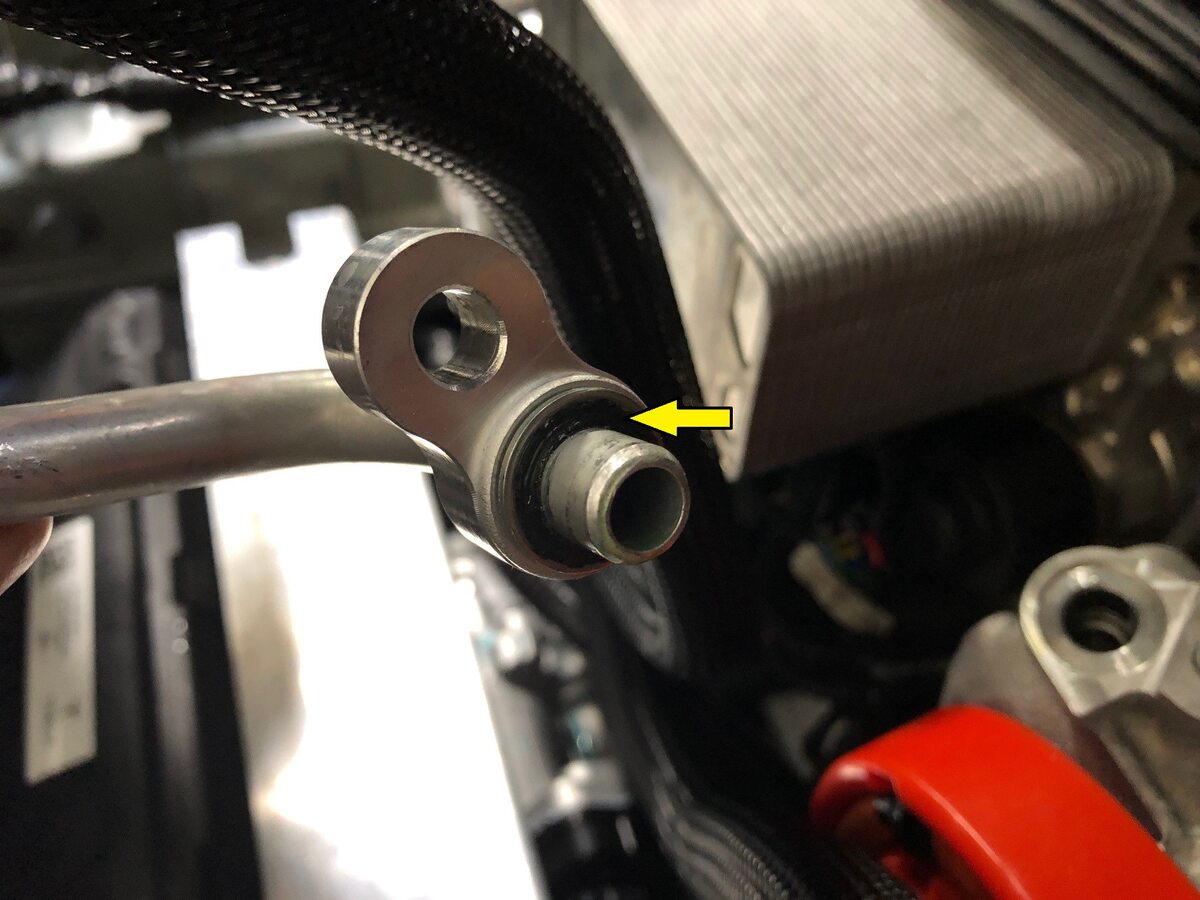

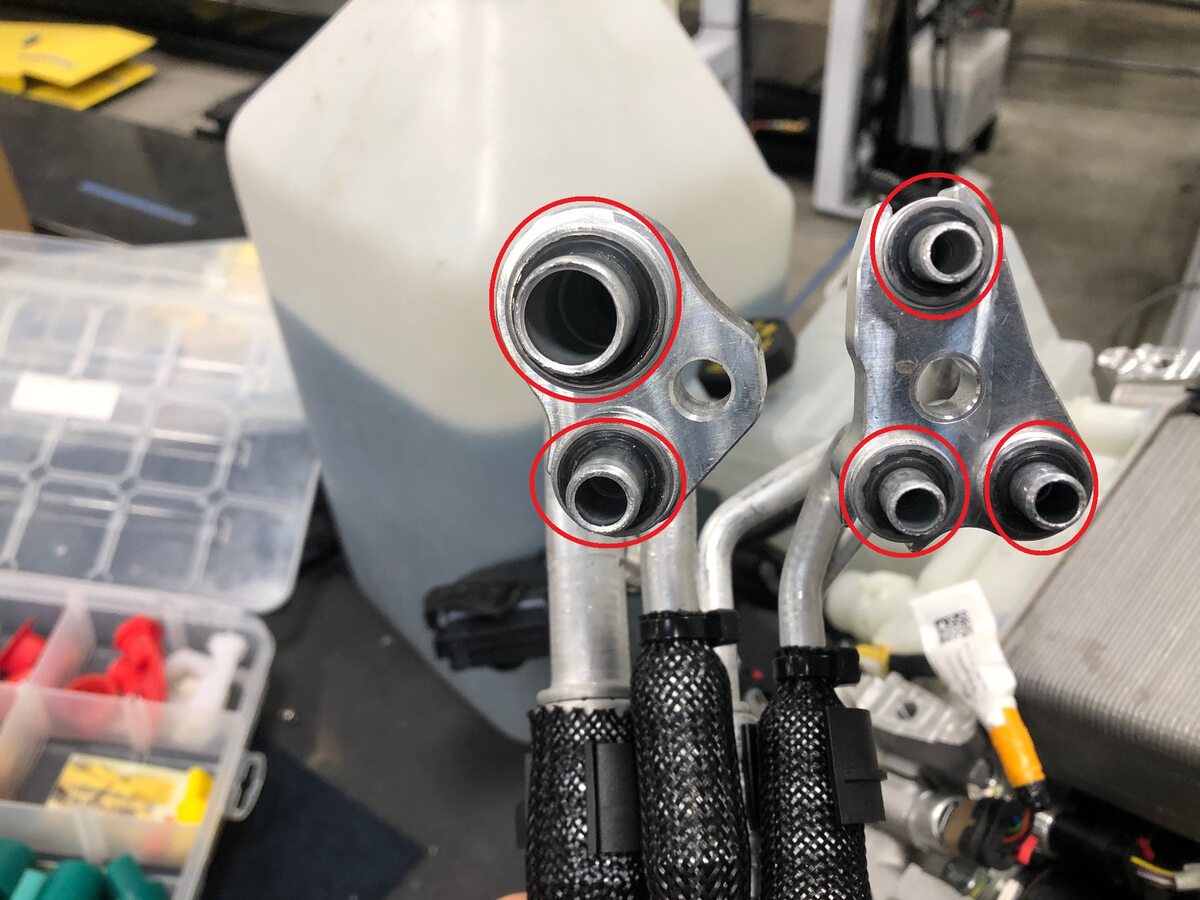

Replace the seal washers to the Penta HVAC line on the AC manifold side

Note
5x seal washers, Lube seal washers with ND-11 oil
Replace the seal washers to the Penta HVAC line on the HVAC side

Note
5x seal washers, Lube seal washers with ND-11 oil

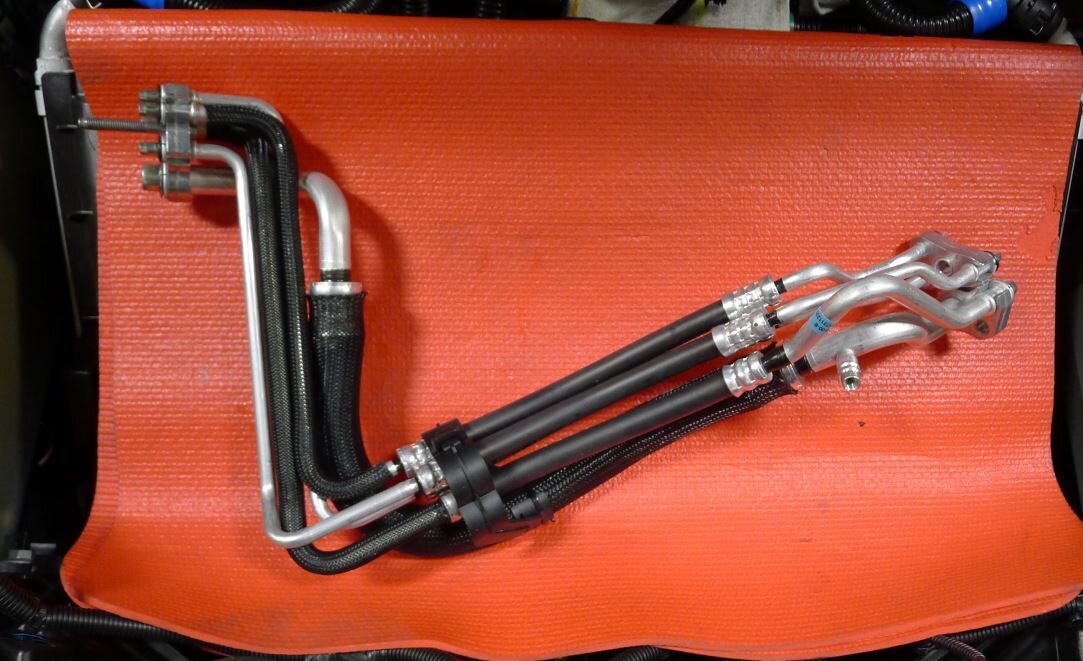

Position Penta HVAC line into vehicle

Note
Negotiate around coolant reservoir
Install Penta HVAC line to HVAC assembly

Note
2x bolts, 13mm, 22 Nm
Install Penta HVAC line to the Supermanifold plate

Note
Located under multi-system beam, Ensure Penta HVAC line stud clears Supermanifold plate before engaging pipes
Install Penta HVAC line assembly nut to the Supermanifold plate

Note
1x nut, 13mm, 27 Nm, Located under multi-system beam

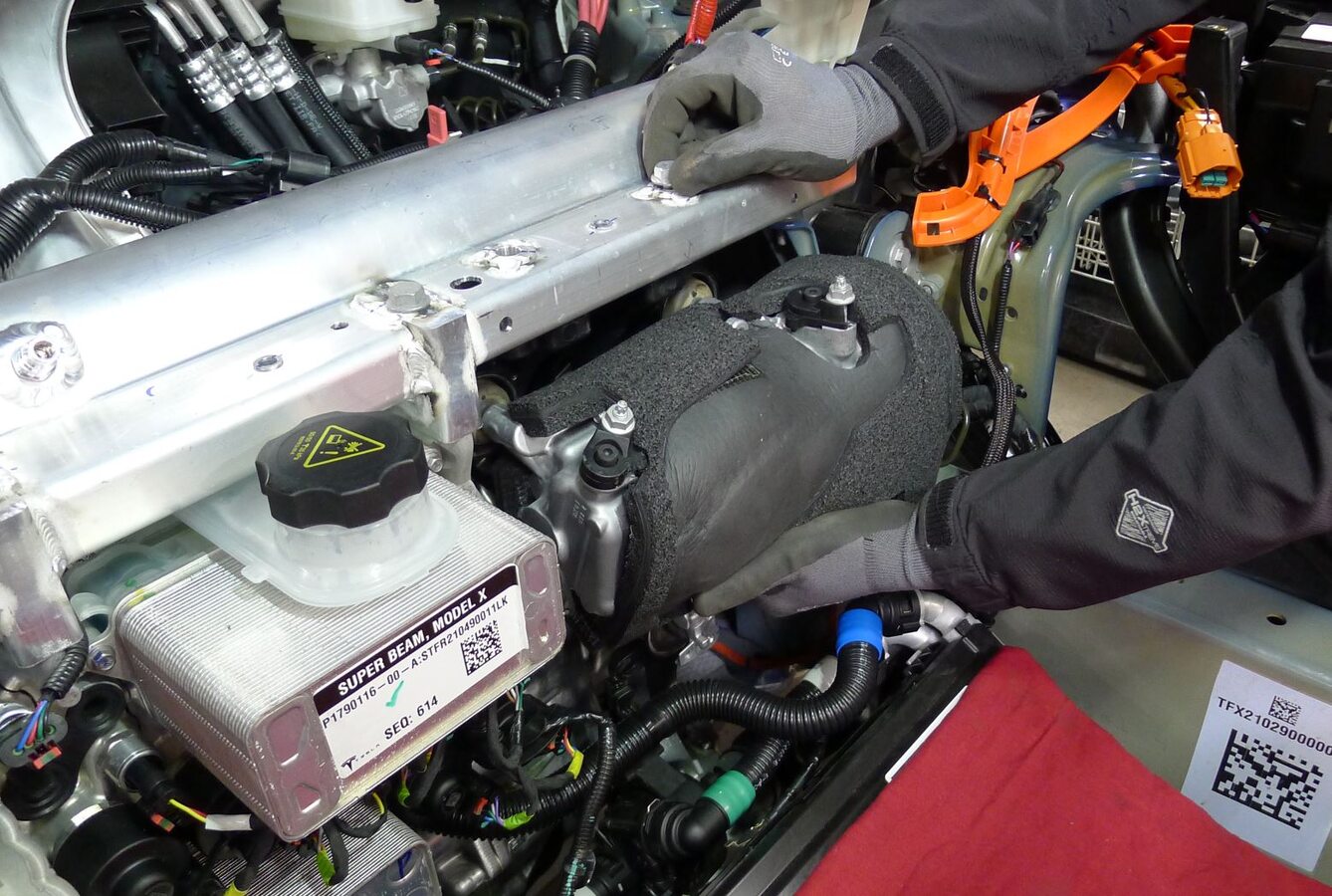

Position AC compressor bracket assembly into vehicle and secure AC compressor assembly to multi-system beam

Note
2x bolts, 15mm, 31 Nm, Recommend assistance, Support the AC compressor while installing the fasteners, Carefully install the AC compressor and AC compressor bracket towards the rear of the vehicle and under the multi-system beam, Negotiate bracket around coolant hose and supermanifold harness, Hand start bolts
Torque AC compressor bracket bolts to multi-system beam

Note
2x bolts, 15mm, 31 Nm

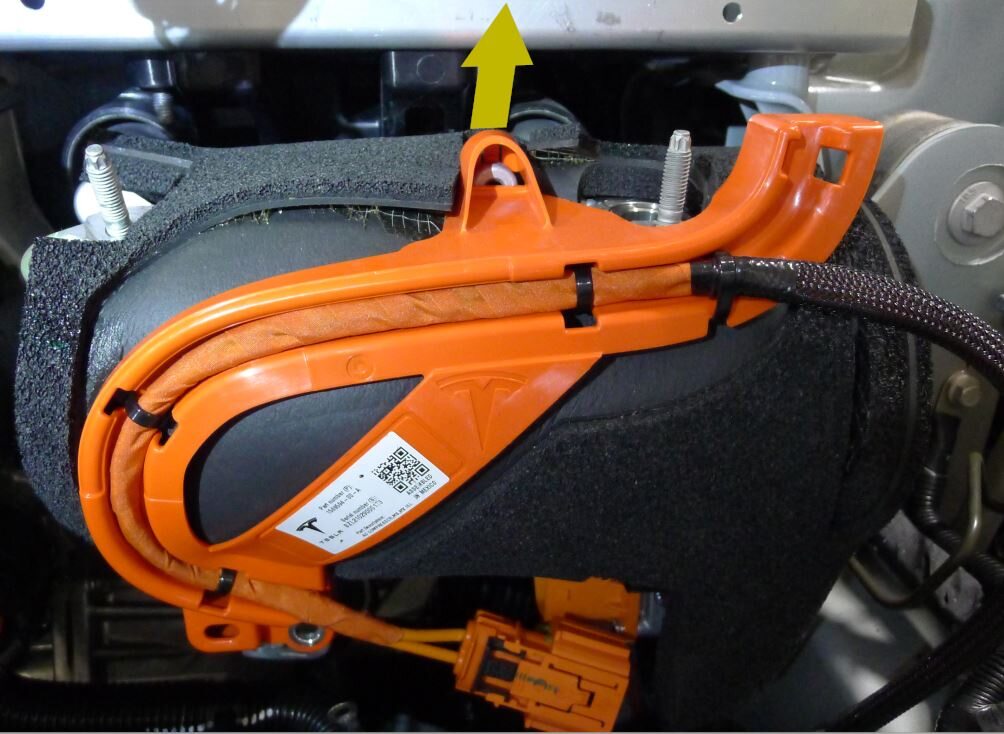

Secure HV heat pump bracket to AC compressor eyelet

Note
Ensure locking tab engages eyelet
Connect HV harness connector to AC compressor

Note
1x locking electrical connector, 3 stage locking connector, After fully seating the connector onto the AC compressor engage the black locking tab by pushing toward the AC compressor, Perform push-pull-push test to ensure proper seating
Install fastener securing AC compressor HV harness bracket to AC compressor

Note
1x bolt, 13mm, 9 Nm
Install AC compressor ground strap

Note
1x bolt, T25, 7 Nm
Connect retaining clip securing AC compressor logic harness to AC compressor HV harness bracket

Note
1x fir tree clip
Re-connect AC compressor logic connector

Note
1x locking electrical connector
Secure PT coolant pump onto AC compressor bracket

Note
Slide pump assembly onto compressor lower bracket
Install clip securing the coolant hose to the AC compressor bracket

Note
1x fir tree clip
Replace seal washers for supermanifold to compressor AC line on supermanifold side

Note
2x seal washers, Lube seal washers with ND-11 oil
Install AC manifold line onto Supermanifold

Note
1x bolt, 13mm, 22 Nm, Inspect o-rings replace if damaged, Hand start bolt to prevent stripped threads
Replace seal washer on supermanifold to compressor AC line assembly on compressor discharge line

Note
1x seal washer, Lube seal washers with ND-11 oil
Replace seal washer on supermanifold to compressor AC line assembly on compressor suction line

Note
1x seal washer, Lube seal washers with ND-11 oil
Install nut securing supermanifold to compressor discharge line to compressor

Note
1x nut, 13mm, 22 Nm, Inspect o-rings replace if damaged
Install nut securing supermanifold to compressor suction line to compressor

Note
1x nut, 13mm, 22 Nm, Inspect o-rings replace if damaged
Install LV battery to multi-system beam

Note
3x bolts, 10mm, 9 Nm. 2x locators
Secure coolant hose to LV battery

Note
1x clip
Connect the First Responder Loop and LV battery connector.
Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes):
PROC_VCFRONT_X_START-THERMAL-FILL-DRAIN
via Toolbox: (link)via Service Mode:
Thermal ➜ Actions ➜ Start Thermal Fill/Drain
Thermal ➜ Coolant System ➜ Start Coolant Fill/Drain
Thermal ➜ Refrigerant System ➜ Start Refrigerant Fill/Drain
via Service Mode Plus: Drive Inverter ➜ Front Drive Inverter Replacement ➜ Start Fluid Fill/Drain
window will appear
Note
Select ‘X’ at top left of window to close once complete, Verify indicator displays green for both Coolant and Refrigerant readiness, Thermal Fill Drain routine has a 5 hour time limit, After 5 hours EXV's will close and routine must be performed again
Remove coolant bottle cap
Install vacuum refill cap onto coolant bottle assembly
Place empty coolant container into front storage area

Note
CFM fan shroud assembly cannot support a full coolant container, Ensure overflow container is empty, Place fender cover over FEM and front fascia

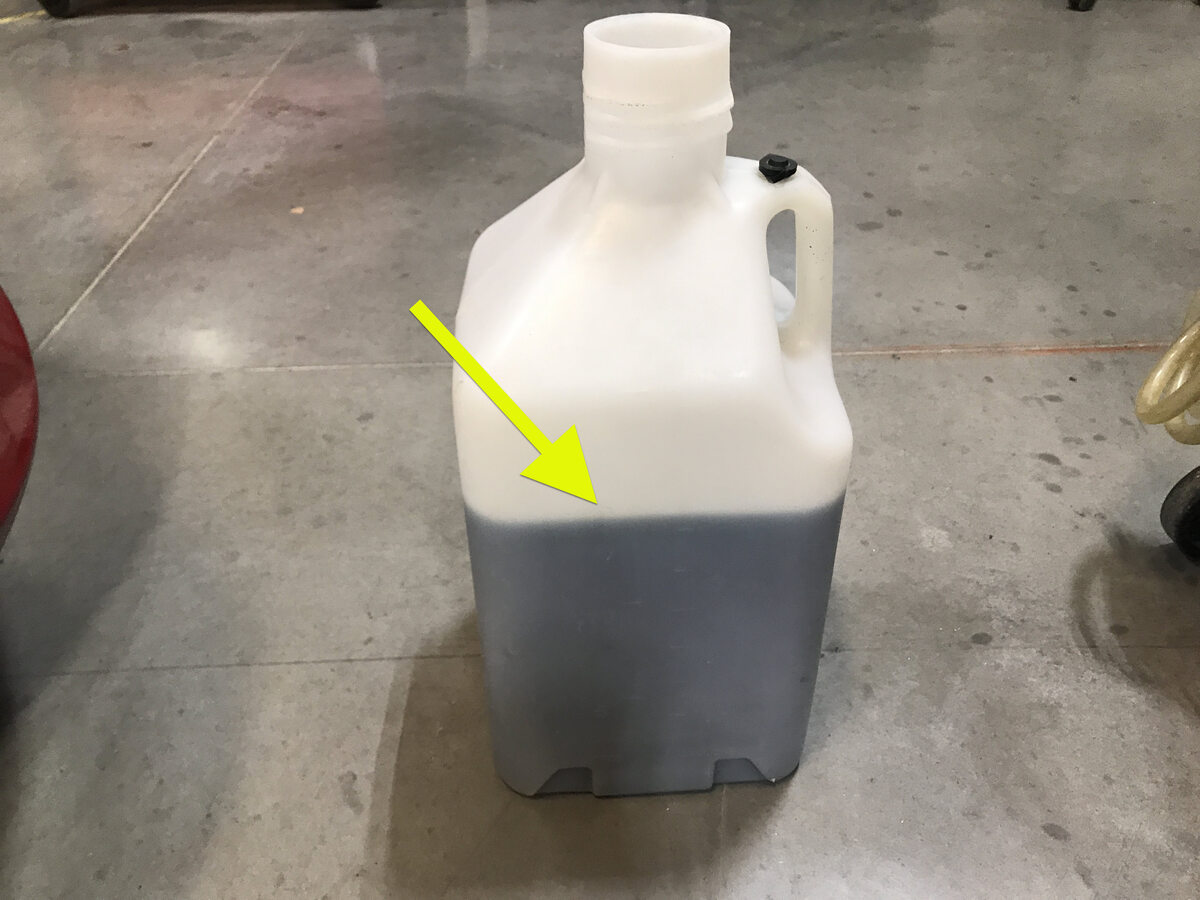

Fill container with at least 15L of coolant

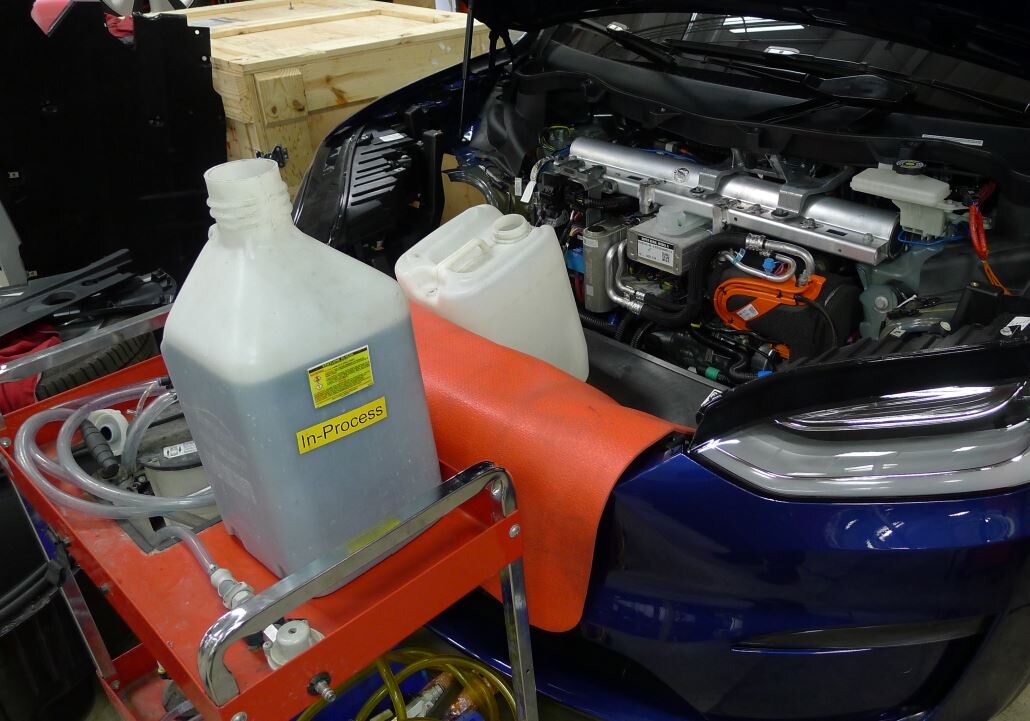

Place filled coolant container onto coolant drain & fill cart

Note
Do not place container with 15L of coolant on top of CFM fan shroud, Position cart as close as possible to front of vehicle

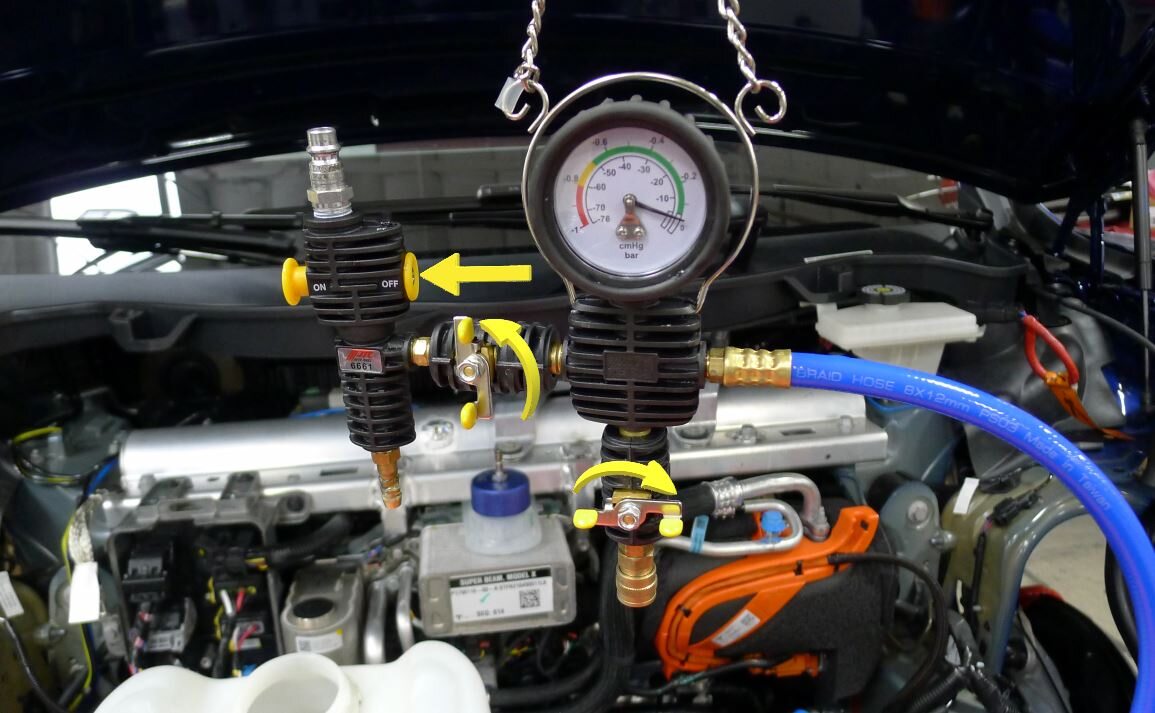

Setup coolant refill tool

Note

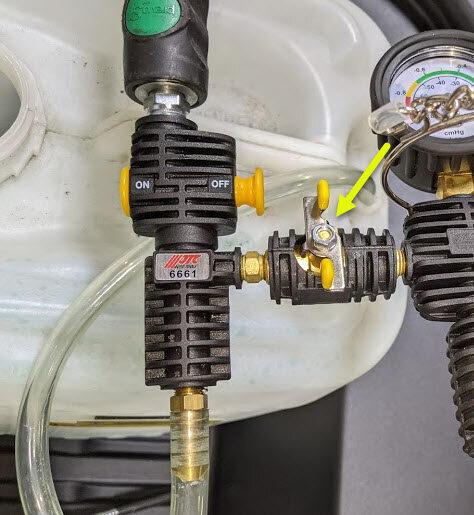

Verify all valves on refill tool are in the closed position, See image for clarity

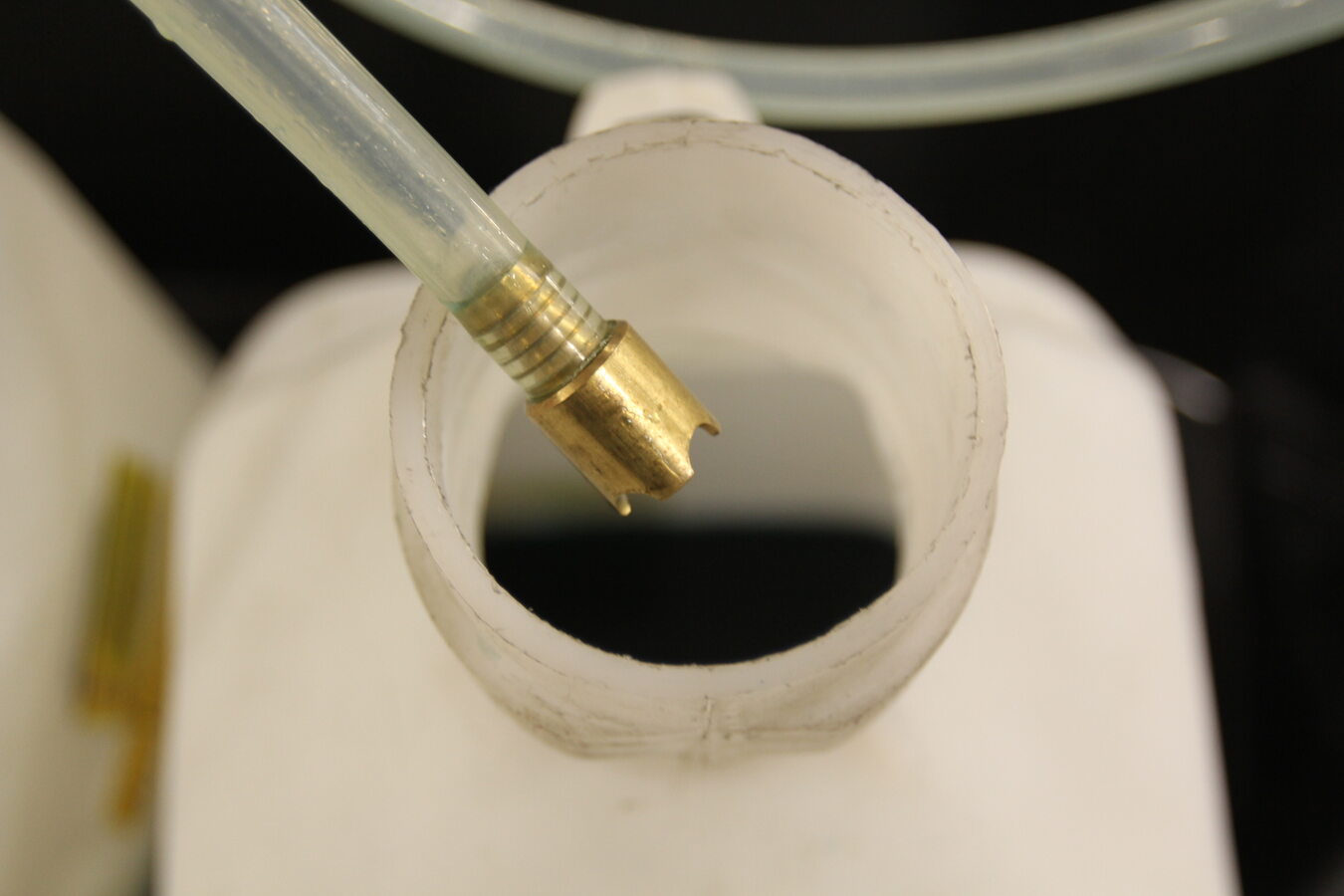

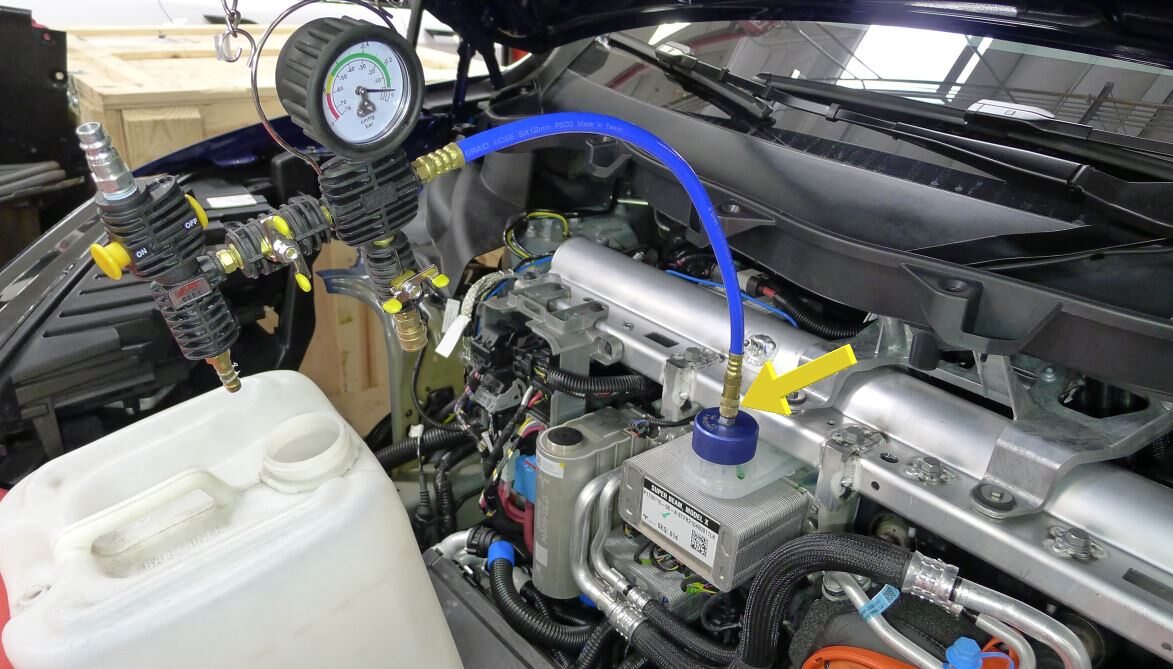

Install vacuum refill hose into refill cap on coolant bottle

Note
Perform push-pull-push test to verify hose is fully installed

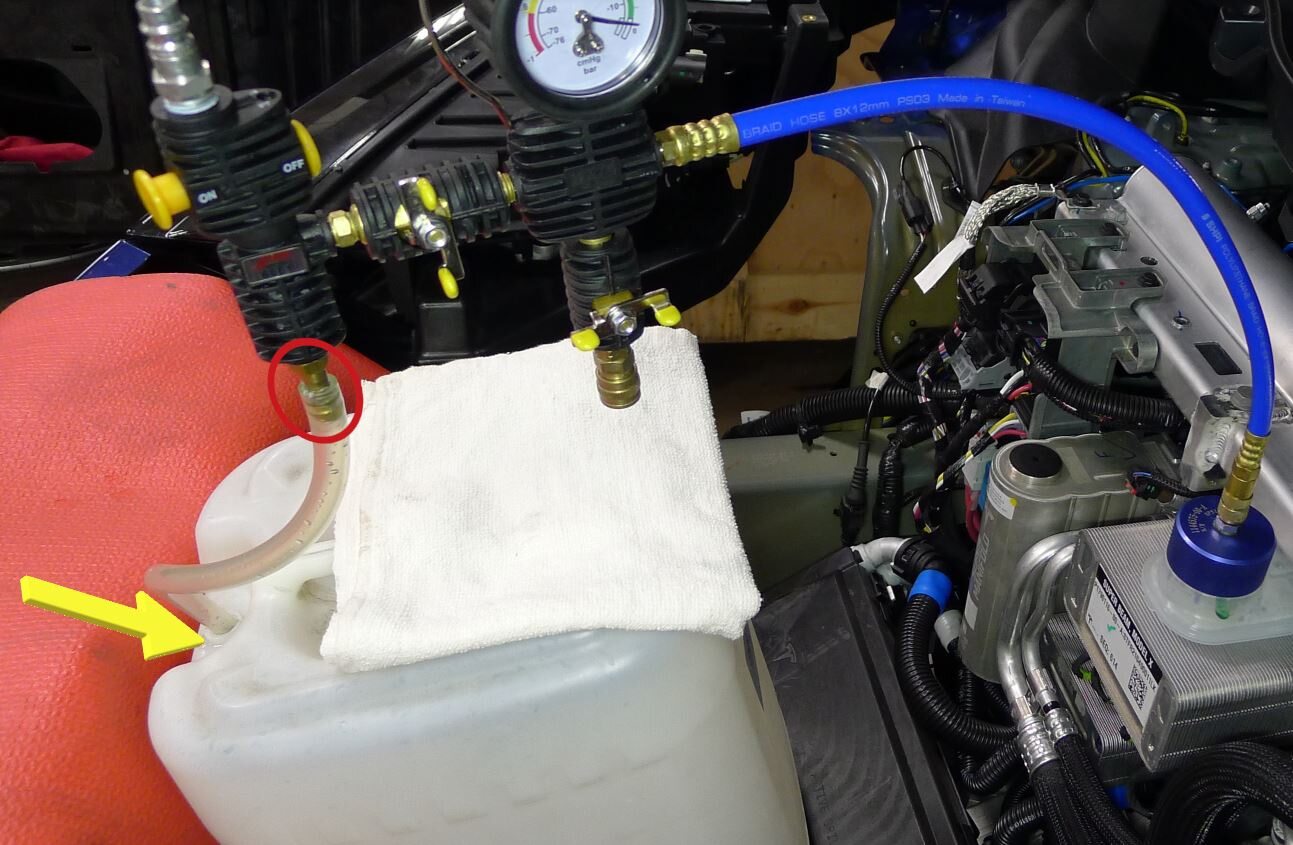

Position overflow hose into empty container
Place refill hose inside filled coolant container

Note
Make sure hose end is fully submerged into coolant

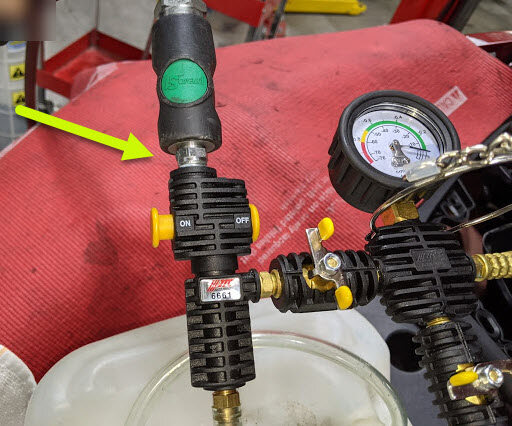

Connect shop air supply to coolant refill tool

Note
If not already done, Verify refill valve is set to off

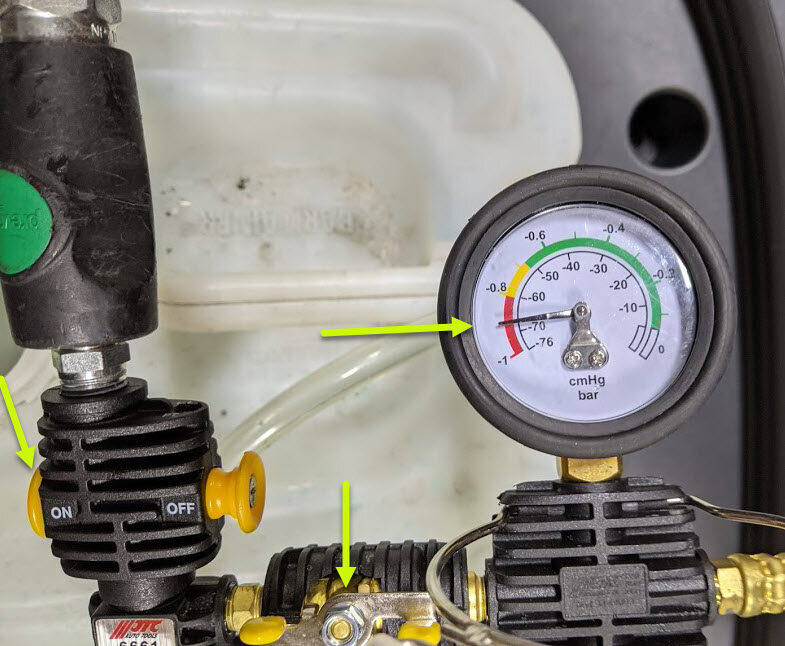

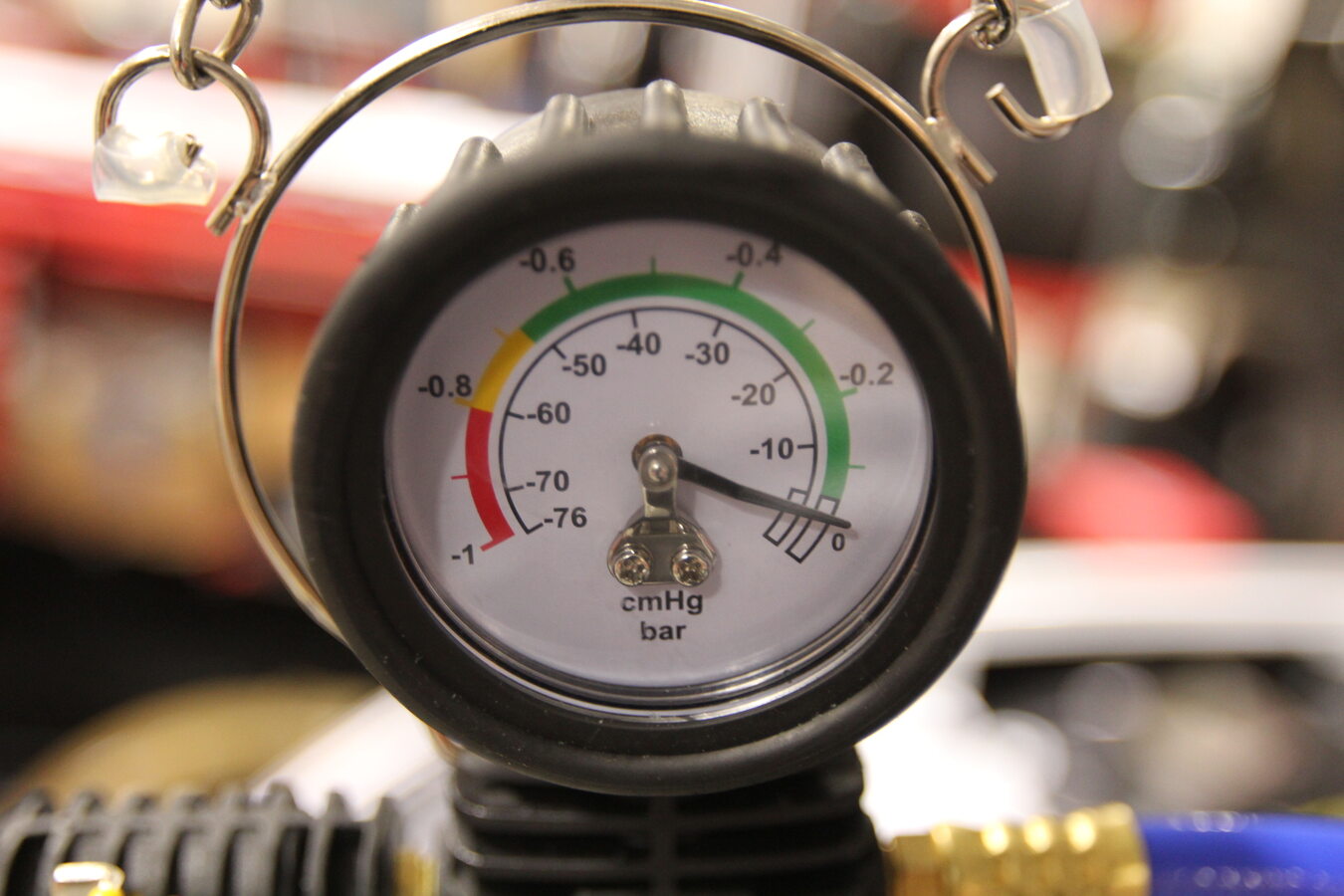

Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve

Note
Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
Slowly open the refill valve to allow coolant to be drawn into the system

Note
Make sure hose end of refill hose is fully submerged during entire process
Once the gauge reads zero, close the coolant refill valve
Remove shop air supply to coolant refill tool

Note
If not already done, Verify refill valve is set to off
Remove coolant refill hose from coolant container
Remove coolant overflow hose from coolant container
Remove vacuum refill hose from refill cap on coolant bottle
Remove vacuum refill cap from coolant bottle assembly
Remove coolant refill tool from vehicle

Note
Move coolant drain & fill cart away from vehicle
Remove both coolant container and fender cover from inside underhood area
Connect AC hoses to vehicle
Verify Thermal Fill Drain then Perform AC vacuum and run leak test

Note
First verify indicator displays green if it is vehicle is ready for vacuum, Set vacuum time to 15 minutes and leak test to ON, Machine will chime once process is complete, Vehicle may be left unattended, Verify leak test passed before continuing

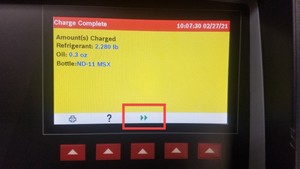

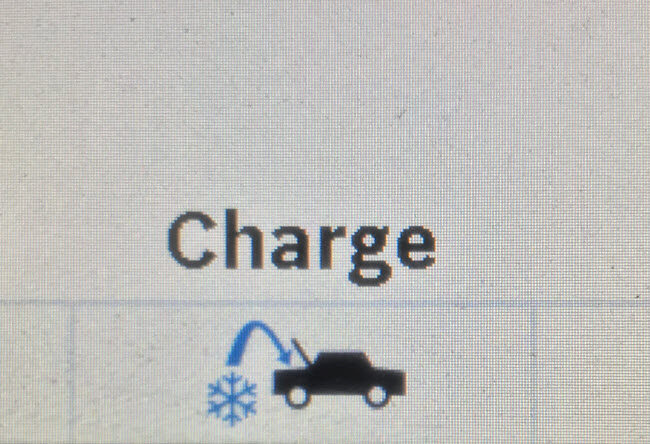

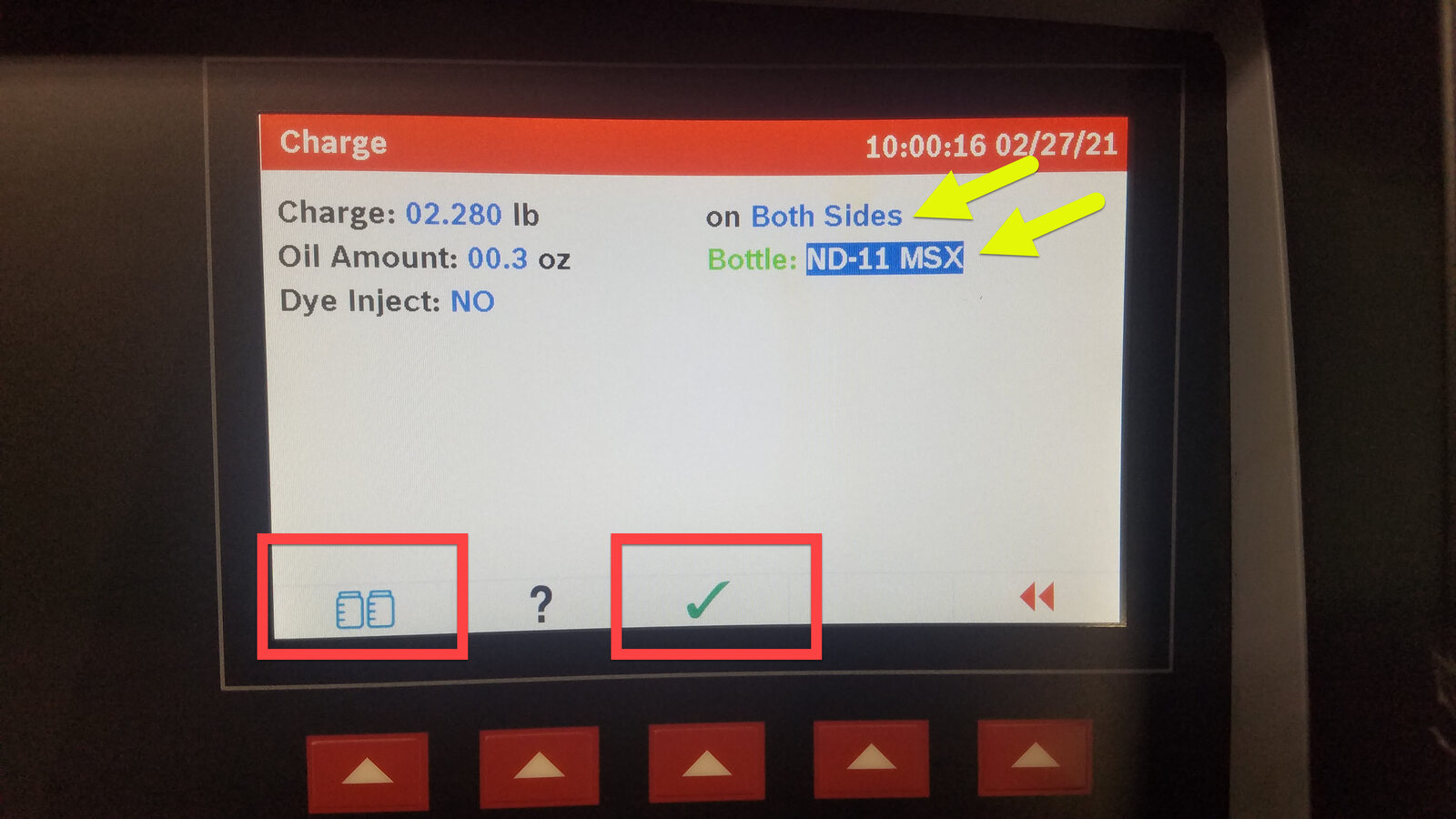

Perform AC recharge

Note
Enter refrigerant and oil amount noted at AC recovery, Settings should match notes, Select Both Sides for charge, Select ND-11 MSX using bottle icon, Machine will chime once process is complete, Vehicle may be left unattended, If desired use the Dye Inject option to inject leak detection dye
Proceed with Hose Equalize steps to complete AC recharge process and follow instructions displayed on AC Machine

Note
Disconnect high side coupler from vehicle, Turn AC on, Temp setting LO, Panel mode on, Fresh air mode on, Blower speed set to 10, Verify Hose Equalize settings, Verify discharge pressure does not exceed 26 bar and suction pressure is not below 1.15 bar,

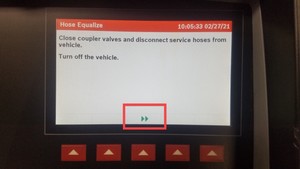

Proceed with Hose Equalize steps to complete AC recharge process and follow instructions displayed on AC Machine

Note
Remove low side coupler from vehicle, Turn vehicle off, Verify Hose Equalize settings, Machine will chime once process is complete
Install caps onto AC ports

Note
2x caps
Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes): window will appear
1. UPDATE_CAN-REDEPLOY
  via Toolbox: (link)via Service Mode Plus:
  Drive Inverter Replacement ➜ Drive Inverter DIRE1L Replacement ➜ CAN Redeploy
  Drive Inverter Replacement ➜ Drive Inverter DIRE1R Replacement ➜ CAN Redeploy
  Drive Inverter Replacement ➜ Drive Inverter DIRE2 Replacement ➜ CAN Redeploy
  Drive Inverter ➜ Front Drive Inverter Replacement ➜ CAN Redeploy
  Drive Inverter ➜ Rear Drive Inverter Replacement ➜ CAN Redeploy
  Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ CAN Redeploy
  Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ CAN Redeploy
  Drive Unit ➜ Front Drive Unit Replacement ➜ CAN Redeploy
  Drive Unit ➜ Rear Drive Unit Replacement ➜ CAN Redeploy
  Thermal ➜ HVAC ➜ CAN Redeploy
  chassis ➜ DPB Post Replacement ➜ CAN Redeploy
  chassis ➜ ESP Post Replacement ➜ CAN Redeploy
  chassis ➜ IDB Post Replacement ➜ CAN Redeploy
  chassis ➜ RCU Post Replacement ➜ CAN Redeploy
  chassis ➜ ESP Replacement Panel ➜ CAN Redeploy
  chassis ➜ IBST Replacement Panel ➜ CAN Redeploy
2. PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAIN
  via Toolbox: (link)via Service Mode:
  Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
  Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
  Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain
  via Service Mode Plus:
  Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
  Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
  Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
  Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
  Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
  Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
  Note
  Select ‘X’ at top left of window to close once complete
3. Tap Thermal > Actions > Thermal Configurations > coolantPumpType to inspect the current coolant pump configuration. If the configuration is not DUAL_MIX, change it to DUAL_MIX.
4. TEST-SELF_VCFRONT_X_COOLANT-PUMPS-IDENTIFICATION
  via Toolbox: (link)via Service Mode:
  Thermal ➜ Actions ➜ Run Coolant Pumps Identification
  Thermal ➜ Coolant System ➜ Pump Identification
  Note
  Select ‘X’ at top right of window to close once complete, Ensure VCFRONT_a490_coolantPumpsNotIdentified has cleared
5. TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGE
  via Toolbox: (link)via Service Mode:
  Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
  Thermal ➜ Coolant System ➜ Coolant Purge Start
  via Service Mode Plus:
  Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
  Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
  Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
  Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
  Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
  Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
  Note
  Coolant pumps will be audible, Test lasts approximately 10 mins, Putting vehicle into drive state will stop this routine, Monitor levels as required, Select "X" at top left of window to close once complete
Install wiper module

Note
3x bolts, 10mm, 9 Nm, 1x connector, Secure connector before install, Rotate module rearward and up into place
Install wiper cowl screen panel

Note
4x push clips, Secure cowl into lower windshield channel
Secure cowl screen washer supply hose located above LH shock tower cover

Note
1x hose
Install LH outer hood hinge cover

Note
1x clips
Install RH outer hood hinge cover

Note
1x clips

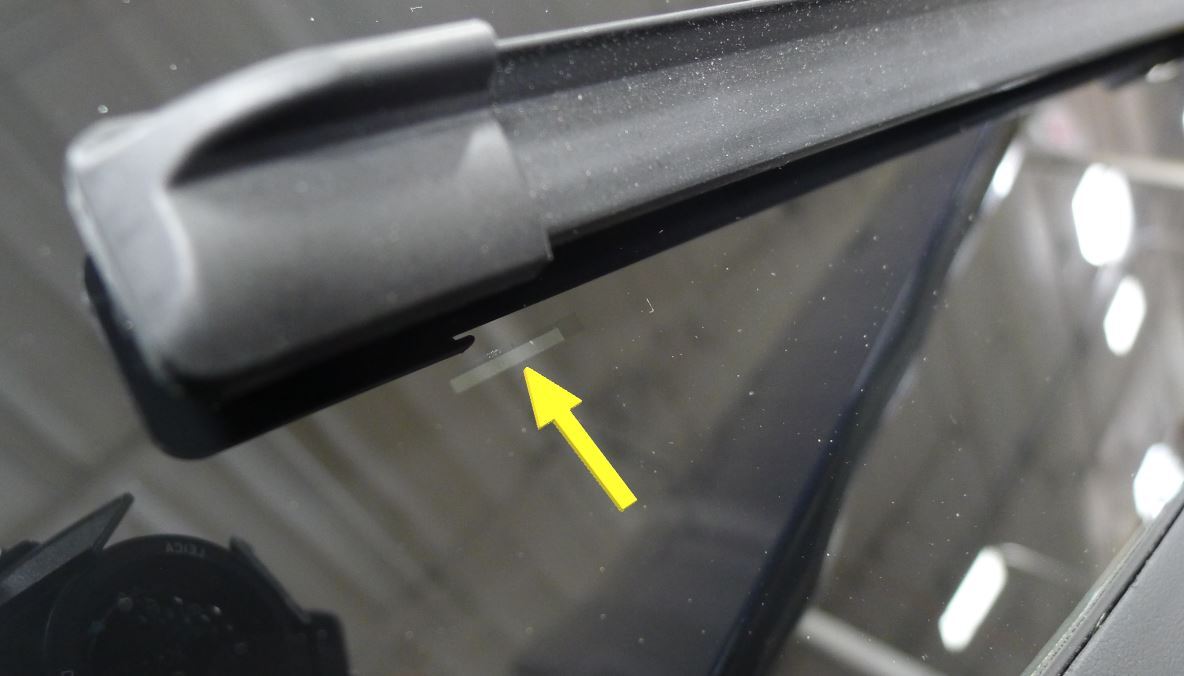

Install RH wiper arm assembly and secure nuts

Note
2x nuts, 15mm, 32 Nm, Line up wiper to reference mark on windshield
Install LH wiper arm assembly and secure nut

Note
1x nut, 15mm, 32 Nm
Secure LH wiper arm hose nozzle

Note
1x hose, Hose is routed above the arm pivot
Secure RH wiper arm hose nozzle

Note
1x hose, Hose is routed below the arm pivot
Install RH wiper arm nut covers

Note
2x cover
Install LH wiper arm nut cover

Note
1x cover
Raise vehicle fully and lower lift onto locks

Note
Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Blow off any residual coolant
Remove coolant catcher from under vehicle
Install clips securing front aero shield

Note
5x push clips
Apply Loctite 222 onto front aero shield bolts and install fasteners securing front aero shield to vehicle

Note
9x bolts, 10mm, 6 Nm
Lower vehicle fully

Note
Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
Inspect coolant level and top off as necessary

Note
Ensure that the fluid level is at the Max line, Top off fluid as required
Install coolant bottle cap
Perform the following routine using Service Mode or Toolbox (see 0005 - Service Modes):
1. TEST-SELF_VCFRONT_X_HEAT-PUMP-COMMISSIONINGvia Toolbox: (link)via Service Mode: Thermal ➜ Refrigerant System ➜ Run Heat Pump Commissioningvia Service Mode Plus: Drive Inverter ➜ Front Drive Inverter Replacement ➜ Heatpump commissioning

  Note
  If this routine is not run after entering Thermal Drain/Fill mode, the AC compressor operation will be blocked, Select "X" at top right of window to close once complete
2. TEST-SELF_VCRIGHT_X_HVAC-PERFORMANCE
  via Toolbox: (link)via Service Mode:
  Thermal ➜ Actions ➜ Test HVAC Performance
  Thermal ➜ HVAC ➜ HVAC Performance Test
  Thermal ➜ Actions ➜ Test HVAC Performance
3. TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCE
  via Toolbox: (link)via Service Mode: Thermal ➜ Actions ➜ Test Thermal Performancevia Service Mode Plus:
  Drive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System Test
  Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System Test
  Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System Test
  Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System Test
  Drive Unit ➜ Front Drive Unit Replacement ➜ Thermal System Test
  Drive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System Test
  Note
  Select "X" at top right of window to close once complete, If thermal test fails follow Toolbox article #206000
Exit Service Mode or disconnect the laptop if applicable (see 0005 - Service Modes).
Install the underhood storage unit. See Underhood Storage Unit (Remove and Install).
Lower and remove the vehicle from the lift.
Calibrate LH and RH Falcon Wing doors from center display

Note
Calibration required after LV system is powered down > Service > Calibrate Doors > Hold down Calibrate doors until doors cycle > Calibration Complete Message will appear

Model X Service Manual

Supermanifold (Remove and Replace)

Remove

Install

Figure 1

Figure 2

Figure 3
