Cover - Front - Seat Track - 1st Row Seat (Remove and Replace)

Correction code 13011812 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Move the driver seat forward.

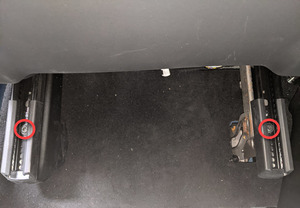

  2. Remove and discard the bolts (x2) that attach the rear of driver seat tracks to the floor panel.
    34 Nm (25.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T45P socket
  3. Move the driver seat backward.

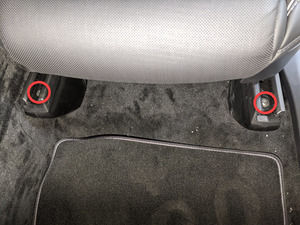

  4. Remove and discard the bolts (x2) that attach the front of the driver seat tracks to the floor panel.
    34 Nm (25.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T45P socket

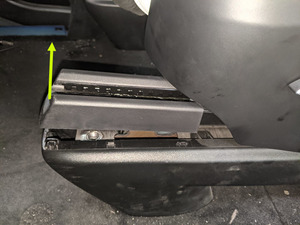

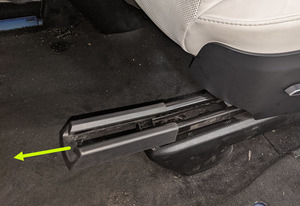

  5. Slightly lift the front portion of the 1st row seat seat track front cover to release it from the seat track, and then slide the track forward to remove it from the seat track.

Install

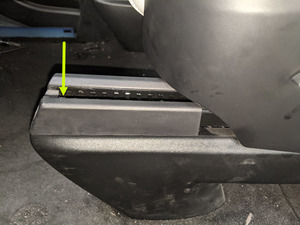

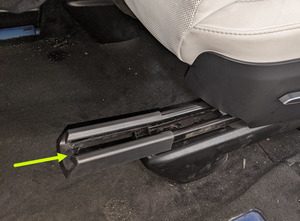

  1. With the front portion of the 1st row seat seat track front cover slightly lifted, slide the cover onto the seat track, and then press downward to ensure it is seated onto the seat track.
  2. Install new bolts (x2) that attach the front of the driver seat tracks to the floor panel.
    34 Nm (25.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T45P socket
  3. Move the driver seat forward.
  4. Install new bolts (x2) that attach the rear of driver seat tracks to the floor panel.
    34 Nm (25.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T45P socket
  5. Move the driver seat to the original position.
