Park Brake Caliper - Caliper Seized/Motor Failure - Release

Correction code 33051005 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
If it not possible to release the brake caliper by shifting to D or R, or through the vehicle touchscreen, or by using Toolbox 3, or by using the jumppack at the brake caliper motor connector, then most likely the caliper shaft has seized, or the caliper motor is damaged. In either case, the brake caliper is to be replaced.

Procedure

  1. Move the vehicle to a 2 post lift. See Raise Vehicle - 2 Post Lift.
  2. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).

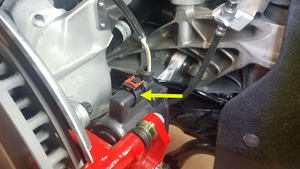

  3. Release the red locking tab, and then disconnect the electrical harness from the LH rear brake caliper motor connector.

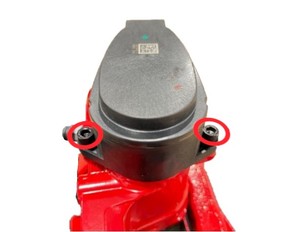

  4. Remove the screws (x2) that attach the LH rear brake caliper motor to the LH rear brake caliper, and then remove the motor from the caliper.

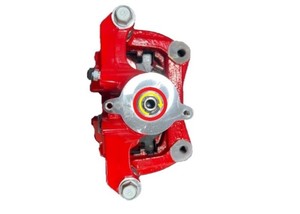

  5. Use a 5 mm Allen wrench or 5 mm hex bit socket to rotate the brake shaft clockwise to back off the piston and release the pads.
  6. Replace the LH rear brake caliper. See Brake Caliper - Rear - LH (Remove and Replace).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    While it is possible to reassemble the motor to the caliper, it is not advised. The motor might be damaged in such a way that it will not engage the brake pads again or will fail to release, or the brake shaft will bind again and either not engage the brake pads or fail to release.
  7. Install the LH rear wheel. See Wheel Assembly (Remove and Install).
