Cable - Cinch - Liftgate (Remove and Replace)

Correction code 11355022 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the liftgate cinching actuator from the vehicle. See Actuator - Cinching - Liftgate (Remove and Replace).

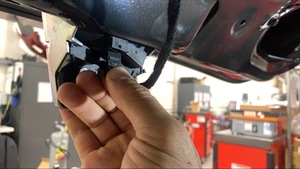

  2. Disconnect the liftgate latch electrical connector.

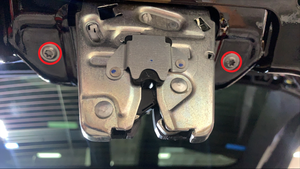

  3. Remove the bolts (x2) that attach the liftgate latch to the liftgate.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T30 socket

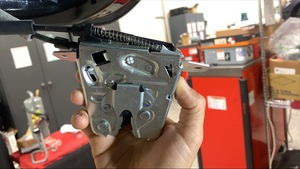

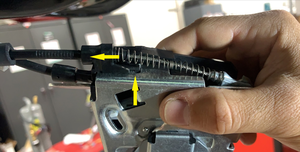

  4. Remove the liftgate latch from the liftgate, and then release the liftgate cinch cable from latch arm.
    Informational PurposesAn informational icon, calling your attention
    Note

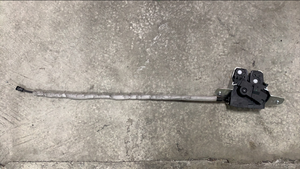

    Handle carefully so as to not cause damage to the emergency release cable.

Install

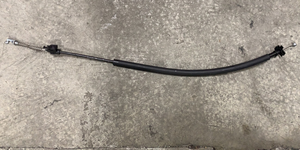

  1. Install new liftgate cinch cable onto the liftgate latch.
  2. Position the liftgate latch onto the liftgate, and then install the bolts (x2) that attach the liftgate latch to the liftgate.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T30 socket

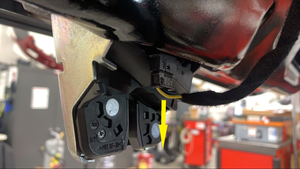

  3. Connect the liftgate latch electrical connector.
  4. Install the liftgate cinching actuator. See Actuator - Cinching - Liftgate (Remove and Replace).
