Cover - Catch Basin - Active Spoiler - LH (Remove and Replace)
Correction code
11700052
0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door and lower the LH front window.
- Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
- Remove the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace).
- Remove the liftgate upper trim. See .
-

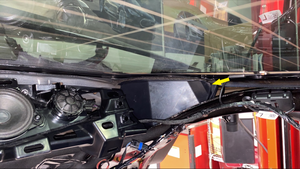

Remove the LH active spoiler catch
basin cover.
Install
-
Install the LH active spoiler catch
basin cover.

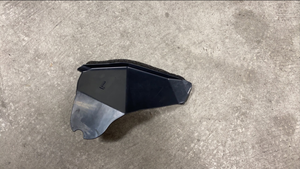

NoteMake sure the foam padding is seated properly against the LH rear upper liftgate corner.
- Install the liftgate upper trim. See .
- Install the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace).
- Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace).
- Raise the LH front window and close the LH front door.
