Trim - Liftgate Trough - LH (Remove and Replace)

Correction code 12270402 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH liftgate stop. See Stop - Liftgate - LH (Remove and Replace).

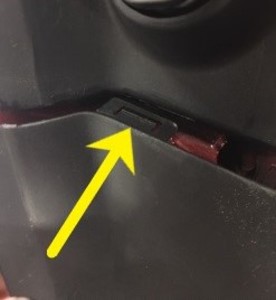

  2. Release the tab that attaches the LH side of the rear fascia liftgate trough garnish to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Lift up on the outer section where the upper trough and lower trough meet. Use caution to prevent damage to the trough trim.

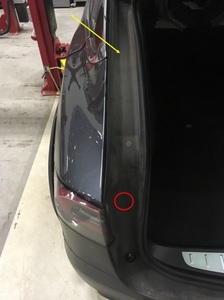

  3. Release the clip and adhesive strips (x5) that attach the LH liftgate trough trim to the vehicle, and then remove the trim from the vehicle.

Install

  1. Use IPA wipes to clean and remove adhesive residue from the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute of dry time.
  2. Remove the adhesive backing, position the LH liftgate trough trim onto the vehicle, and then secure the clip and adhesive strips (x5) that attach the trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Partially lift the main seal for better access.
  3. Secure the tab that attaches the LH side of the rear fascia liftgate trough garnish to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify the trim is flush to the rear fascia and body.
  4. Install the LH liftgate stop. See Stop - Liftgate - LH (Remove and Replace).
