Bracket - Rear Door Trim - Upper - Rear - LH (Remove and Replace)

Correction code 15134802 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH falcon wing door.
  2. Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  3. Remove the LH rear door trim upper panel. See Panel - Door Trim - Rear - Upper - LH (Remove & Replace).

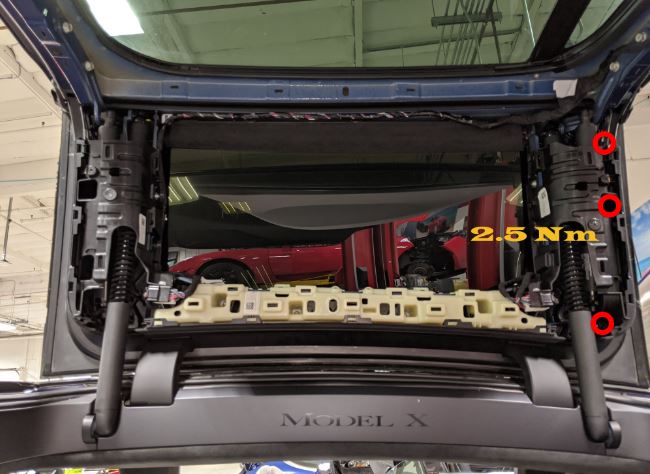

  4. Remove the outer bolts (x3) that attach the LH rear upper rear door trim bracket to the vehicle.
    2.5 Nm (1.8 lbs-ft)

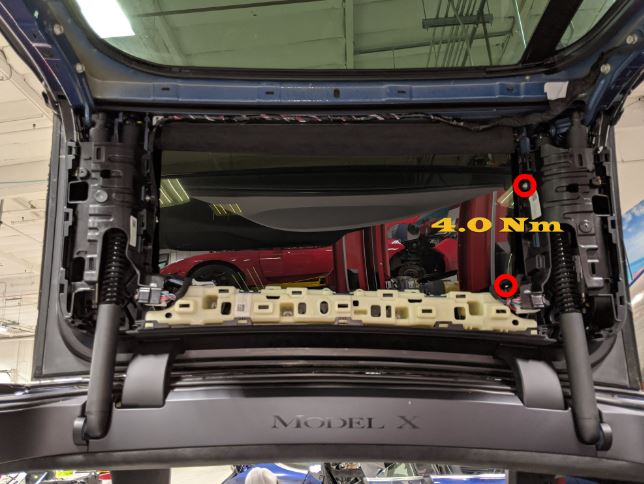

  5. Remove the inner bolts (x2) that attach the LH rear upper rear door trim bracket to the vehicle.
    4 Nm (2.9 lbs-ft)
  6. Release the harness clip from the LH rear upper rear door trim bracket, and then remove the bracket from the vehicle.

Install

  1. Position the LH rear upper rear door trim bracket on the vehicle, and then install the inner bolts (x2) that attach the bracket to the vehicle.
    4 Nm (2.9 lbs-ft)
  2. Install the outer bolts (x3) that attach the LH rear upper rear door trim bracket to the vehicle.
    2.5 Nm (1.8 lbs-ft)
  3. Install the harness clip on the LH rear upper rear door trim bracket.
  4. Install the LH rear door trim upper panel. See Panel - Door Trim - Rear - Upper - LH (Remove & Replace).
  5. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  6. Close the LH falcon wing door.
